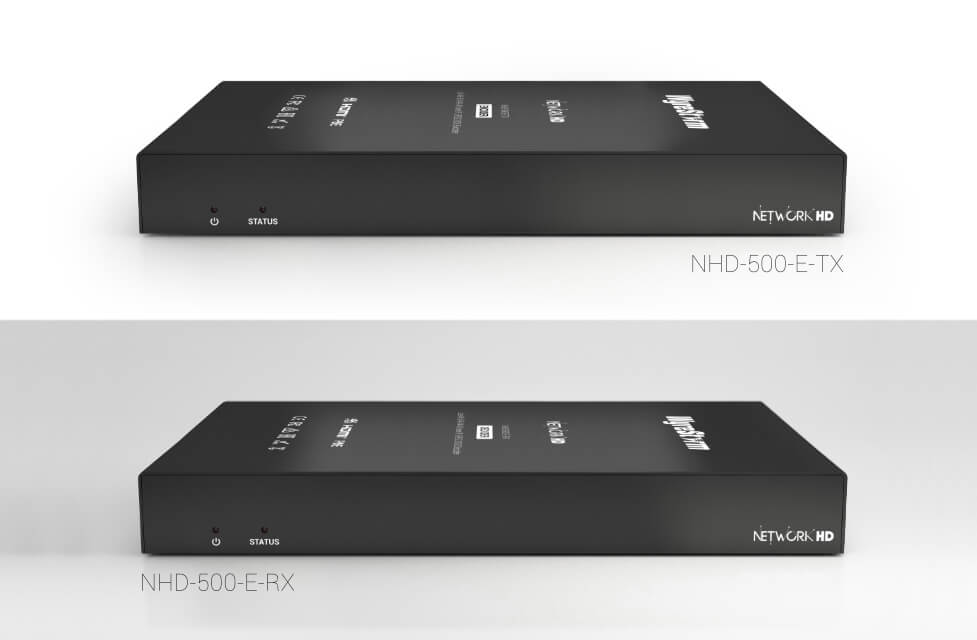

The NHD-500-E encoder and decoder enhance the NetworkHD 500 series by providing an economical 4K60 solution. The “E” variations remove many of the I/O found on the standard encoder and decoder and retain only the core functionalities that suite most applications. This helps avoid an over-specified hardware solution while still offering interoperability between all other 500 series components, enabling system designs to be better tailored to exact needs.
1
of
2
Loading...
Wyrestorm | SKU:
NHD500ERX
Wyrestorm Lite 4K60Hz Decoder | 4K60Hz 4:4:4 | 1GbE | Dolby Vision & HDR (NHD500ERX)
Sold As: EACH
Wyrestorm Lite 4K60Hz Decoder | 4K60Hz 4:4:4 | 1GbE | Dolby Vision ...
Description
Description
AUDIO & VIDEO

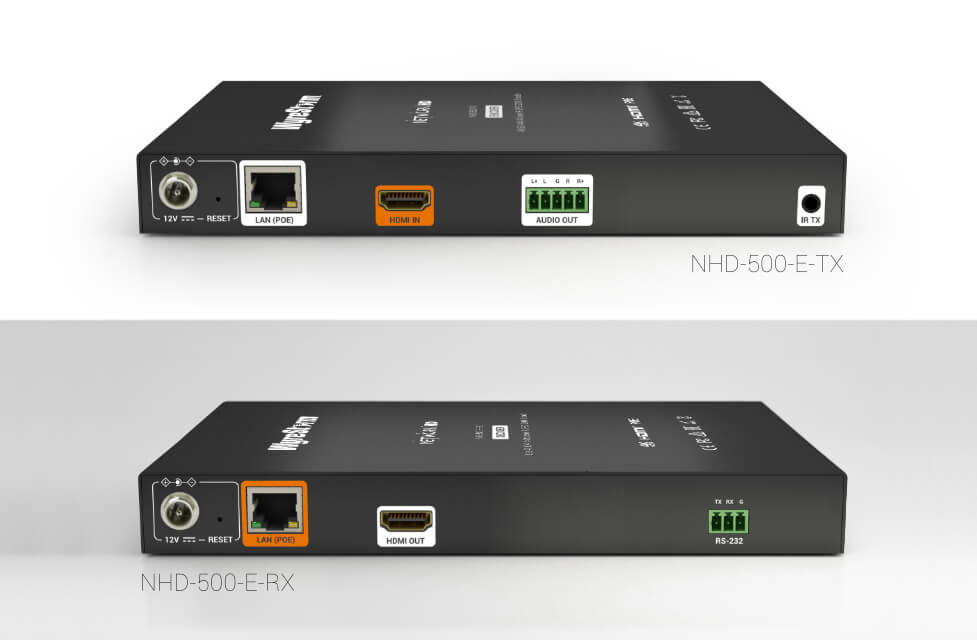

Inputs/Outputs
TX:
1x HDMI 2.0b Input
1x 5-Pin Balanced Audio Output
RX:
1x HDMI 2.0b Output
Video Resolution (Max)
5120x2160p@50/60Hz 4:2:0 CVT
5120x1440p@50/60Hz 4:2:0 CVT
4096x2160p @ 60Hz 8bit 4:4:4 or RGB
3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision
3840x 2160p @ 60Hz 10bit 4:2:2 HDR10/HLG
1920x1080p @60Hz 12bit
Audio Formats
HDMI passthrough: up to Dolby Atmos & DTS:X
ARC: up to Dolby Digital Plus 5.1 or DTS 5.1
Supported Standards
RGB | DCI | BT.2020
Maximum Pixel Clock
600Mhz
Output Video Encoding
JPEG 2000
Encoding Data Rate
Max 850Mbps (configurable)
End-to-End Latency
4ms video latency @4K60(pass-through mode) | 1-2 video frames latency (scaler/VW mode)
COMMUNICATION & CONTROL
HDMI
HDMI 2.0b | HDCP 2.2 | CEC | EDID | ARC
LAN
1x 1GbE 8-Pin RJ45
IR
1x 3.5mm TX | API Programmable (TX only)
RS-232
1x 3-Pin Phoenix Connector | 2-way | API Programmable (RX only)
Security Protocols
AES 256 | SSH | HTTPS
POWER
Power Supply
12V DC 1A | 802.3af PoE Compliant
Additional Features
- Balanced audio de-embed on encoder provides convenient distribution of audio to external systems
- Less than a single frame a latency (16ms) when in passthrough mode allows content to be distributed without any perceivable delay.
- Routable serial on decoder allows control of peripheral equipment such as displays or projectors
- JPEG 2000 compression delivers visually lossless video transmissions
- Intuitive management and configuration via the NHD-CTL-PRO
- Compatible with the NHD-0401-MV multiview processor
