Wyrestorm  |  SKU: CABHAOC15P

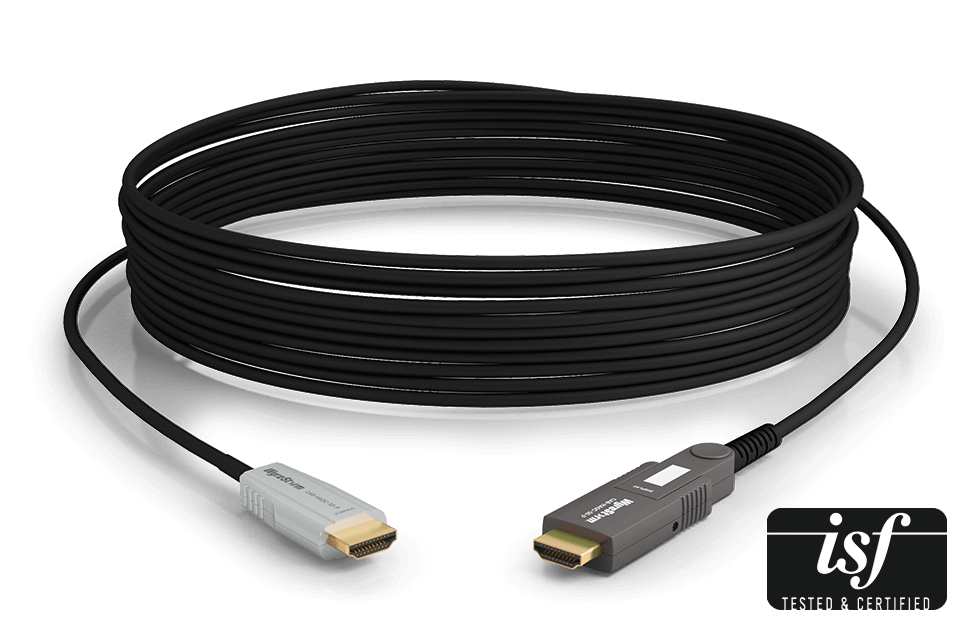

15m/49ft HDMI 2.0 AOC | Detachable Head | 24Gbps | 4K60Hz | Dolby Vision & HDR | ARC, CEC, ALLM & VRR | ISF Certified | Plenum (CABHAOC15P)

Sold As: EACH

  Availalable to order: Typical lead time for Wyrestorm is 5-7 business days from order date. Express delivery is 2-3 days (aditional fees apply for express delivery).

Description

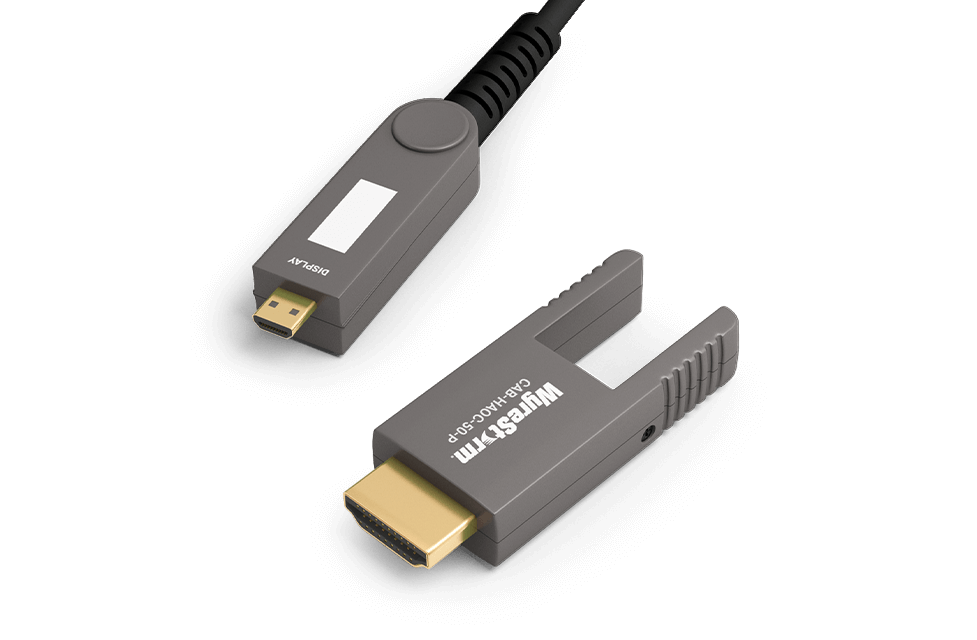

The WyreStorm HAOC is a next generation HDMI cable designed for the next generation of 4K and 5K HDR content. It offers a unique feature set in both delivering uncompressed HDMI content at up to 24Gbps and compatibility with emerging HDMI technologies such as ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate) using the latest in optical transmission technology. Now established as the most powerful form of HDMI extension, WyreStorm active optical cables offer the best of both worlds: pixel-perfect long distance transmission of content and native HDMI communication. This model features a detachable RX head and is certified for fire safety.



Transmission Encoding

Uncompressed AOC

End to End Latency

10μs

Max Transmission Bit Rate

24Gbps (4-core, 6Gbps per lane)

VIDEO

HDMI

(v2.0b) TMDS | 600MHz Maximum | (v2.1) FRL (Fixed Rate Link) | 16b/18b encoding

Input

1x HDMI: 19-pin type A Male

Output

1x HDMI: 19-pin type D Male | Type A Detachable Head

Maximum Data Rate

22.28 Gbps

Video Resolutions (Max)

1920 x 1080p @120Hz
2560 x 1440p @144Hz
3840 x 2160p @60Hz 10bit HDR 4:2:0
3840 x 2160p @60Hz 12bit HDR 4:2:2
3840 x 2160p @60Hz 10bit HDR 4:4:4
3840 x 2160p @60Hz 10bit HDR RGB
5120 x 2880p @30Hz 10bit HDR 4:4:4

Supported Standards

DCI | Static HDR | HDR10+ | Dolby Vision | HLG | SL-HDR1 | PQ | BT.2020 | BT.2100

VIDEO

Audio Formats

2ch PCM | Multichannel LPCM | DTS-X | Dolby Atmos

Maximum Sampling Rate

192KHz

Maximum Audio Channels

32

Audio Return Channel (ARC)

Supported

COMMUNICATION & CONTROL

HDCP

Pass-through, 2.3 Supported

EDID

Pass-through, RX>TX

Ethernet

100Mbps Supported

Consumer Electronics Control (CEC)

Supported

Variable Refresh Rate (VRR)

Supported

Auto Low Latency Mode (ALLM)

Supported

POWER

Power Supply

Passive 4.5v~5.5v VCC (From Connected Source)

Max Power Consumption

250mW

Specifications
  • Unit of Measure
    EACH
  • Class
    HDMI Cables
