Wyrestorm | SKU:
MX0808SCLv2

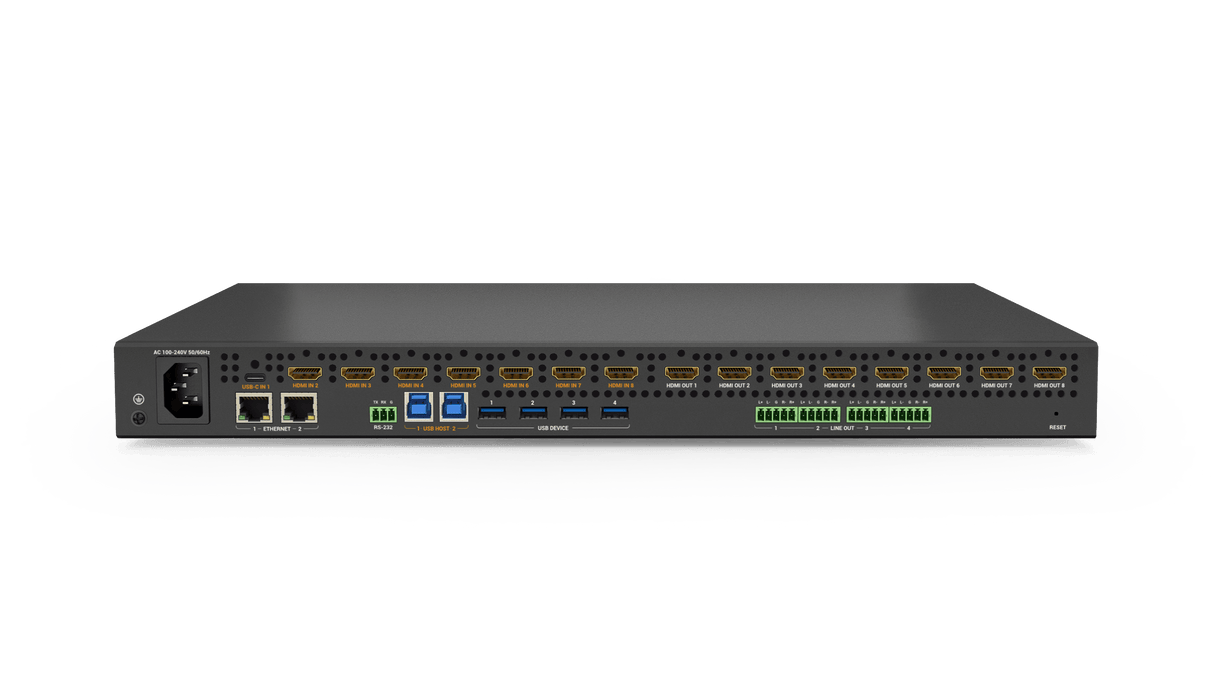

Wyrestorm 5K30Hz 8x8 Seamless Scaling HDMI Matrix w/ USB-C | 5K30Hz 4:4:4 | 4K60Hz 4:4:4 | HDR (MX0808SCLv2)
Sold As: EACH
Wyrestorm 5K30Hz 8x8 Seamless Scaling HDMI Matrix w/ USB-C | 5K30Hz...
Description
Description
The MX-0808-SCL is a sophisticated HDMI matrix switcher designed for fast Seamless switching. Perfectly suited for professional environments such as corporate training rooms, hotel meeting spaces, and academic classrooms, this device boasts an integrated 4K60 scaler on each HDMI output, scaling from 480p to 2160p. Additionally, it features a comprehensive USB-C input . delivering support for 4K60 video, a 1GbE passthrough network connection, and PD3.0 USB host charging up to 60 watts, ensuring compatibility and ease of use across a variety of devices and setups.
Inputs
1x USB-C Input
7x HDMI In: 19-pin type A
2x USB-B Host
Outputs
8x HDMI Out: 19-pin type A
4x USB-A Device Port
4x 5-Pin Audio Terminal Port
Video Encoding
Uncompressed 18Gbps
Audio Formats
2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos
Video Resolution (Max)
1920x1080p @60Hz 16bit
3840x2160p @60Hz 10bit 4:2:2 HDR10/10+
3840x2160p @60Hz 12bit 4:2:0 Dolby Vision
3840x2160p @50Hz 10bit 4:2:2 HLG
4096x2160p @60Hz 8bit 4:4:4
5120×2160 @30Hz
Supported Standards
DCI | RGB | HDR10 | HDR10+ | Dolby Vision | HLG | BT.2021
Max Pixel Clock
600MHz
COMMUNICATION & CONTROL
HDMI
HDMI 2.0 | HDCP 2.2/2.3 | EDID | CEC
RS-232
1x 3-pin Phoenix
LAN
1x 8-pin RJ-45 for API control (Telnet, TLS, HTTP/HTTPS for webUI)
Reset
Via API, WebUI or Pin-Hole reset button
