Wyrestorm | SKU:
NHD600ERX

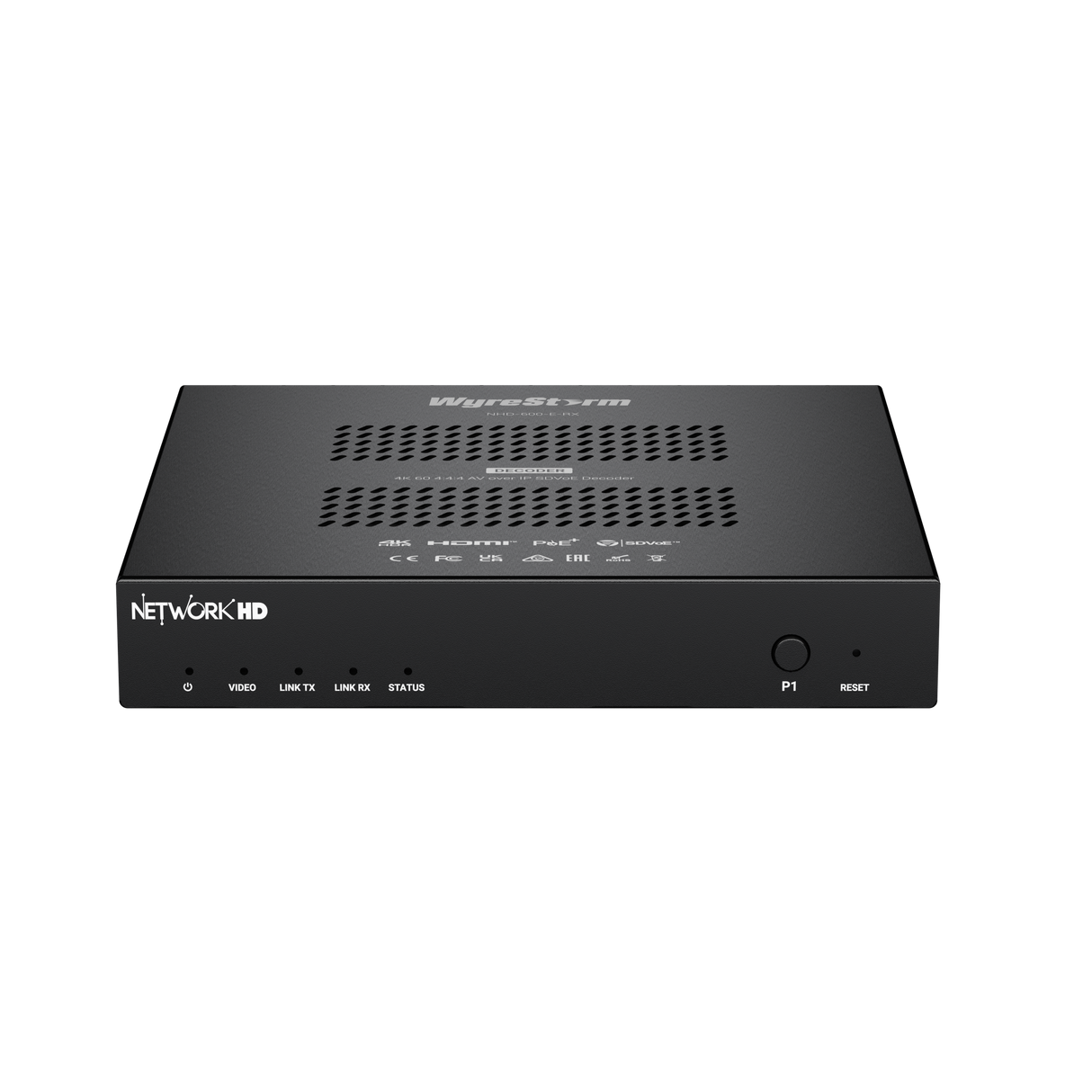

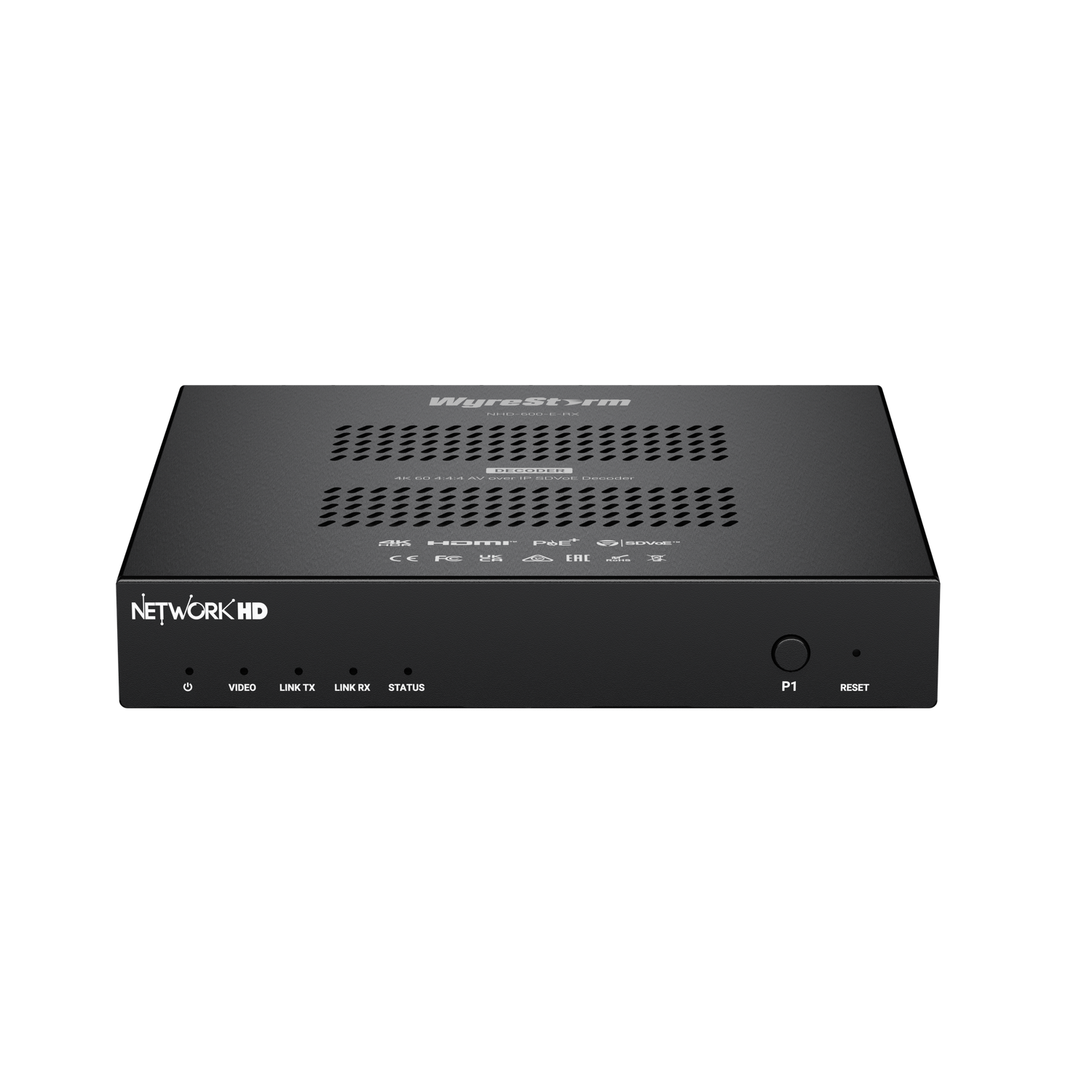

Wyrestorm 4K60Hz SDVoE Decoder | 4K60Hz 4:4:4 | 10G RJ45 | Dolby Vision & HDR (NHD600ERX)
Sold As: EACH
Wyrestorm 4K60Hz SDVoE Decoder | 4K60Hz 4:4:4 | 10G RJ45 | Dolby Vi...
Description
Description

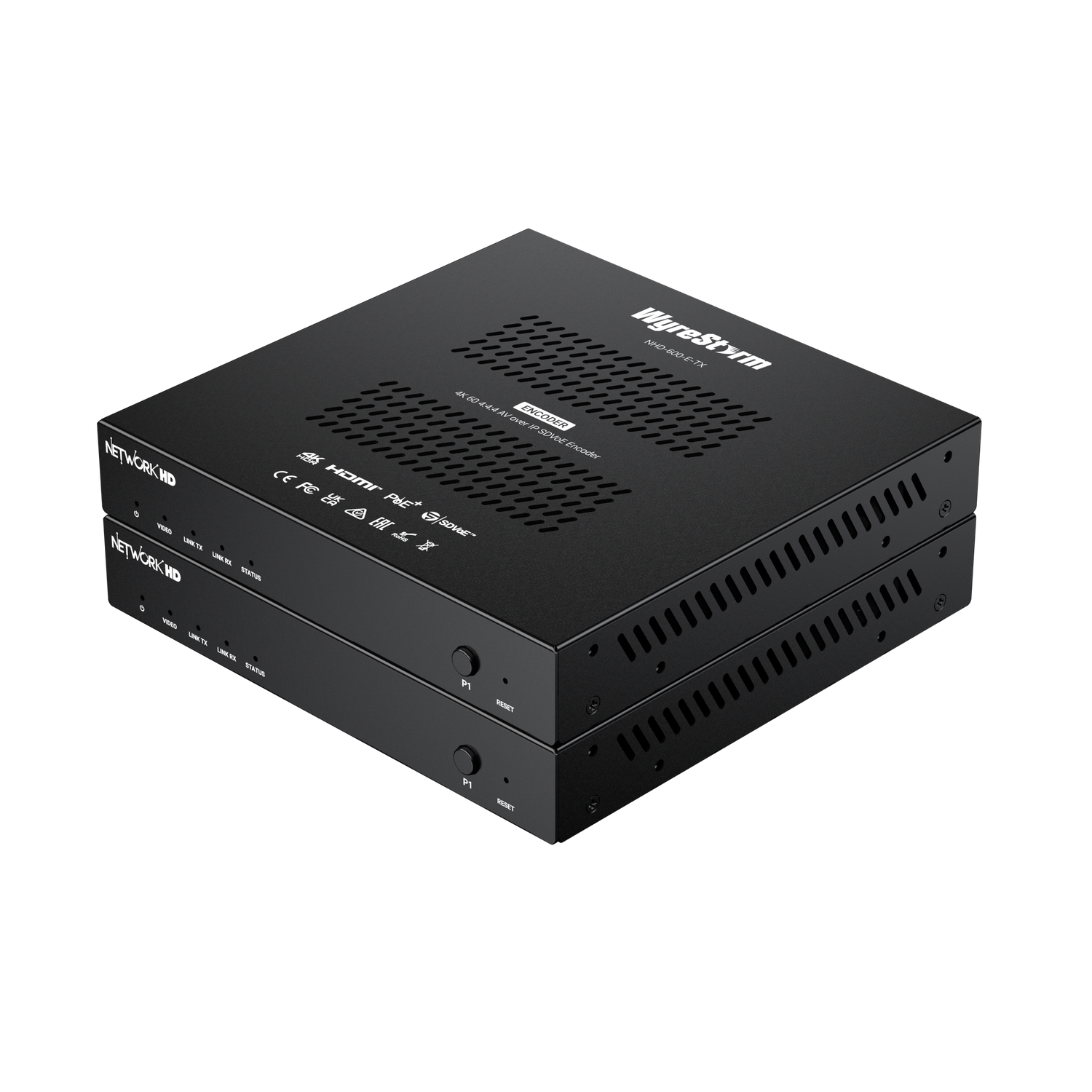

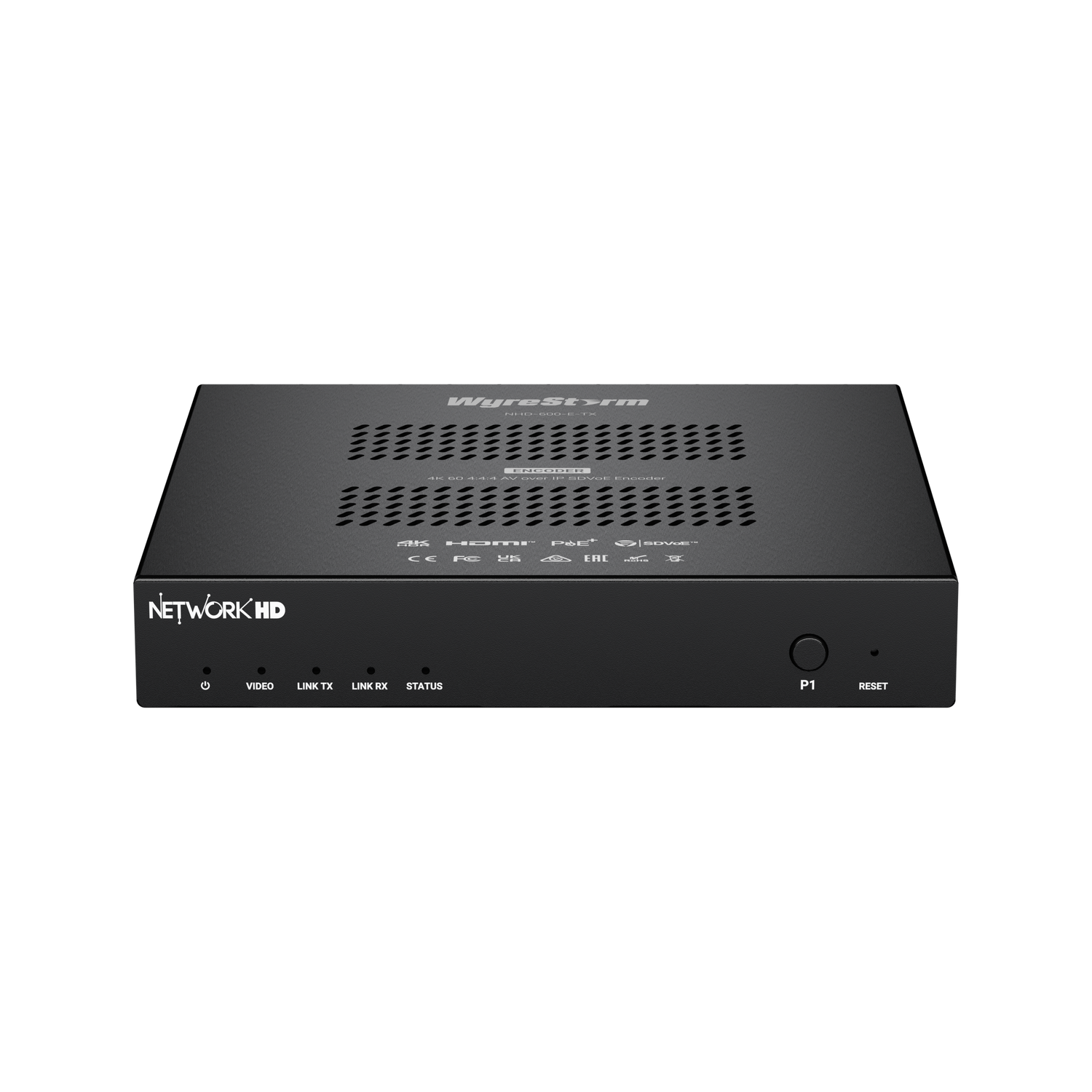

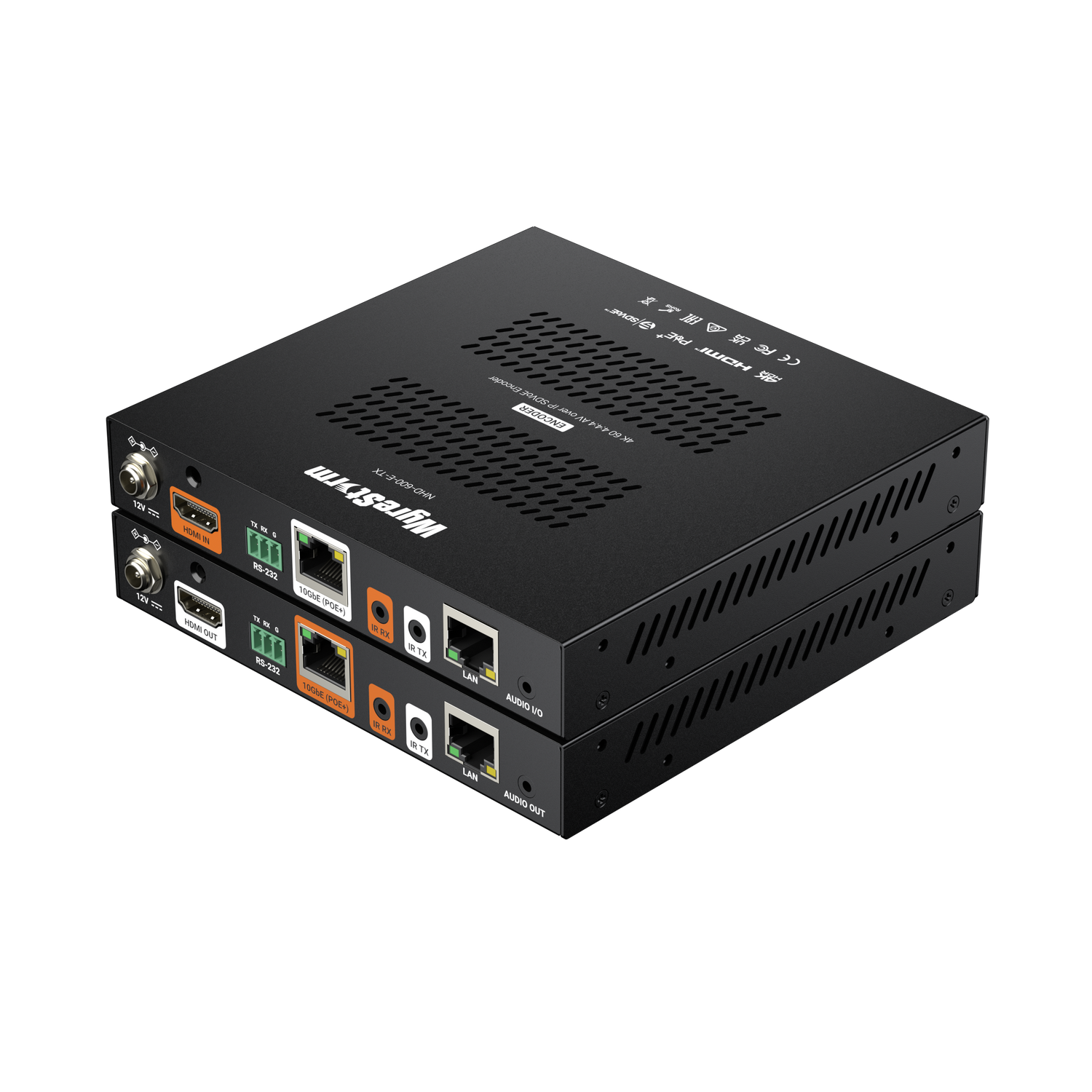

The NHD-600-E encoder and decoder delivers cost-optimized, high-performance SDVoE AV over IP transmission and reception. The “E” variations remove some of the I/O found on the standard encoder and decoder and retain only the core functionalities that suite most applications. Engineered for installations requiring pixel-perfect 4K60 4:4:4 video with zero-frame latency, this series supports robust 10GbE network operation with PoE+ power and a flexible AV control suite.
Designed as the economic extension of the NHD-600 family, the NHD-600-E enables integrators to deploy reliable AV distribution for point-to-point and scalable matrix applications without unnecessary complexity or cost.

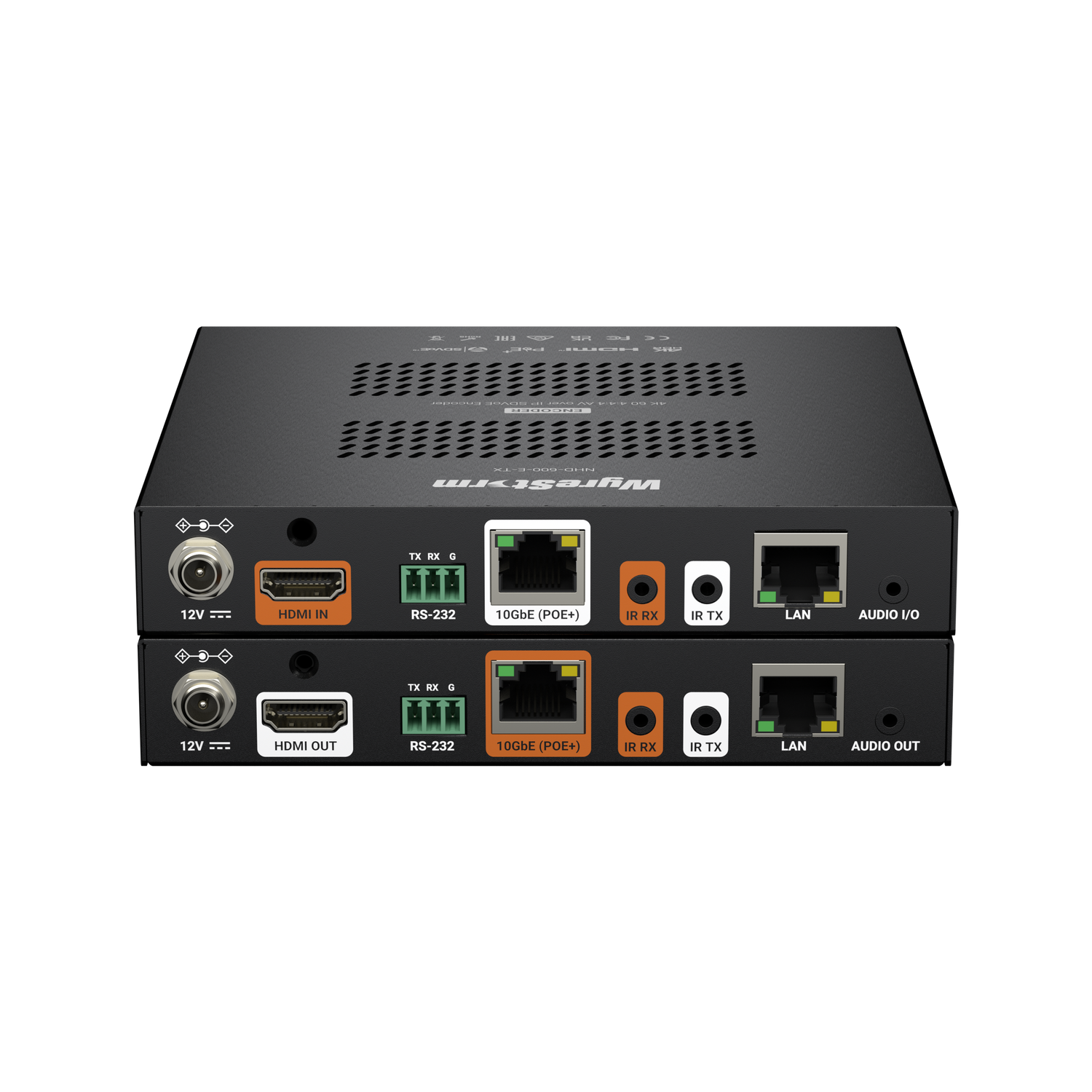

AUDIO & VIDEO
Inputs
TX:
1x HDMI 19-pin HDMI type A
1x 3.5 mm TRS jack connector, Analog audio input
1x 10GbE 8-pin RJ45
RX:
1x 10GbE 8-pin RJ45
Outputs
TX:
1x 3.5 mm TRS jack connector, Analog audio output (de-embed from HDMI input)
Unbalanced stereo audio
RX:
1x HDMI 19-pin HDMI type A
1x 3.5 mm TRS jack connector, Analog audio output Unbalanced stereo audio
Both HDMI and Analog outputs allow discrete audio routing from any available NHD-600 Encoder on the same network.
Video Encoding
SDVoE Pixel Pipeline
1080p@60Hz 8bit – 3.4Gbps
4K @30Hz 4:4:4 8bit – 6.4Gbps
4K @60Hz 4:4:4 8bit – 8.7Gbps (with light compression)
End to End Latency
Genlock Mode: Uncompressed = 30us, Compressed <120us
Fast Switch Mode: 1~2 video frames = min. between 16.7 – 33.4ms @ 60fps
Video Resolution (Max)
*5120x2160p @60Hz 4:2:0
*5120x2160p @30Hz 4:4:4
*5120x1440p @30Hz 4:4:4
4096x2160p @ 60Hz 8bit 4:4:4 or RGB
3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision
3840x 2160p @ 60Hz 10bit 4:2:2 HDR10/HLG
1920x1080p @60Hz 12bit
*5K resolution only support in genlock mode
Audio Formats
LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192 kHz
Dolby True HD, up to 7.1,192kHz
DTS-HD Master, up to 7.1,192kHz
Dolby Digital AC-3 (DVD format)
DTS version 1 (DVD format)
COMMUNICATION & CONTROL
HDMI
HDCP 2.2, 2.3 | CEC
RS232
1x 3-pin Phoenix Connector | 2 Way | Broadcast | Routed | API Programmable
Ethernet
1x 1GbE LAN 8-pin RJ45
IR
1x IR TX 3.5mm TS Mono Jack | API Programmable
1x IR RX 3.5mm TRS Stereo Jack | API Programmable
HDMI
HDCP 2.2, 2.3 | CEC
POWER
Power Supply
12V 2A DC PSU | 802.3at PoE+ Compliant
Max Power Consumption
Max: 24w | Average: 10w
ENVIRONMENTAL
Operating Temperature
0 ~ +45°C (32 ~ +113 °F), 10% ~ 90%, non-condensing
Storage Temperature
-20 ~ +70°C (-4 ~ +158 °F), 10% ~ 90%, non-condensing
Dimensions & Weight
145.2mm x 150mm x 25mm (L x W x H)
Safety and Emission
CE | FCC | RoHS | RCM | EAC
Additional Features
- Lossless SDVoE video transmission over standard 10GbE networks
- Supports resolutions up to 4096×2160 @ 60Hz
- Full HDMI 2.0 and HDCP 2.2/2.3 compliance
- True zero-frame latency for real-time AV applications
- Point-to-point extender and scalable IP matrix operation
- PoE+ (802.3at) power support for simplified installation
- Flexible EDID management for source compatibility
- Bidirectional IR passthrough over the network
- Bidirectional RS-232 passthrough over the network
- HDMI audio pass-through with multi-channel support
- Analog audio de-embedding and routing
- Compatible with managed 10GbE network switches
- Auto-pairing support for fast point-to-point setup
- Fail-safe firmware upgrade protection
