Wyrestorm | SKU:
NHD500TXv2

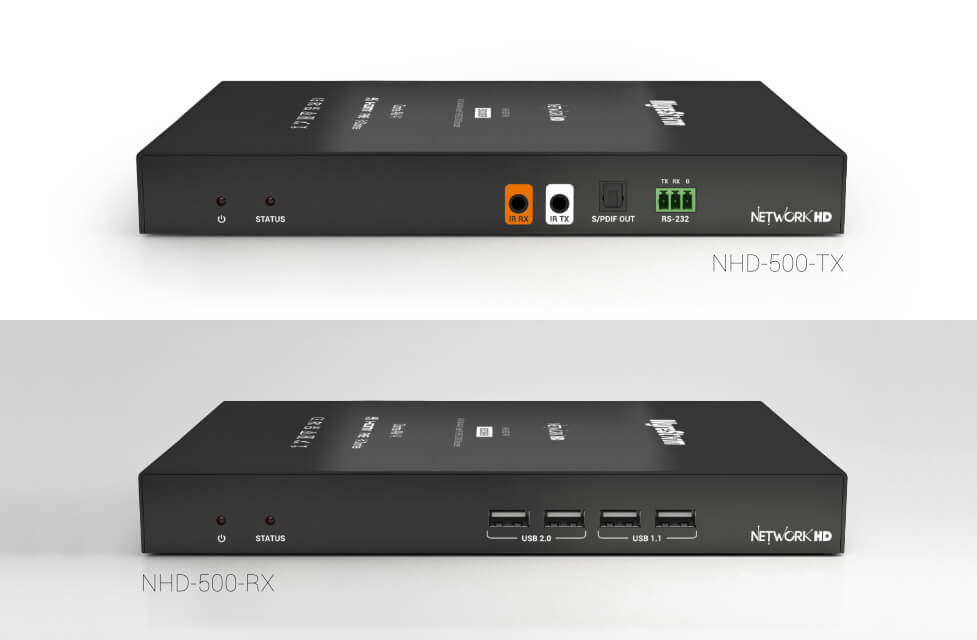

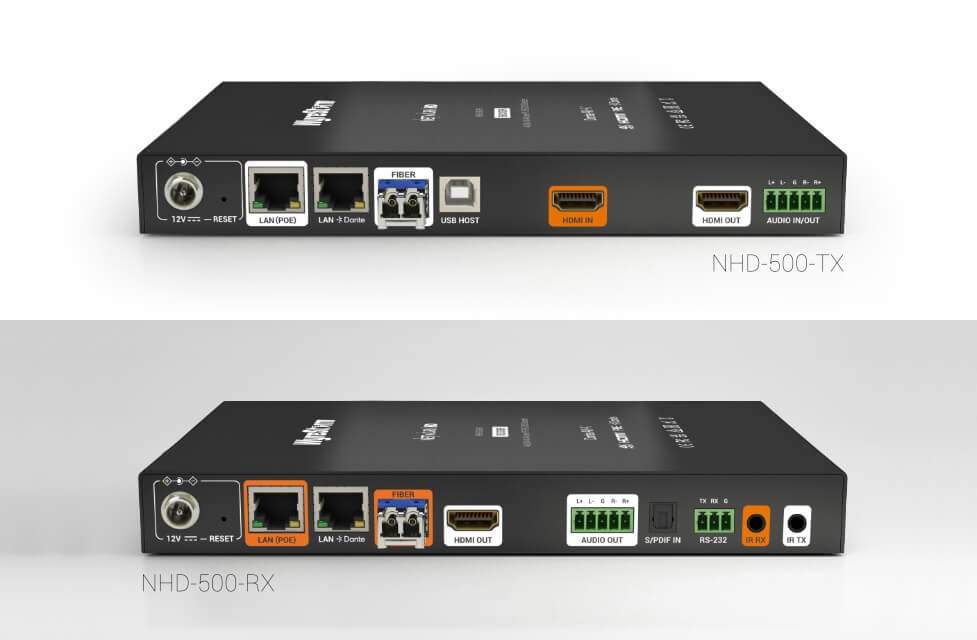

Wyrestorm 4K60Hz Encoder | 4K60Hz 4:4:4 | 1GbE | HDMI Loop out (NHD500TXv2)
Sold As: EACH
Wyrestorm 4K60Hz Encoder | 4K60Hz 4:4:4 | 1GbE | HDMI Loop out (NH...
Description
Description
Inputs
TX:
1 x HDMI 2.0b
1 x 3.5mm TRS Audio
RX:
1 x S/PDIF (Toslink)
Outputs
TX:
1 x HDMI 2.0b
1 x 5-pin Balanced Audio
1 x S/PDIF Digital
RX:
1 x HDMI 2.0b
1 x 5-Pin Balanced Audio
Video Resolution (Max)
5120x2160p@50/60Hz 4:2:0 CVT
5120x1440p@50/60Hz 4:2:0 CVT
4096x2160p @ 60Hz 8bit 4:4:4 or RGB
3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision/HDR/HLG
1920x1080p @60Hz 12bit
Audio Formats
Passthrough: 2ch PCM and up to DTS:X and Dolby Atmos
ARC: 2ch PCM and up to Dolby Digital+ and DTS 5.1
Dante/AES67: 2CH PCM
Supported Standards
DCI | RGB | USB
Maximum Pixel Clock
600Mhz
Output Video Encoding
JPEG 2000
Encoding Data Rate
Max 850Mbps
End-to-End Latency
4ms video latency (pass-through mode) | 1-2 video frames latency (scaler/VW mode)
COMMUNICATION & CONTROL
HDMI
HDMI 2.0 | HDCP 2.2 | CEC | EDID | ARC
LAN
1x 1GbE 8-Pin RJ45
1x 1Gb SFP:
(1000Base-SX: 550m using OM3 MMF)
(1000Base-LX: 5km using SMF)
(1000Base-LX10: 10km using SMF)
IR
1x IR TX 3.5mm TS Mono Jack | API Programmable
1x IR RX 3.5mm TRS Stereo Jack | API Programmable
RS-232
1x 3-Pin Phoenix Connector | 2-way | API Programmable
Security Protocols
AES 256 | SSH | HTTPS
USB
TX:
1 x USB 2.0 Type B
RX*:
2 x USB HID Type A
2 x USB 2.0 Type A (up to 200Mbps upstream)
POWER
Power Supply
12V DC 1A | 802.3at PoE+ Compliant
