Wyrestorm  |  SKU: MXV0404H2AKITv2

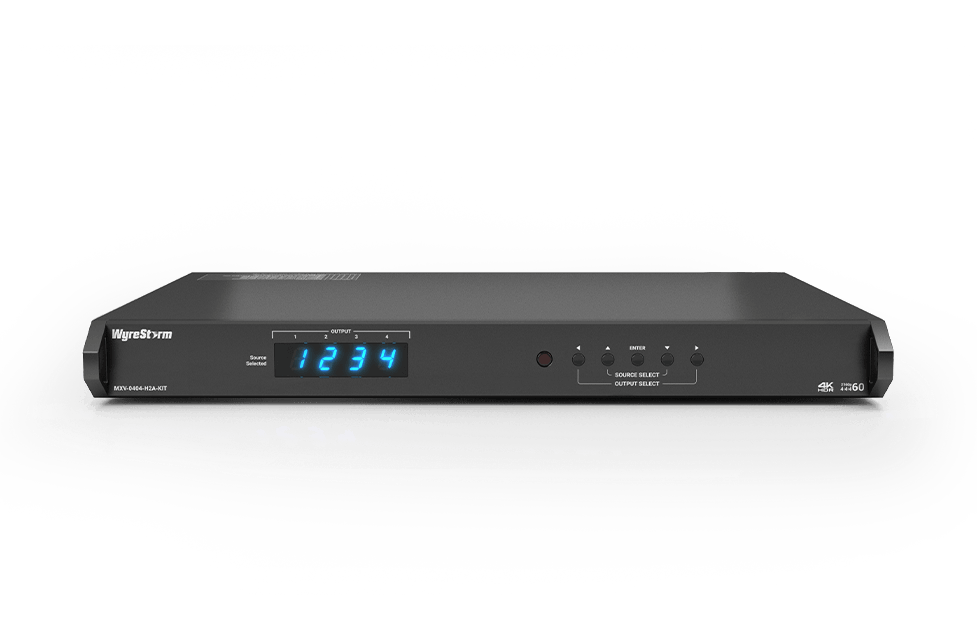

Wyrestorm 4K60Hz 4x4 HDBaseT Matrix | 4K60Hz 4:4:4 | Dolby Vision & HDR | PoH (MXV0404H2AKITv2)

Sold As: EACH

  Availalable to order: Typical lead time for Wyrestorm is 5-7 business days from order date. Express delivery is 2-3 days (aditional fees apply for express delivery).

Description

Offering transmission of 18Gbps HDMI content up to 35m/115ft by pairing HDBaseT with WyreStorm’s powerful lossless compression algorithm, the MXV-0404-H2A-KIT brings the familiar power of the WyreStorm H2-series to a compact 1U chassis. Unlike competing compression methods such as CSC, which permanently remove color data, WyreStorm’s VLC uses a lossless compression technology to ensure signal integrity.

With 4 HDBaseT zone outputs and a mirrored HDMI output offering CEC triggering for all 5 connected screens, this kit enhances the offering for the modern home or commercial installation. Internal audio switching allows audio breakout from source or zone output via S/PDIF and analog stereo ports. Being a second generation product, now two of the included receivers are upgraded to scaling receivers, RXV-35-SCL, allowing compatibility between 1080p screens and 4K sources and additional 2ch/5.1 audio breakouts.

AUDIO & VIDEO

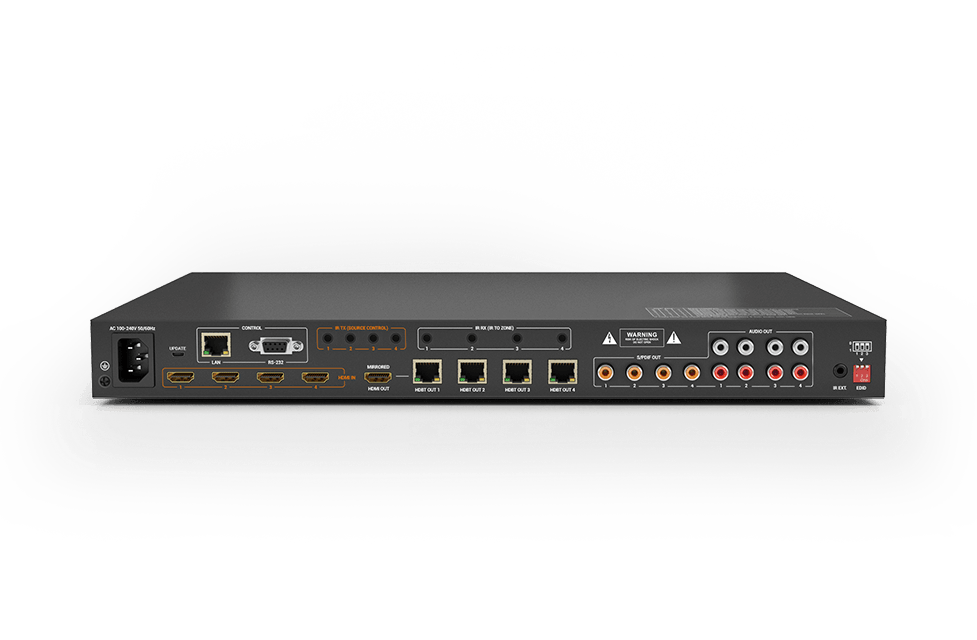

Inputs

4x HDMI In: 19-pin type A

Outputs

4x Audio Out: RCA Female Stereo (L/R)
4x S/PDIF Out: RCA Female
4x HDBT Out: 8-pin RJ-45 Female

Video Encoding

HDBaseT™ Class B

Encoding Data Rate

9.2Gbps

End to End Latency

10µs (micro seconds)

Audio Formats

Analog: 2ch Analog
S/PDIF: 2ch LPCM | Dolby Digital/DTS up to 5.1ch
HDMI: 2ch LPCM | Multichannel up to Dolby Atmos and DTS-X

Video Resolution (Max)

1920x1080p @60Hz 16bit
3840x2160p @60Hz 10bit 4:2:0 HDR
4096x2160p @60Hz 8bit 4:4:4

Supported Standards

DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100

Maximum Pixel Clock

HDMI: 600MHz | HDBaseT: 297MHz

COMMUNICATION & CONTROL

HDMI

HDMI 2.0 | HDCP 2.2 | EDID | CEC | DVI/D supported with adapter (not included)

HDBaseT

HDMI 2.0 | HDCP 2.2 | EDID | CEC | 1-way PoH | Bidirectional IR

CEC

CEC power triggering for connected screens – Requires CEC compatibility

IR

1x IR Ext: 3.5mm (1/8in) TRS Stereo
4x IR RX: 3.5mm (1/8in) TRS Stereo
4x IR TX: 3.5mm (1/8in) TS Mono – Bidirectional over HDBaseT

RS-232

1x RS-232: 9-pin DB9 Female

Ethernet

1x LAN: 8-pin RJ-45 Female

POWER

Power Supply

100~240V AC 50/60Hz

PoH

1-way Matrix to Receiver

Max Power Consumption

85W with 4 RXs Connected via PoH

  • Automatic (signal sensing) or manual (API operated) CEC power triggering of all connected screens or projectors (CEC compatibility required)
  • Assignable audio outputs allow audio to be de-embedded from sources or HDBaseT output via mirrored stereo RCA and S/PDIF ports
  • A/V Mute mode allows the routing of a signal to an output to be deactivated
  • API controlled standby mode allows the matrix to enter a low power state when not in use, cutting power consumption by up to 34%
  • Mirrored HDMI output allows connection of a local AVR, local screen or additional display over distance via an HDBaseT extender or hybrid optical HDMI cable
  • API triggered A/V mute allows a signal to be deactivated to any zone

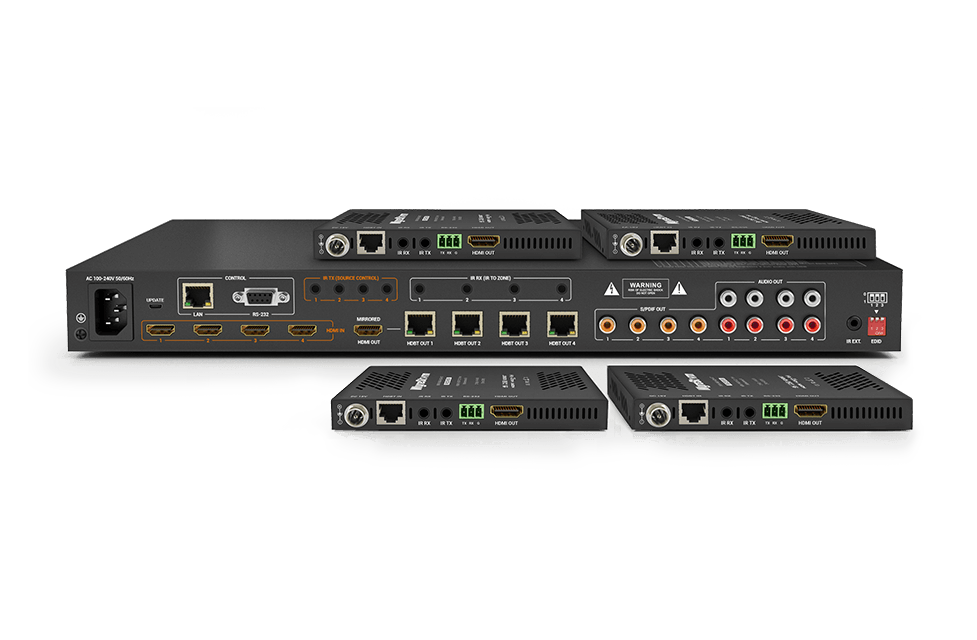

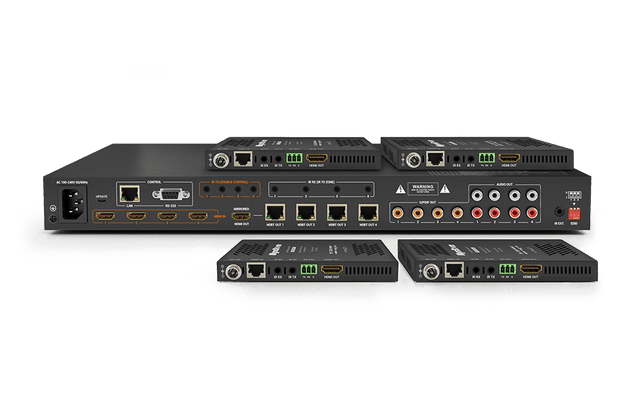

  • 4x PoH receivers included – a complete kit for quicker, easier and more reliable installation and AV distribution straight out of the box
  • Can be combined with WyreStorm EXP-CON-DAC-D digital audio converter to downmix Dolby Digital 5.1 content to mix stereo and surround sound zones
  • SmartEDID™ removes conflict when mixing 1080p & 4K displays by dynamically detecting display/source capabilities and automatically requesting the highest possible resolution for all displays
  • Additional EDID management through DIP switches for global setting or via WebUI for independent management of EDID per source
  • Central RS-232 control compatible major third party control systems with full integration protocols available for Crestron, AMX, RTI & Control4
  • Embedded WebUI allows installer setup and configuration and provides switching interface

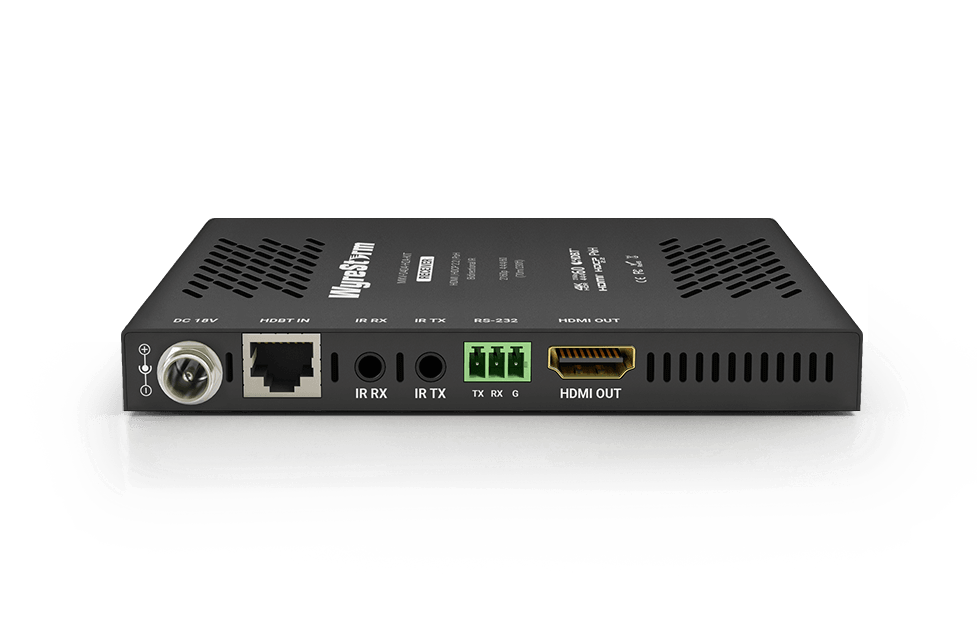

ADDITIONAL FEATURES ON RECEIVERS

  • 2x RXV-35-SCL scales 4K UHD content to 1080p displays
  • 2x RXV-35-4K outputting HDMI content at up to 2160p 4:4:4/60
  • Low profile chassis for quick, easy and flush installations
  • Multichannel audio supports 7.1 DTS:X and Dolby Atmos
  • Additional power connectivity via threaded bushings for both standard and locking DC power plugs
  • LED indication for visual power supply to receiver via PoH or mains, signal status to show established connection to display, HDBaseT link to matrix and HDCP confirmation to illustrate the presence of encryption within a signal



Specifications
  • Unit of Measure
    EACH
  • Class
    Matrixes
