Wyrestorm | SKU:
NHD500IWTXv2

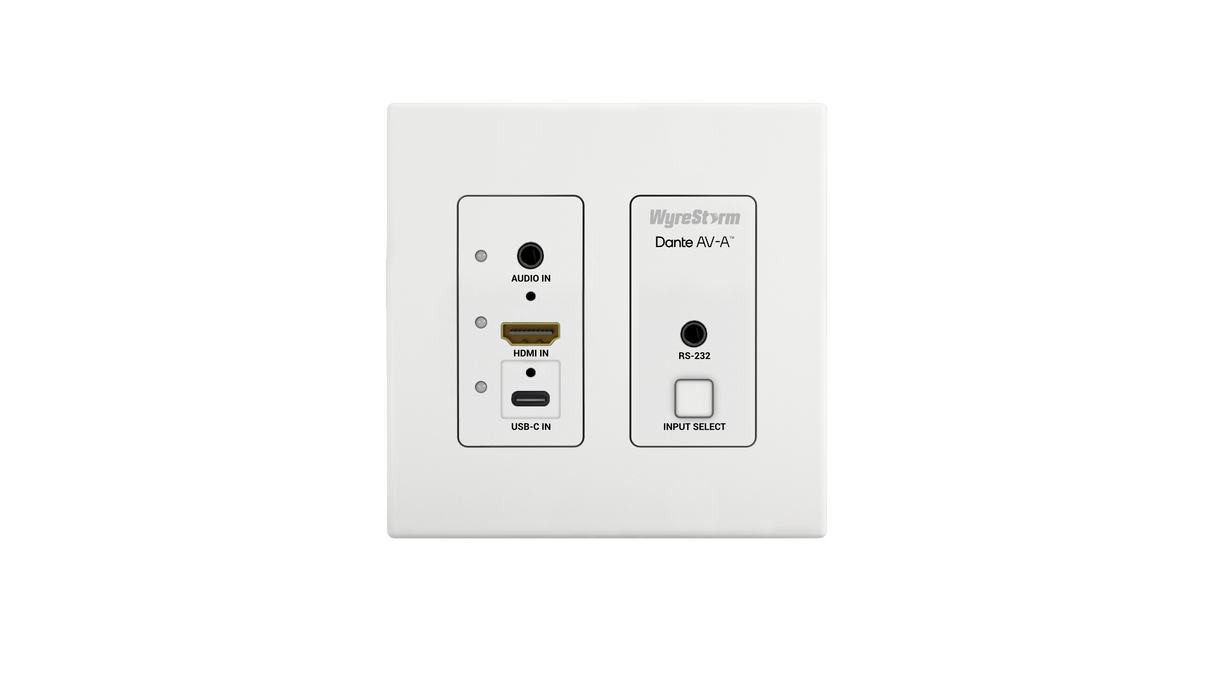

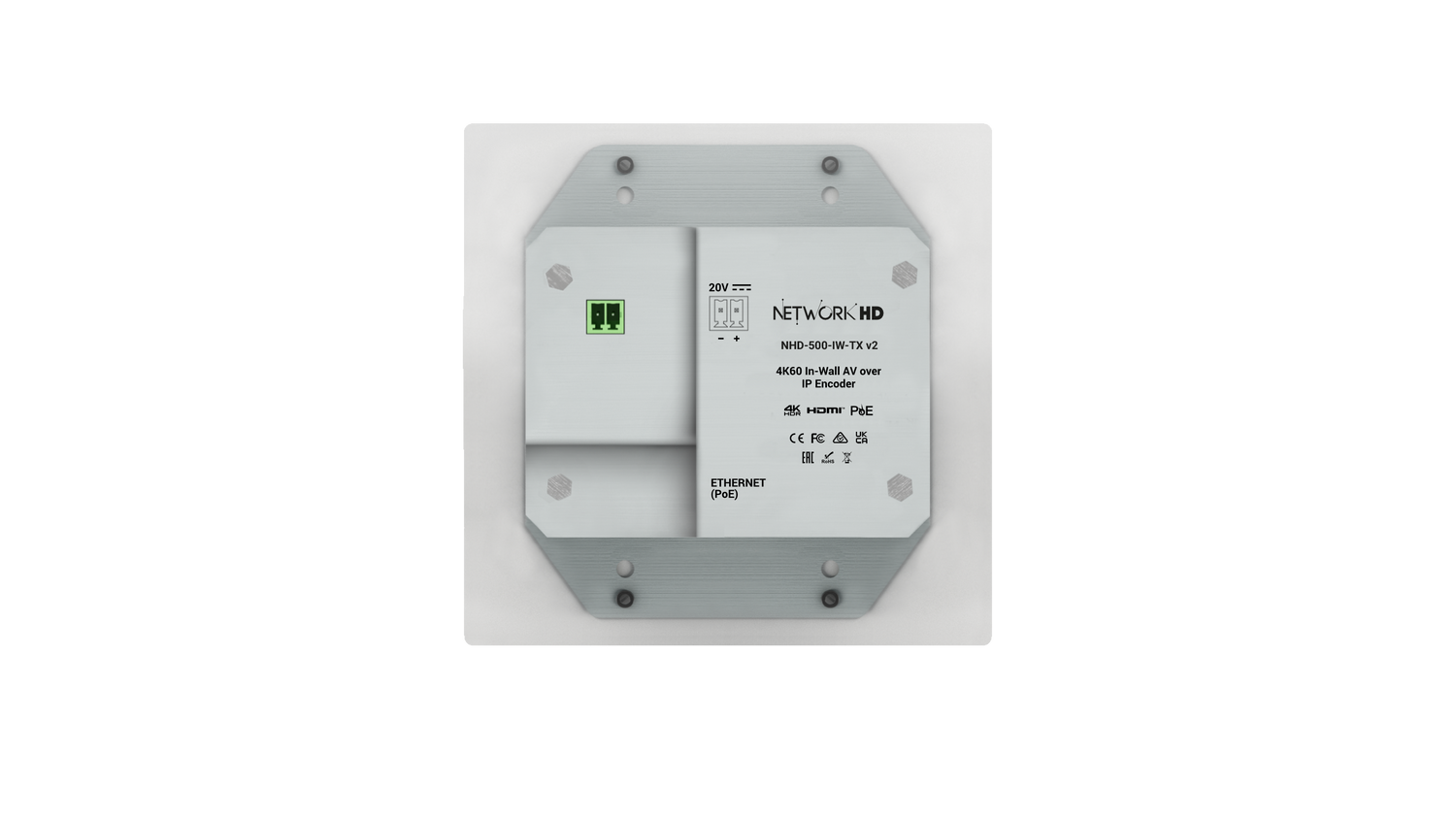

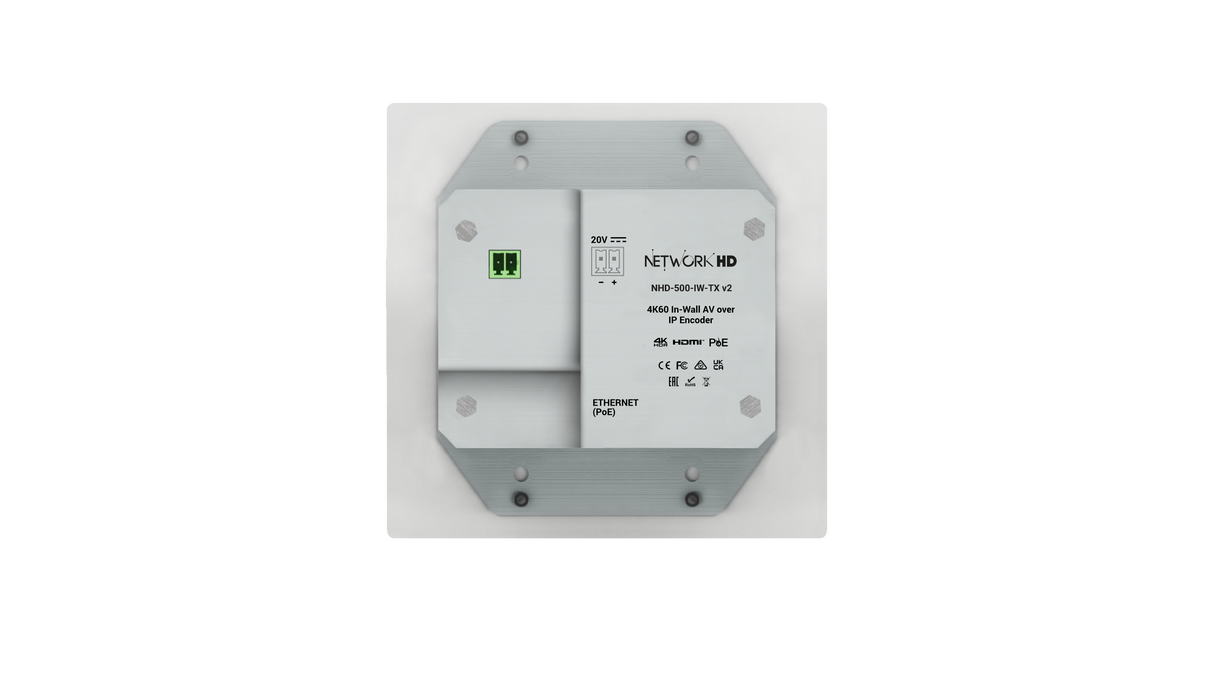

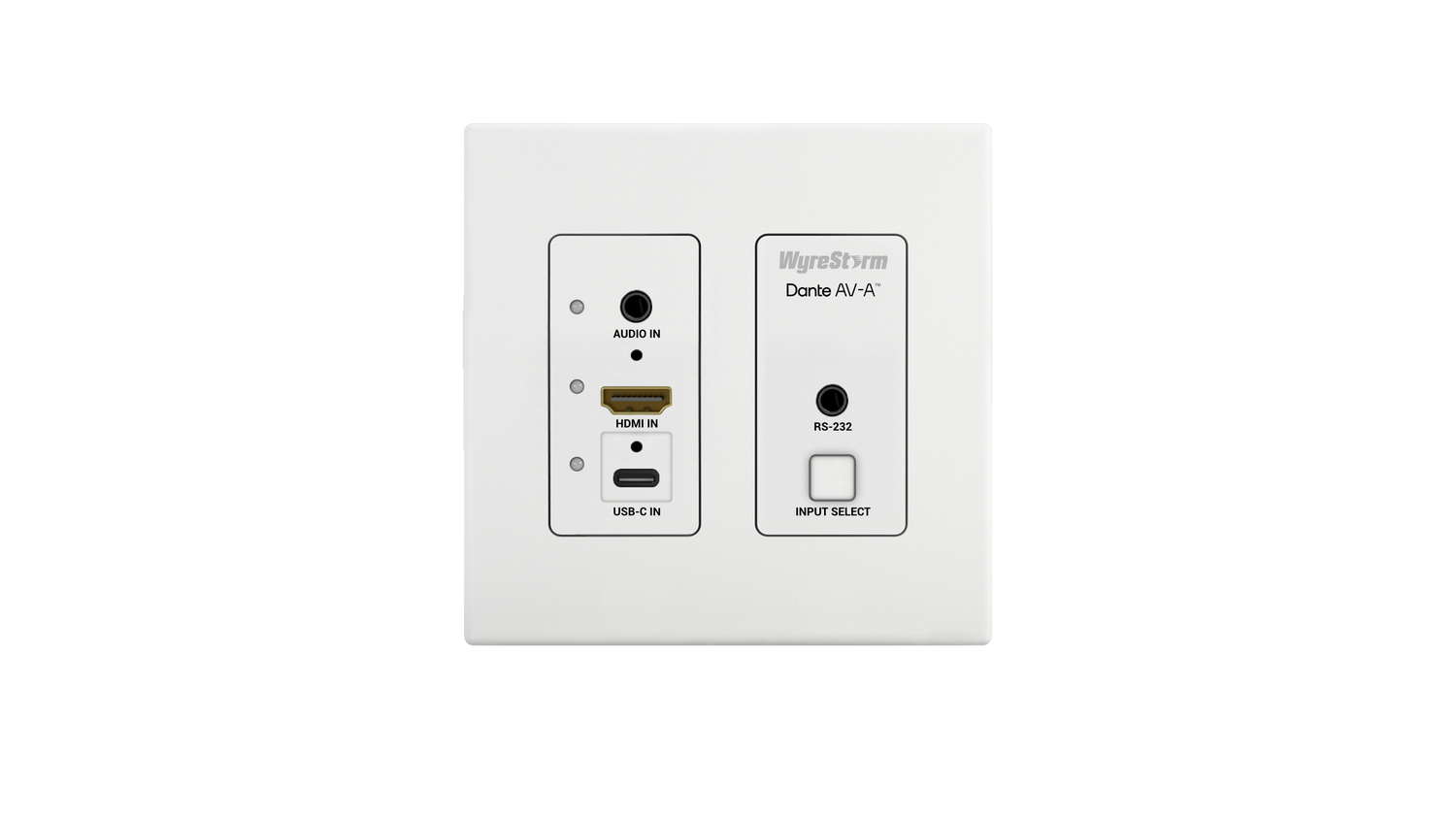

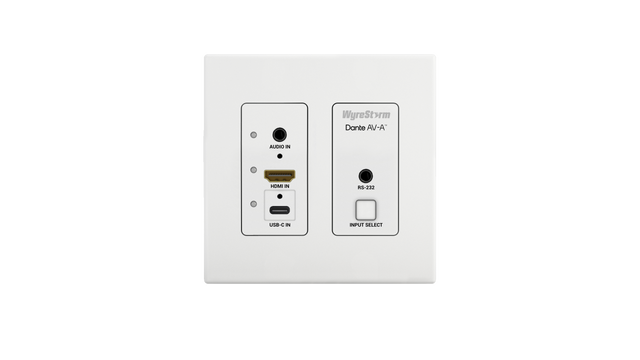

Wyrestorm 4K60Hz 2-Gang In-Wall Encoder | 4K60Hz 4:4:4 | 1GbE | HDMI & USB-C Inputs (NHD500IWTXv2)
Sold As: EACH
Wyrestorm 4K60Hz 2-Gang In-Wall Encoder | 4K60Hz 4:4:4 | 1GbE | HDM...
Description
Description
The NHD-500-IW-TX v2 brings versatility to your AV over IP applications. This 2-gang in-wall 500 series encoder features HDMI and USB-C switching inputs suited for connecting today’s modern laptops and tablets. Perfect for education or corporate environments, install this encoder in a wall, table, desk, podium or anywhere a remote input is needed. Integrated USB extension allows laptops to also connect to peripheral components such as conference cameras, smartboards/touchscreens and more.
Inputs/Outputs
1x HDMI In
1x USB-C In
1x 3.5mm TRS Analog In
Output Video Encoding
JPEG 2000
Encoding Data Rate
Max: 850Mbps (configurable)
End to End Latency
4ms video latency @4K60 (pass-through mode) | 1-2 video frames latency (scaler/VW mode)
Video Resolution (Max)
5120x2160p@50/60Hz 4:2:0 CVT
5120x1440p@50/60Hz 4:2:0 CVT
4096x2160p @ 60Hz 8bit 4:4:4 or RGB
3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision
3840x 2160p @ 60Hz 10bit 4:2:2 HDR10/HLG
1920x1080p @60Hz 12bit
Supported Standards
RGB | DCI | USB 1.1, 2.0 | BT.2020
Maximum Pixel Clock
600MHz
COMMUNICATION & CONTROL
HDMI
HDMI 2.0b | HDCP 2.2 | EDID
RS-232
1x 3.5mm | 2-way | API Programmable
Network
1x 1GbE RJ45
USB
1x USB-C Host
(Up to 200Mbps upstream)
Security Protocols
AES 256 | SSH | HTTPS
POWER
Power Supply
20V DC 6A | 802.3af PoE Compliant
Max Power Consumption
Max 15.4 | Average: 8w
- Supports encoding full 4K60 4:4:4 8bit or RGB content
- Dedicated stereo input for connecting external audio devices
- Auto or manual switching inputs
- USB-C 60w charging to laptop(with external power adapter)
- Hugely scalable I/O utilizing multicast technology
- Bidirectional RS-232 control of connected devices
- Batch firmware update and batch settings functions offers a massive reduction on installation times
