Wyrestorm | SKU:
NHD400ERXV2
Sold out

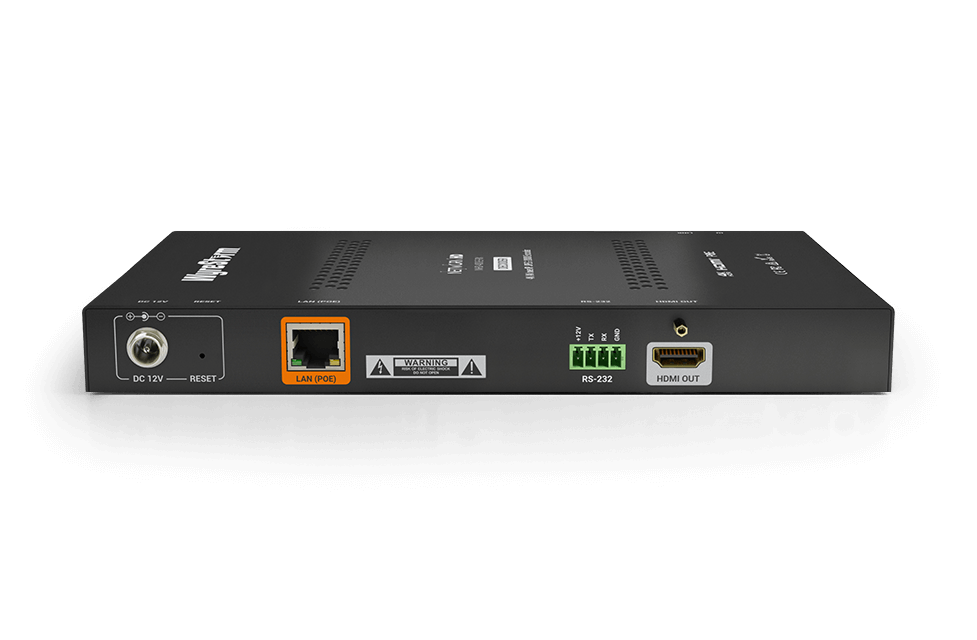

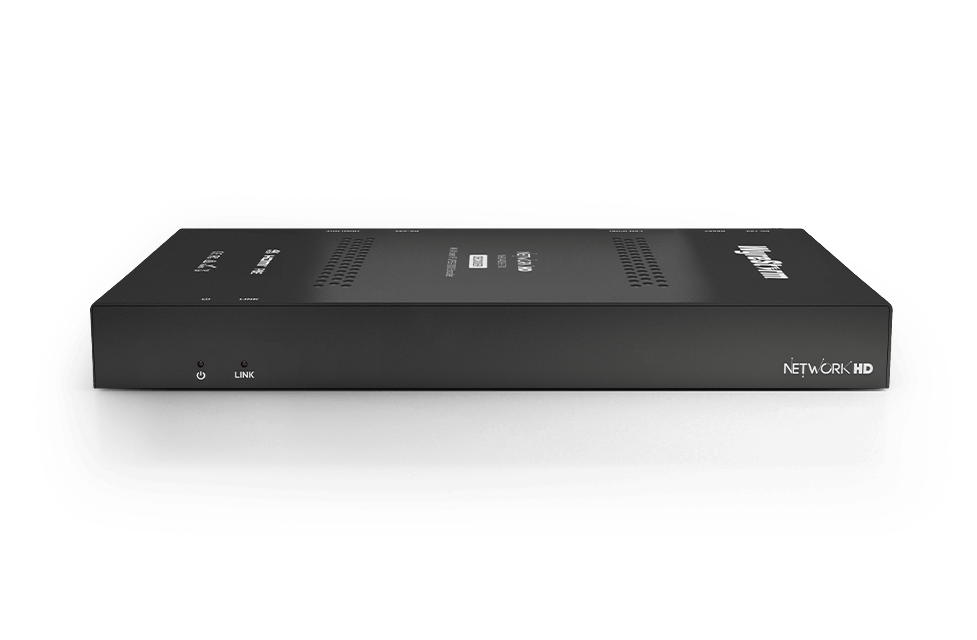

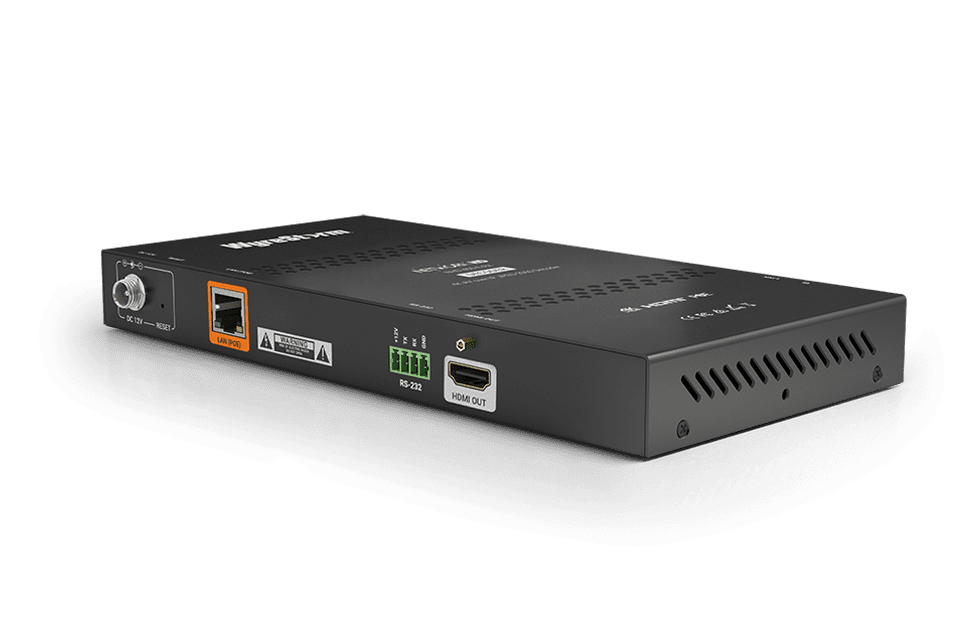

Wyrestorm Lite 4K60Hz Decoder | 4K60Hz 4:2:0 | 1GbE | HDR (NHD400ERX)
Sold As: EACH
Description
Description
WyreStorm brings stunning 4K HDR video, video resolution scaling, multi-channel audio and audio matrixing to IP with the NetworkHD 400 Series’ NHD-400-E-RX AVoIP decoder. The reduced cost Type E version removes some control ports but retains the 400 Series core features. Used in conjunction with any 400 Series encoder, the NHD-400-E-RX seamlessly handles mixed resolution sources, content and display devices for matrix and video wall functionality up to 16×16 with image rotation and bezel compensation.
Featuring incredibly low latency, the 400 Series is the ideal AV over IP solution for systems where high quality and low latency are key requirements, making it perfect for both residential and commercial applications.
Inputs
1x 8-pin RJ-45
Outputs
1x HDMI Out 19-pin type A
Audio Formats
2ch LPCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos
Output Video Encoding
JPEG 2000
Encoding Data Rate
Max: 850Mbps
End to End Latency (Max)
1 video frame latency (pass-through mode) 16ms @60fps 2 video frames latency (scaler/VW mode) 33ms @60fps
Video Resolutions (Max)
3840x2160p @60Hz 8bit 4:2:0
Supported Standards
HDR10 | HLG | BT.2020
Maximum Pixel Clock
300MHz
COMMUNICATION AND CONTROL
HDMI
HDCP 2.2 | CEC
Ethernet
1x LAN (PoE): 8-pin RJ-45 ANSI/TIA-568 8P8C, 1000Base-T, PoE PD (IEEE 802.3af)
RS-232
1x RS-232: 4-pin Phoenix | 2 Way (RX only) | Routed | API Programmable
POWER
Power Supply
12V DC 1A
PoE
IEEE 802.3af (15.4W at PSE)
Max Power Consumption
8W (with PSU)
