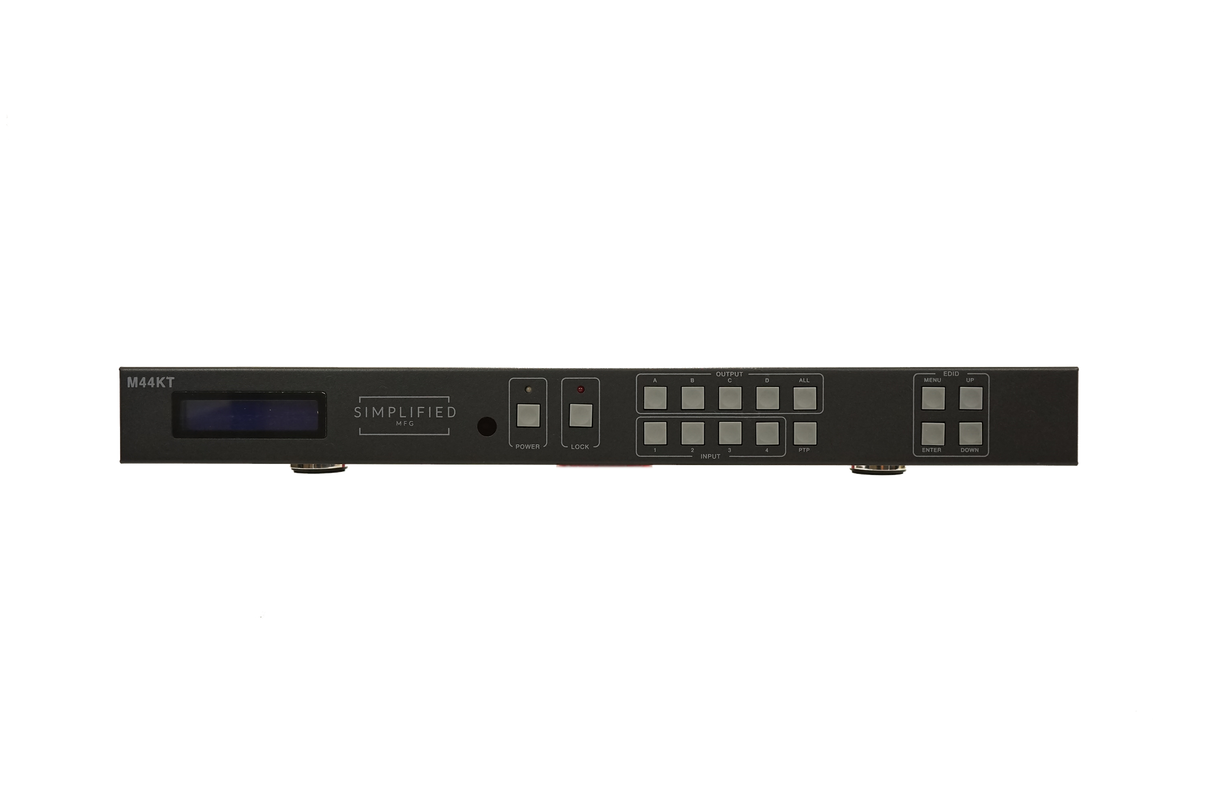

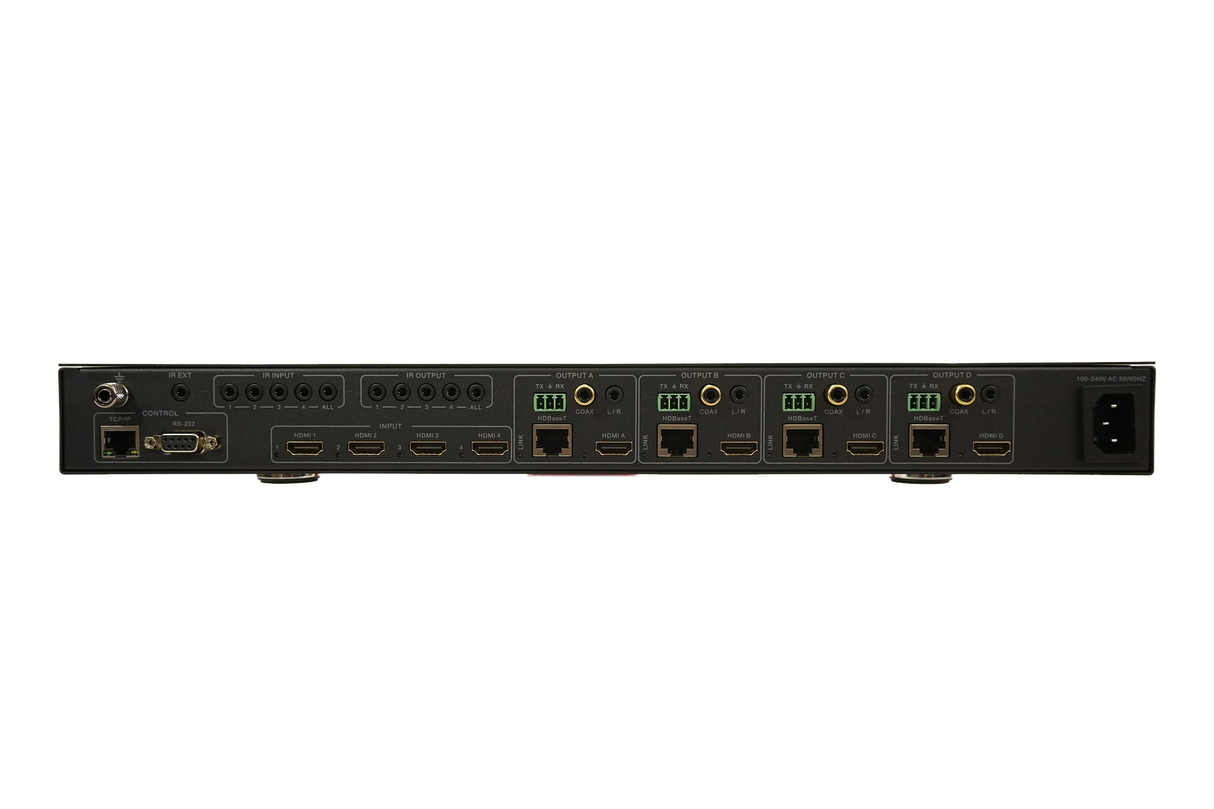

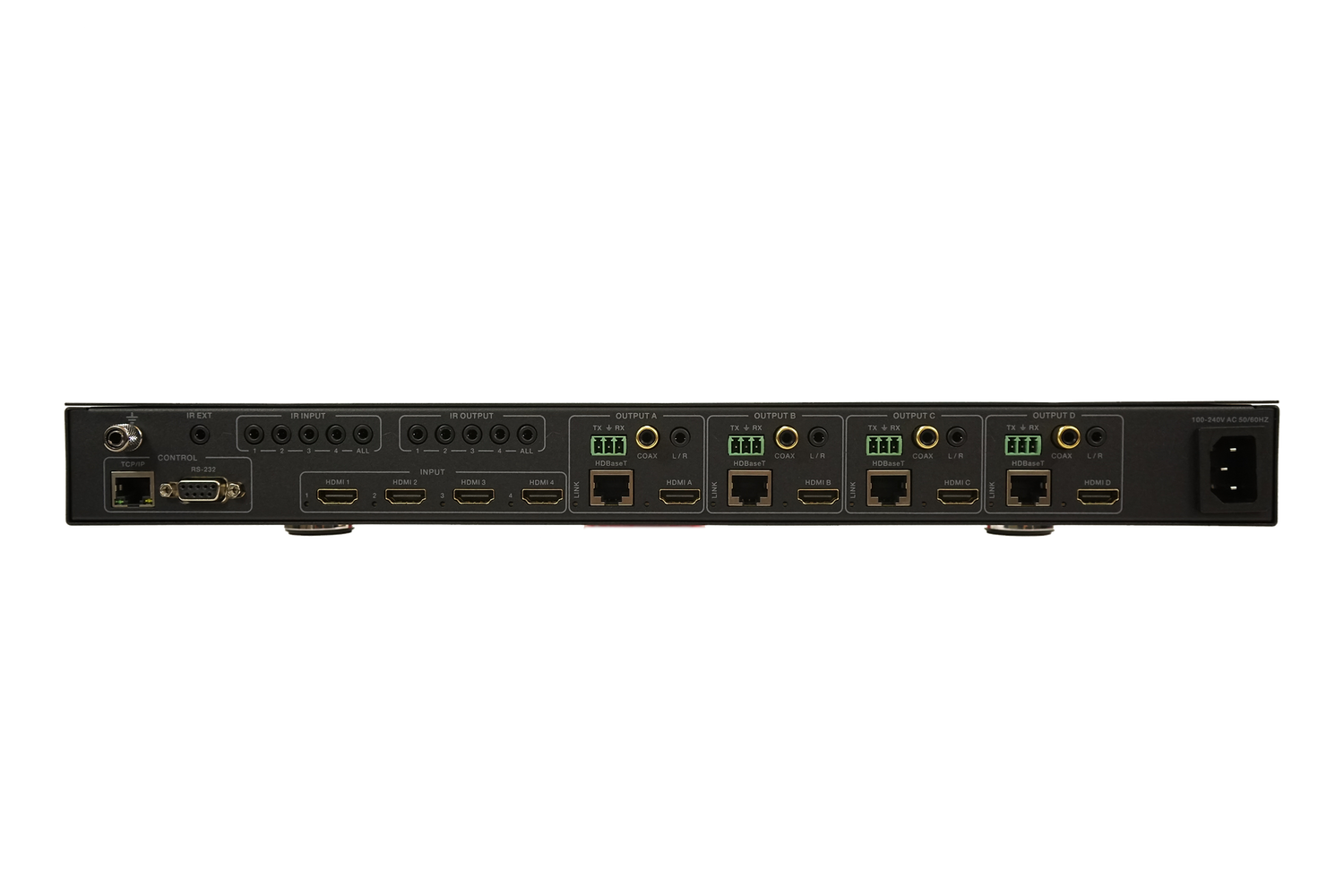

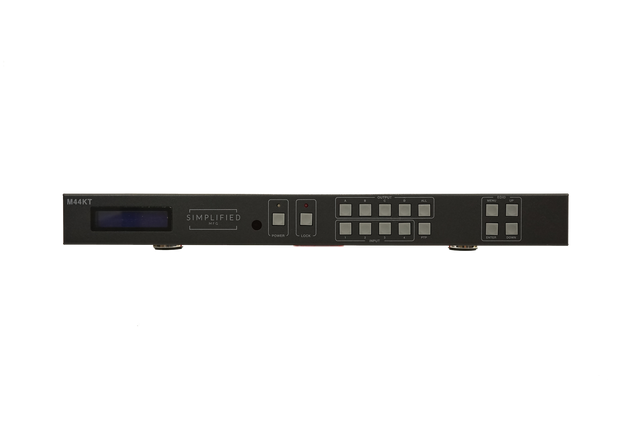

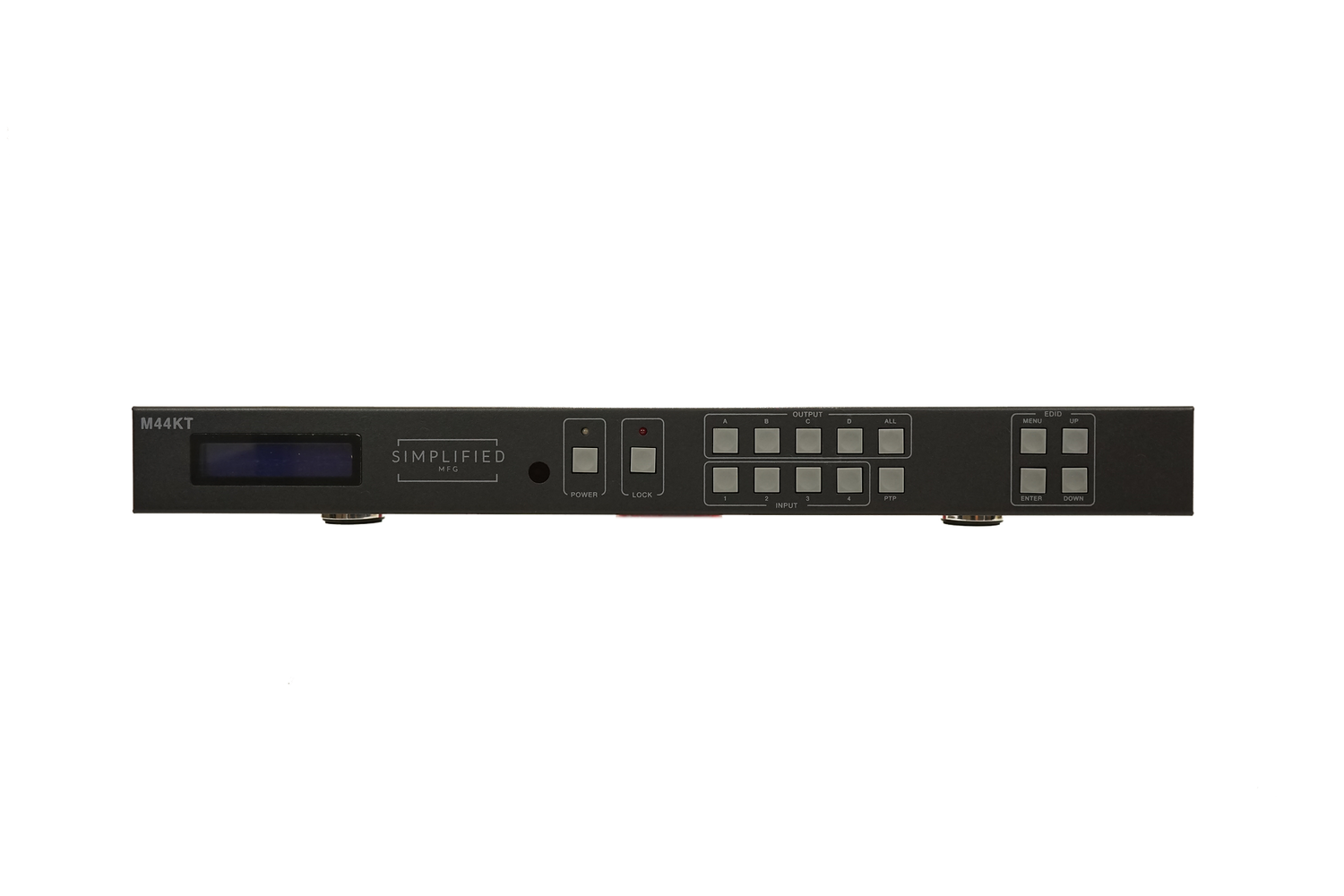

40m (@4K) 4x4 scaling HDMI matrix kit with 4 RX (M44KT)

HDBaseT 4x4 HDMI Matrix Kit over CAT5e/6/7

The M44KT is a HDBaseT 10.2gbps 4x4 HDMI Matrix with included 70m HDMI 1080p (40m 4K) over HDBaseT Receivers. This matrix switch features simultaneous CAT5e/6/7 and HDMI outputs connects four HDMI sources up to eight displays (two mirrored per output channel). The M44KT supports the transmission of video (1080p, 4Kx2K@30Hz, 4Kx2K@60Hz (4:2:0), and a myriad of other resolutions) while simultaneously supporting high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio. The HDBaseT receivers included in this kit will extend the HDMI signal up to 230ft/70m (1080p) or 131ft/40m(4K) for multi-room connectivity. The matrix also includes a signal tracing system for troubleshooting and a 3.5mm mini and Coaxial S/PDIF audio breakout per channel. This matrix also supports HDR8/10/10+. It works with Blue-Ray players, Set-Top boxes, Home Theater PCs, media players, streaming content devices, and game consoles that connect to an HDMI display. Any source is accessible at all times by any display by selecting it via the supplied IR Remote Control, RS-232, TCP/IP or by using the selection buttons on the front panel. This device supports High Definition Audio, and 3D signal compatibility.
