Roswell OFF-ROAD 750 Watt 1-Channel Amplifier - 750 Watts x 1 RMS @ 1 Ohm / 500 Watts x 1 RMS 2 Ohm (SD5001)

Roswell SKU: C960-21006

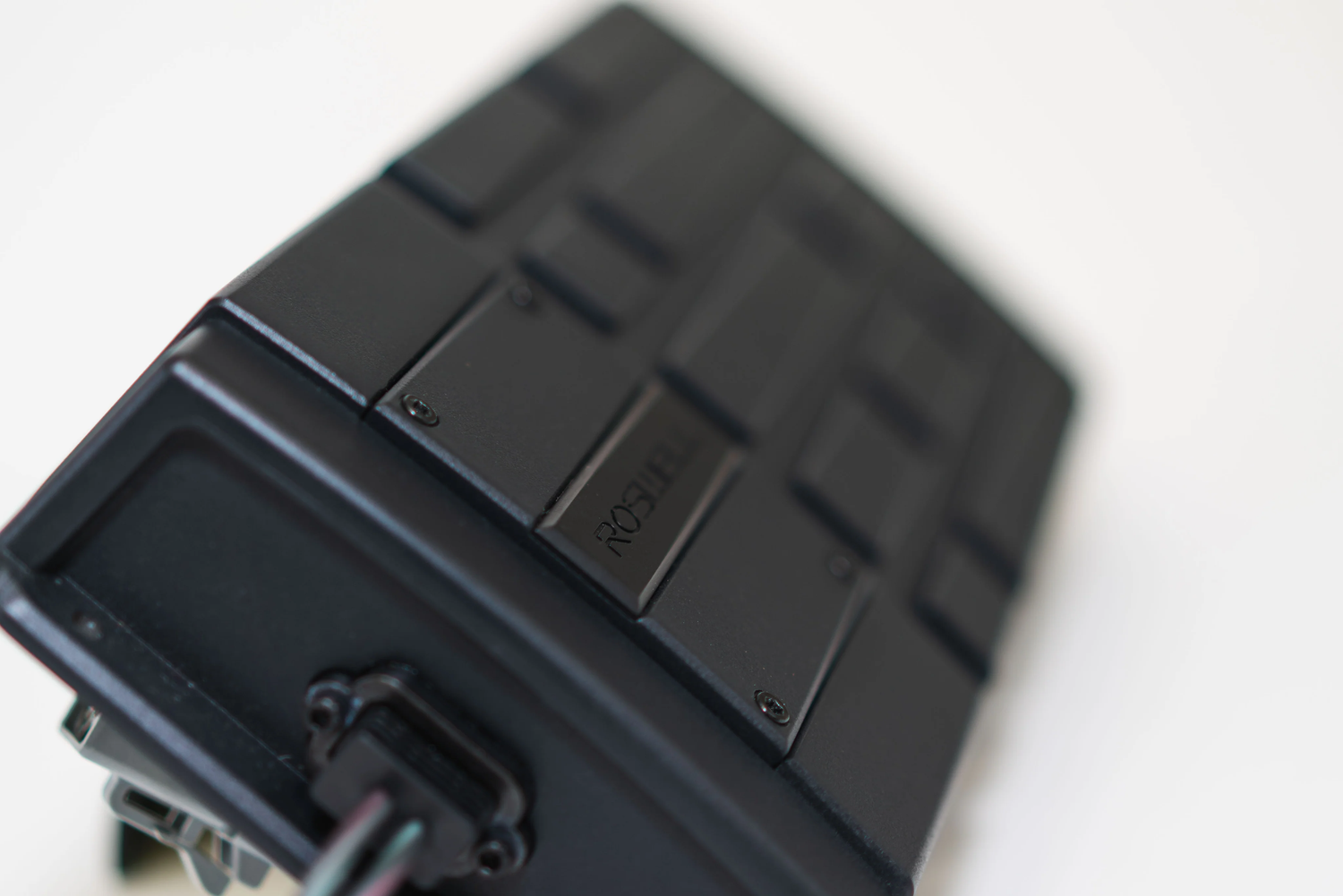

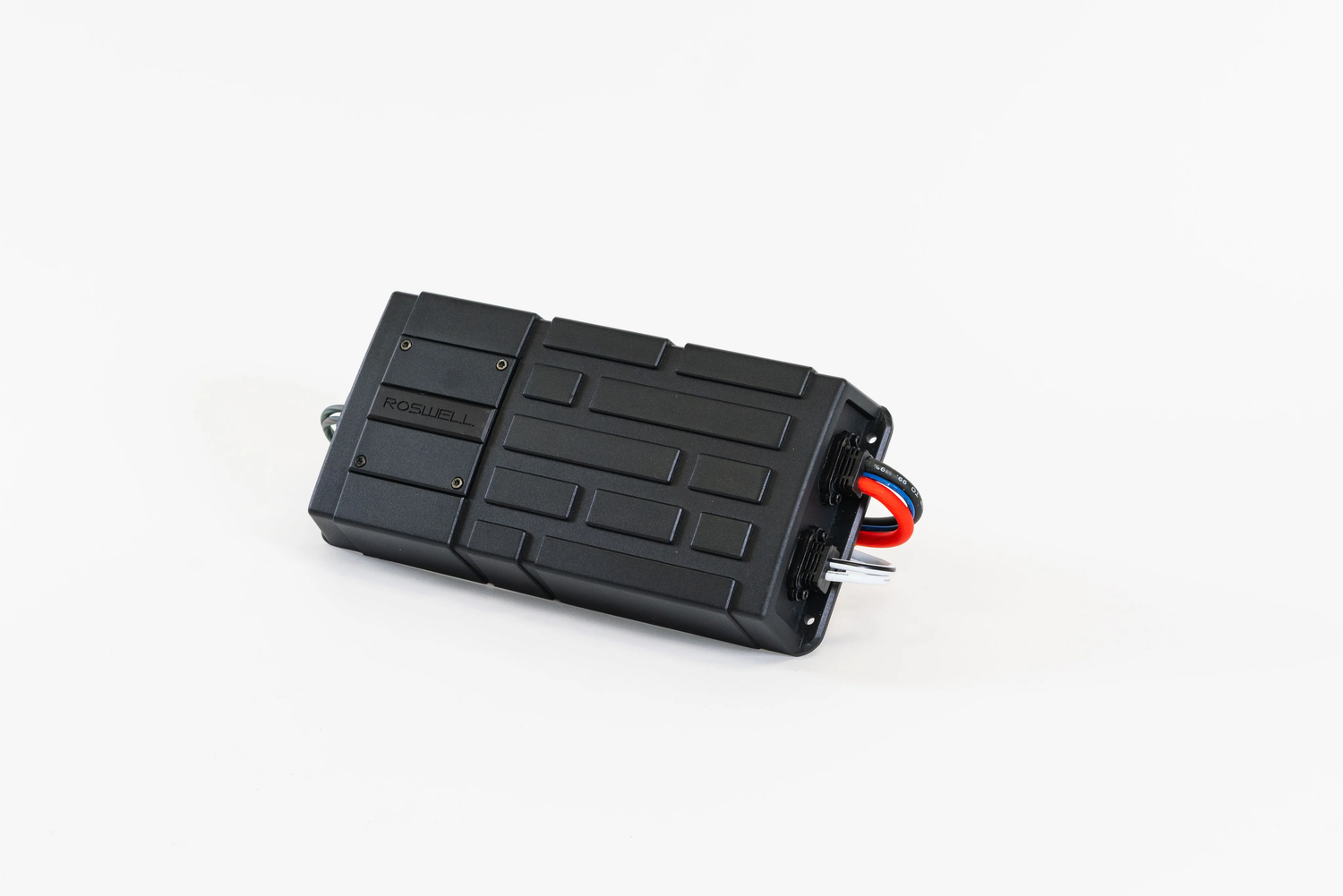

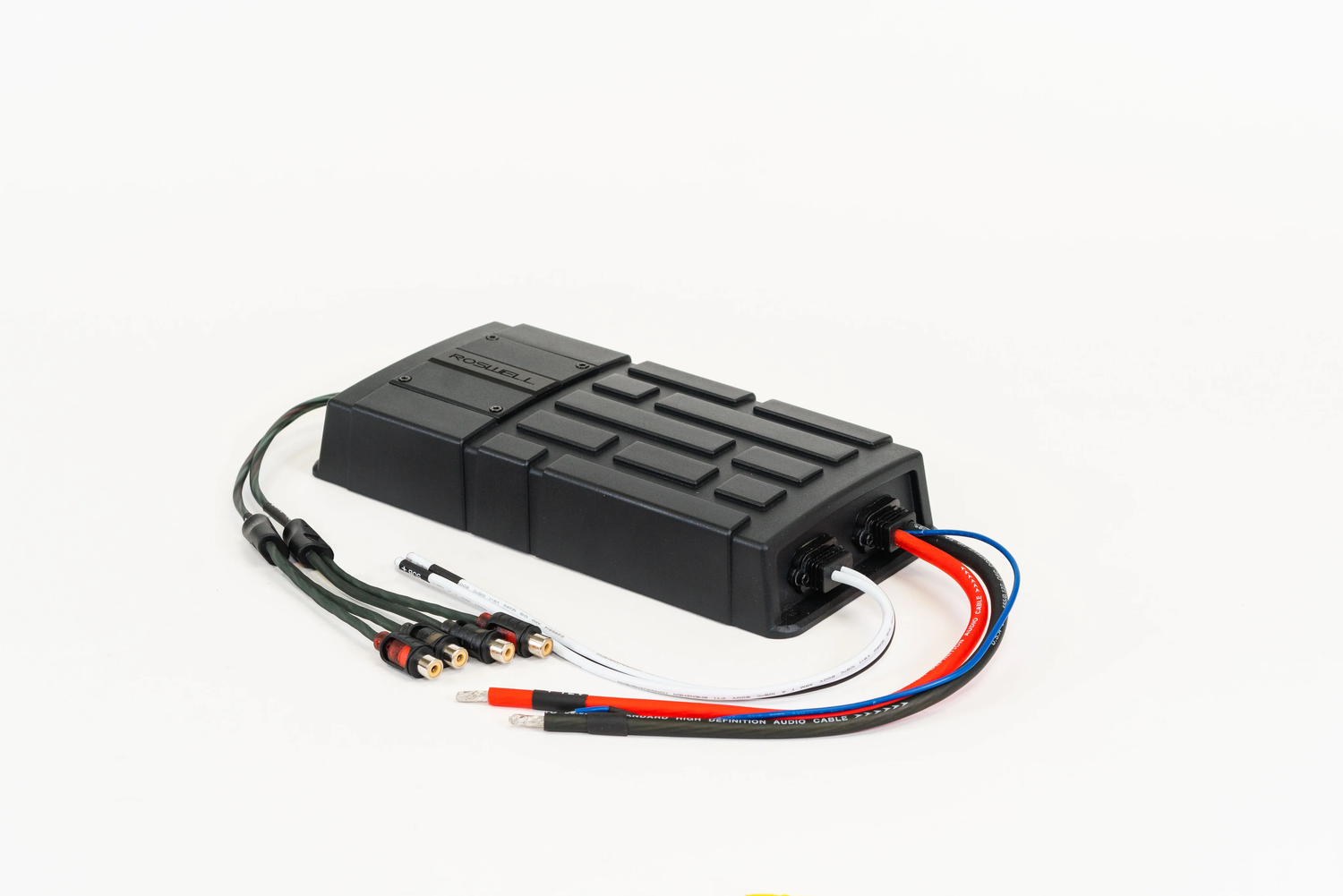

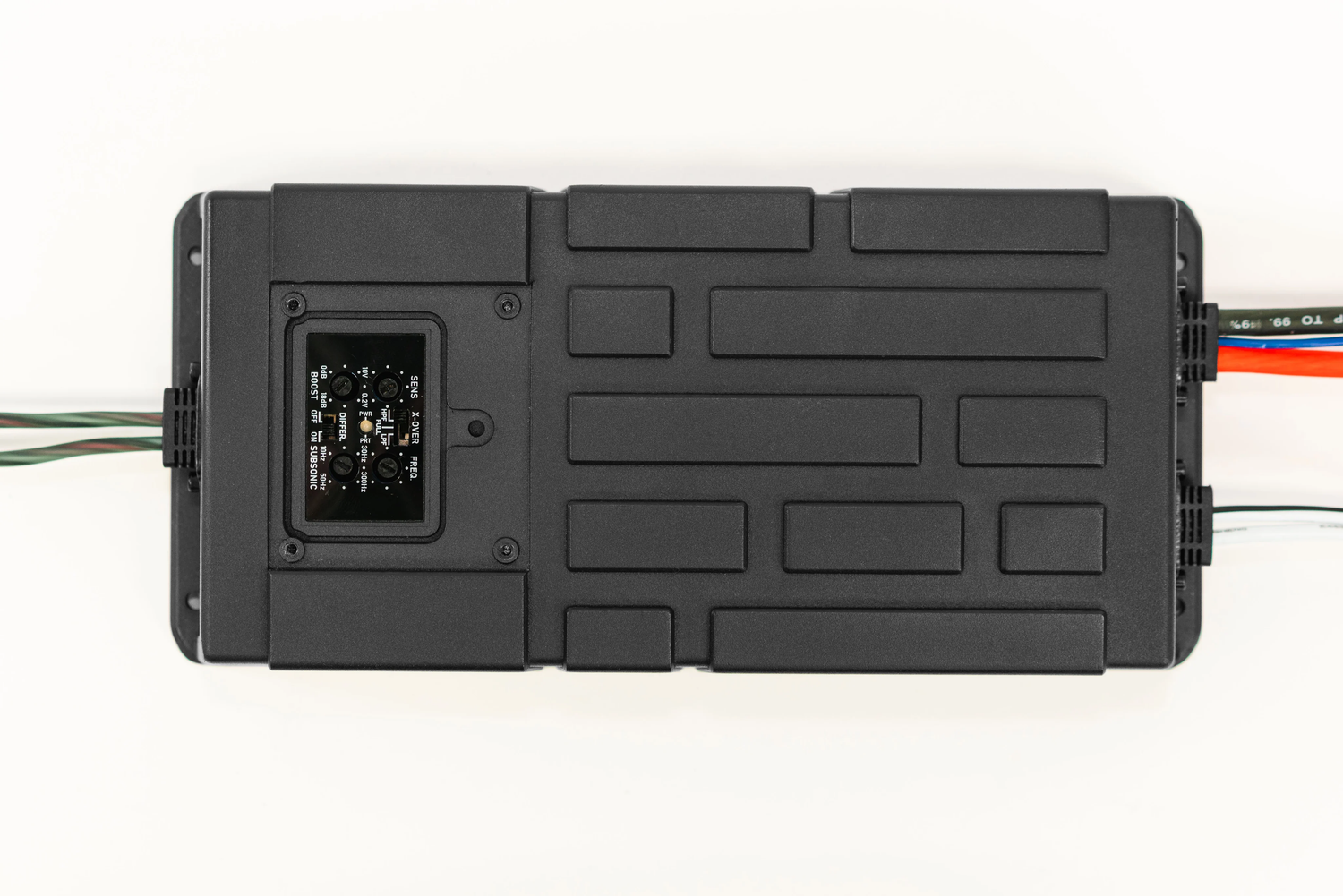

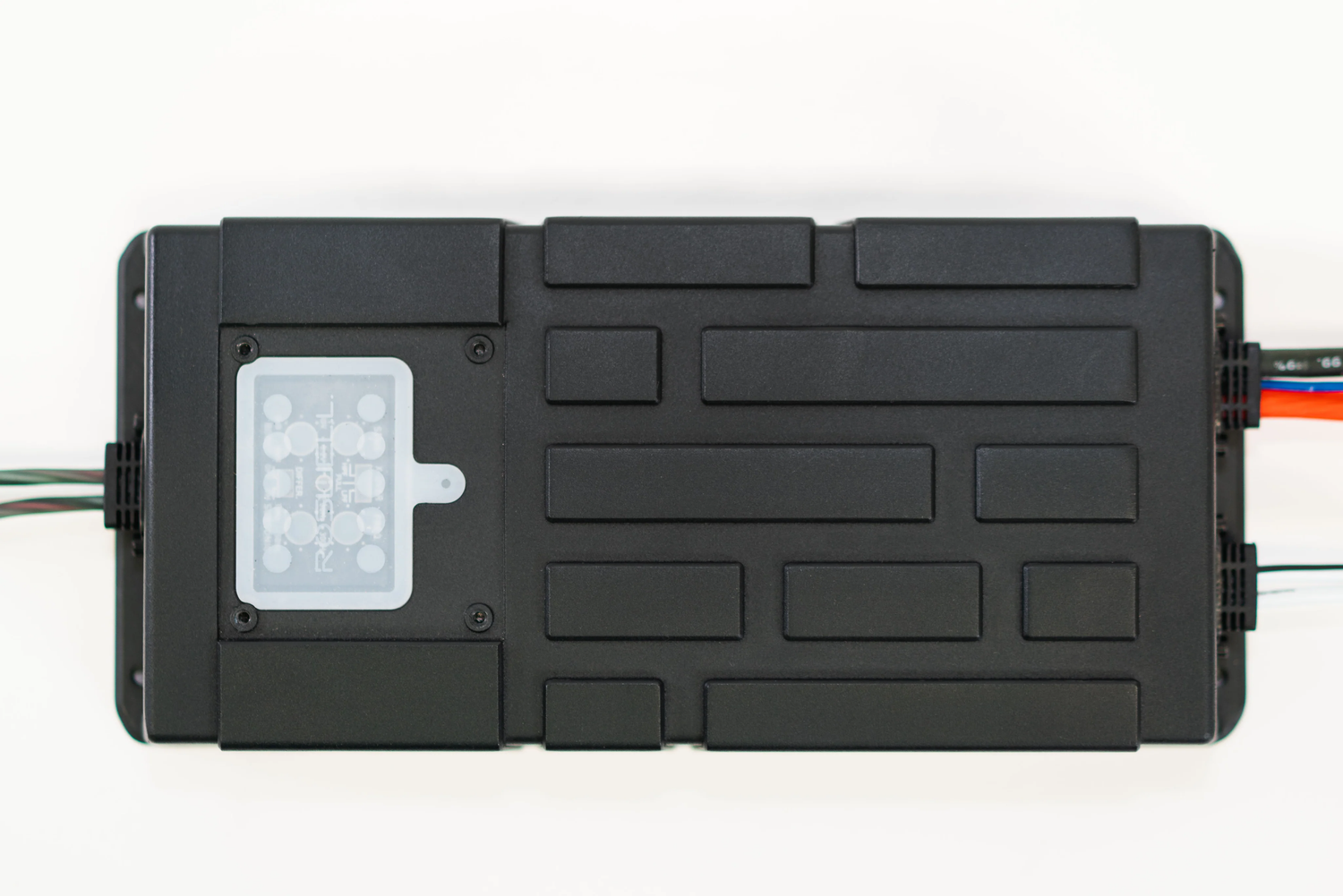

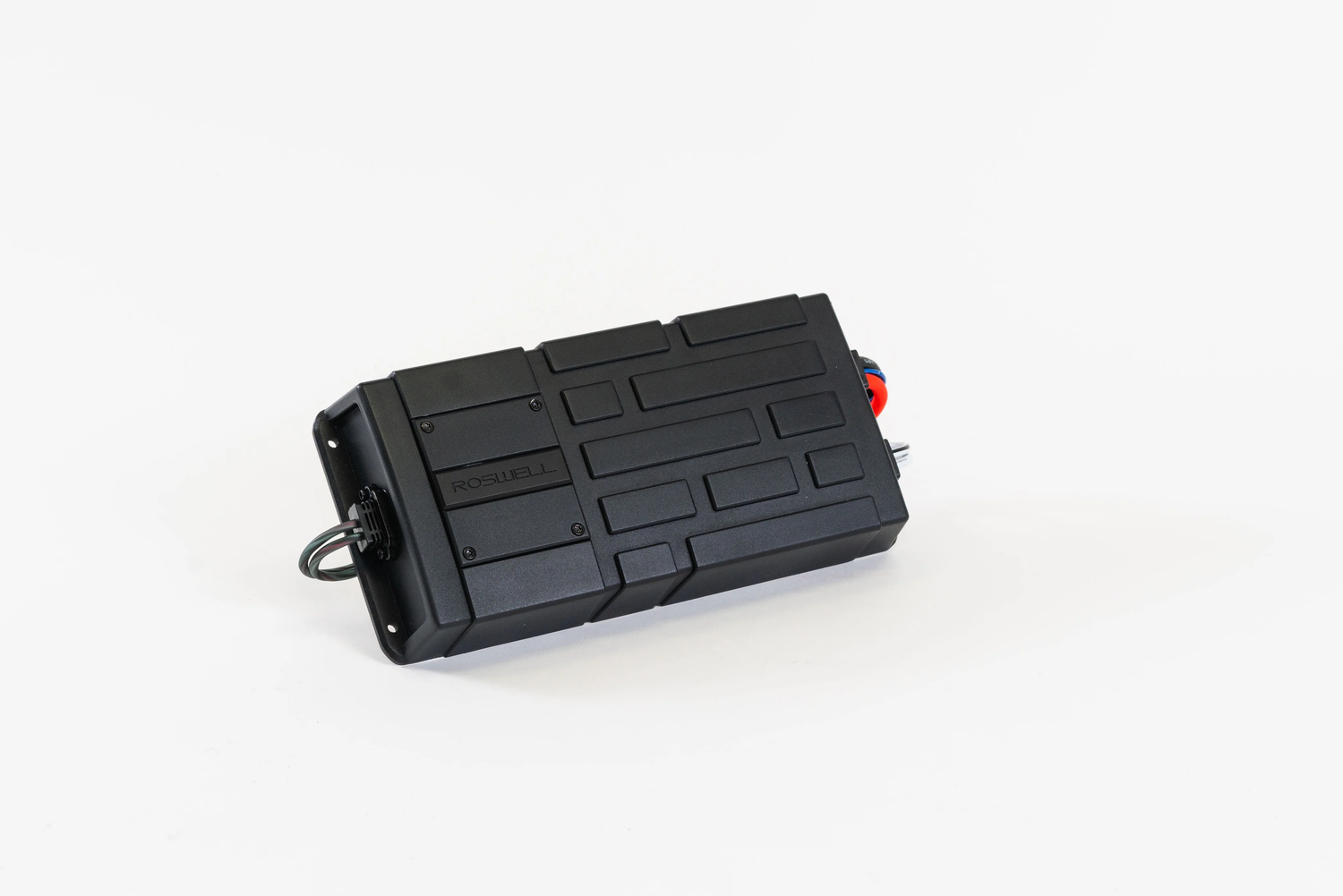

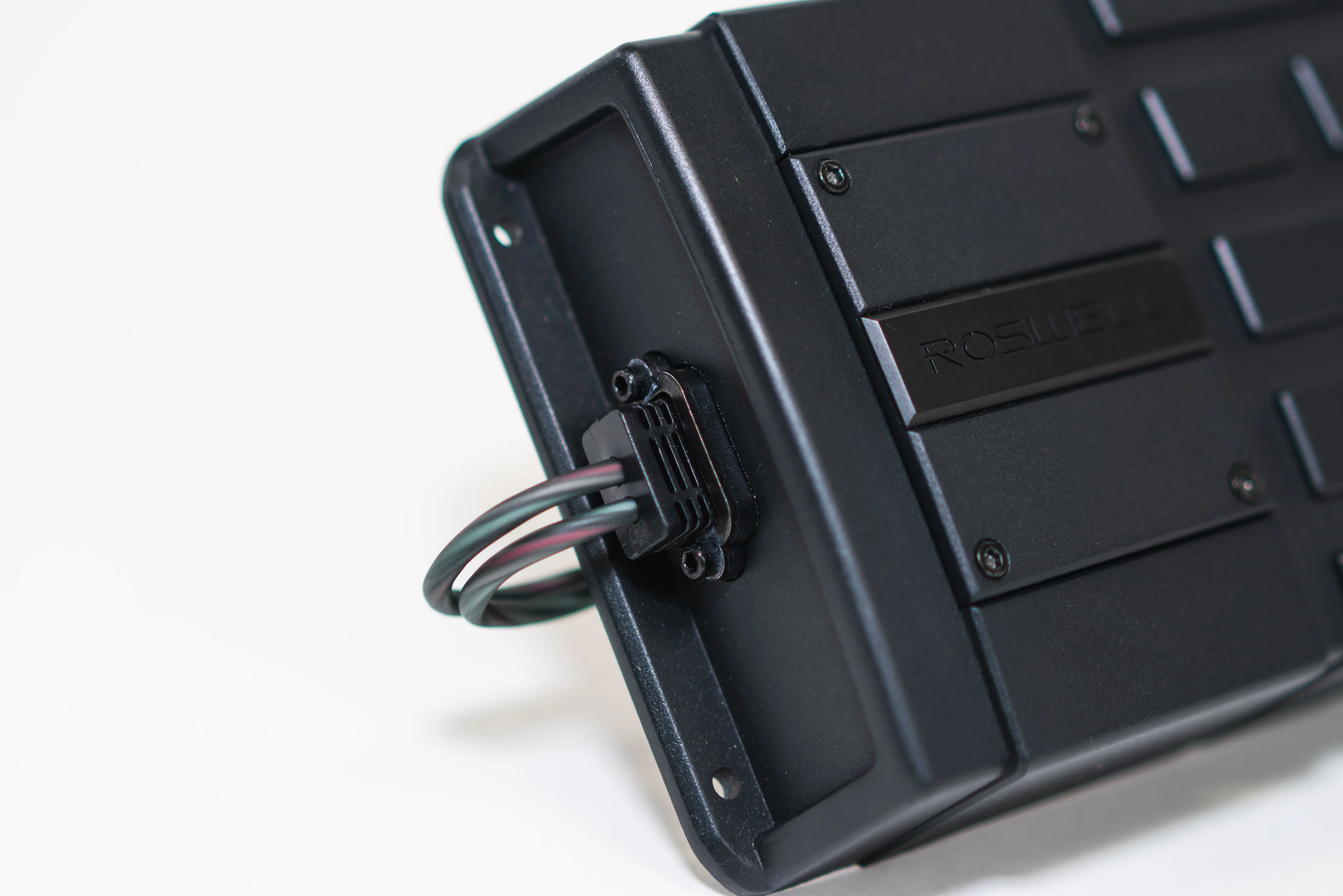

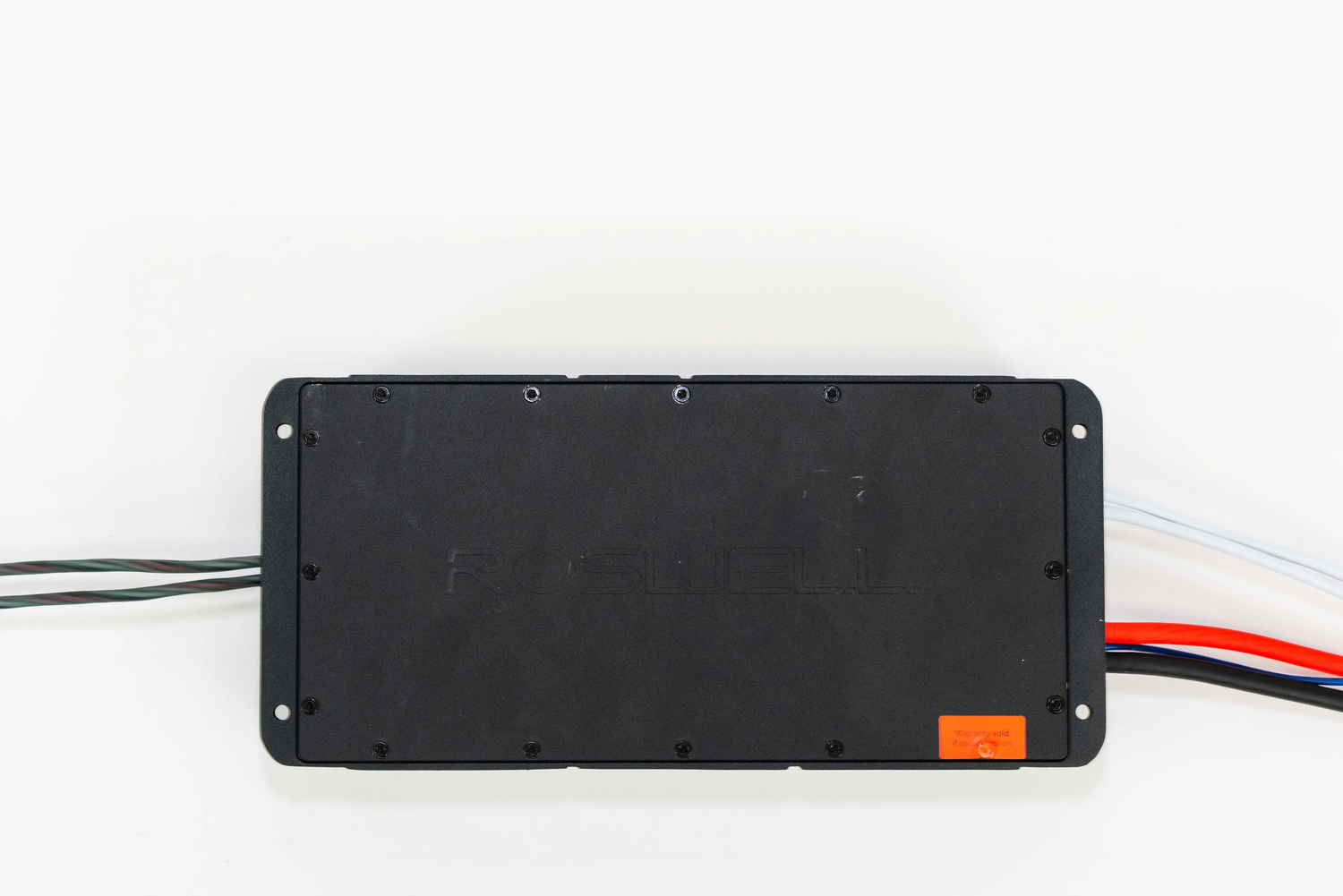

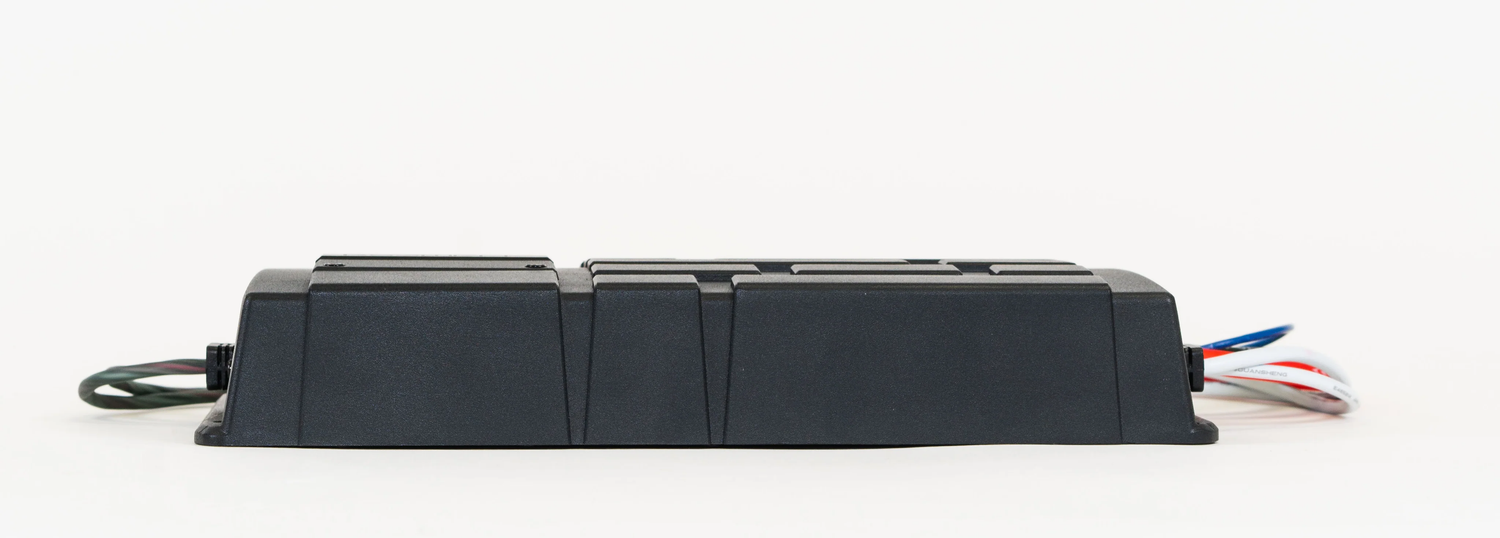

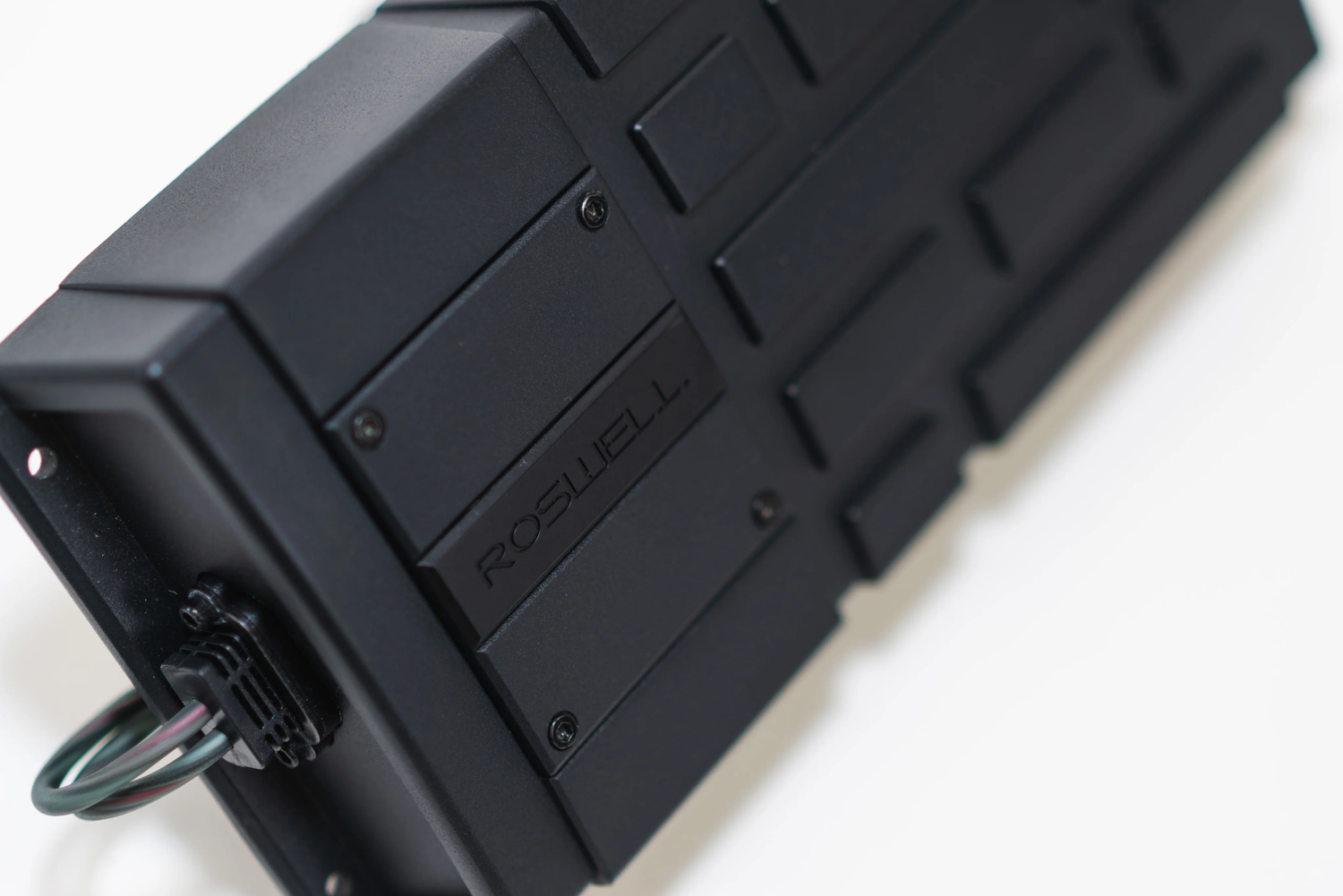

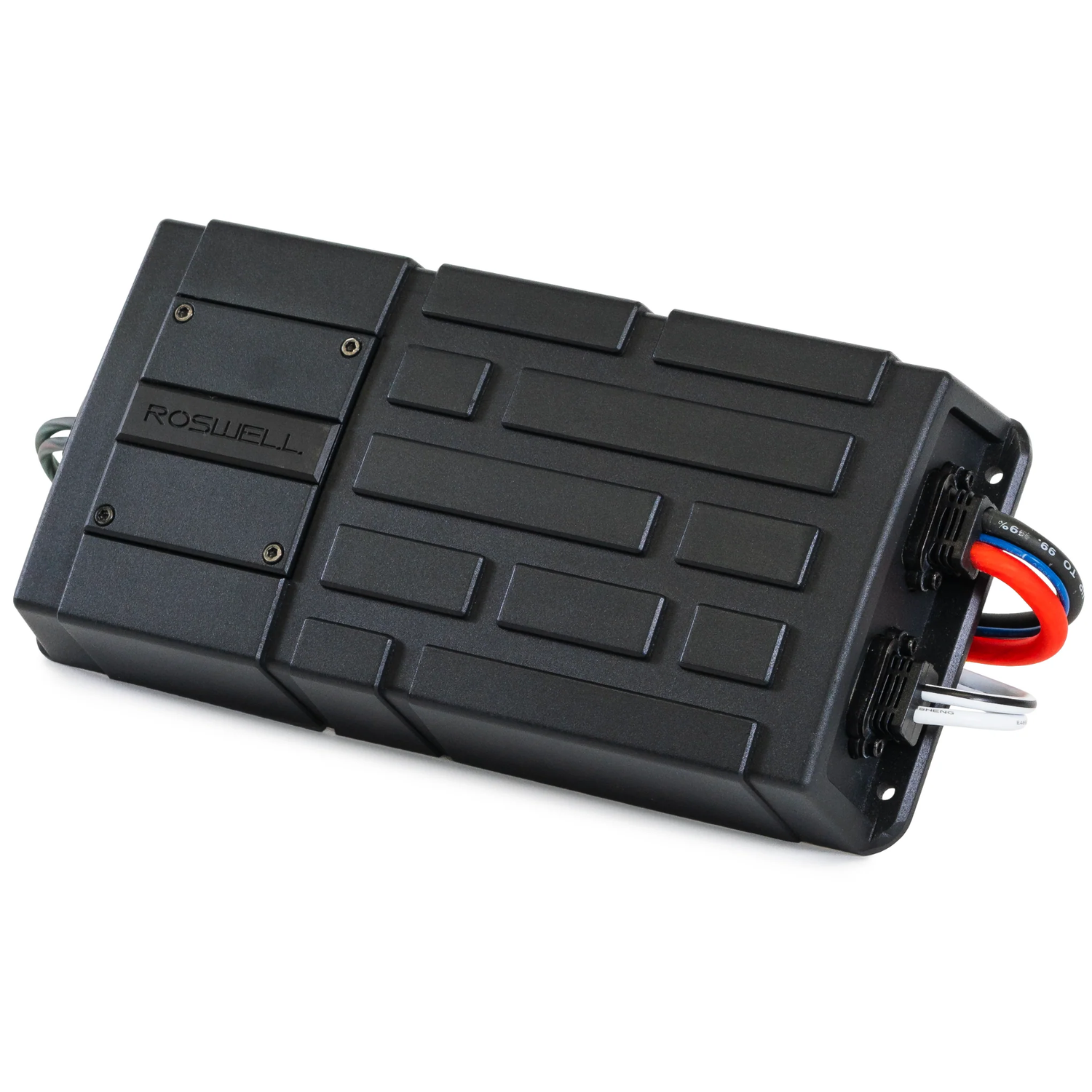

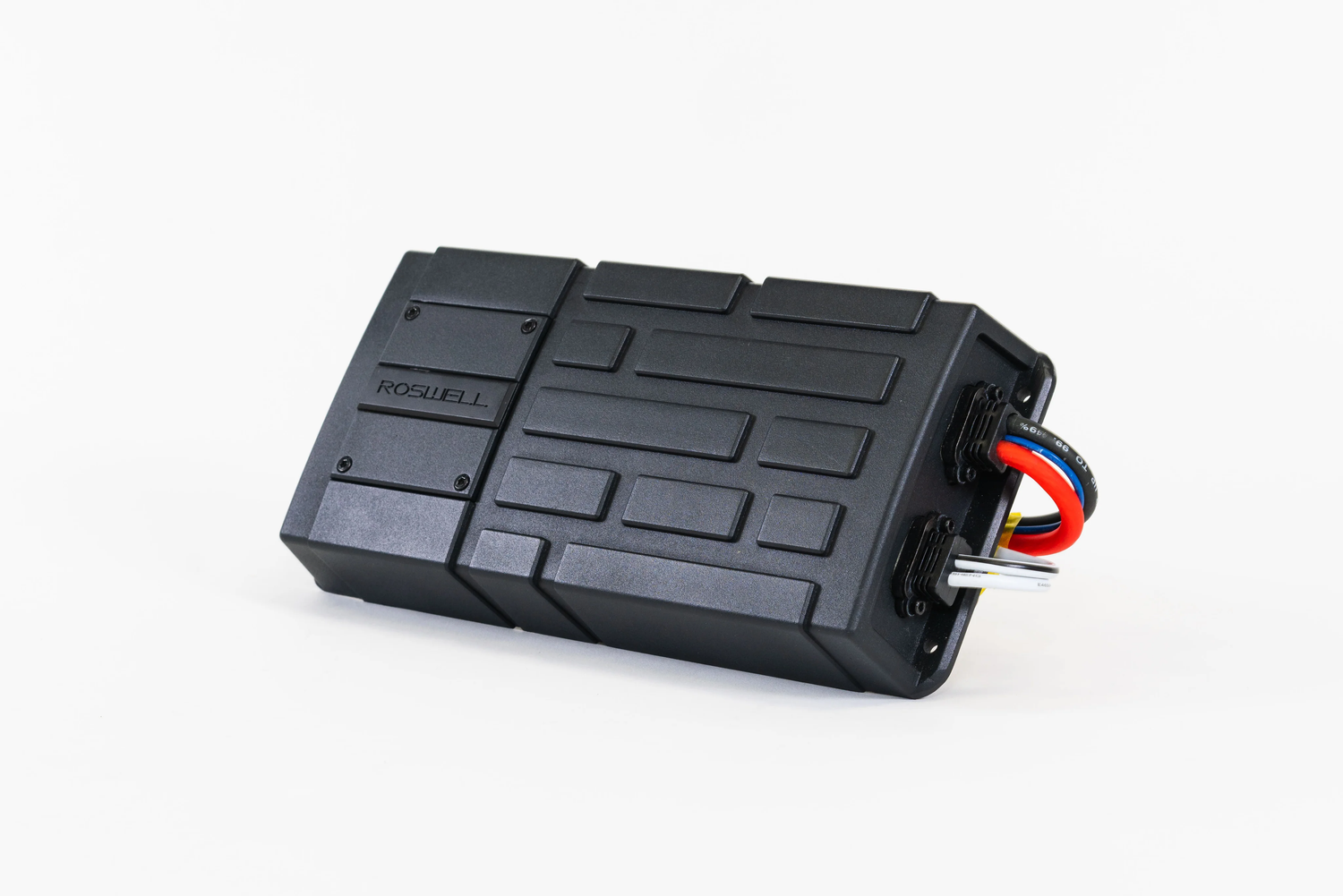

Featuring 500 watts of force via a single channel of sound, the Roswell SD 500.1 Compact OFFROAD Amplifier provides purpose built power for your subwoofer. IP66 rated to keep cranking in extreme conditions; crossover controls, fully conformal-coated PCB’s, and differential RCA inputs deliver an audio environment where clarity is king.

Inside This Box

(1) SD 500.1 Compact OFFROAD Amplifier
(4) Mounting Screws
(1) Allen Key

Features

• Compact Design
• IP66 rated

• Conformal coated PCBs

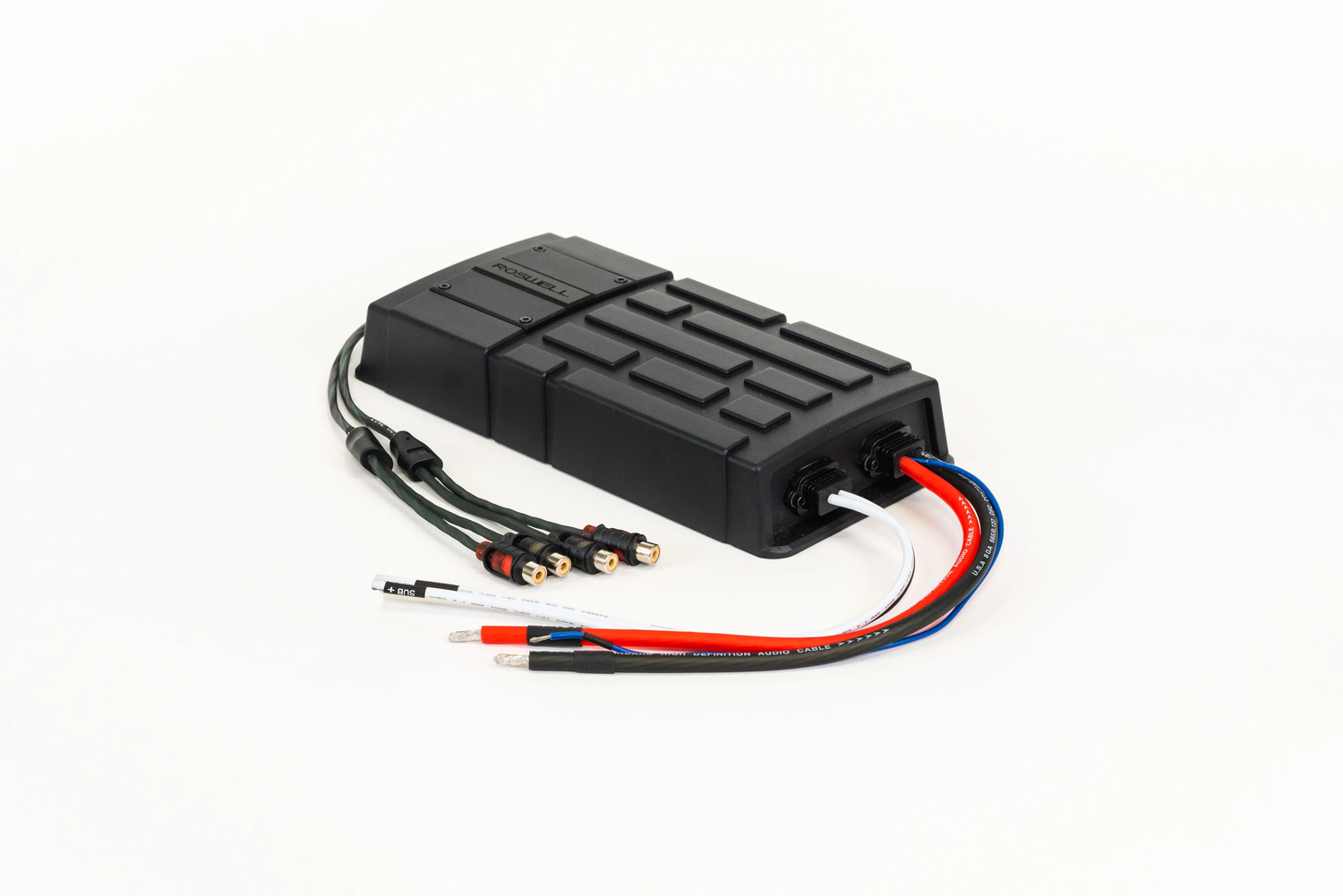

• Switchable Differential RCA inputs
• RCA Line Out Passthrough

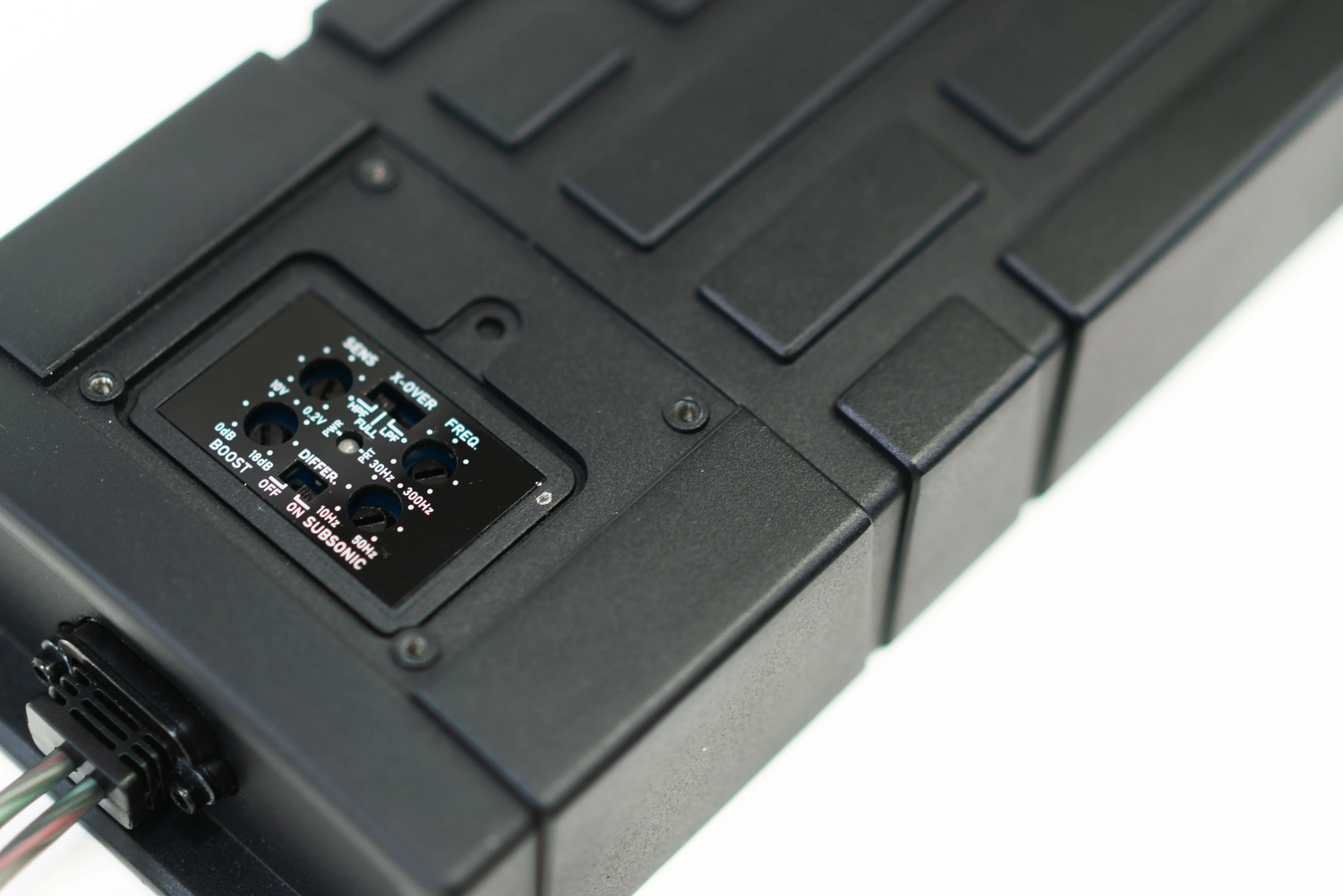

• Standard potentiometers
• 18 dB/oct Crossover Slope
• LPF/FLAT/HPF

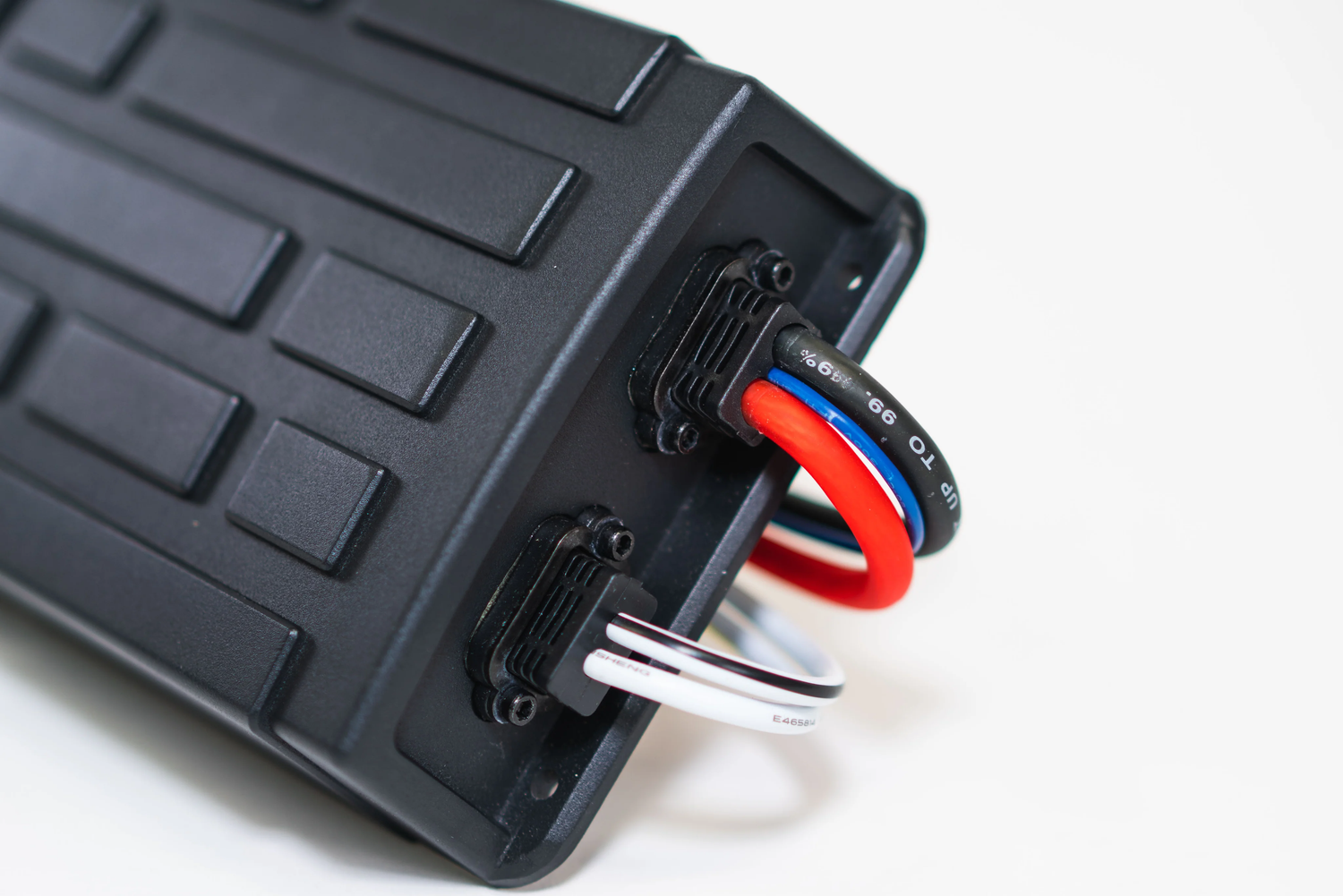

• 8 AWG power/ground
• 16 AWG remote wire
• 16 AWG speaker wires



Specifications

Continuous Power (RMS)

• 1Ω: 750W x 1
• 2Ω: 500W x 1
• 4Ω: 300W x 1


Inputs

• 1 pr RCA USB (with charging)

Input Sensitivity

• 0.2V-10V

HPF (High Pass Filter)

• 30-300Hz

LPF (Low Pass Filter)

• 30-300Hz Subsonic 10-55Hz

Bass EQ:

• 0-18dB @ 45Hz




Dimensions

• WIDTH: 10 in | 25.3 cm
• HEIGHT: 1.7 in | 4.3 cm
• DEPTH: 4.6 in | 11.8 cm
