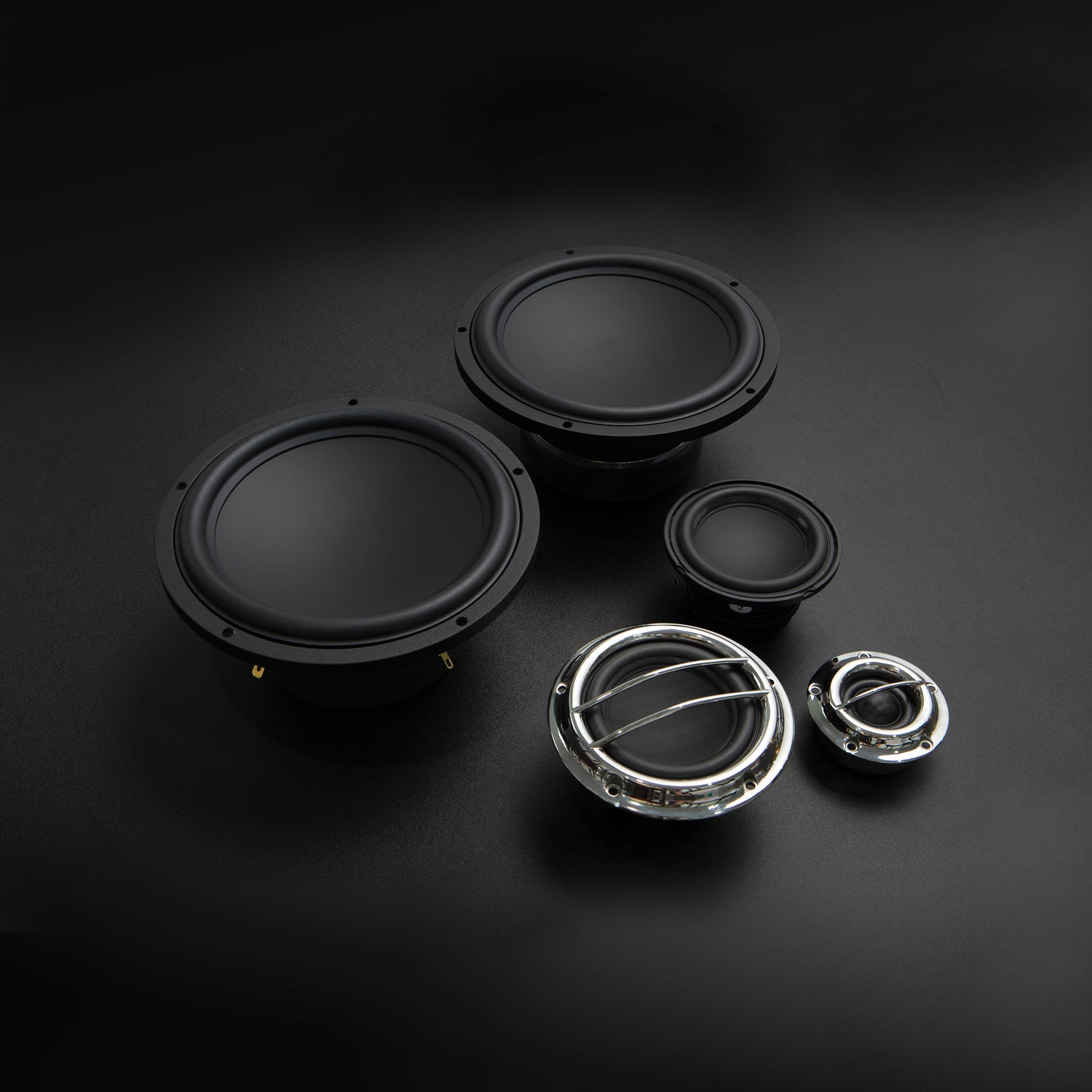

REVOLUTION 7-Series Flagship 3-Way Component Speaker System (7S3)

Advanced composite cone technology delivers extended frequency response, precise imaging, and three-dimensional soundstage that reveals every layer in your music.

System Configuration:

• Configuration: Active 3-way component system (no passive crossover included)
• Woofer Size: 6.5 inches (165mm)
• Midrange Size: 4 inches (100mm)
• Tweeter Size: 1 inch (25mm)
• Impedance: 4 ohms per driver
• Frequency Response: 45Hz - 22kHz (system combined)
• Power Handling: 80-120 watts RMS per driver
• Peak Power: 200 watts per driver
• Sensitivity: 91dB @ 1W/1m per driver

Woofer Specifications:

• Recommended Frequency Range: 45Hz - 250Hz (active crossover dependent)
• Cone Material: AI-optimized polypropylene with reinforced structure
• Surround Material: Butyl rubber for long-term durability
• Voice Coil: 38mm high-temperature copper
• Magnet: High-grade ferrite motor system
• Basket: Die-cast aluminum with optimized airflow
• Mounting Depth: 56mm (shallow mount compatible)

Midrange Specifications:

• Recommended Frequency Range: 250Hz - 3.5kHz (active crossover dependent)
• Cone Material: Specialized polypropylene with AI-tuned properties
• Voice Coil: 25mm precision-wound copper
• Magnet: Neodymium motor system
• Surround: Butyl rubber with optimized compliance
• Chassis: Ported aluminum die-cast design

Tweeter Specifications:

• Recommended Frequency Range: 3.5kHz - 22kHz (active crossover dependent)
• Dome Material: 28mm fabric dome with AI-enhanced geometry
• Voice Coil: 25mm aluminum wire
• Magnet: Neodymium motor system
• Housing: Precision-machined aluminum
• Mounting: Flush or surface mount options

Active System Requirements:

• Amplification: 6-channel amplifier or DSP with active crossover
• Crossover: External active crossover or DSP required
• Recommended Crossover Points: 250Hz / 3.5kHz (adjustable)
• Slope: 12dB/octave or higher (user configurable)
• Time Alignment: DSP with delay capabilities recommended
