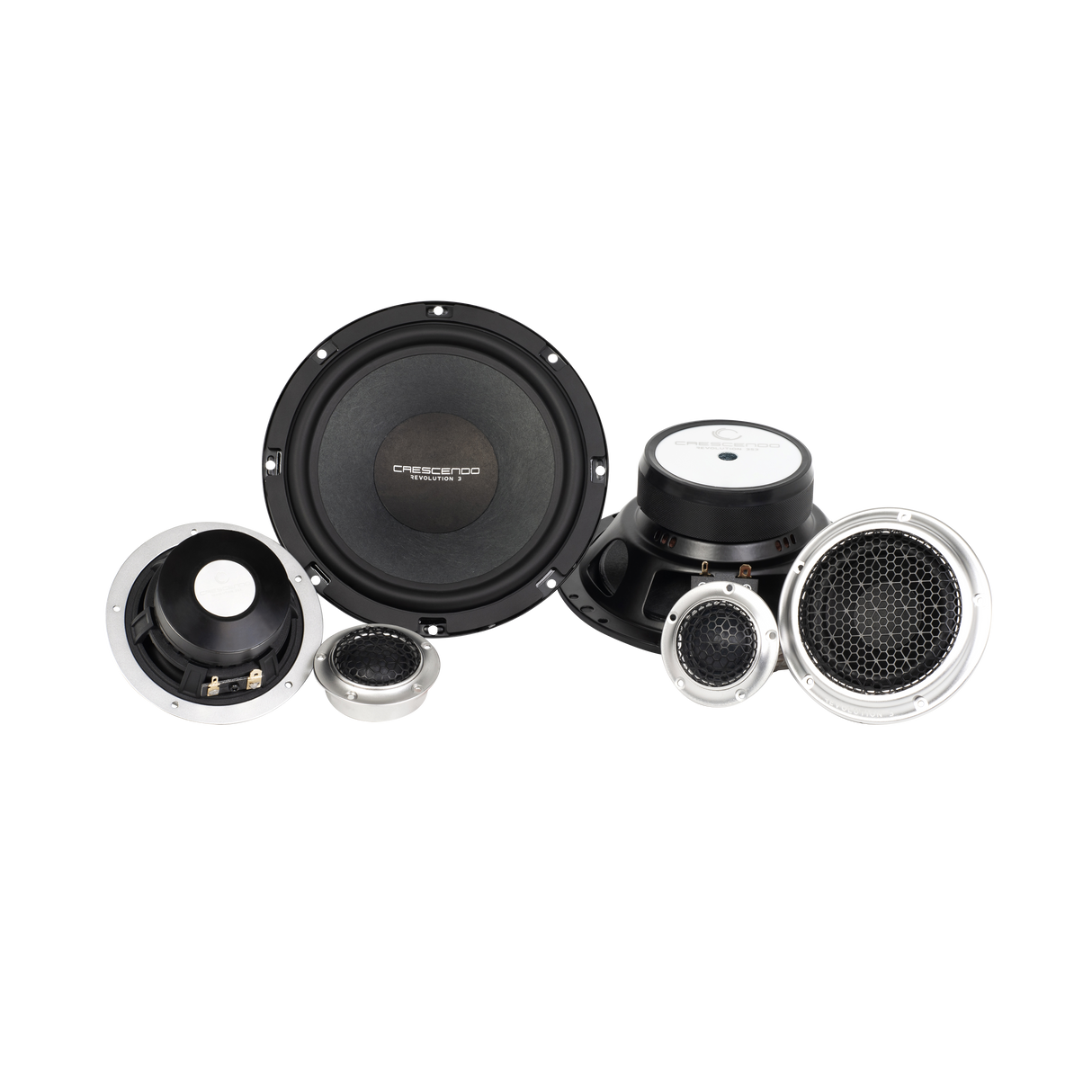

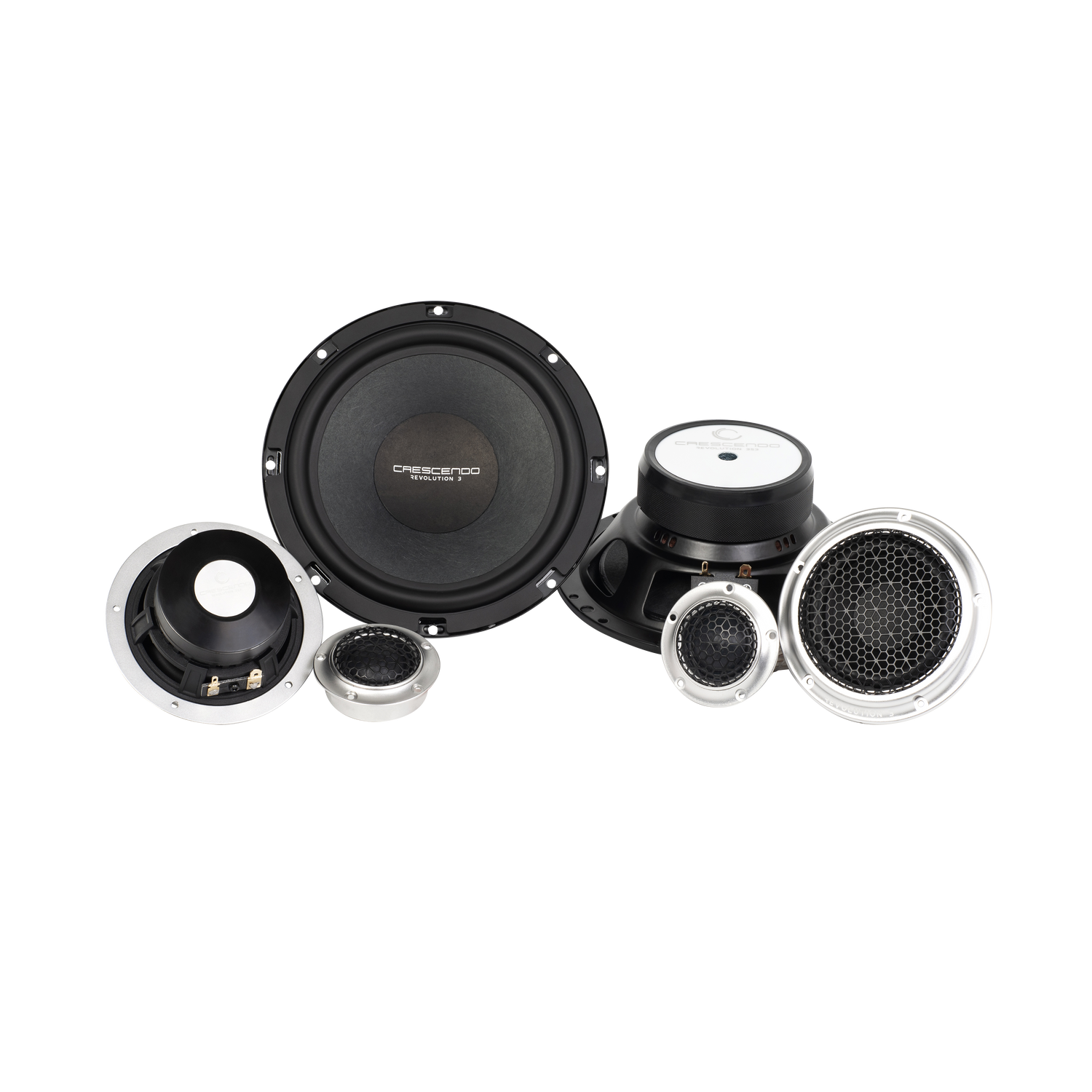

REVOLUTION 3-Series 3-Way Component Speakers OEM with no Grilles (3S3OEM)

Built on a rigid aluminum chassis with a 28mm fabric dome tweeter for natural, extended highs. The Revolution 3 Series is an ideal car audio upgrade for listeners who value musical enjoyment.

Electrical Specifications
– Nominal configuration: three-way 6.5″ & 3″ & 1.1″ active component set
– Continuous power handling: 75 Watts
– Maximum power handling: 150 Watts
– Voice coil diameter: 32 mm
– Frequency response: 60 Hz – 20000 Hz
– Sensitivity: 90.5 dB
– DC resistance (Re): 3.9 Ohms
– Resonant frequency (Fs): 60 Hz
– Xmax: +/- 5 mm
– Compliance (Vas): 12 l
– Total Q (Qts): 0.8
– Mechanical Q (Qms): 9.1
– Electrical Q (Qes): 0.9

Physical Specifications
– Mounting diameter: 143.6 mm
– Mounting depth: 75 mm
– Weight: 4.3 kg
