Mosconi  |  SKU: PICO4

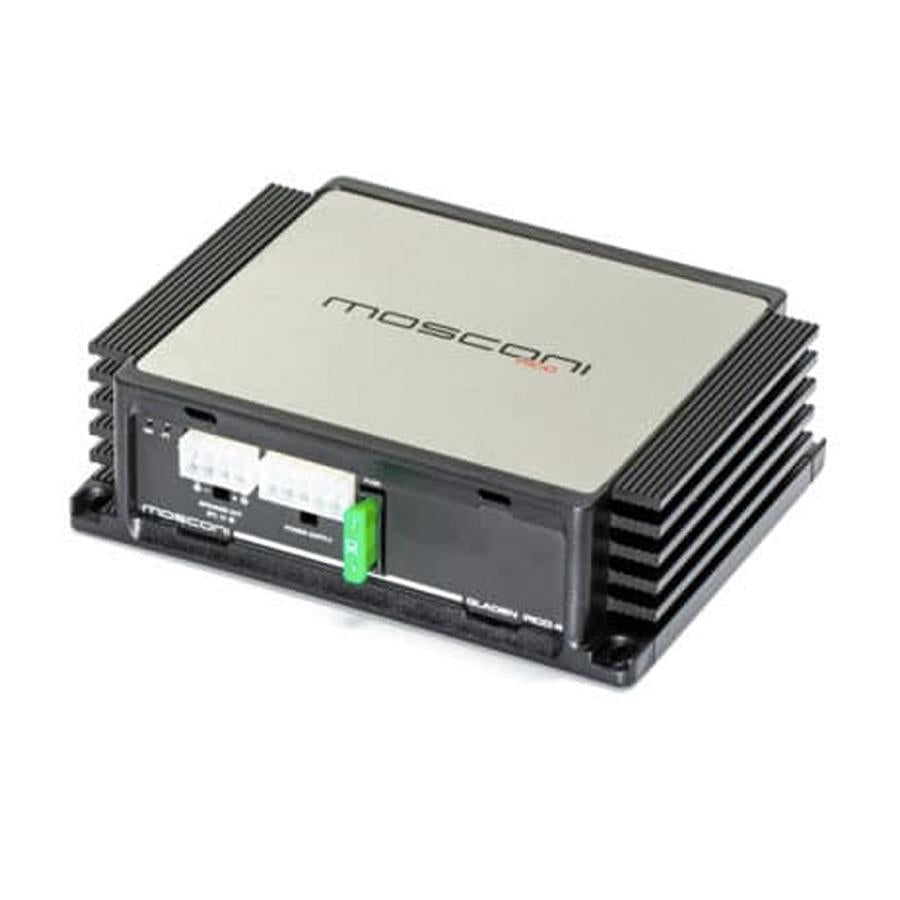

MOSCONI PICO 4 Channel Amplifier - 90 Watts x 4 RMS @ 4 Ohms (PICO4)

Sold As:

Available to order. Lead time will be confirmed after your order is placed.

Description
  • High efficiency amplifier with 4 x 90 Wrms / 4 Ohm output power.
  • Fully bridgeable and 2 ohm stable, inputs high and low level.
  • Load resistor and ground lift selectable via jumpers, switchable active crossovers.
  • Ideal for use in smart OEM projects, or with the EXT4link patch cable as a supplement to a PICO 8|12 DSP.
Output Powers RMS @ 14.4V (1%THD)
  • 4 x 90W stereo @ 4Ohm
  • 2 x 85W + 1 x 245W bridged @ 4Ohm
  • 2 x 240W bridged @ 4 Ohm
Input Sensitivity Range
  • 1.5 V ÷ 20 V (High level mode)
  • 0.3 V ÷ 4 V (Low level mode)
Onboard crossover filter configuration HP (CH1/2) / HP or LP (CH3/4)
Onboard crossover filter slope 12dB/oct
Onboard crossover filter frequency 80Hz
Size and Weight 150 x 115 x 46mm, 1.4Kg

Specifications
  • Class
    Amplifiers
