Mosconi  |  SKU: PICO1V2

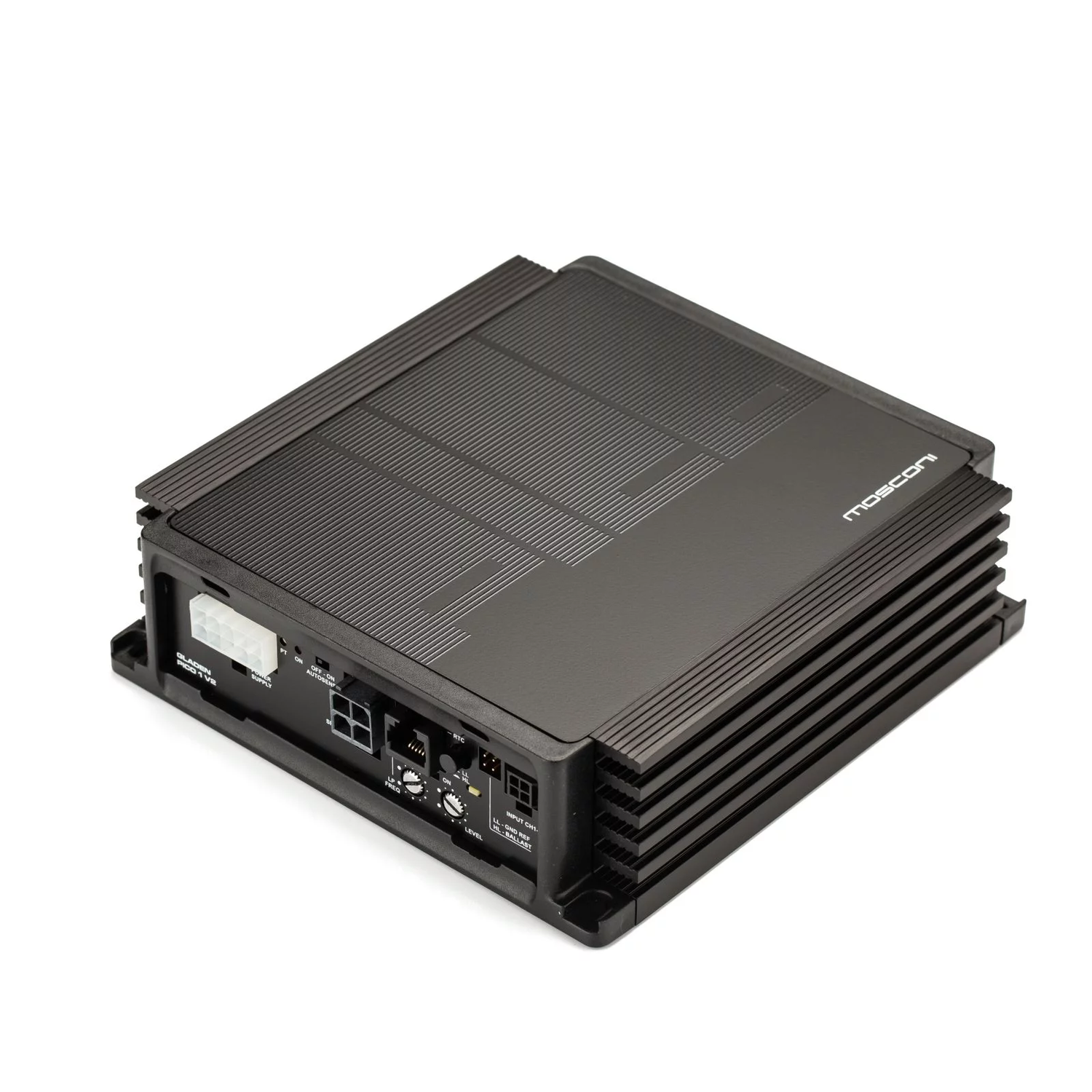

MOSCONI PICO SERIES 1 Channel Amplifier - 900 Watts x 1 RMS @ 1 Ohm (PICO1V2)

Sold As: EACH

Description

Full-range PWM amplifier with separate, synchronized modulation and fast high-current mosfets. The Mosconi PICO 1 delivers a full 9000 Wrms into 1 ohms. It provides necessary power even to powerful subwoofers and extreme front systems at any time.

Ideal (subwoofer) supplement to a Mosconi PICO DSP amplifier, but with the high-level and low-level input and its own filters, it can also be used universally.

  • Automatic switch-on (only high level, SE or BTL mode)
  • Remote volume control (optional)
  • Molex connectors

TECHNICAL DATA MOSCONI PICO 1 V2

OUTPUT POWER:

  • Output power RMS @ 4Ω:

    1 x 350 watts

  • Output power RMS @ 2Ω:

    1 x 600 watts

  • Output power RMS @ 1Ω:

    1 x 900 watts

SPECIFICATIONS:

  • Input voltage:

    0,3 V - 20 V

  • Overall efficiency:

    > 75 %

  • Auto-On (only High Level):

    Off - BTL

  • Low-pass filter:

    Off / 45 - 310 Hz (12 dB/Oct)

  • Subsonic filter (always on) :

    13 Hz (12 dB/Oct)

  • Dimensions:

    150 x 115 x 46 mm

  • Weight:

    1050 gramm

Specifications
  • Unit of Measure
    EACH
  • Style
    Mono
  • Class
    Amplifiers
