Mosconi  |  SKU: ATOMO4TO8DSP

MOSCONI ATOMO DSP Processor - 4 Channel Input / 8 Channel Output (ATOMO4TO8DSP)

Sold As: EACH

Available to order. Lead time will be confirmed after your order is placed.

Description

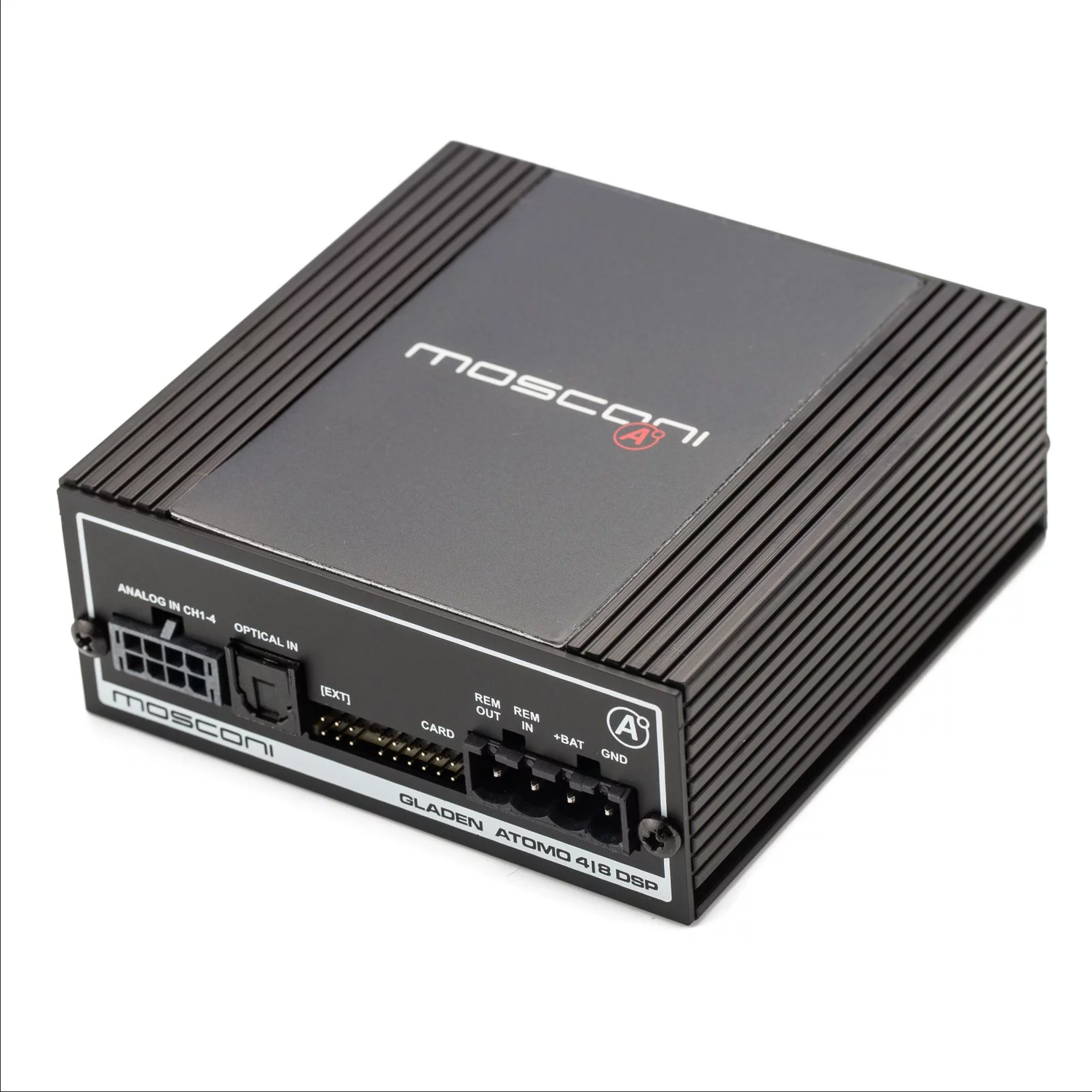

ATOMO 4|8 DSP "Matrix" - Maximum performance in the smallest possible space

Extremely powerful DSP in a compact design. Four analog (high/low level) and three digital inputs (SP-Dif, Bluetooth streaming with MOS-BTS, BT+ with direct DSP access). Expandable to 8 analog inputs with MOS EXT4HLin. Compatible with 12 V and 24 V on-board power supply. Six analog outputs. 64 bit platform with dISC functions (dynamic equalizer and phase control). All connectors Molex industry standard. Direct RTC connection for volume, sublevel or input volume.

TECHNICAL DATA MOSCONI ATOMO 4|8

SPECIFICATIONS:

  • Operating Voltage:

    8 V – 32 V

  • Operating Voltage via USB:

    5 V

  • Input voltage:

    2 Vrms (low-level) / 12 Vrms (high-level)

  • Dimensions:

    86 x 86 x 34 mm

  • Weight:

    245 gramm

Specifications
  • Unit of Measure
    EACH
  • Style
    8 Channel
  • Class
    DSP
