Mosconi  |  SKU: AERO6TO8DSP

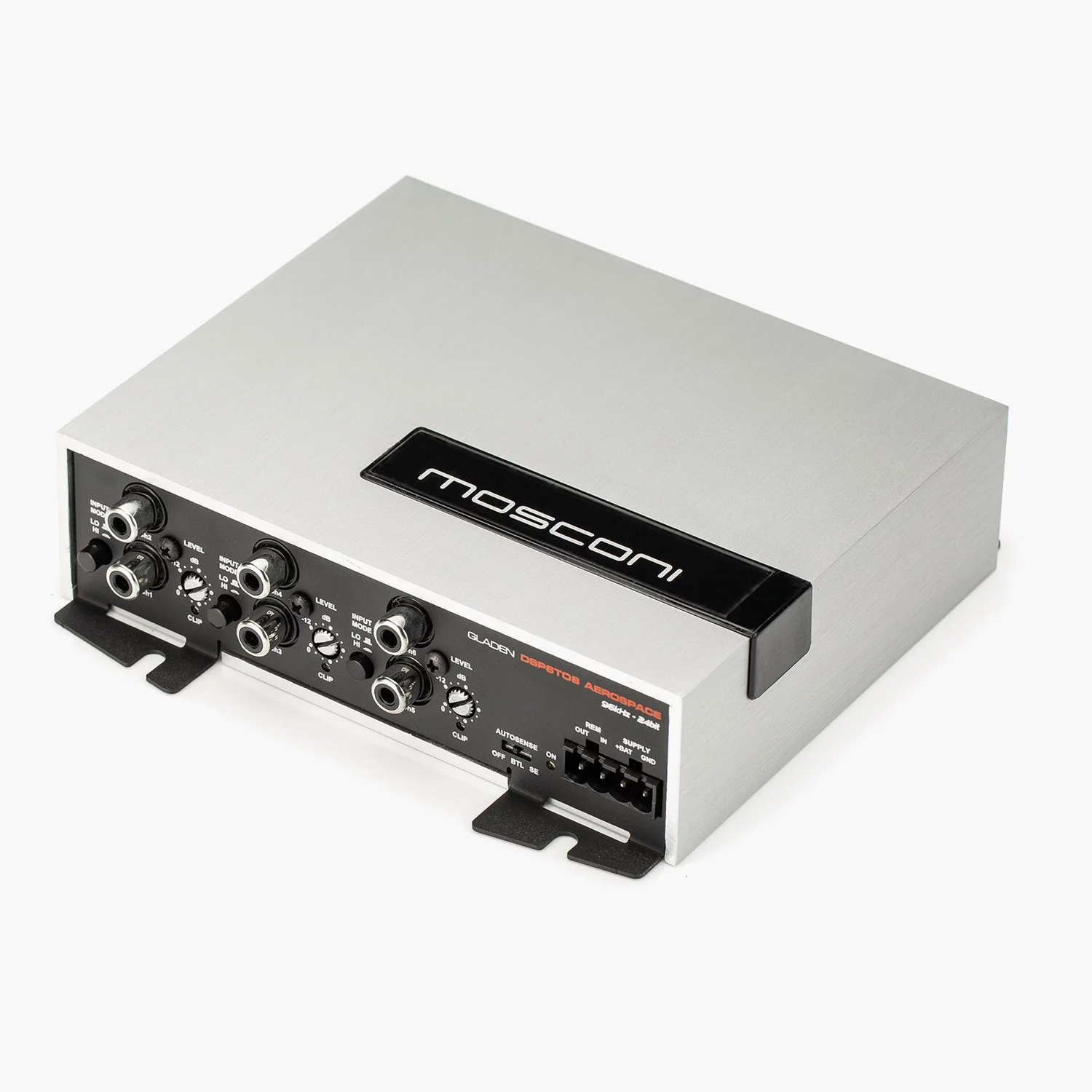

MOSCONI AERO 6 Channel Input / 8 Channel Output DSP Processor (AERO6TO8DSP)

Sold As: EACH

Available to order. Lead time will be confirmed after your order is placed.

Description

96 kHz / 24 Bit  High Resolution-Audio

With the incredibly powerful chip, the GLADEN DSP 6to8 AEROSPACE is faster than ever.

We have developed the best DSP since MOSCONI exists.

Without limit in signal processing...96kHz /24 bit "A GAME CHANGER".

TECHNICAL DATA MOSCONI DSP 6TO8 AEROSPACE

INPUTS:


  • 6 x RCA (Cinch), switchable high/ low level with autosense


  • 1 x S/PDIF digital optical


  • 1 x RCA digital COAX


  • 4 of them freely selectable as prioritized auto-fade/aux


  • ATOM Mixer menu with dynamic preset switching and "trigger" control



OUTPUTS:


  • 8 x RCA analog


  • 1 x S/PDIF optical (freely assignable, volume controlled)


  • 12 V remote-out

EQUALIZER:


  • Fully parametric 30 band EQ, can also be used graphically, + 12 to - 12 dB, Q: 0.5 - 40


  • Fixed: channels front (1 - 4)


  • Assignable channels: 5 + 6 = front, rear 7 + 8 = sub, center, free

FILTERS:


  • 10 per channel freely configurable


  • Highpass, lowpass, shelf, notch, allpas, peak EQ


  • Slope 6 - 120 dB/Oct, variable Q, time and level

OTHERS:


  • Time correction 0 - 12 ms (0.010 ms steps)


  • Input delay (channels 1 - 6) for correction of run-time delayed plant systems


  • Phase shift 0 - 180°


  • Level adjustment outputs (0.5 - dB steps)


  • Mute function


  • 4 x preset memory (switching without sound interruption)


  • Dimensions: 150 x 125 x 40 mm (incl. mounting flange)

Specifications
  • Unit of Measure
    EACH
  • Style
    8 Channel
  • Class
    DSP
