Goldhorn  |  SKU: P3PLUS

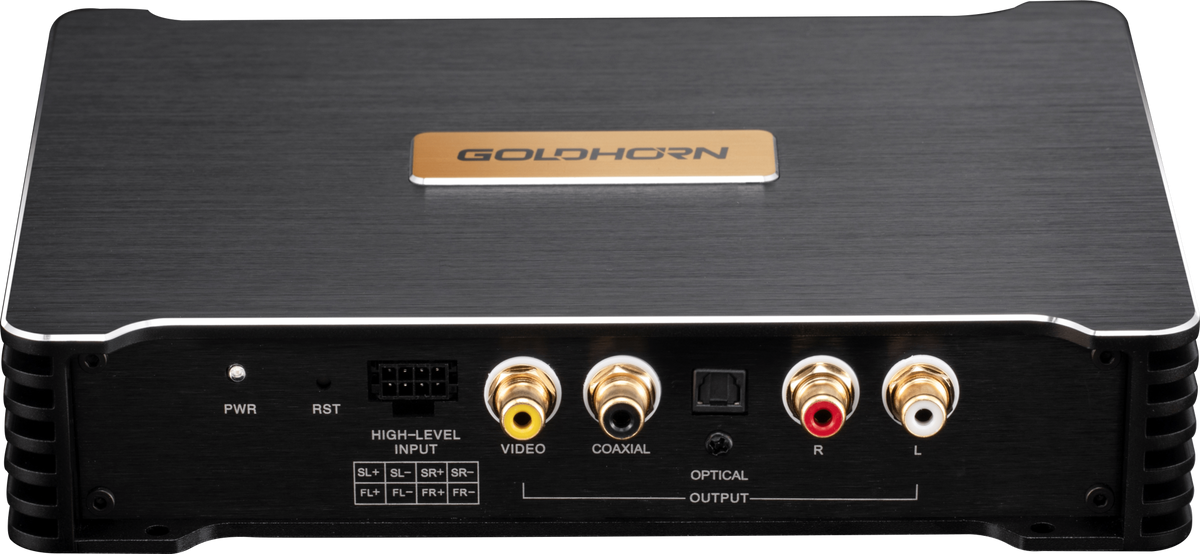

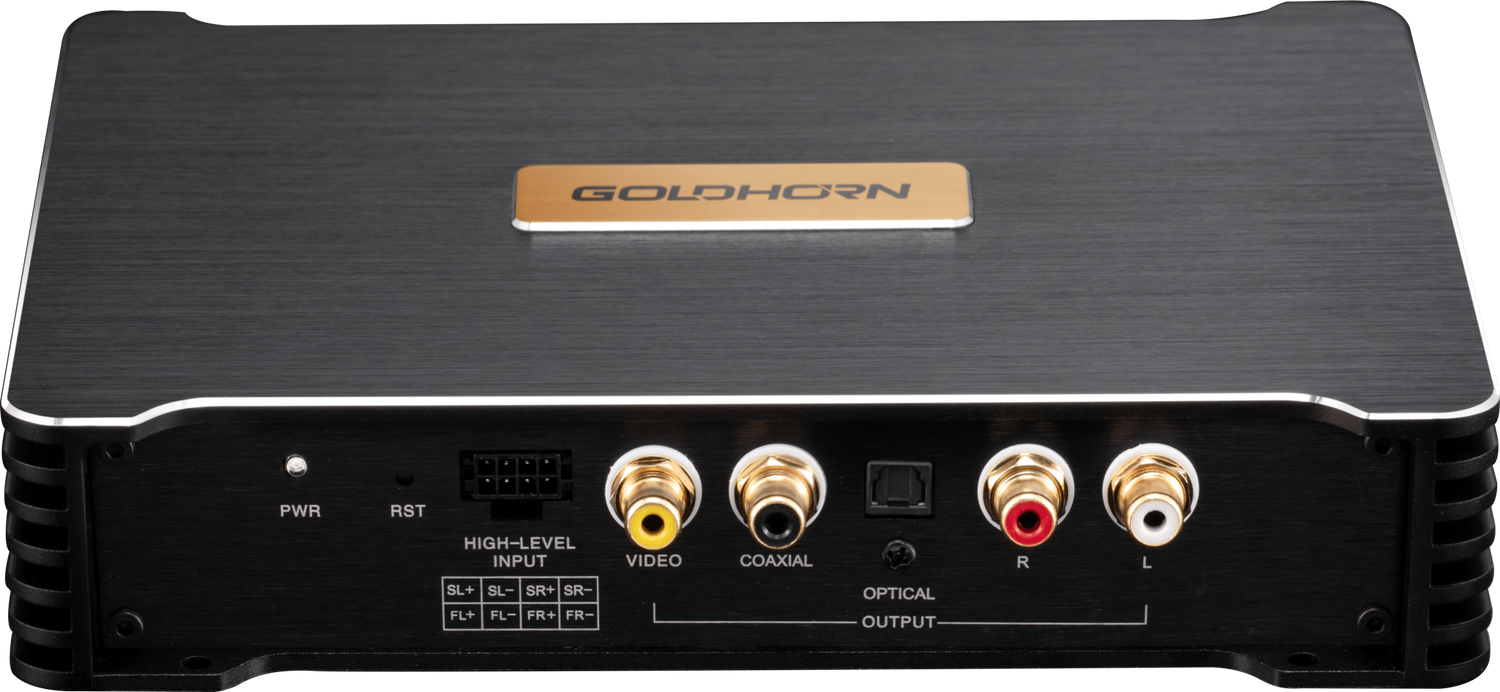

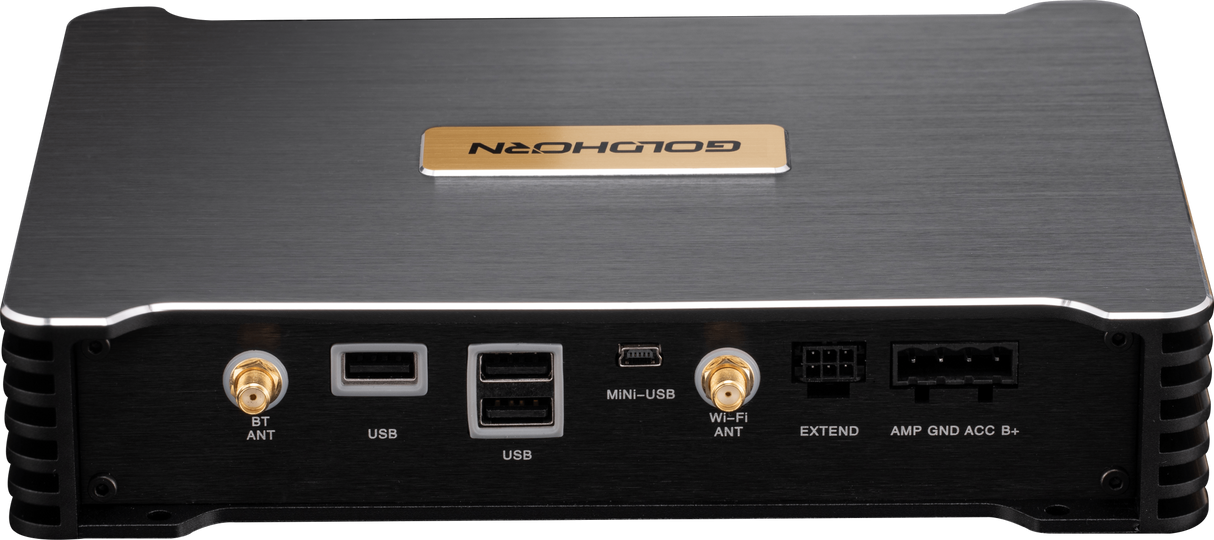

Goldhorn Hi-Res Music Player 4 Chanel High Level Inputs - 2 Channel Output (P3PLUS)

Sold As: EACH

Available to order. Lead time will be confirmed after your order is placed.

Description
  • High-resolution audio files playback: DFF/DSF/WAV/FLAC/APE/AIFF/DSD (up to 256)
  • Hi-End components: Goldhorn originally designed chip GHA1000, High precision femtosecond clock generators, Customized operating system, 1 x ESS ES9028Pro DAC (32-bit / 768 KHz PCM), Texas Instruments OPA1612 Operation Amp, High temperature tolerance electrolytic capacitor (high-reliability under 105˚C), WIMA filter capacitor
  • 4 x High Level Inputs
  • 2 x RCA Outputs 1 x Optical Output 1 x Coaxial Output (up to 192 KHz / 24 bit)
  • Intelligent Control: panel control with IPS display, wireless digital remote control, APP control
  • Lossless streaming via Bluetooth® 5.0 (aptX HD) and WiFi connection



P3 Plus Technical Specs
DAC ES 9028 Pro (32bit/768kHz)
Op Amp 3 x OPA1612 Op Amp
Ext. Control GH GHA1000
Gen Processing 4 x ARM Cortex A7
Ext. Clocking 2 x Femtosecond Clocks
Pwr&Filtering Elna High Temp (105°C) Electrolytic Caps and WIMA film filtering caps
Music Formats (File types) HiRes DSD: DFF / DSF / DSD Up to 256 Hi Res, Hi Res Uncompressed: WAV / FLAC / APE / AIFF / AIF, Compressed: MP3/AAC/OGG/WMA/MV
Music inputs 3 x USB 2.0 Host, BT 5.0 aptX-LL/AptX, 2 x AUX RCA, 4 x High level
Control Inputs BT Wireless Player Remote, Optional Wired Panel controller w/IPS Display Screen, Wi-Fi Mobile App control
Outputs 2 x RCA 1 X Optical (to 192kHz/24bit) 1 x Coaxial (to 192kHz/24 bit) 1 x Video output
Opertating Voltage 11V ~ 16V
Max Low input 4V
Max High input 24V
RCA output 2 x 6V
DIM (mm) 217 x 170 x 43
DIM (In) 8.6 x 6.7 x 1.7
Controlers available Wireless BT Controller, Mobile App Control, Optional Wired Controller w/IPS Display
Fuse Rating 10A

Specifications
  • Unit of Measure
    EACH
  • Class
    Source Units
