Goldhorn | SKU: P1

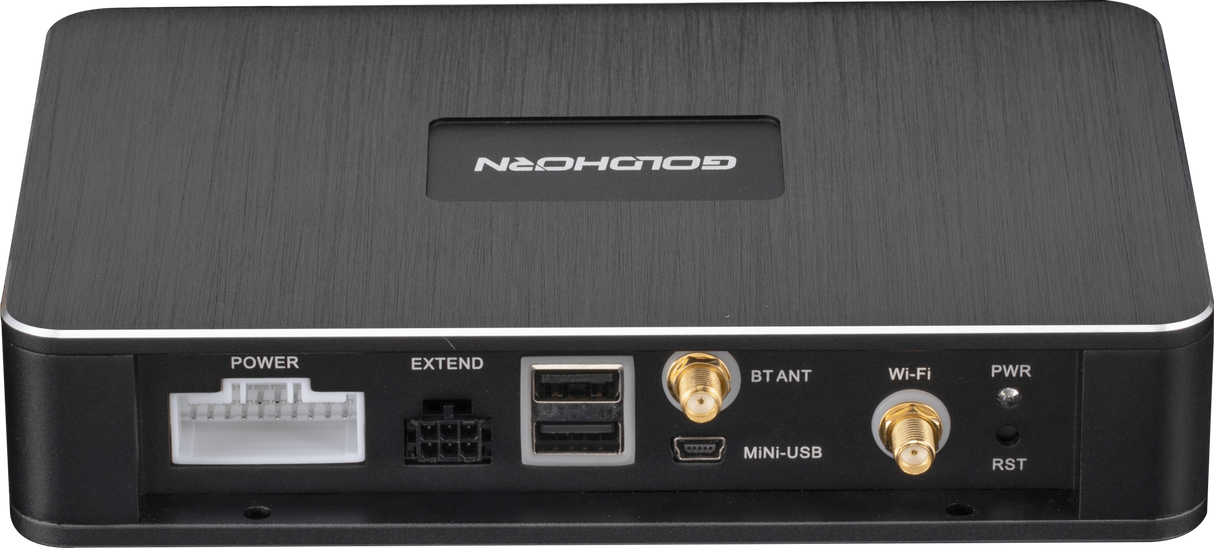

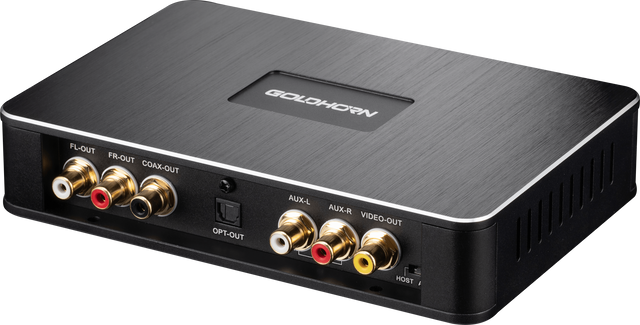

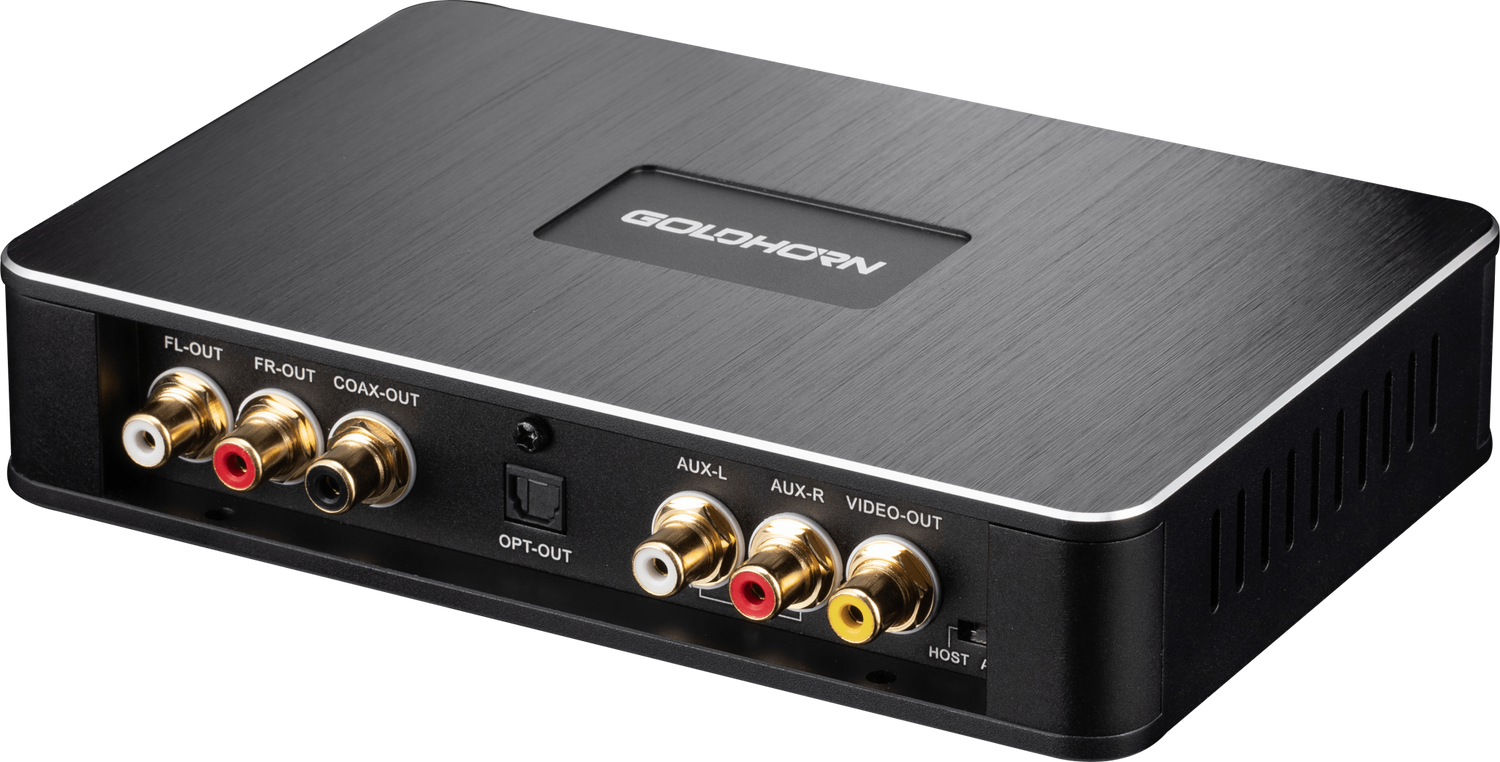

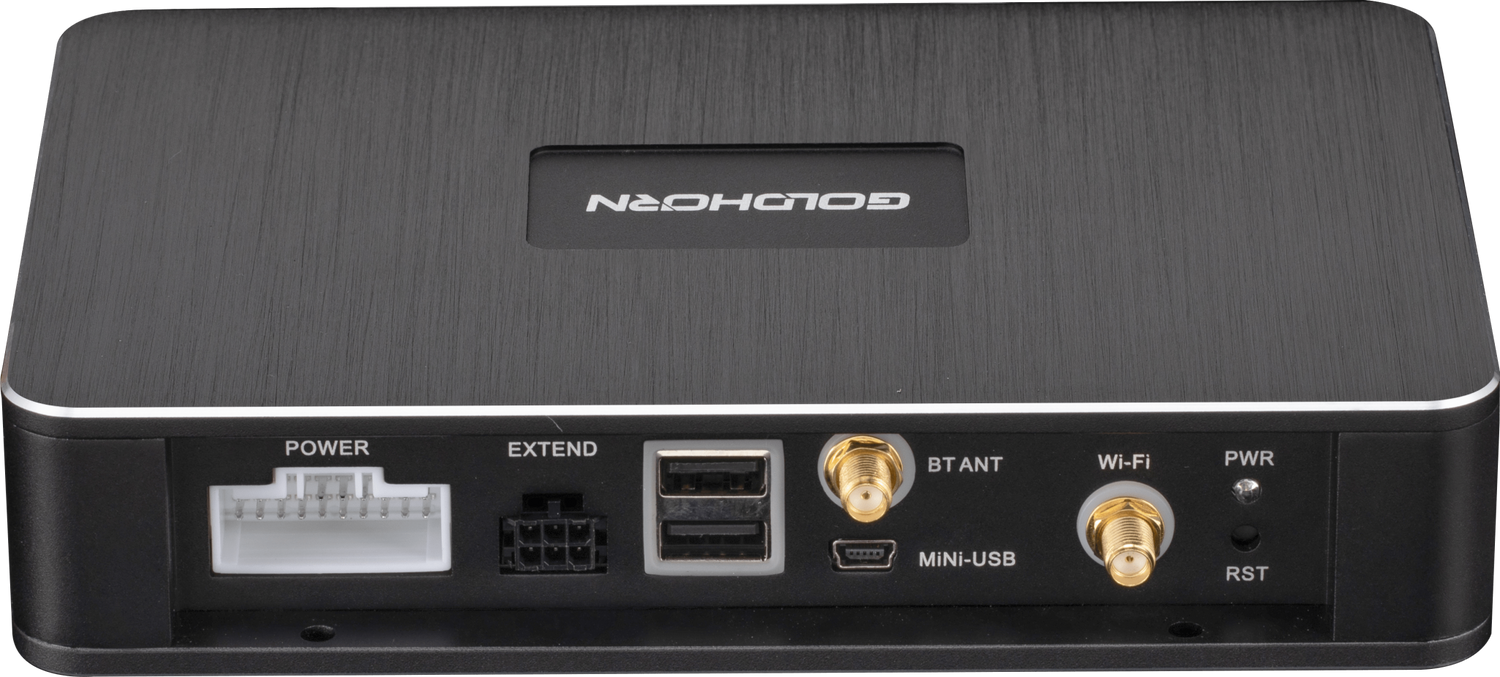

Goldhorn Hi-Res Music Player 4 Chanel High Level Inputs - 2 Channel Output (P1)

Name: Goldhorn Hi-Res Music Player 4 Chanel High Level Inputs - 2 Channel Output (P1)
Brand: Goldhorn
SKU: P1

Sold As: EACH

Available to order. Lead time will be confirmed after your order is placed.

Description

High-resolution audio files playback: DFF/DSF/WAV/FLAC/APE/AIFF/DSD (up to 256)
Hi-End components: AKM AK4490 DAC (32-bit / 768 KHz PCM) Texas, Instruments OPA2604 Operation Amp, KMG High temperature tolerance electrolytic capacitor (high-reliability under 105˚C)
4 x High Level Inputs 2 x AUX Inputs
1 x Optical Output 1 x Coaxial Output (up to 192 KHz / 24 bit) 2 x RCA Outputs
Intelligent Control: panel control with IPS display, wireless digital remote control, APP control
Lossless streaming via Bluetooth® 5.0 (aptX) and WiFi connection

	P1 Technical Specs
DAC	AK4490 DAC (32bit/768kHz)
Op Amp	OPA2604 Op Amp
Ext. Control	GH GHA1000
Gen Processing	4 x ARM Cortex A7
Ext. Clocking	1 x Femtosecond Clocks
Pwr&Filtering	Elna High Temp (105°C) Electrolytic Caps and WIMA film filtering caps
Music Formats (File types)	HiRes DSD: DFF / DSF / DSD Up to 256 Hi Res, Hi Res Uncompressed: WAV / FLAC / APE / AIFF / AIF, Compressed: MP3/AAC/OGG/WMA/MV
Music inputs	3 x USB 2.0 Host, BT 5.0 aptX-LL/AptX, 2 x AUX RCA, 4 x High level
Control Inputs	BT Wireless Player Remote, Optional Wired Panel controller w/IPS Display Screen, Wi-Fi Mobile App control
Outputs	2 x RCA 1 X Optical (to 192kHz/24bit) 1 x Coaxial (to 192kHz/24 bit) 1 x Video output
Opertating Voltage	11V ~ 16V
Max Low input	3V
Max High input	10V
RCA output	2 x 4V
DIM (mm)	180 x 122 x 36
DIM (In)	7.1 x 4.8 x 1.42
Controlers available	Wireless BT Controller, Mobile App Control, Optional Wired Controller w/IPS Display
Fuse Rating	10A
