Goldhorn STAND ALONE 10 CHANNEL DSP PROCESSOR (DSP10)

Goldhorn DSP10 is a 10-channel Stand-alone processor, optimised for mainstream vehicle audio modifications. With 8-channel high-level input and 10-channel RCA output, it ensures seamless integration.

Boasting powerful processing and adjustment capabilities, the DSP10 maintains audio clarity and dynamic range for a pure sound experience. Plus, it supports the Goldhorn SKYATOM Surround System for an immersive audio journey.

Technical Specifications

Hi-End Components:
ADAU1452 ADI DSP-Chip
2 x PCM1840 ADC-Chip (TI Hi-End 192KHz/32bit ADC)
1 x PCM1690 DAC-Chip (TI Hi-End 192KHz/24bit DAC)
MC33078 Op Amp
High temperature tolerance electrolytic capacitor
High-reliability under 105°C

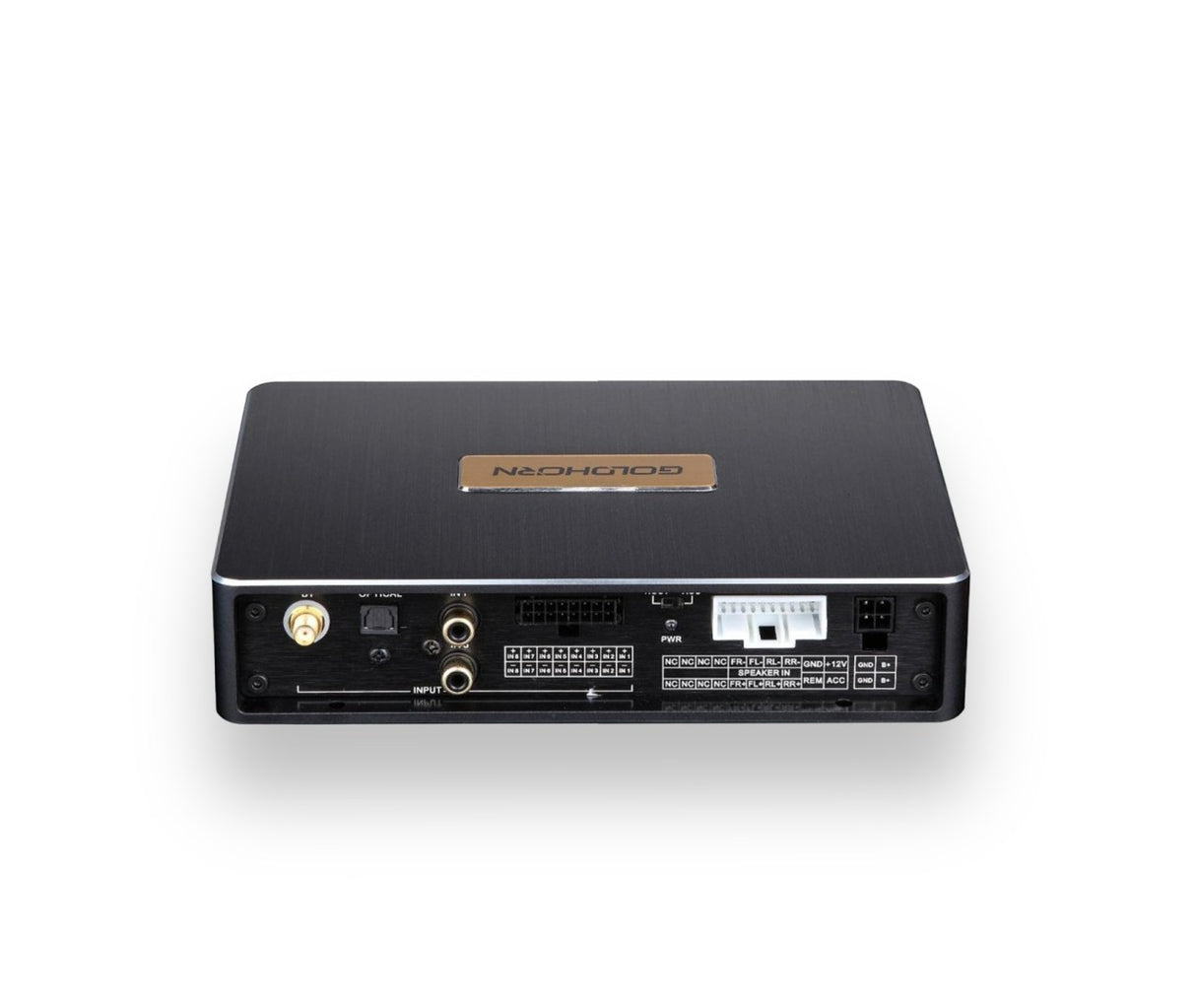

Inputs:
8 x High Level Inputs, 12Vrms Max.
2 x AUX Inputs, 3Vrms Max.
Input Impedance: 60Ω
1 x Optical Input, up to 96KHz/24bit

Frequency Combination:
Supports up to 4 combined frequency high level input per channel

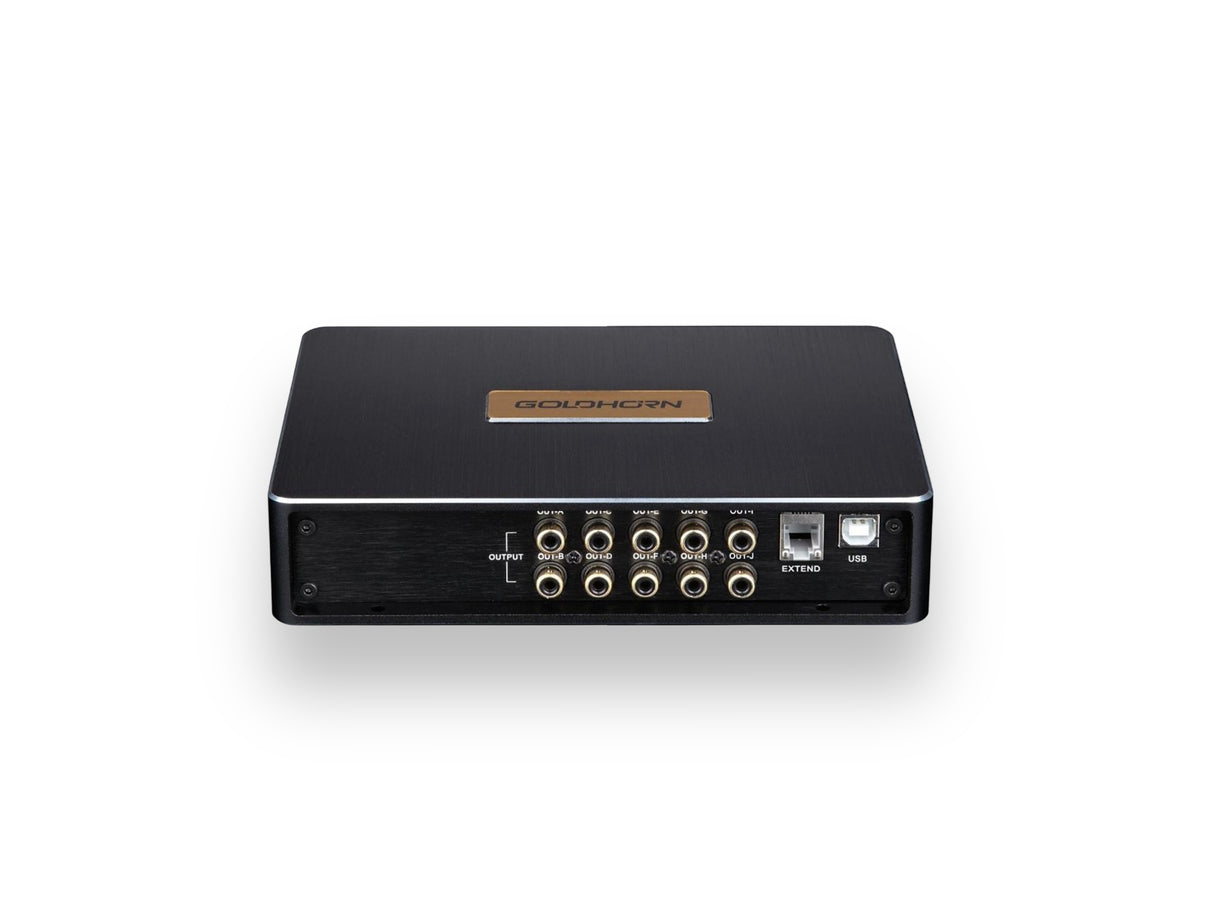

Outputs:
10 x RCA Outputs, 16Vpp / 5.6Vrms / 47KΩ

Bluetooth® Receiver:
Bluetooth® 5.0
Profile: A2DP/AVRCP
Audio Codec: aptX / aptX HD / AAC / SBC

Input Equalizer:
Independently adjustable per channel
Filter type: PE Peak / LS low-shelf / HS Elevated / Slope 1&2 AP All-pass Filter
5-Band Parametrical Equalizer: 20Hz ~ 20KHz
Q: 0.5 to 15
Gain: -15dB to +15dB

Input Delay:
High level input time delay adjustment: 0–10ms / 0–340cm

Dynamic Loudness Control:
Separate DLC parameters for Analog / Digital / Bluetooth input sources

SKYATOM Surround:
Independently adjustable per channel output volume gain: -20dB to +10dB
Phase Shift: Positive phase / inverted phase
Time Delay: Subwoofer delay range: 0–10ms
Other channel delay: 0–40ms
Surround Sound Effects:
Front sound field extension
Front sound field treble enhancement
Center enhancement
Center treble enhancement
Surround sound field enhancement
Bass enhancement
Bass dive enhancement

Output Crossover:
Independently adjustable per channel
Filter type: Butterworth / Linkwitz / Bessel
Filter frequency: 20Hz ~ 20KHz
Filter slope: -6dB/Oct ~ -48dB/Oct

Output Equalizer:
Independently adjustable per channel
Filter type: PE Peak / LS low-shelf / HS Elevated / AP1 & AP2 All-Pass filter
31-Band Parametrical Equalizer: 20Hz ~ 20KHz
Q: 0.5 to 15
Gain: -15dB to +15dB

Equalizer Control Mode:
Relative / Absolute / No

Output Polarity:
Variable Phase Rotation from 0° to 360°, step 1°

Output Phase:
Positive phase / Inverted phase

Output Delay:
Independently adjustable per channel: 0–20ms / 0–680cm

Output Volume:
Independently adjustable per channel: -20dB ~ 0dB
Master Volume: Mute / 0 to 60 levels, -100dB to 0dB

Rename:
Speakers can be renamed individually for each channel

Controller:
Save customized tuning / volume control / Bass controls

PC Tuning:
Microsoft™ Windows 7 or higher

Dimensions:
193mm x 146mm x 41mm
