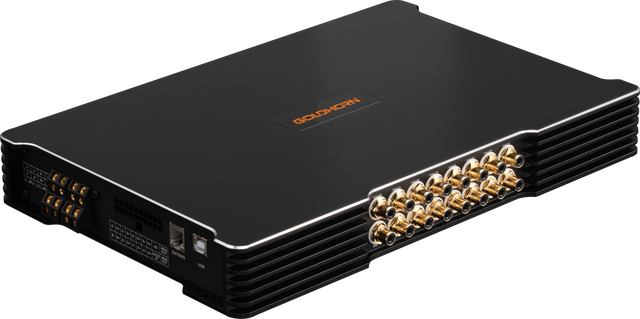

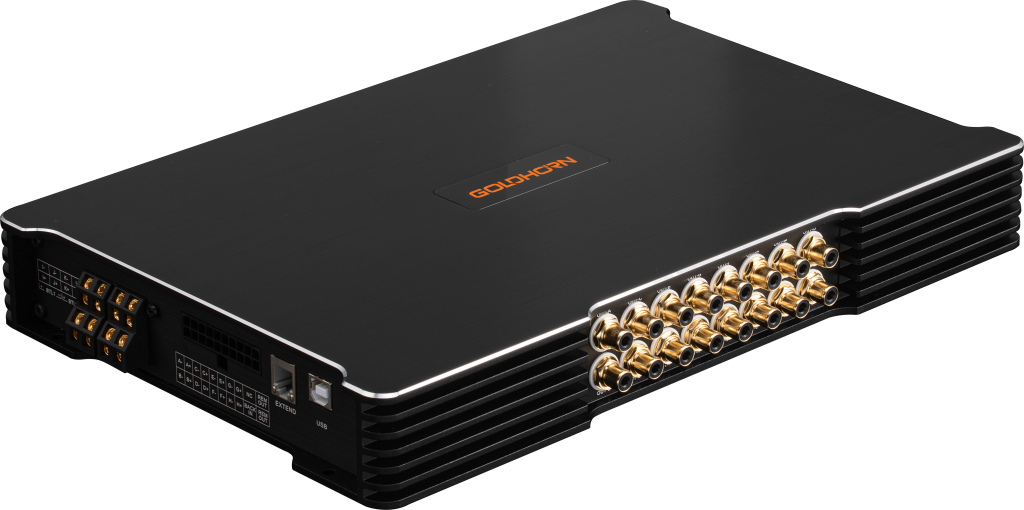

The DSPA 1216 Plus stands out with its robust built-in amplifier, delivering up to 80W per channel across eight channels and 150W per channel across four channels. In bridging mode, it reaches 200W per channel for two channels, ensuring your subwoofers and woofers, along with high-end speakers, produce rich and immersive 360° surround sound. The unit also features 16-channel RCA outputs, supporting a range of future upgrades, making it a future-proof addition to any vehicle.

Designed to integrate seamlessly with luxury vehicles like Mercedes-Benz, BMW, Audi, and more, the DSPA 1216 Plus ensures the original car speakers reach their full potential. It includes high-end components such as a Class D amplifier and Bluetooth® 5.0 with support for advanced audio codecs. The processor allows for precise audio customization with a 31-band EQ, crossover frequency, slope adjustments, and time alignment delays, catering to individual preferences for a superior listening experience. Additionally, its Error Protection System and navigation mix feature guarantee uninterrupted, high-quality audio output, further enhancing the user experience.

Hi-End components
24-channel DSP Outputs
8 x 80W/4Ω + 4 x 150W/4Ω Max. integrated Class D amplifier
2 x 200W/4Ω Max. BTL Outputs
16 x High Level Inputs
2 x AUX Inputs
12 x High Level Outputs
16 x RCA Outputs
1 x Optical/Coaxial Inputs up to 192kHz/24bit
Bluetooth® 5.0 aptX HD

Key Features

Built-in 31-band EQ DSP

Navigation Mix: Backing up and navigation audio guide first

Variable Phase Rotation from 0° to 360°

EPS — Error Protection System
