Goldhorn  |  SKU: P2DSPAPRO

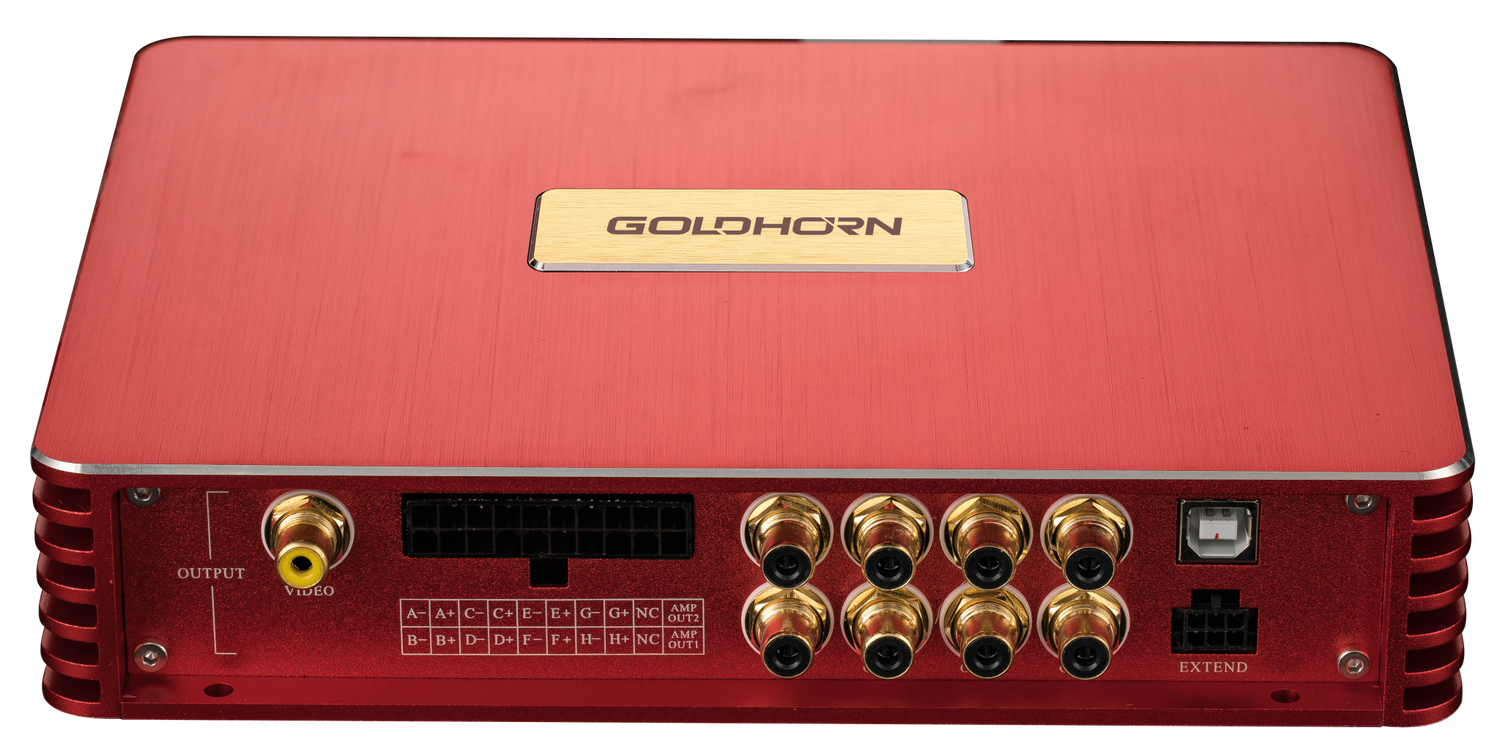

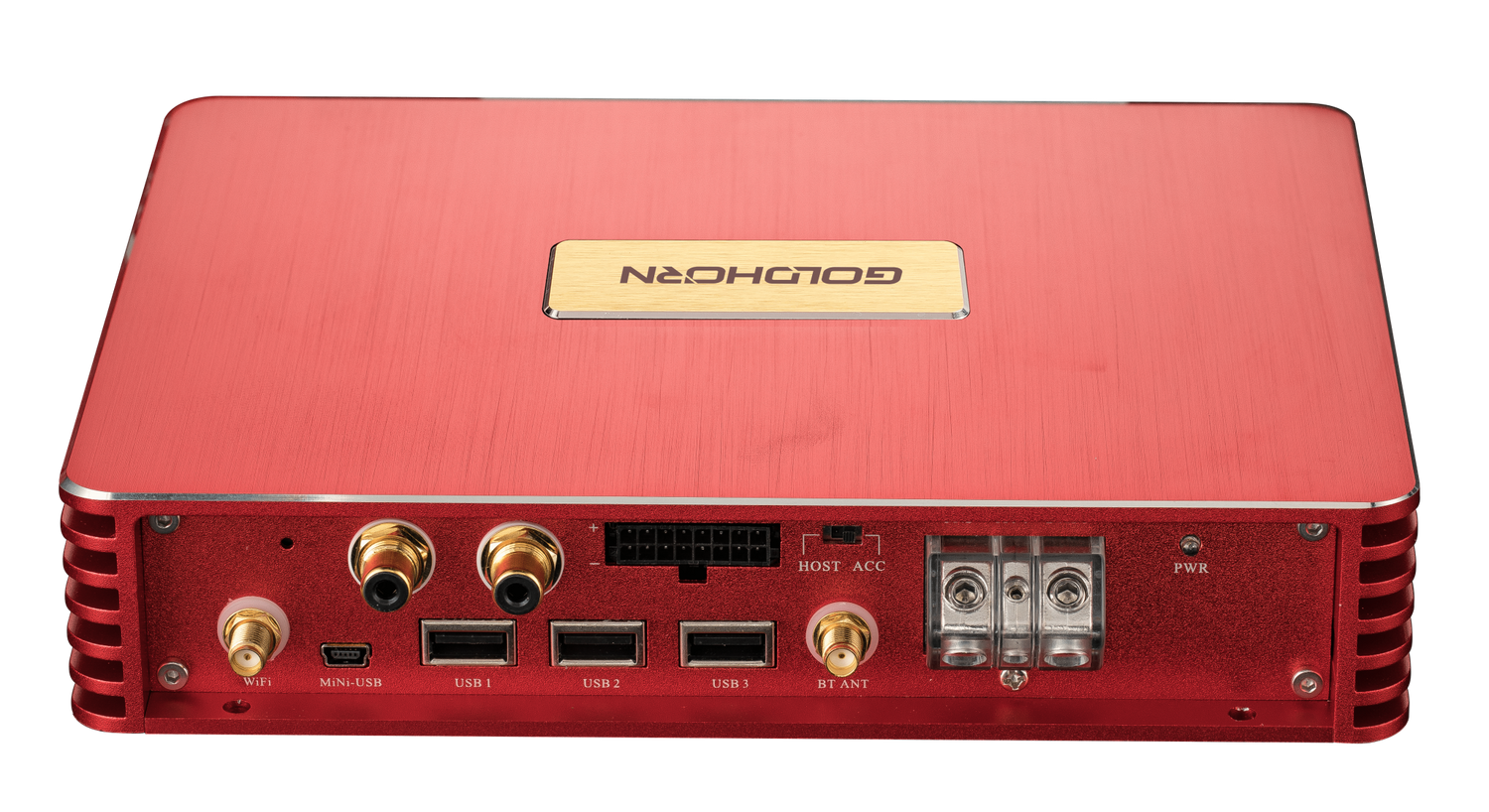

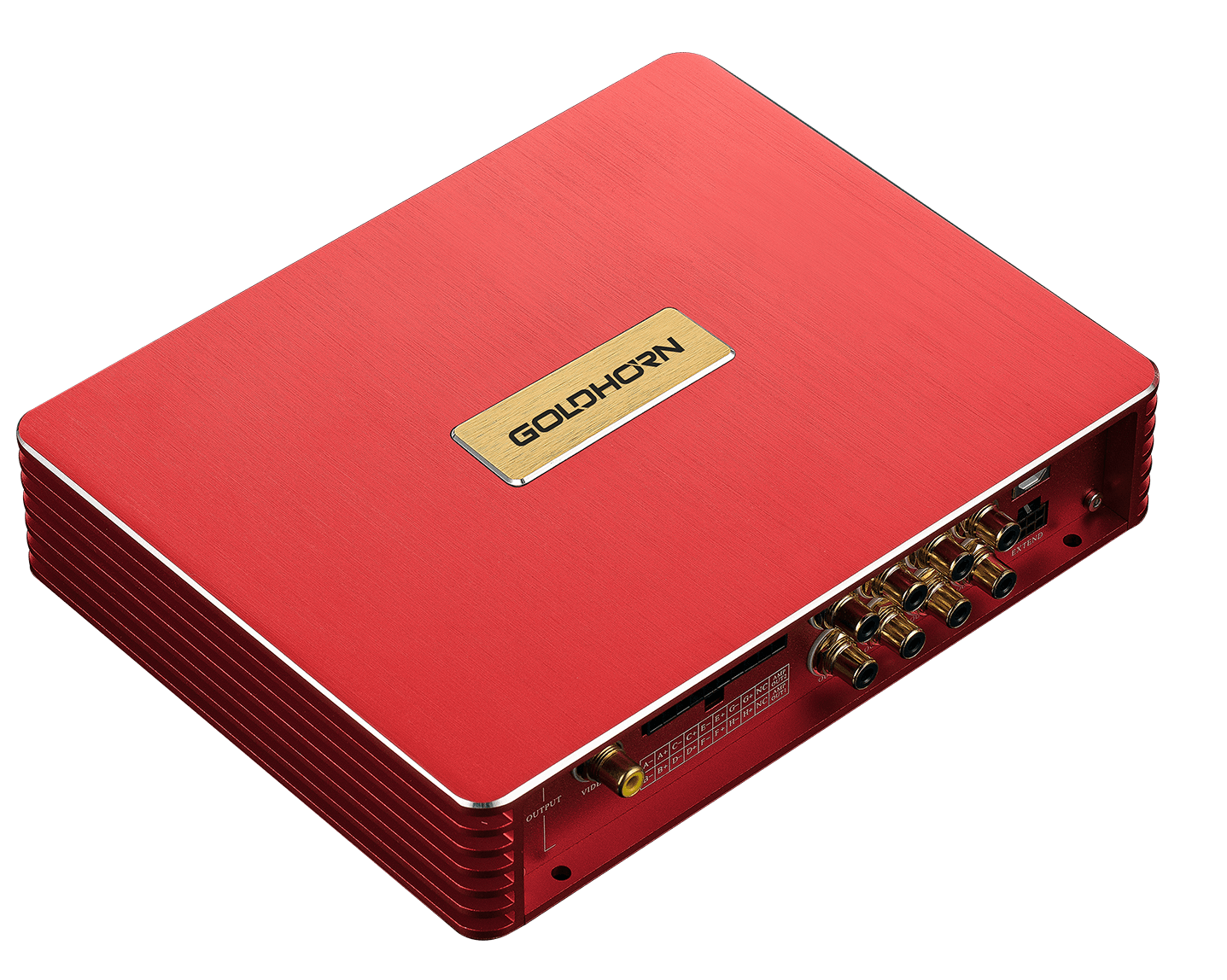

Goldhorn 8 Channel Amplifier with 16 Channel DSP Processor - 50 Watts x 8 RMS Power @ 4 Ohms (P2DSPAPRO)

Sold As: EACH

Available to order. Lead time will be confirmed after your order is placed.

Description

Key Features

  • High-resolution audio files playback: DFF/DSF/WAV/FLAC/APE/AIFF/DSD (up to 256)
  • Hi-End components: TI PCM1690 (24-bit / 192 KHz PCM) Professional Op Amp High temperature tolerance electrolytic capacitor (high-reliability under 105˚C)
  • Integrated Professional DSP: 295 MHz ADI chip with 1.2 billion MAC operations per second 31-band EQ, crossover frequency and slope, phase inversion, time alignment delays individually adjustable for each channel, or synchronously adjustable for chosen channels
  • Powerful 8 x 80W/4Ω Max. integrated Class D amplifier
  • 8 x High Level Inputs 2 x AUX Inputs
  • 8 x RCA Outputs 8 x High Level Outputs
  • Intelligent Control: panel control with IPS display, wireless digital remote control, APP control
  • Lossless streaming via Bluetooth® 5.0 (aptX) and WiFi connection
  • Easy Plug & Play connection
P2 DSPA Pro Technical Specs
DSP Chip ADAU1452
DAC Chip PCM1690
ADC Chip 2 x PCM1840
Opamp NJM4580 & MC33078
Capacitors High Temperature for High Reliability to 105°C electrolytics and WIMA film Caps
Music Formats Hi-Res: DFF / DSF / DSD Up to 256, Hi Res Uncompressed: WAV / FLAC / APE / AIFF / AIF, Compressed: MP3 / AAC / OGG / WMA
Music Inputs USB 2.0 Host x 3, BT 5.0 aptX-LL/AptX-HD
Control Inputs BT Wireless Player Remote, Wi-Fi Mobile App, Optional Wired Panel controller w/IPS Display Screen
PC Connection USB B
Processing Functions (See delay below) Crossover Frequency: 20Hz ~ 20kHz @ 1dB steps, Master Gain: 0 ~ 60dB, Channel gains: -20dB ~ +5dB Polarity: Phase Reversal 0 or 180, EQ filters Q 0.5 ~ 15 @ 0.1 steps, Input Mixer, Three Linking Functions: Volume Linking- Absolute or Relative, EQ Linking – Relative or Absolute, Crossover Linking – With EQ link on, Freq Link button will link crossovers
Delay 0 ~ 20ms / 0.02ms stops
Output EQ EQ bands: All Channels 31 @ ± 15dB in 0.1dB Steps, Filter Functions: Peak / High Shelf / Low Shelf / 1st order All Pass/ 2nd Order All Pass
Crossover Butterworth & Bessel: 6, 12, 18, 24, 30, 36, 42, 48dB / Linkwitz: 12, 24, 36dB
XO Phase Rotation Variable Phase shift at HP and LP filters from 0° ~ 359°
Inputs 8 x Hi / 2 x RCA / BT
Input EQ EQ bands: All Channels 5 bands @ ± 15dB in 0.1dB Steps Filter Functions: Peak / High Shelf / Low Shelf / 1st order All Pass/ 2nd Order All Pass Input Delay: 0 ~ 10ms in 0.02 Steps
Frequency Resp: 20Hz ~ 40kHz
Operating Voltage 11V ~ 16V
Input Sens (V) RCA 4V
Input Sens (V) Hi 24V
RCA Out Voltage 8 x 6V
RCA Out Specs THD+ Noise < 0.003 S/N Analog input ⧁ 108dB S/N Digital Input ⧁ 111dB
Amp Outputs | THD+Noise 100dB 8 x 80w, THD+Noise < 0.02 S/N ⧁100dB
Dimensions (mm) 217 x 170 x 43
Start-Stop ready Yes
EPS (Intelligent High-Level Input-Error Protection System) Yes
Finish Red Anodized Aluminum
Auto Turn On via DC Offset or Signal Sensing Yes
Remote Turn on Output Yes
Clipping LED’s No
Built in Bluetooth aptX
Built In Wifi Yes
THD+Noise RCA 0.003%
S/N ratio RCA 108dB Analog / 111dB Digital
THD+Noise Amplifier 0.02%
S/N ratio Amplifier >100dB
Fuse Rating 40A
Input impedance: No Impedance adaptor needed 6 Ohm High Level
Controller BT Wireless Player Remote, Optional Wired Panel controller w/IPS Display Screen, Wi-Fi Mobile App control
Input Mixer Yes
Presets 8
Software Interface PC 32bit W7 and up
All Pass filters at input and output EQs Both 1st Order and 2nd Order
Navigation Mode w/ Input Priority Yes
Automatic Mode Switching Mixer Yes
Password Available Yes
Analog Noise Gate Yes
Variable Power Off Delay Yes
Seven DAC rolloff choices for ESS 9038 No
