Gladen  |  SKU: ZETA08

GLADEN ZETA SERIES 8" Cast Basket High End Subwoofer - 200 Watts RMS Power Handling (ZETA08)

Sold As: EACH


Available to order. Lead time will be confirmed after your order is placed.


Description

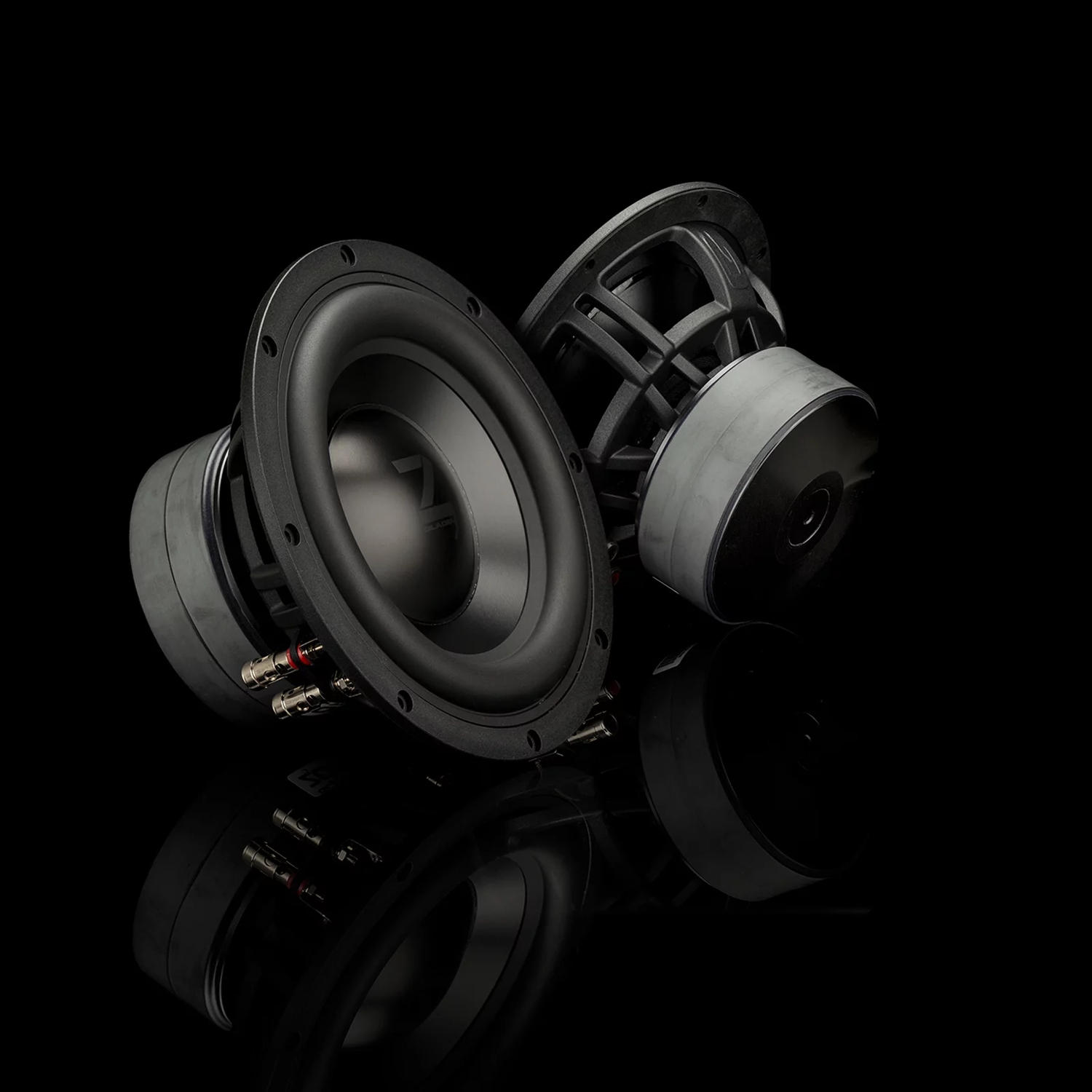

The Zeta 08 is a 22-cm subwoofer driver designed for controlled, low-distortion, low-frequency reproduction. Its design emphasizes linear cone motion and stable motor behavior, making it ideal for compact subwoofer applications.

The rigid aluminum cone ensures clean, piston-like movement across the operating range, supporting accurate bass reproduction, even at higher output levels. Its robust, die-cast aluminum chassis provides high mechanical stability and features extensive ventilation to reduce air compression during operation.

The motor system incorporates integrated magnetic field stabilization to maintain consistent magnetic flux under increased drive levels. This reduces non-linear distortion, especially during larger cone excursions.

A powerful motor with a 2-inch voice coil ensures controlled force transfer in the low-frequency range. The voice coil is wound on a heavy-duty fiberglass former to reduce mechanical losses and support precise cone control.

Thanks to its large linear excursion, the Zeta 08 can deliver clean, controlled bass reproduction, even at high sound pressure levels. This makes the driver an excellent choice for applications requiring precision, control, and reliability.

  • Music-oriented design: controlled, precise bass
  • Long-throw voice coil for linear excursion
  • Robust diaphragm structure
  • 2x2 ohm voice coils
  • Conex Spider
  • Designed for compact, closed enclosures
  • Recommended enclosure: 12 liters or more (closed)

TECHNICAL DATA GLADEN ZETA 08

MATERIAL:

  • Dust Cap:

    Aluminum

  • Coil former:

    Fiberglass

  • Spider:

    Conex

  • Cone:

    Aluminum

  • Surround:

    NBR

  • Basket:

    Aluminum


DATAS:

  • Measurements are determined using a connected moving coil:

  • Recommended volume (sealed):

    12 liters closed / 30 liters ventilated

  • X-Max linear (+/-):

    11 mm

  • DC resistance (Rdc):

    1,8 Ω (dual)

  • Nominal impedance (ZN):

    2x2 Ω

  • Resonance frequency (Fs):

    21 Hz

  • Voice coil diameter:

    50 mm

  • Voice coil height:

    30 mm

  • Mechanical Q factor (Qms):

    9

  • Electrical Q factor (Qes):

    0,61

  • Total Q factor (Qts):

    0,57

  • Moving mass (md):

    116 g

  • Piston area (sm):

    206 cm2

  • Mechanical resistance (Rms):

    1,7 kg/s

  • Compliance (Cms):

    0,49mm/N

  • Force factor (BL):

    6,8 Tm

  • Equivalent air volume (Vas):

    29,7 Liter

  • SPL 2,83V/1m:

    84,8 dB

  • External diameter:

    224 mm

  • Installation diameter:

    189 mm

  • Installation depth:

    118 mm



Specifications

  • Unit of Measure
    EACH
  • Speaker Size
    8"
  • Class
    Subwoofers
