Gladen  |  SKU: SSW065

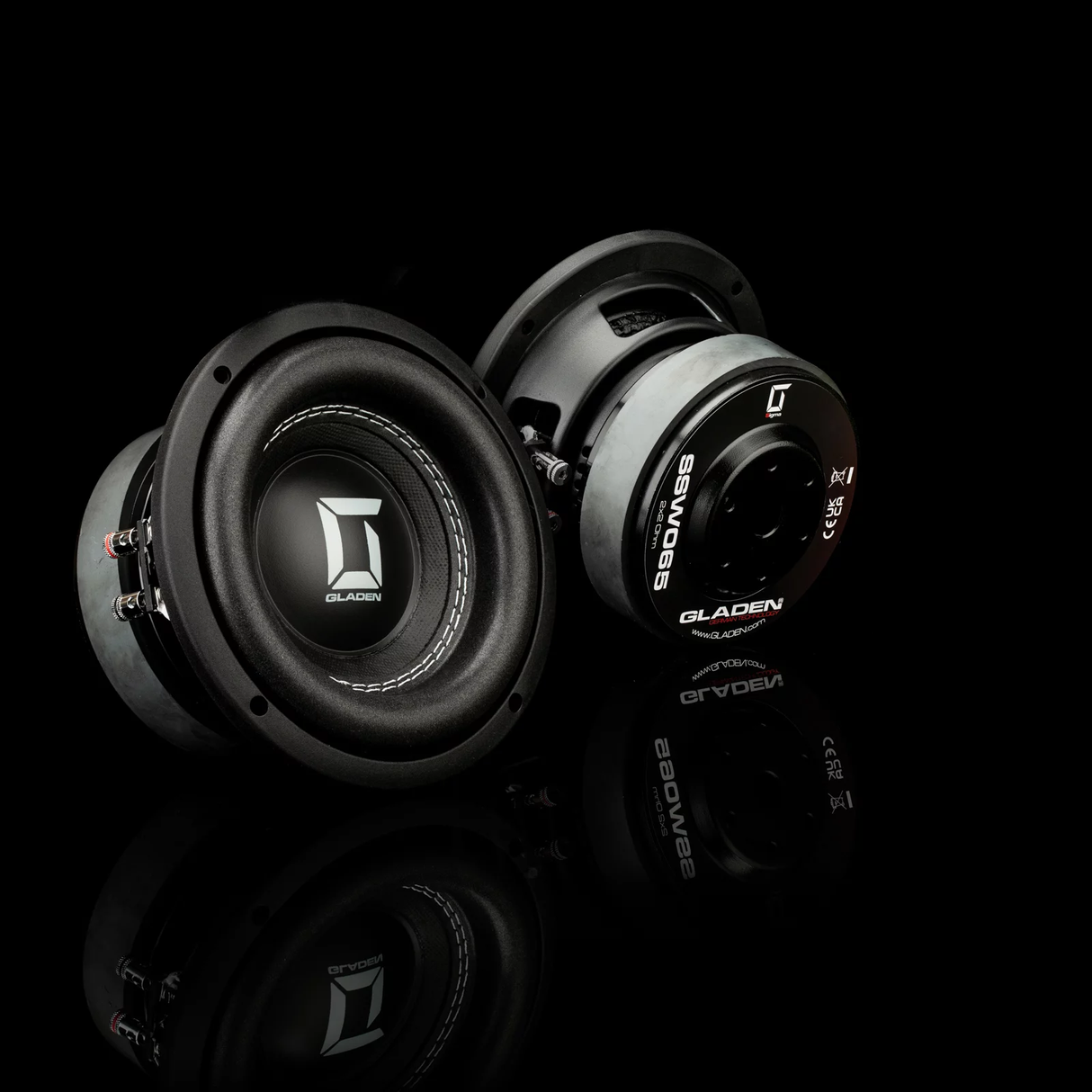

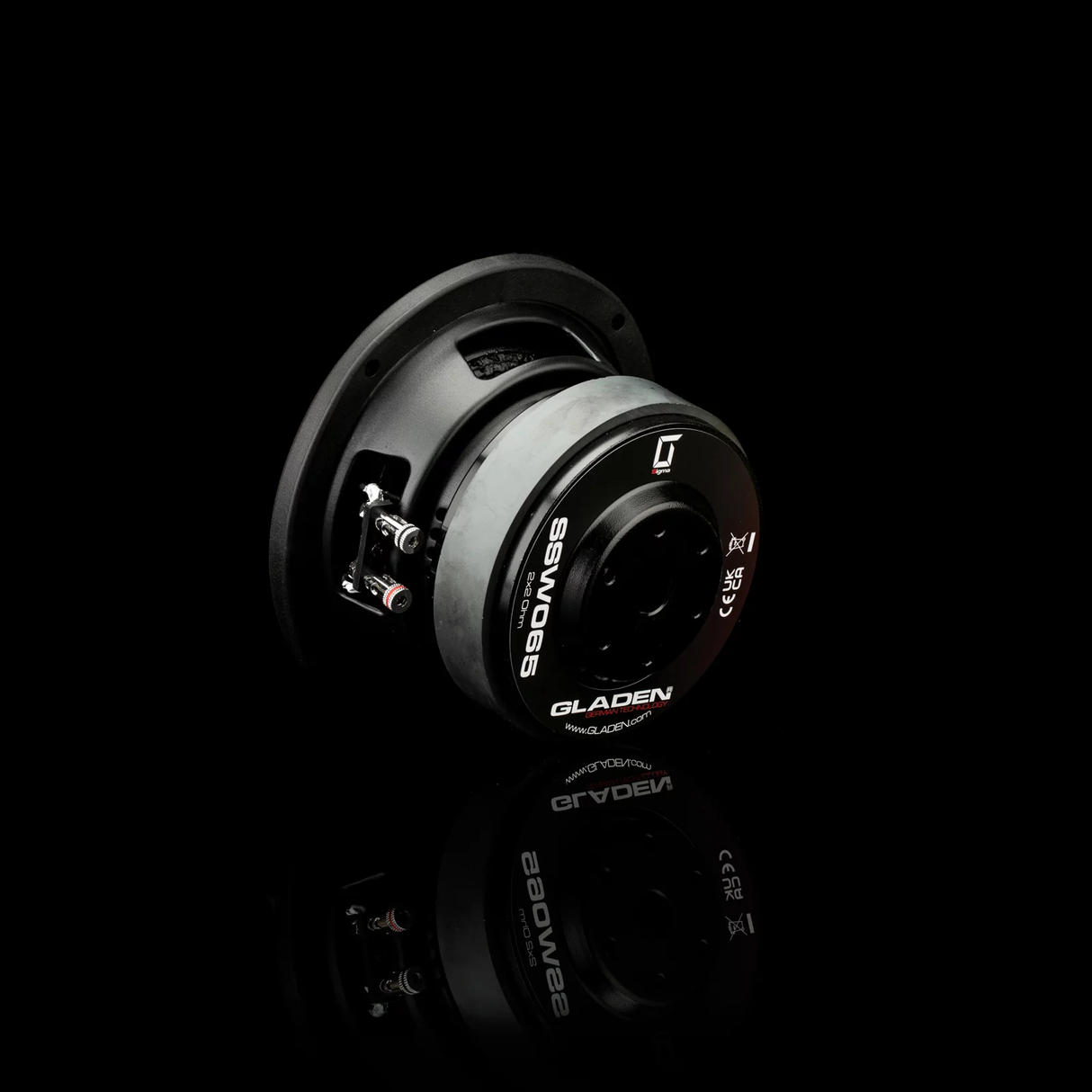

GLADEN SIGMA 6.5" Dual 2 Ohm Subwoofer - 250 Watts RMS (SSW065)

Sold As: EACH

Available to order. Lead time will be confirmed after your order is placed.

Description

The GLADEN SIGMA SSW065 was specially developed for compact vehicle installations requiring controlled bass and high precision. Despite its small size, this 6.5-inch subwoofer delivers powerful performance thanks to its long-stroke suspension unit. These features ensure clean bass impulses and high control.
The FEM-optimized motor structure provides efficient power transmission with low distortion. Combined with the lightweight yet stable paper cone and precisely tuned suspension, the SSW065 delivers an accurate, dry low-frequency response, making it ideal for closed and compact bass reflex enclosures.

Thanks to its dual 2-ohm voice coil, the SIGMA SSW065 offers maximum flexibility in system integration and is ideal for modern, space-saving vehicle concepts that require high sound quality.

  • Compact 6.5" subwoofer for precise bass.
  • FEM-optimized drive for high control
  • Long-throw 1.5" voice coil (dual 2 ohms).
  • It is optimized for small, closed, and bass reflex enclosures.

TECHNICAL DATA GLADEN SIGMA SSW065

MATERIAL:

  • Dustcap:

    PP

  • Coilformer:

    Aluminum

  • Spider:

    4.5" PC Mix (poly-cotton blend)

  • Cone:

    Paper

  • Surround:

    Foam

  • Basket:

    Steel

DATA:

  • Recommended volume:

    2,5-5 Liter

  • X-Max linear (+/-):

    8,5 mm

  • DC resistance (Rdc):

    1,8 Ω (dual)

  • Nominal impedance (ZN):

    2,2 Ω

  • Resonance frequency (Fs):

    56 Hz

  • Voice coil diameter:

    40 mm

  • Voice coil height:

    25 mm

  • Mechanical Q factor (Qms):

    7,27

  • Electrical Q factor (Qes):

    0,57

  • Total Q factor (Qts):

    0,53

  • Moving Mass (Mms):

    70,6 g

  • Piston area (sd):

    128,6 cm2

  • Compliance (Cms):

    0,11mm/N

  • Force factor (BL):

    12,7 Tm

  • Equivalent air volume (Vas):

    34,23 Liter

  • Efficiency (η):

    0,07 %

  • SPL 2,83V/1m:

    84,2 dB

  • External diameter:

    173 mm

  • Installation diameter:

    144 mm

  • Installation depth:

    93 mm



Specifications
  • Unit of Measure
    EACH
  • Speaker Size
    6.5"
  • Class
    Subwoofers
