Gladen  |  SKU: SSW10

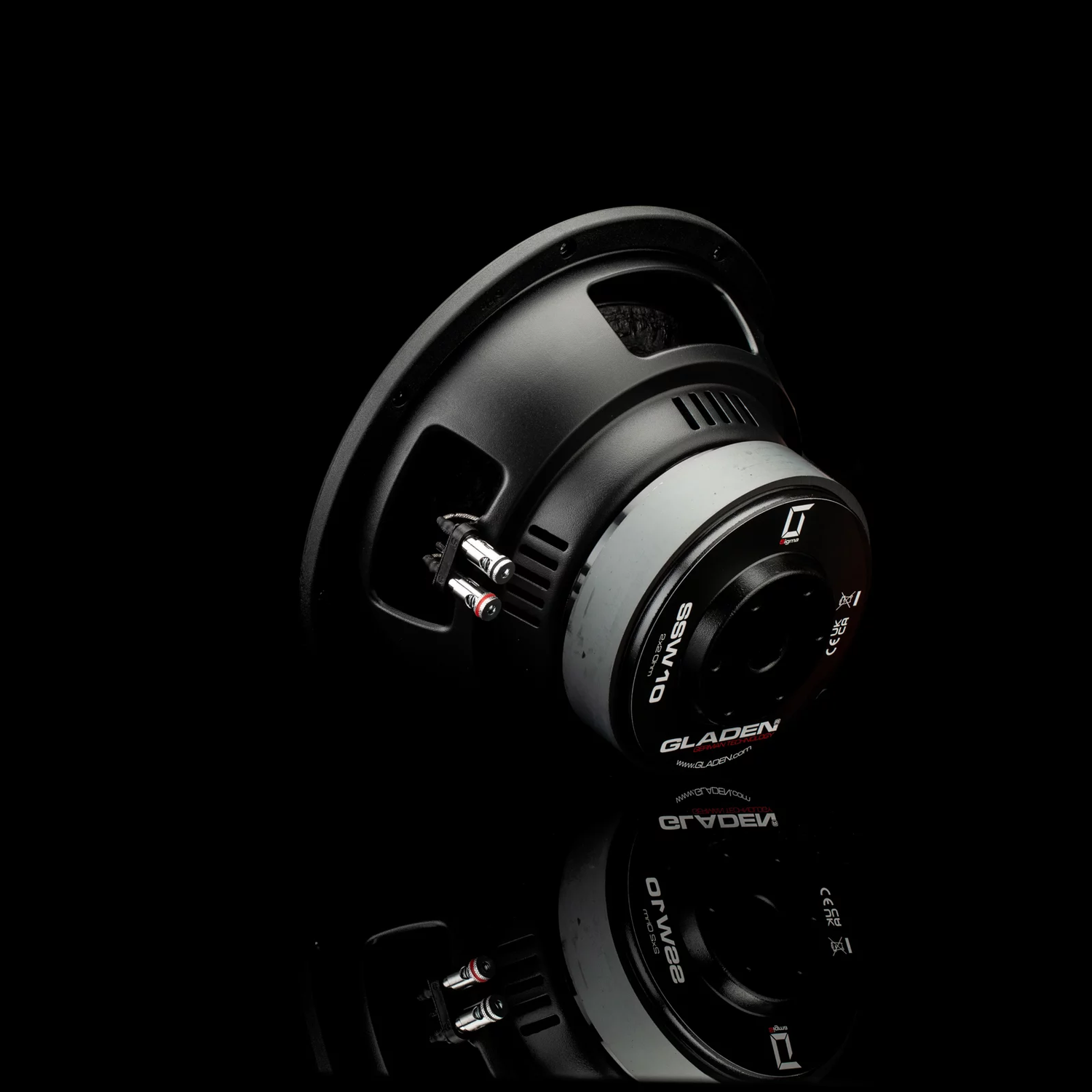

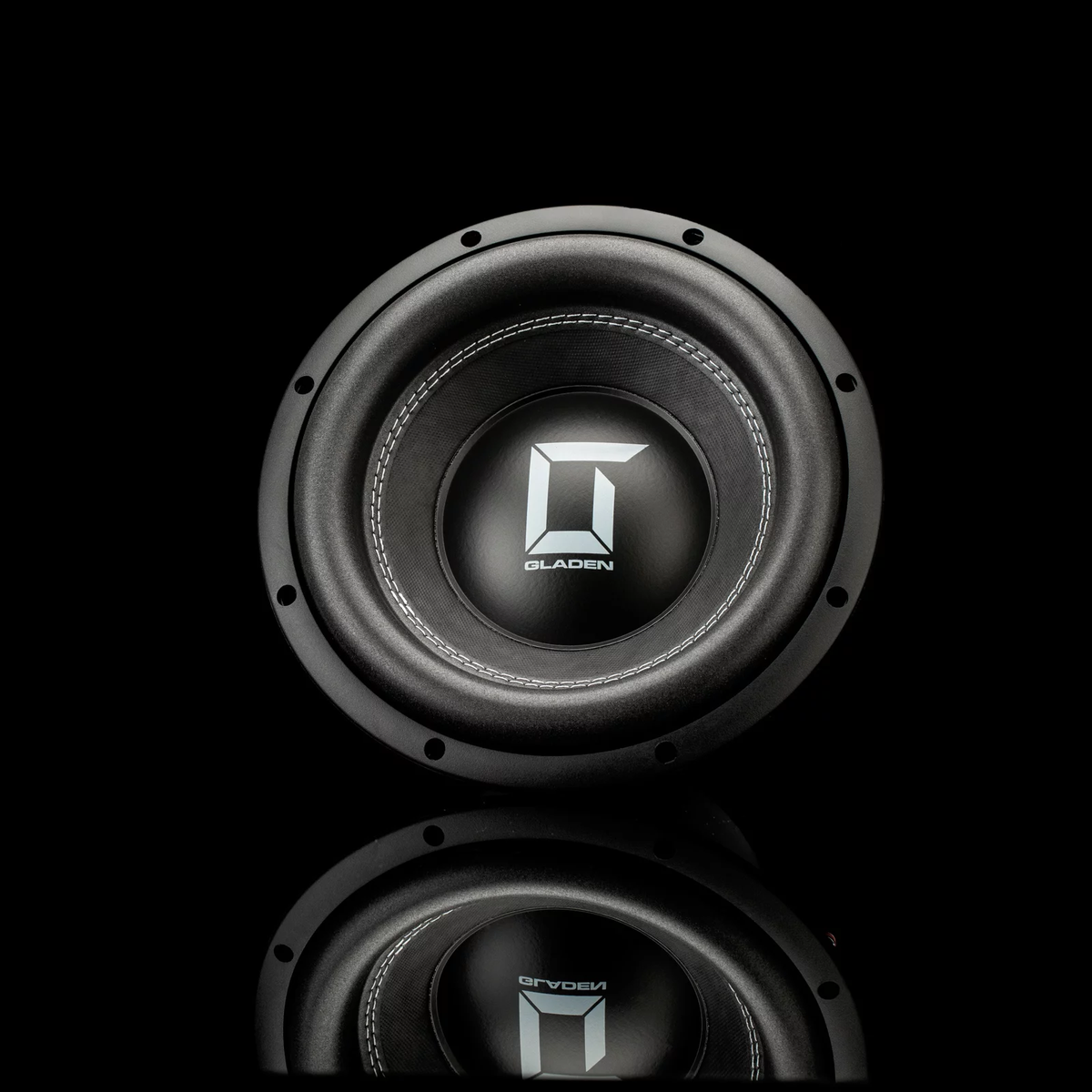

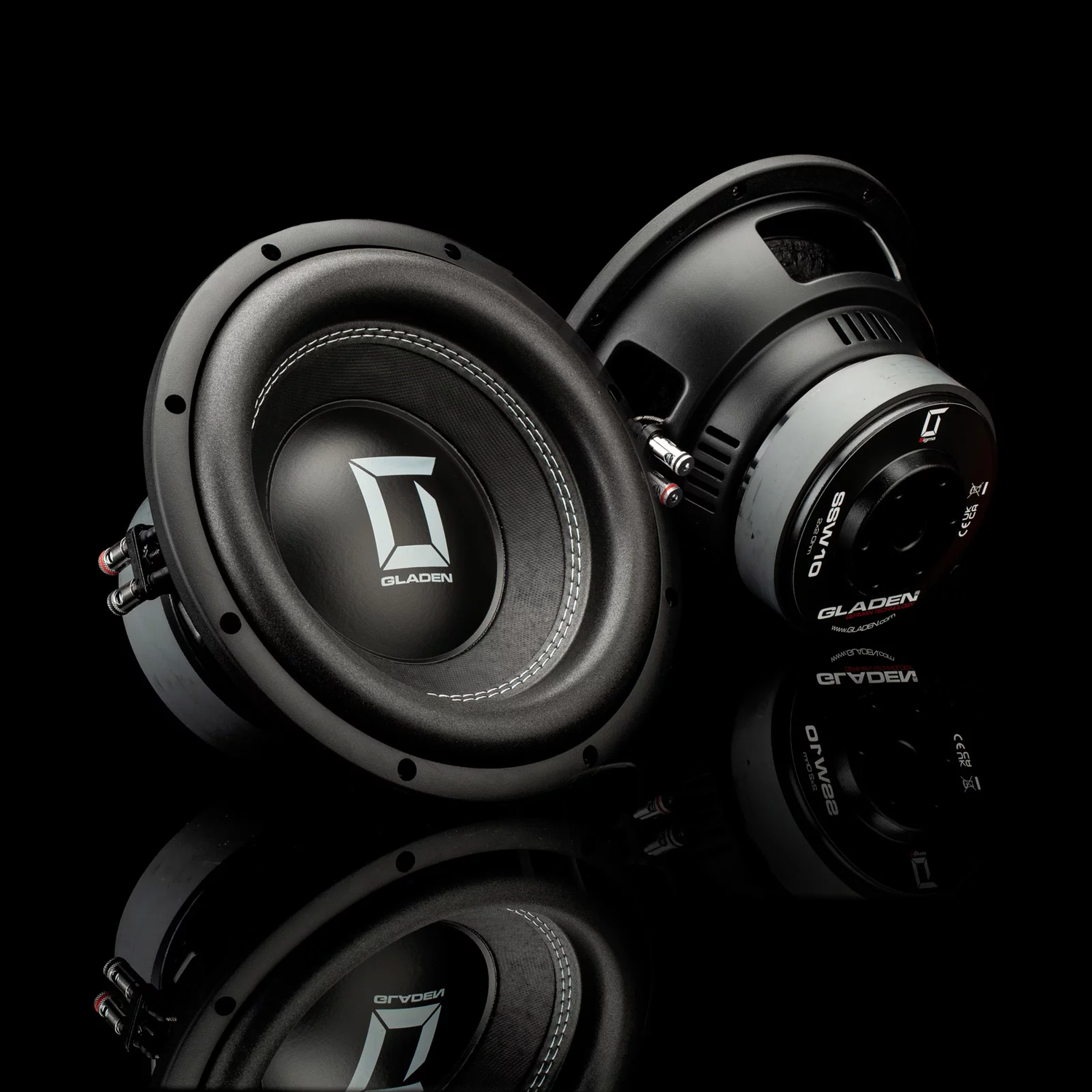

GLADEN SIGMA 10" Dual 2 Ohm Subwoofer - 300 Watts RMS (SSW10)

Sold As: EACH

Available to order. Lead time will be confirmed after your order is placed.

Description

The GLADEN SIGMA SSW10 was developed for applications requiring noticeable low bass and high control. With its larger membrane surface and powerful drive, this 10-inch subwoofer delivers superior bass pressure without sacrificing precision. It combines pressure and musicality, making it suitable for dynamic music styles and deep bass passages.
The sturdy paper cone and long-throw voice coil ensure precise conversion of amplifier power and clean bass reproduction, even at high levels. Thanks to its dual 2-ohm voice coil, the SSW10 can be flexibly integrated into a wide variety of system concepts.

With its balanced electroacoustic parameters, the SIGMA SSW10 is designed for both closed and bass reflex enclosures, providing a versatile foundation for powerful car audio installations.

  • 10" subwoofer with powerful, controlled bass
  • Long-throw 2" voice coil with dual 2-ohm design
  • Efficient drive for clean bass impulses
  • Optimized for closed and bass reflex enclosures.

TECHNICAL DATA GLADEN SIGMA SSW10

MATERIAL:

  • Dustcap:

    PP

  • Coilformer:

    Aluminum

  • Spider:

    7" PC Mix (poly-cotton blend)

  • Cone:

    Paper

  • Surround:

    Foam

  • Basket:

    Steel

DATA:

  • Recommended volume:

    17-32 Liter

  • X-Max linear (+/-):

    11,5 mm

  • DC resistance (Rdc):

    1,85 Ω (dual)

  • Nominal impedance (ZN):

    2x2 Ω

  • Resonance frequency (Fs):

    36 Hz

  • Voice coil diameter:

    50 mm

  • Voice coil height:

    30 mm

  • Mechanical Q factor (Qms):

    6,64

  • Electrical Q factor (Qes):

    0,51

  • Total Q factor (Qts):

    0,47

  • Moving mass (Mms):

    153,2 g

  • Piston area (sd):

    330 cm2

  • Compliance (Cms):

    0,12mm/N

  • Force factor (BL):

    16,62 Tm

  • Equivalent air volume (Vas):

    18,4 Liter

  • Efficiency (η):

    0,17 %

  • SPL 2,83V/1m:

    86,5 dB

  • External diameter:

    263 mm

  • Installation diameter:

    230 mm

  • Installation depth:

    140 mm



Specifications
  • Unit of Measure
    EACH
  • Speaker Size
    10"
  • Class
    Subwoofers
