Gladen  |  SKU: RCORE11200

GLADEN RCORE 1-Channel Amplifier - 1,100 Watts x 1 @ 1 Ohm (RCORE11200)

Sold As: EACH


Available to order. Lead time will be confirmed after your order is placed.


Description

  • 1-channel amplifier
  • Class D technology
  • 1-ohm stable
  • 1210 watts

The RC1|1200 is a high-performance mono amplifier designed for subwoofer applications, offering uncompromising control, stability and continuous power output. The Class D amplifier delivers high efficiency and precise reproduction of low frequencies, making it ideal for high-performance bass systems for everyday use.

Thanks to its high- and low-level inputs, the RC1/1200 can be integrated into OEM and aftermarket setups alike. Analogue controls allow for quick and intuitive adjustments to be made directly to the unit without the need for additional software.

Key features:

- Class-D mono power amplifier
- Stable operation at low impedances

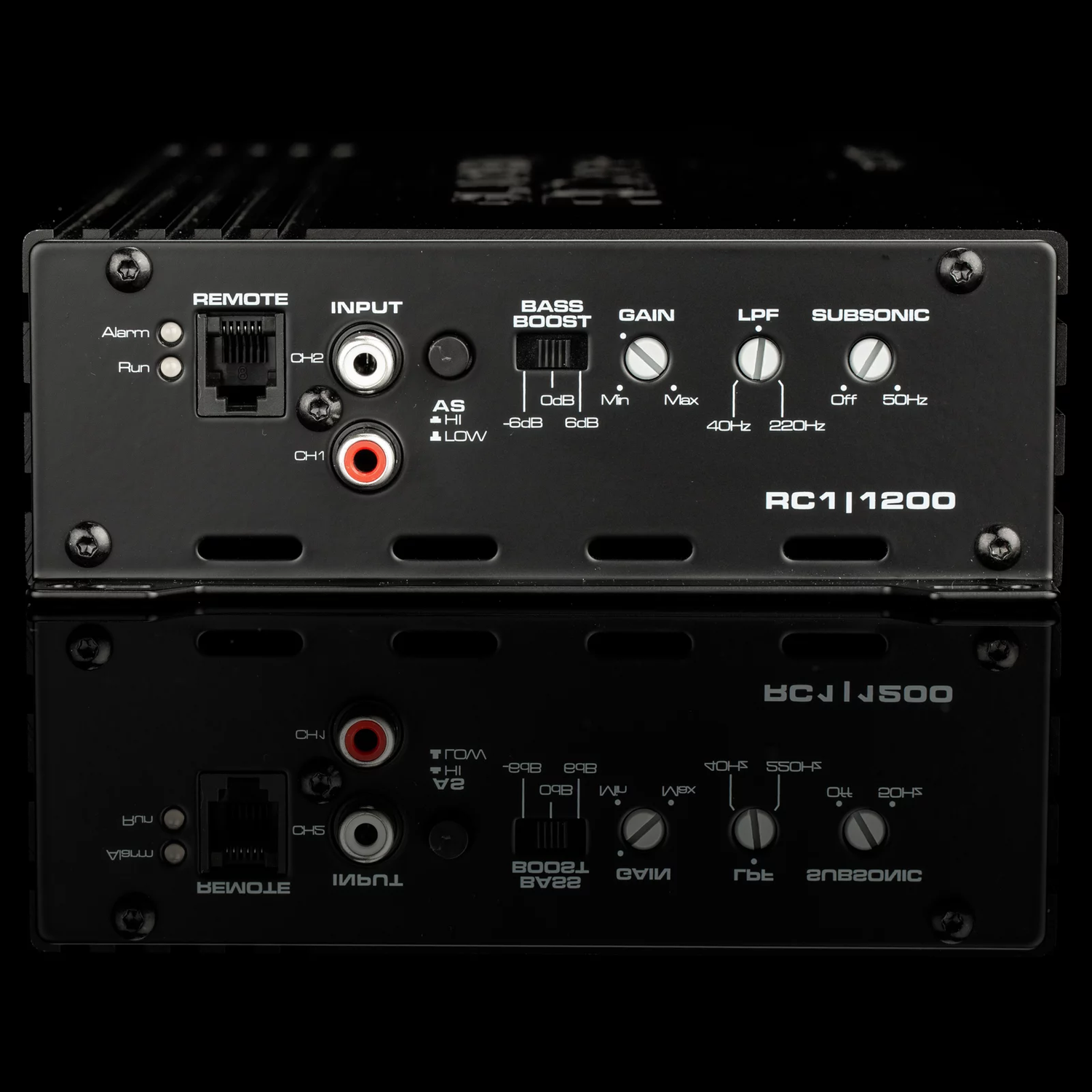

- Variable low-pass filter for precise subwoofer connection
- Subsonic filter to protect the speaker
- Adjustable bass boost for targeted level adjustment
- RTC connection


TECHNICAL DATA GLADEN RC 1|1200

OUTPUT POWER:

  • Output power at 4 ohms:

    430 Watts

  • Output power at 2 ohms:

    690 Watts

  • Output power at 1 ohm:

    1210 Watts


DATA:

  • Input voltage:

    0,4V-10V Highlevel | 0,2V-5V Lowlevel

  • Frequency range:

    10-220Hz

  • Lowpassfilter:

    40-220hz/ 24db/Oct

  • Subsonic:

    20-50hz/ 24db/Oct

  • Bassboost:

    -6 / 0 / +6db

  • Efficiency above all else:

    > 80 %

  • Auto-On (just High Level):

    Off-BTL

  • Operating voltage:

    10-16 Volts

  • Start/Stop:

    7,5Volt / 3 sec

  • External fuse:

    80 A

  • Dimensions:

    285 x 150 x 52 mm

  • Weight:

    1150 gram


Specifications

  • Unit of Measure
    EACH
  • Style
    Mono
  • Class
    Amplifiers
