Gladen  |  SKU: GAMMAGS12SLIM

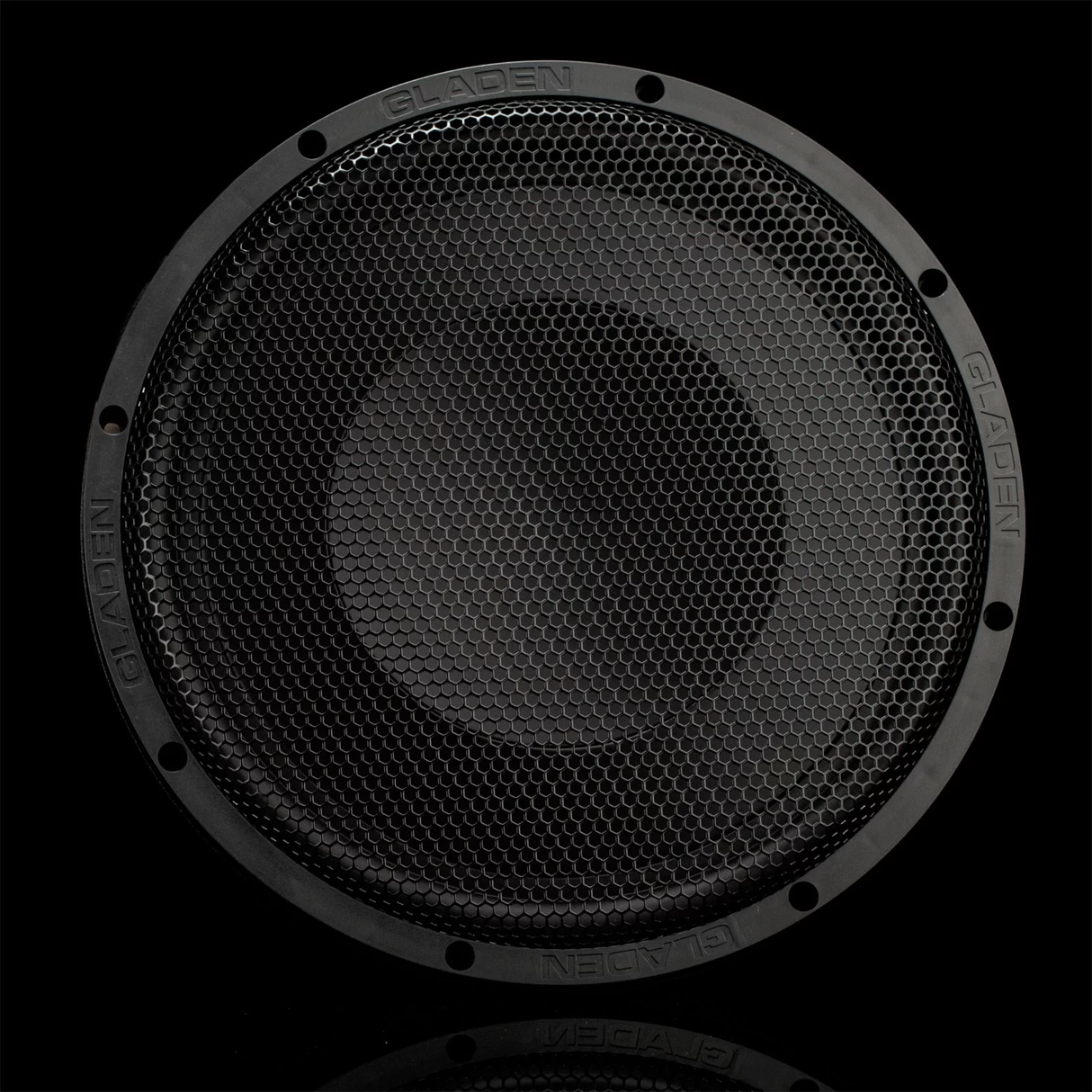

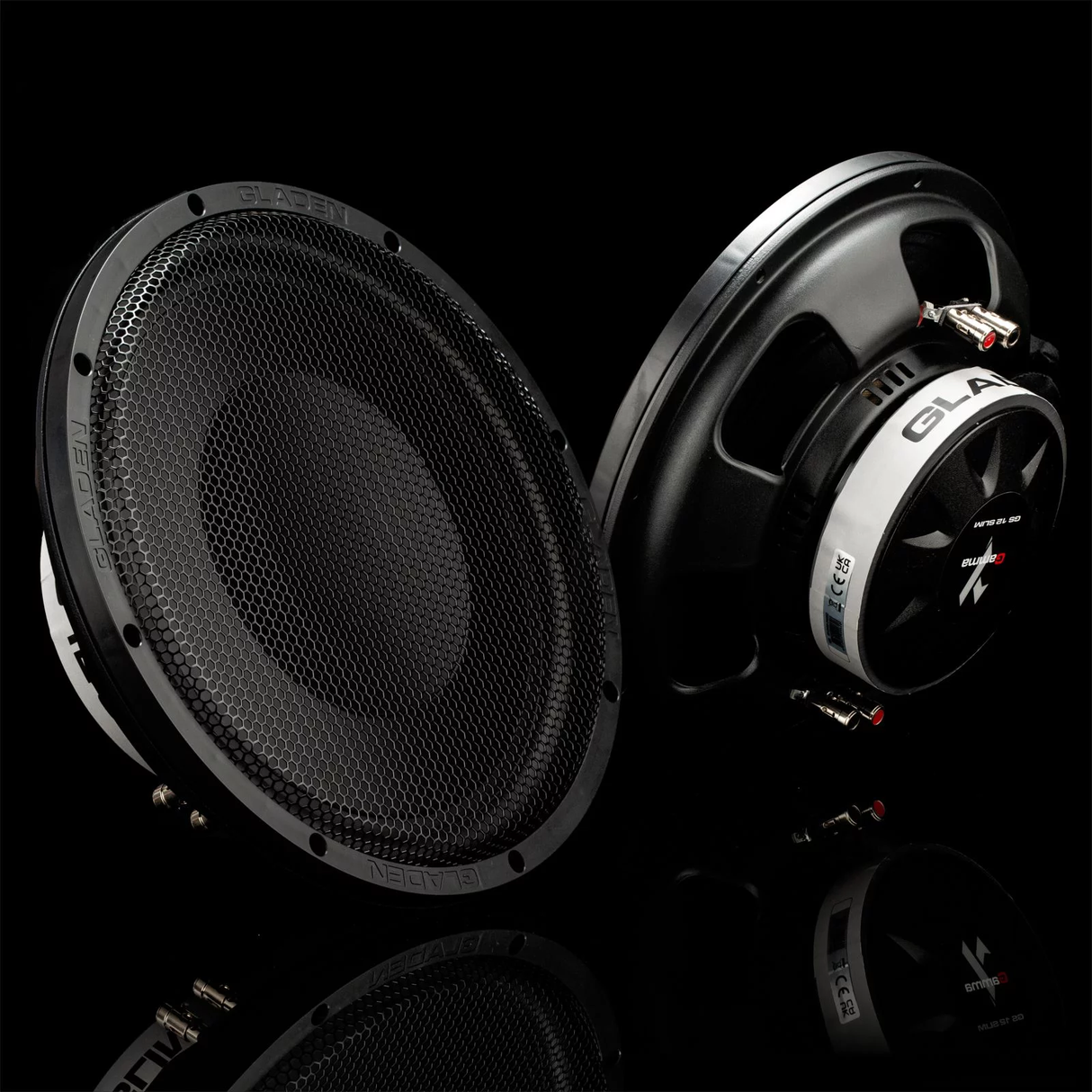

GLADEN GAMMA 12" SLIM Subwoofer and Grille - sold as EACH (GAMMAGS12SLIM)

Sold As: EACH

Available to order. Lead time will be confirmed after your order is placed.

Description
  • Steel Basket
  • coated paper
  • including protective grille and mounting ring
  • For 45 liters ventilated or
  • closed 25 l

TECHNICAL DATA GLADEN GS12-SLIM

  • Recommended volume (sealed):

    25-30 Liter

  • DC resistance (Rdc):

    3,56 Ω (series)

  • Nominal impedance (ZN):

    2x2 Ω

  • Resonance frequency (Fs):

    26,5 Hz

  • Voice coil diameter:

    2,5 inch

  • Voice coil height:

    30 mm

  • Mechanical Q factor (Qms):

    5,64

  • Electrical Q factor (Qes):

    0,49

  • Total Q factor (Qts):

    0,45

  • Moving mass (md):

    183,6 g

  • Effective piston area (sm):

    551,5 cm2

  • Mechanical resistance (Rms):

    5,42 kg/s

  • Compliance (Cms):

    0,197

  • Force factor (BL):

    11,17 Tm

  • Equivalent air volume (Vas):

    61,5 dm3

  • SPL 2,83V/1m:

    89,02 dB

  • External diameter:

    330 mm

  • Installation diameter:

    305 mm

  • Installation depth:

    100 mm



Specifications
  • Unit of Measure
    EACH
  • Speaker Size
    12"
  • Class
    Subwoofers
