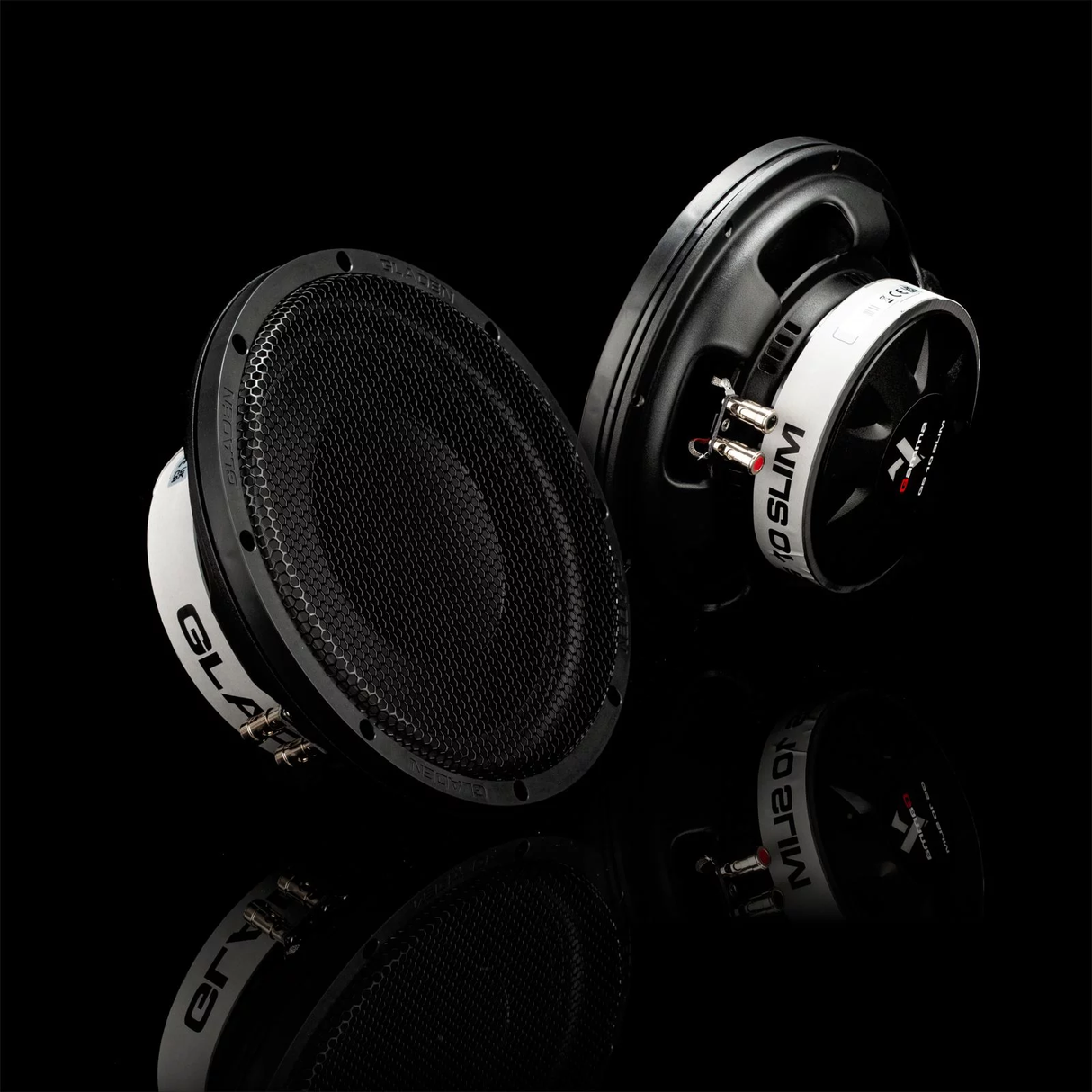

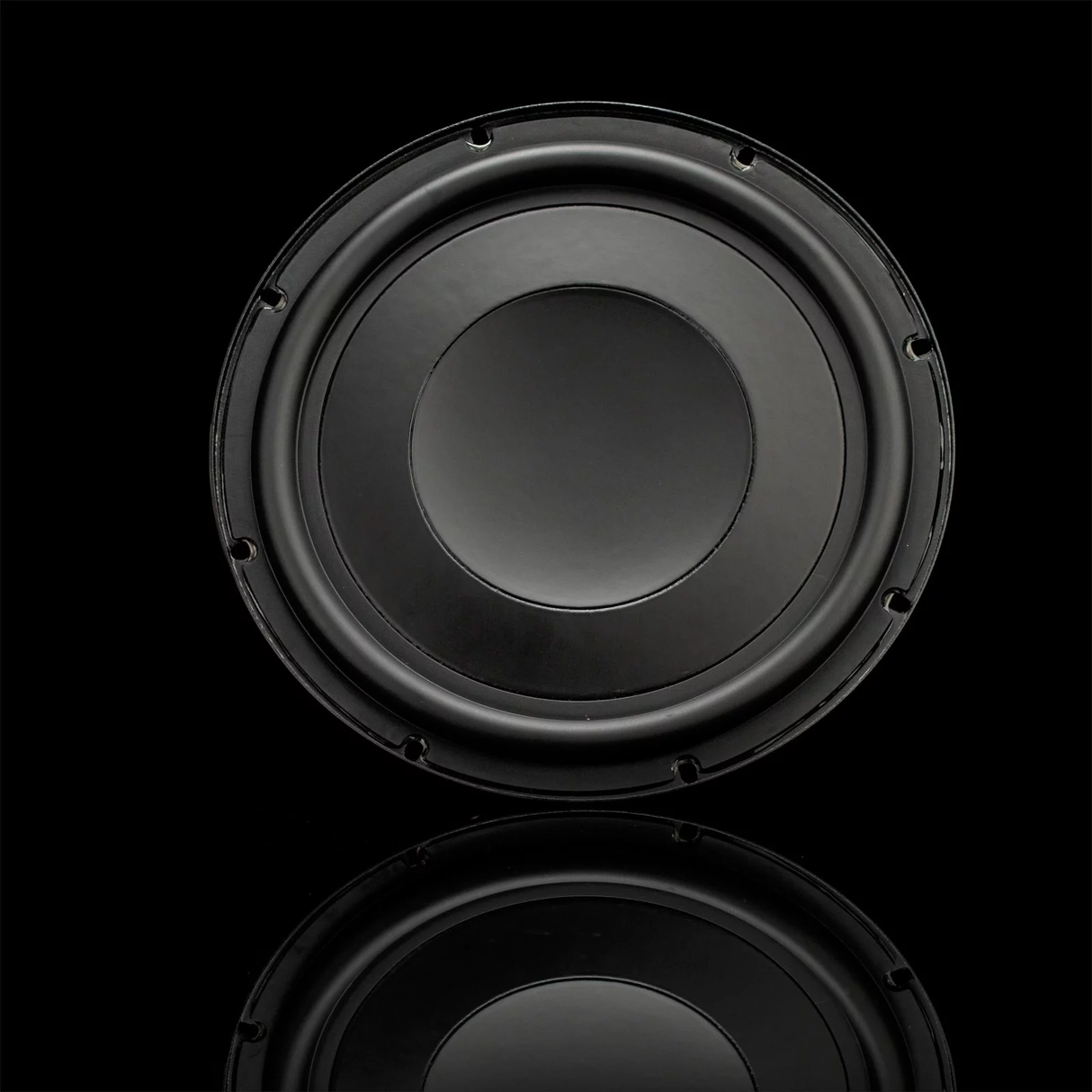

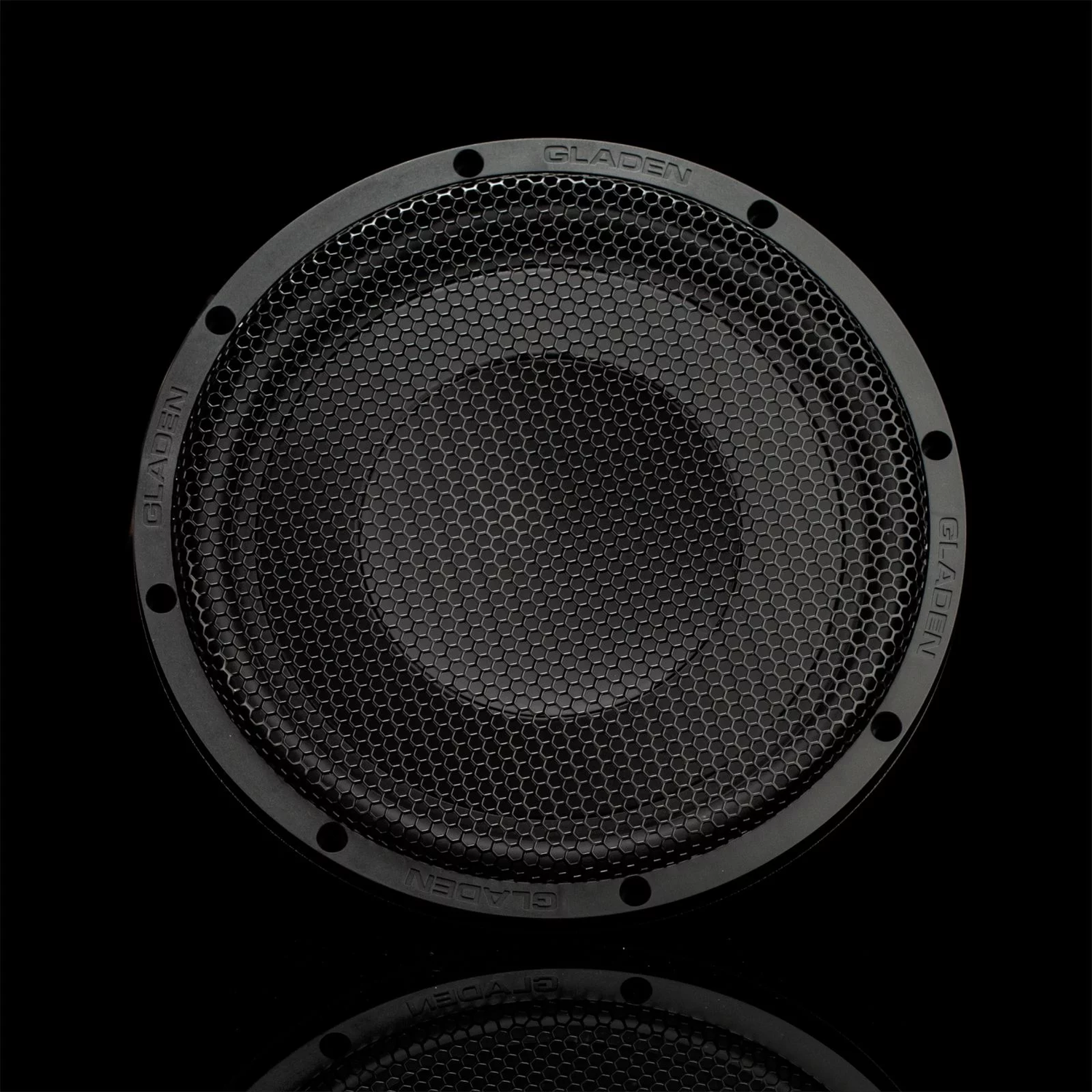

GLADEN GAMMA 10" SLIM Subwoofer and Grille - sold as EACH (GAMMAGS10SLIM)

TECHNICAL DATA GLADEN GS10-SLIM

• Recommended volume (sealed):

  15 liters

• DC resistance (Rdc):

  3,3 Ω (serial)

• Nominal impedance (ZN):

  2x2 Ω

• Resonance frequency (Fs):

  35,6 Hz

• Voice coil diameter:

  2,5 inch

• Voice coil height:

  30 mm

• Mechanical Q factor (Qms):

  8,1

• Electrical Q factor (Qes):

  0,53

• Total Q factor (Qts):

  0,51

• Moving mass (md):

  155,9 g

• Effective piston area (sm):

  352 cm²

• Mechanical resistance (Rms):

  4,31 kg/s

• Compliance (Cms):

  0,128

• Force factor (BL):

  11,47 Tm

• Equivalent air volume (Vas):

  17,6 dm³

• SPL 2,83V/1m:

  87,4 dB

• External diameter:

  260 mm

• Installation diameter:

  236 mm

• Installation depth:

  89 mm
