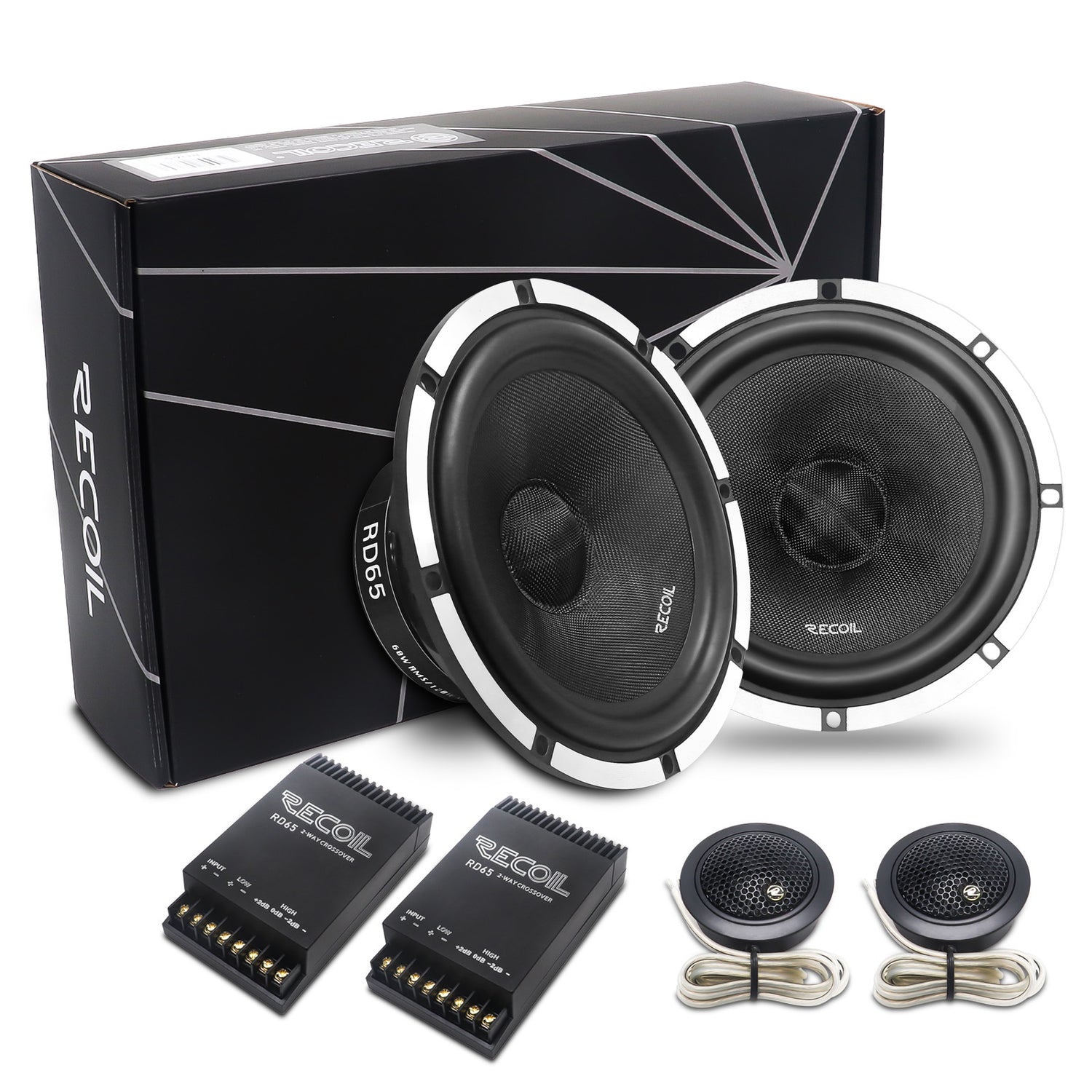

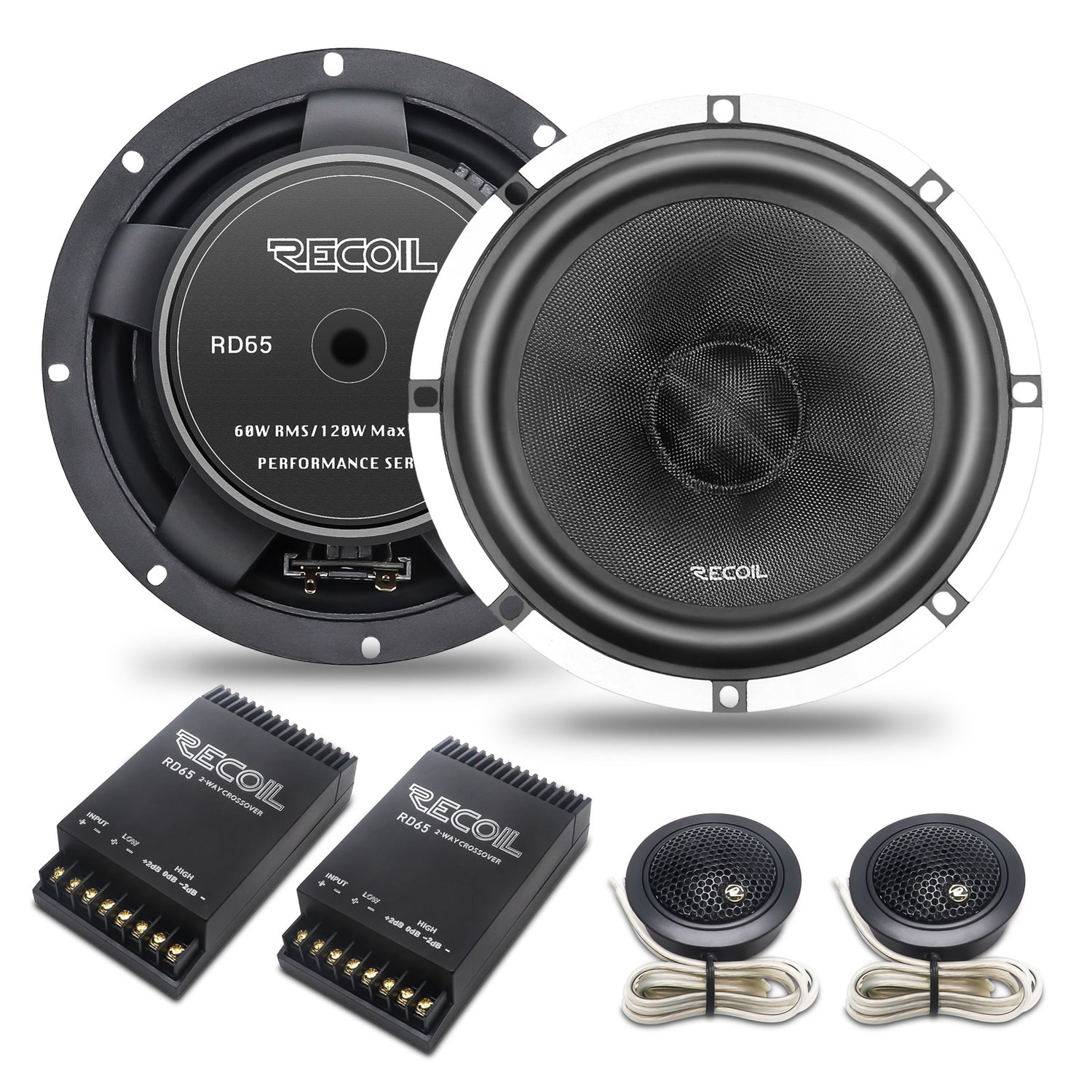

Recoil ECHO PRO SERIES 2-Way Component Speaker System (RD65)
Description
Description
Recoil Performance series 6.5” Component Speaker System. Peak Power – 300 Watts (Pair) | RMS Power – 120 Watts (Pair)
The fiberglass cones enable faster midrange response. Surround/Cone Coupling utilizes a high temp adhesive which assures the cone and surrounds do not separate in high power uses. The Nitrile Butadiene Rubber surrounds provide durability and deeper mid-bass impact.
1-Inch high-temperature voice coil works with a built-in copper ring motor structure to deliver rich and smooth mid & highs.

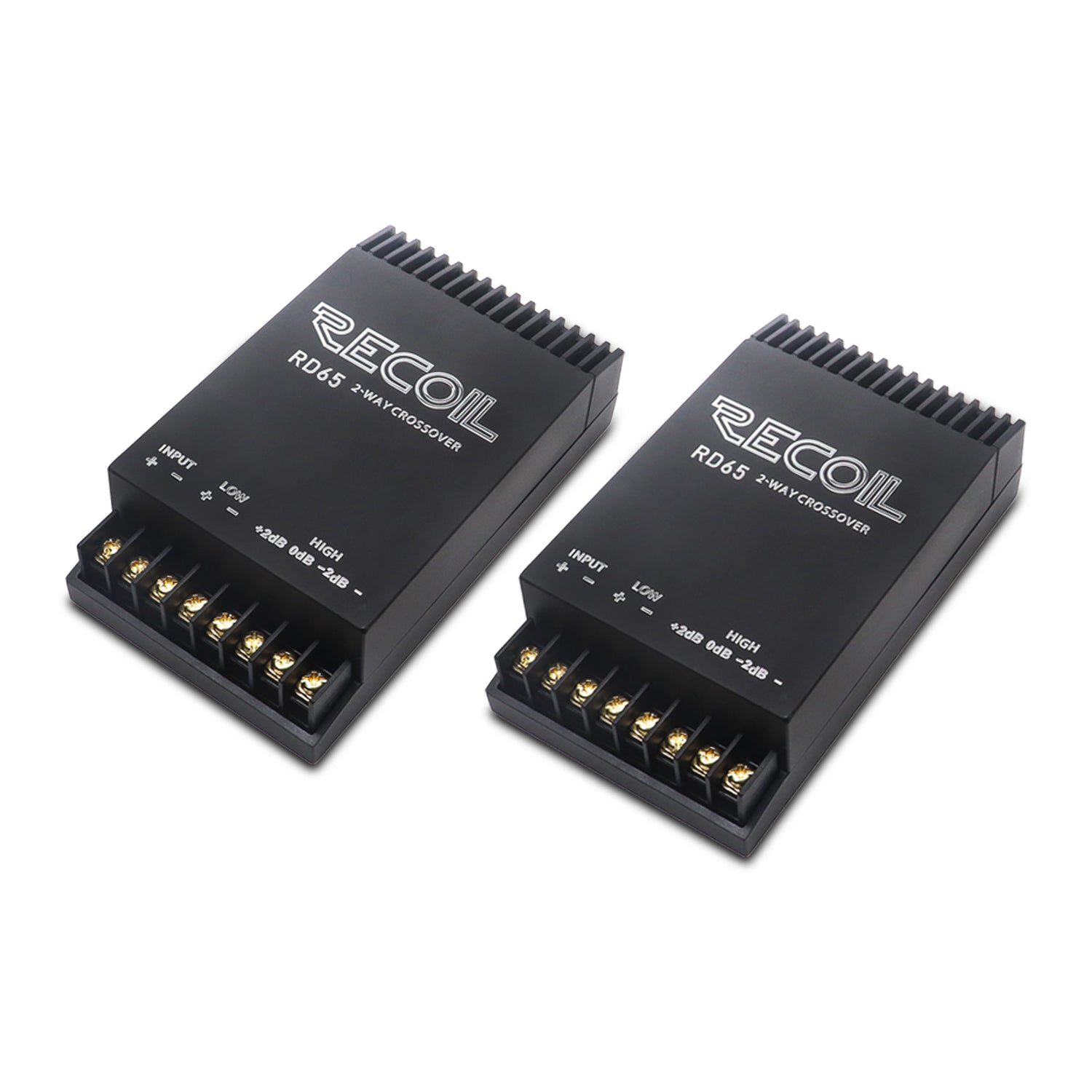

RD65 crossover networks are compact and built with premium parts, including Mylar® capacitors and segmented air-core inductors.

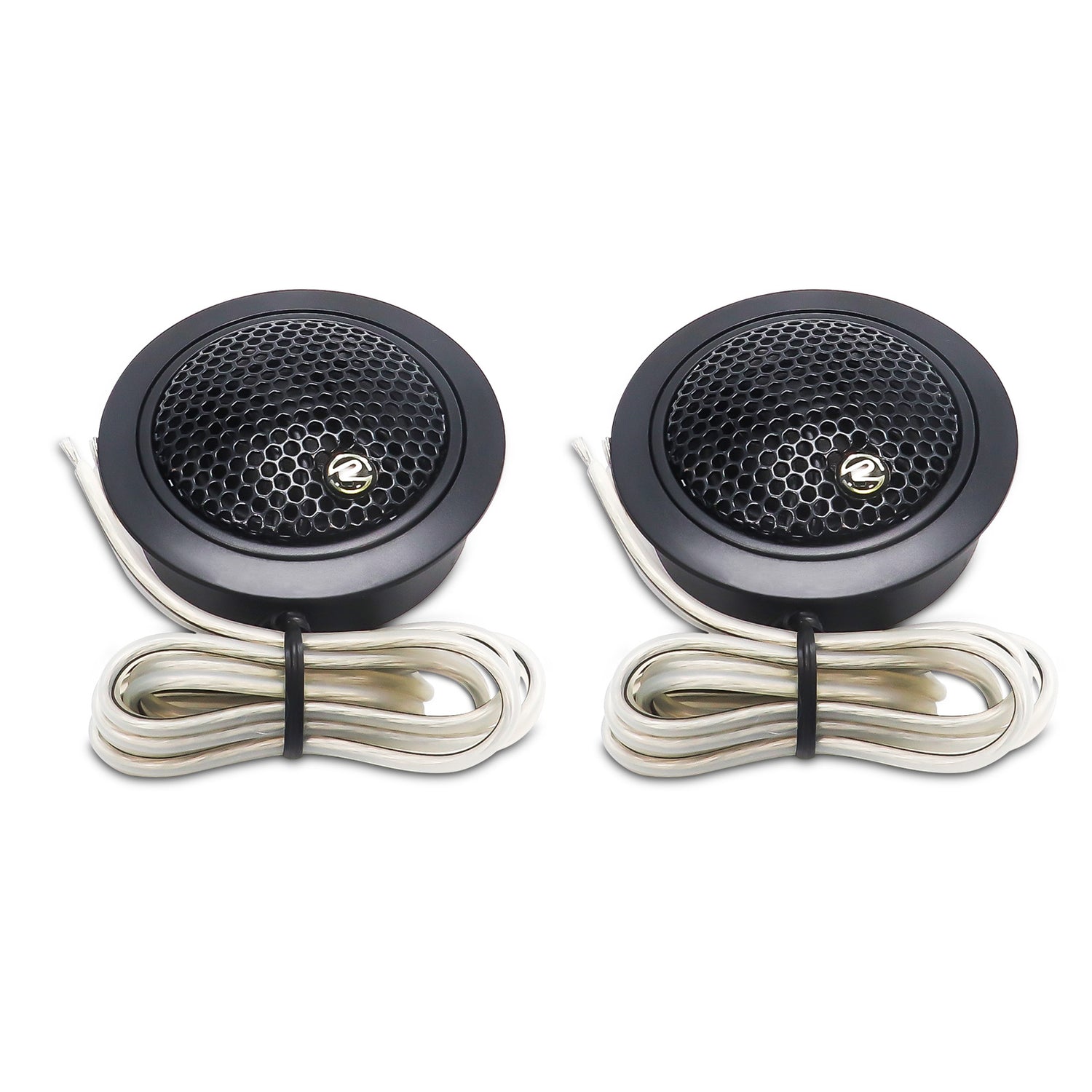

Silk soft-dome tweeters feature oversized 1” voice coils for greater heat dissipation and higher power handling resulting in smooth, fatigue-free highs.

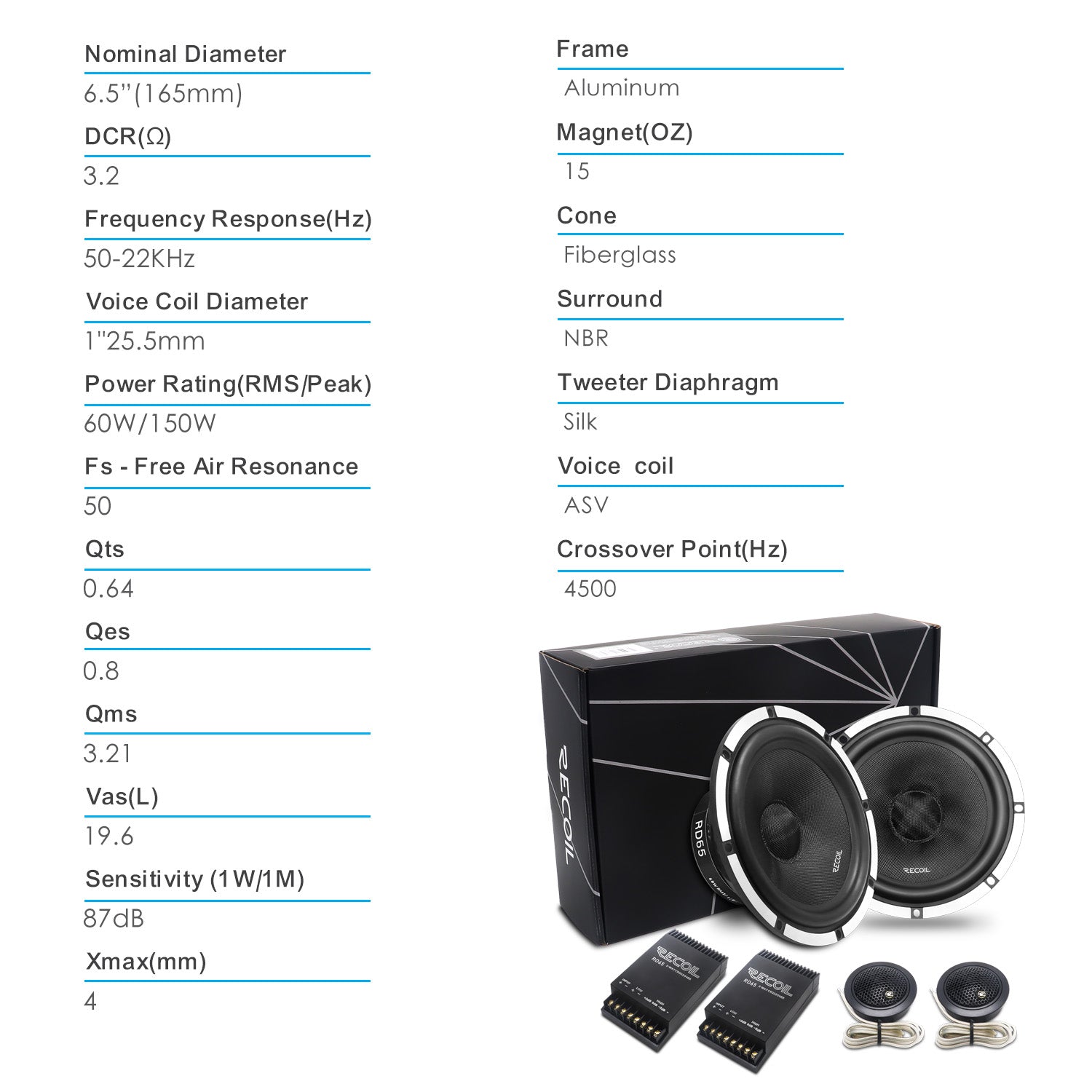

| MODEL | RD65 |

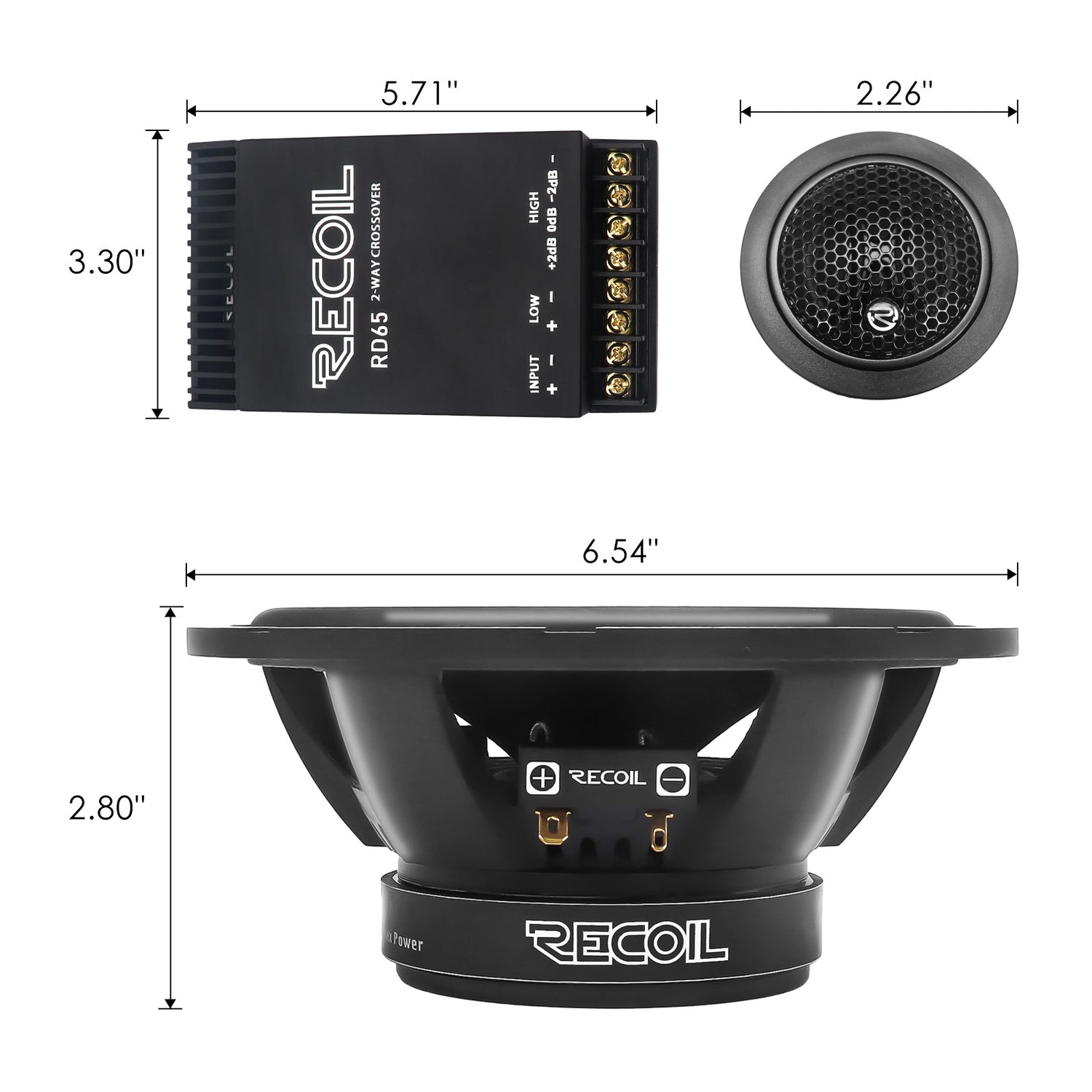

| Nominal Diameter | 6.5”(165mm) |
| DCR(Ω) | 3.2 |
| Frequency Response(Hz) | 50-22KHz |
| Voice Coil Diameter | 1″ 25.5mm |
| Power Rating(RMS/Peak) | 60W/150W |
| Fs – Free Air Resonance | 50 |
| Qts | 0.64 |
| Qes | 0.8 |
| Qms | 3.21 |
| Vas(L) | 19.6 |
| Sensitivity (1W/1M) | 87dB |
| Xmax(mm) | 4 |
| FRAME | Aluminum |
| Magnet(OZ) | 15 |
| Cone | Fiberglass |
| Surround | NBR |
| Voice coil | KSV |
| Crossover Point(Hz) | 4500 |
| Tweeter Diaphragm | Silk |
Specifications
Specifications
-
Unit of Measure
-
Speaker Size
-
Style
-
Class
