Recoil DII SERIES Mono Block Amplifier 1,600 Watts RMS x 1 @ 2 Ohms (DII16001)

Class D Mono Amplifier, 3,200 Watts Max Power, RMS 1,600 Watts x 4@2 Ohm; RMS 850 Watts x 4@4Ohm

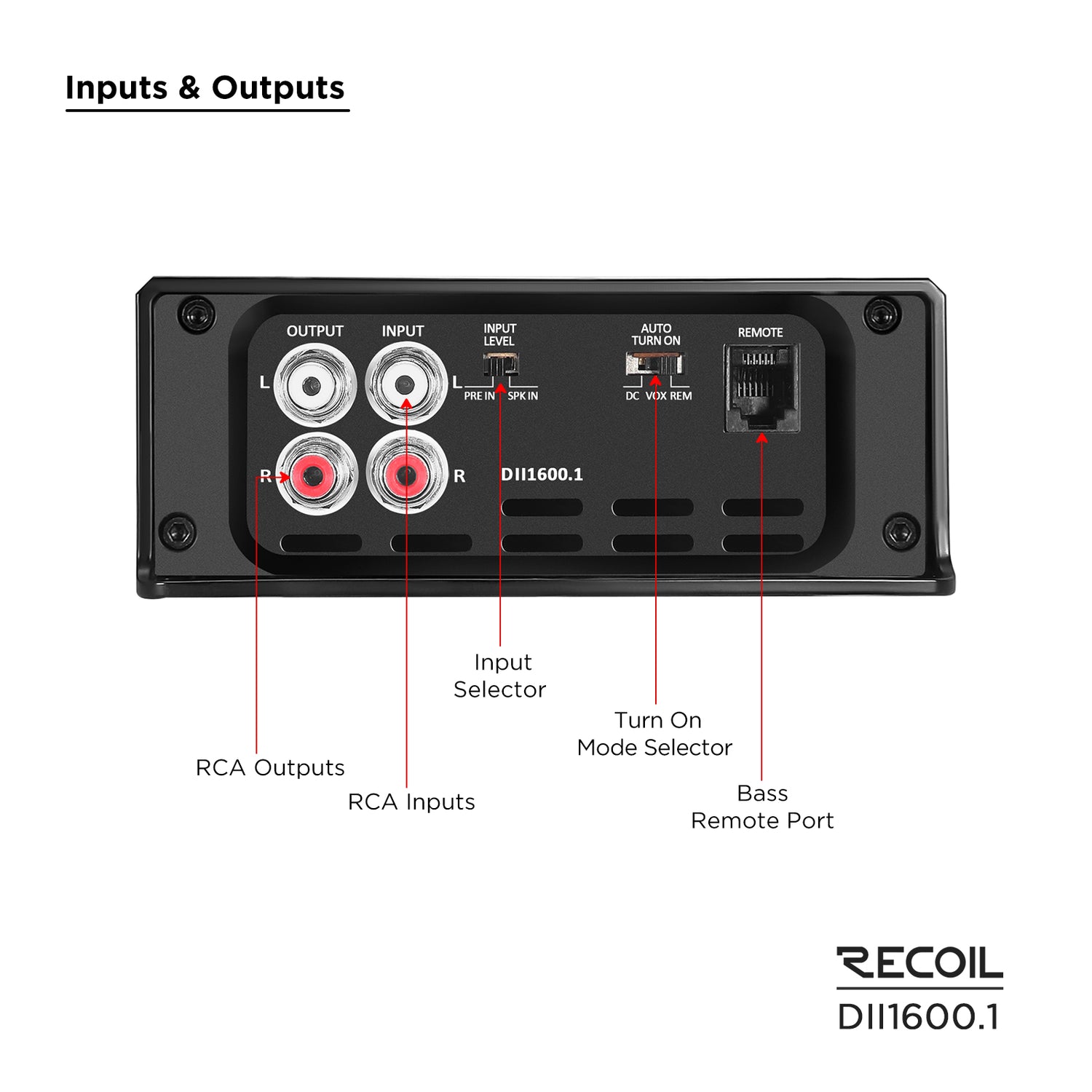

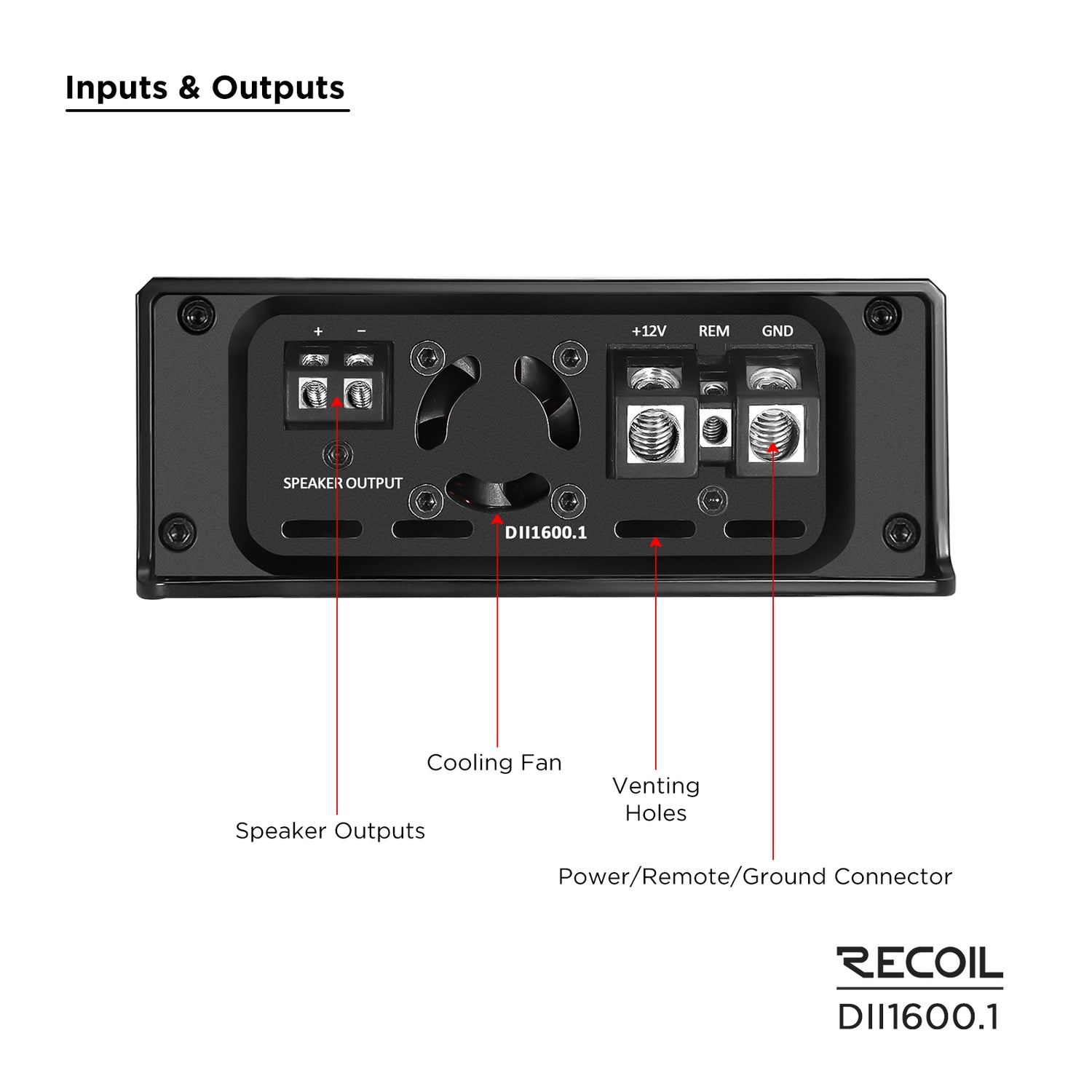

Features: RCA level and speaker level inputs / Turn-on mode selection (REM, VOX, DC) / RCA pass-through outputs / Thermal, voltage, speaker, short circuit protection

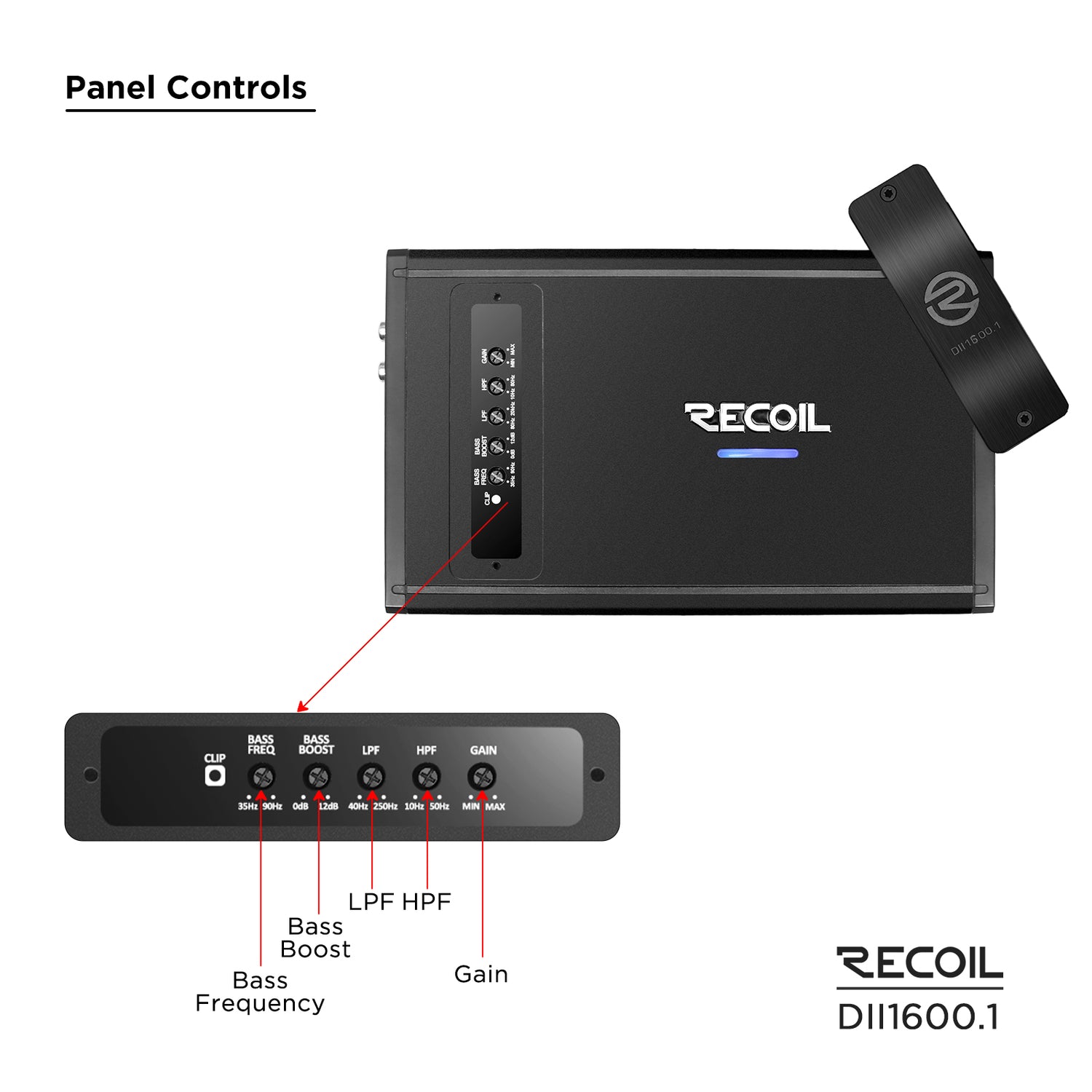

Top mounted clip LED indicator and control panel for easy access,such as the gain, LPF, HPF, crossover, bass boost etc.

DII series amps are designed with conformal coated circuit board protects against dust and water. They can be used for powersports, marine, golfcart and bike applications.

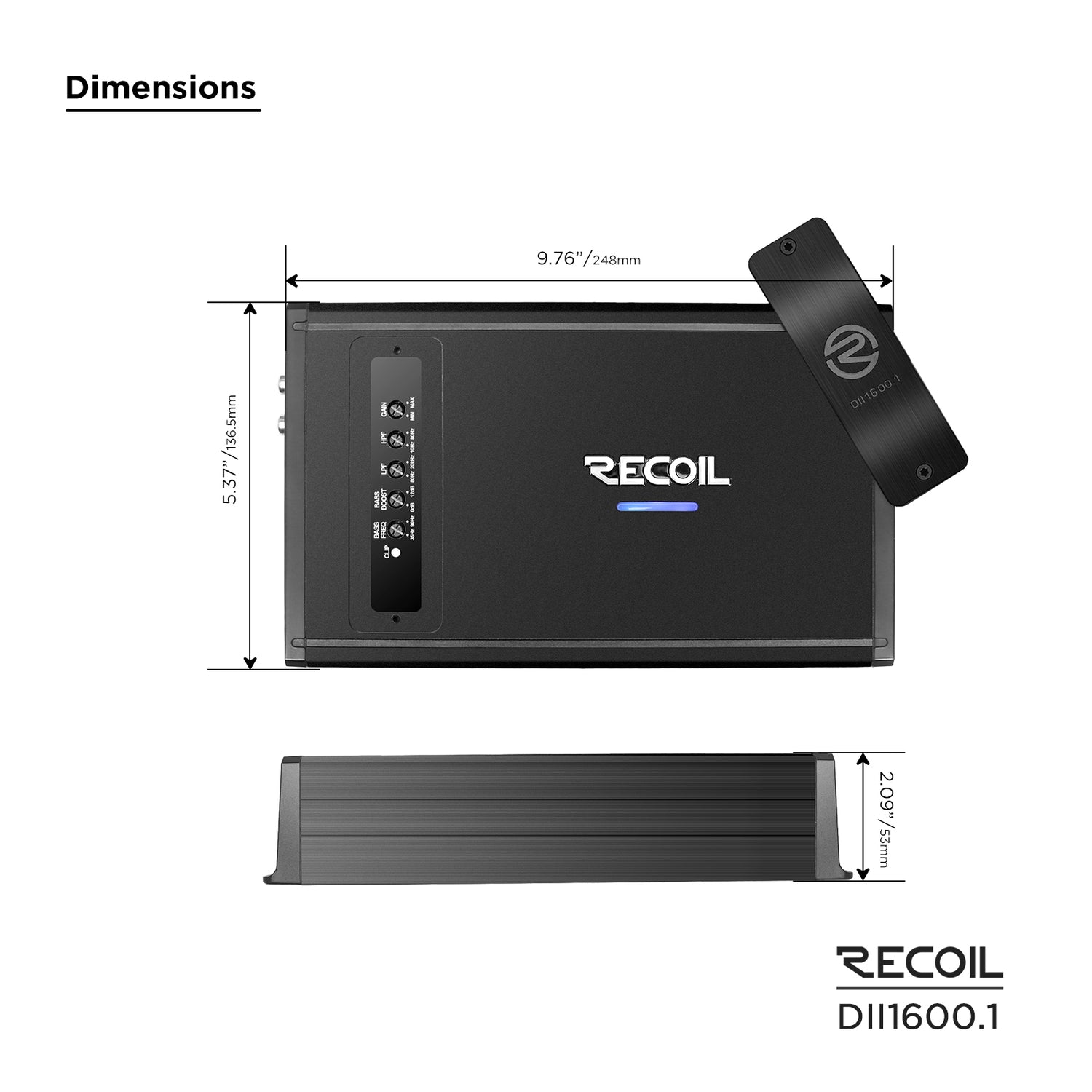

Highly efficient heatsinks keep the amplifier cool with a sophisticated new look. Ultra-compact dimension: 9.76″ x 5.37″ x 2.09″ (248mm x 136.5mm x 53mm)

Introductions:

Don’t let Recoil DII series amp’s modern styling and small size fool you though, Utilizing the latest Class-D technologies, the ultra-compact DII series amplifiers are engineered to deliver loads of audio output power, with incredible efficiency. For your convenience, the DII amps’ controls can be found on top of the amplifier, beneath a protective cover.

Specifications:

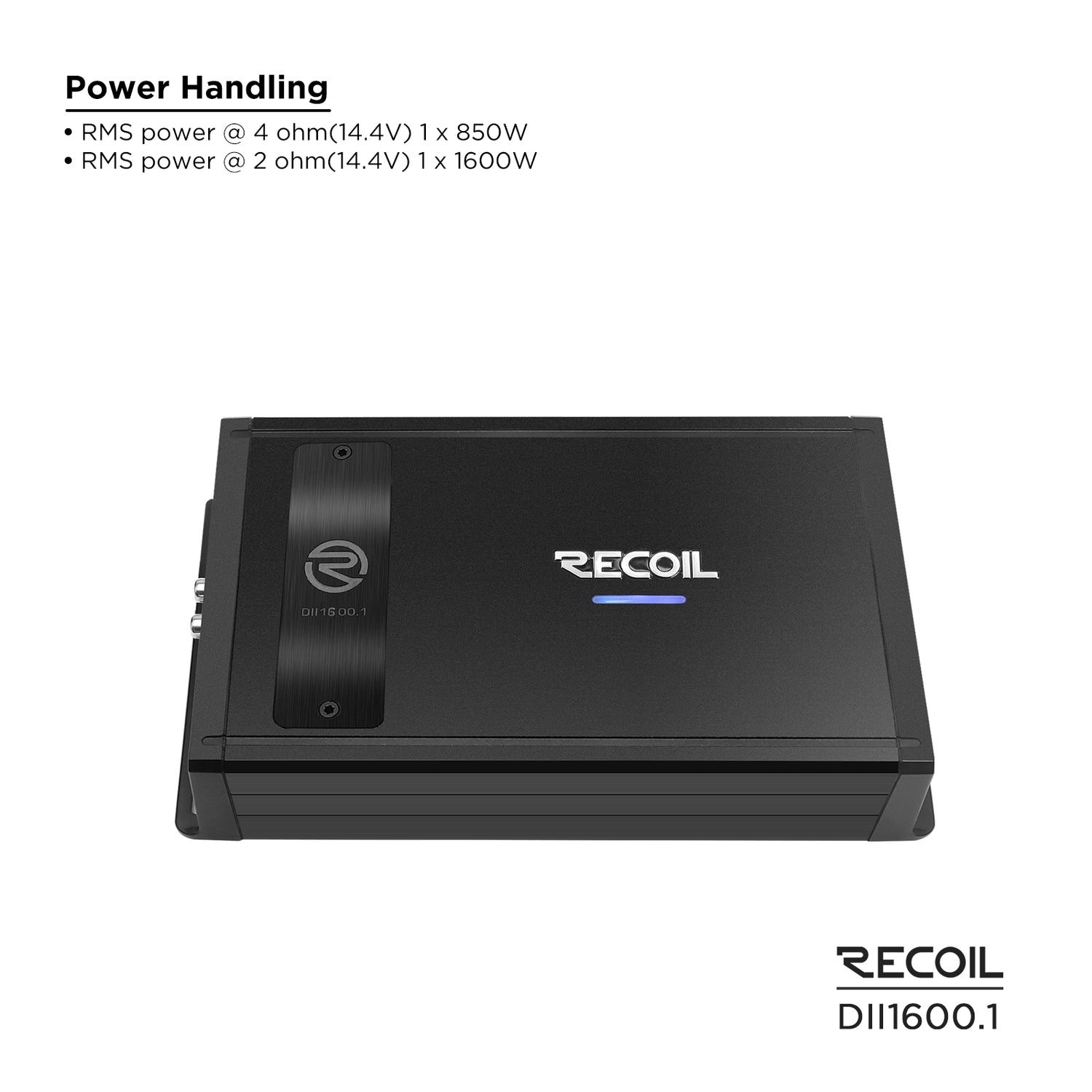

RMS power @ 4 ohm (14.4V):  1 x 850W

RMS power @ 2 ohm (14.4V):  1 x 1600W

RMS power @ 1ohm (14.4V):  N/A

Frequency Response:  10Hz-24KHz

Signal to Noise:  85dB

Efficiency @ 4 ohm:  78%

Input Sensitivity:  0.25V-12V

High Pass Filter:  10Hz -80Hz

Low Pass Filter:   80Hz-20kHz
Bass Boost:    0-12dB
Remote Control:  Yes

Fuse Rating (ATC):  120A

Dimensions (mm):  9.76″ x 5.37″ x 2.09″(248mm x 136.5mm x 53mm)
