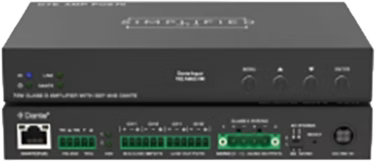

Dante enabled 70W amplifier with DSP (DTEAMPPOE70)
Description
Description
DTE AMP POE70
35W/Ch. Stereo Amplified with Dante™, DSP, and POE
The DTE AMP POE70 is a feature rich 35W per channel 2 channel amplifier that can be bridged (4Ω or 8Ω). Sources can be, line in, a microphone (phantom power), or Dante™. In addition, the amplifier has DSP functions that include, equalization, level control, ducking, and crossover features. Power can be provided via POE+ or via supplied 36V power supply.
|
Technical |
|
|
Network Bandwidth |
100m |
|
Audio Latency |
Dante – 2,3,4,5, or 10ms Amplifier – 0~50ms |
|
Rated Power |
2 x 35W 4 or 8Ω stereo, 1 x 70W 4 or 8Ω mono |
|
Amplifier Technology |
Class D |
|
Audio Format |
Dante™ [Dante/AES67 digital audio in/out, PCM 2CH 44.1K-96kHz, 16/24Bit] LINE IN [Analog audio, Balanced/unbalanced, Max input level 24dBu] MIC IN [Analog audio, Balanced/unbalanced, Min input level -35dBV] LINE OUT [Analog audio, Balanced/unbalanced, Max output level 2V RMS] AMP OUT [Analog audio, Balanced 2CH, Max output power 2x35W @ 4/8Ω Stereo, 1x70W@4/8ohm Mono] |
|
Line Input |
|
|
Input Impedance |
600Ω balanced 300Ω unbalanced |
|
Output Level |
2V RMS Max @ balanced audio 2V RMS Max @ unbalanced audio |
|
Line Output Audio |
|
|
Input Impedance |
600Ω balanced 300Ω unbalanced |
|
Output Level |
2V RMS Max @ balanced audio 2V RMS Max @ unbalanced audio |
|
Frequency Response |
20Hz to 20kHz (±0.5db) |
|
Dynamic Range |
>100dB@0dBu, 1kHzA-weighted |
|
S/N Ratio |
>100dB@0dBu, 1kHzA-weighted |
|
THD+N |
< 0.01% at +4dBu, 1KHz |
|
Audio Out Latency |
<1μs |
|
Transmission Distance |
328ft./100m (CAT6/6A/7) |
|
ESD Protection |
IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
|
Connection |
|
|
Input |
1x MIC/LINE IN [6pin-3.5mm phoenix connector] |
|
Outputs |
1x LINE OUT [6pin-3.5mm phoenix connector] 1x 4/8Ω AMP OUT [4pin-5.08mm locking phoenix connector] |
|
Mechanical |
|
|
Housing |
Metal Housing |
|
Color |
Black |
|
Dimensions |
180mm/7.1” (W) 118mm/4.65” (D) 28mm/1.1” (H) |
|
Weight |
670g/ 1lb, 7.6oz. |
|
Power Supply |
(1) 36V/2.5A 4PIN Locking Power Supply (2) PoE++ Type 4 Class 8 |
|
Power Consumption |
94.6W (Test with 1k sinewave, audio amplifier output is connected to 4Ω load) |
|
Operating Temperature |
0°C ~ 40°C / 32°F ~ 104°F |
|
Storage Temperature |
-20°C ~ 60°C / -4°F ~ 140°F |
|
Relative Humidity |
20~90% RH (non-condensing) |
