BLACKHOLE TILE 2 - 72 Piece MASTER BOX Acoustic Damping Tiles (BHTILEV2)

BH Tile V2 is a water resistant multi-layer high efficiency acoustical absorption pad with a pressure sensitive adhesive back. Designed to be used inside the car door to damp the speaker back wave and vehicle outer skin.  Features an all-new materials construction to improve all-around performance.

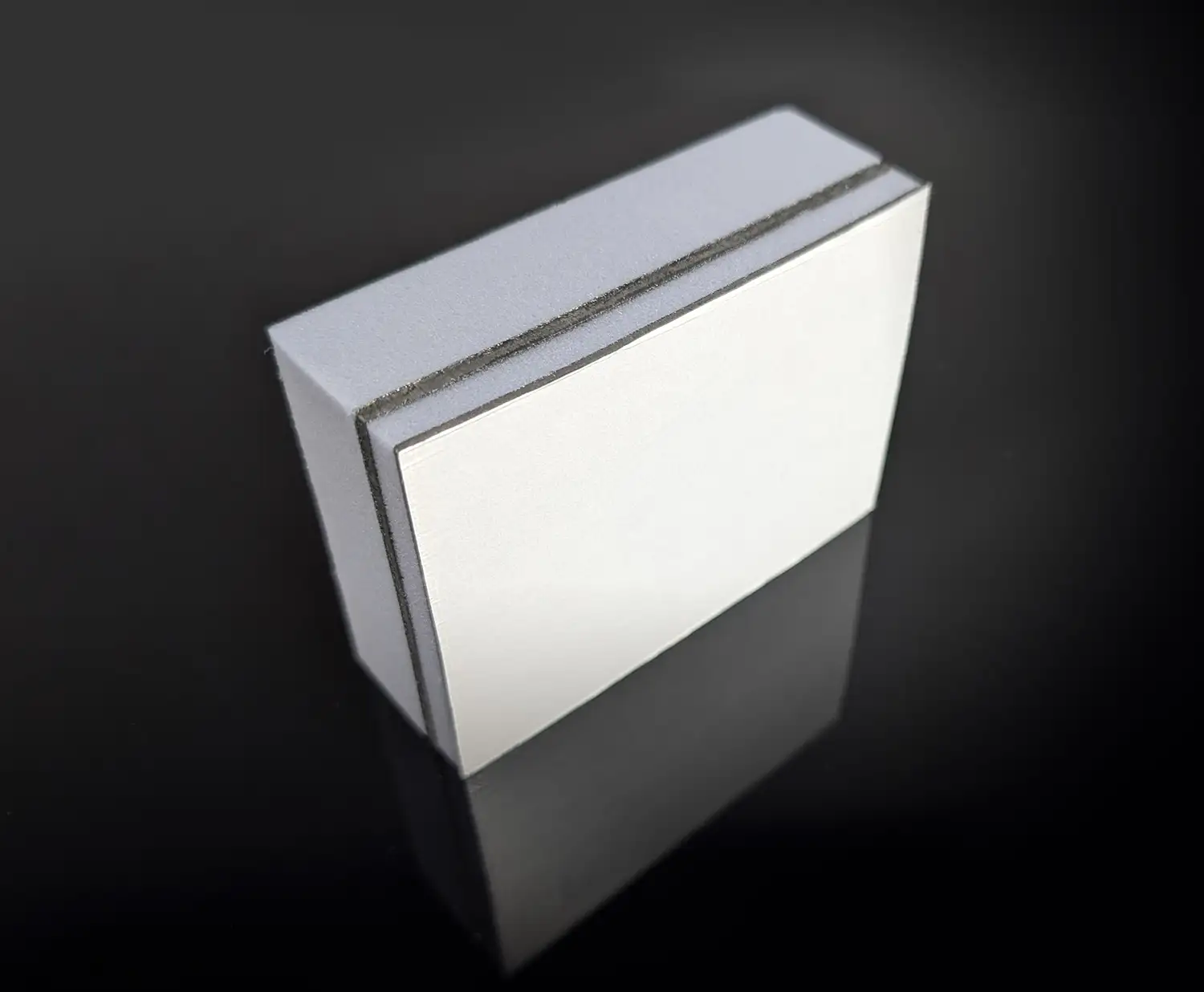

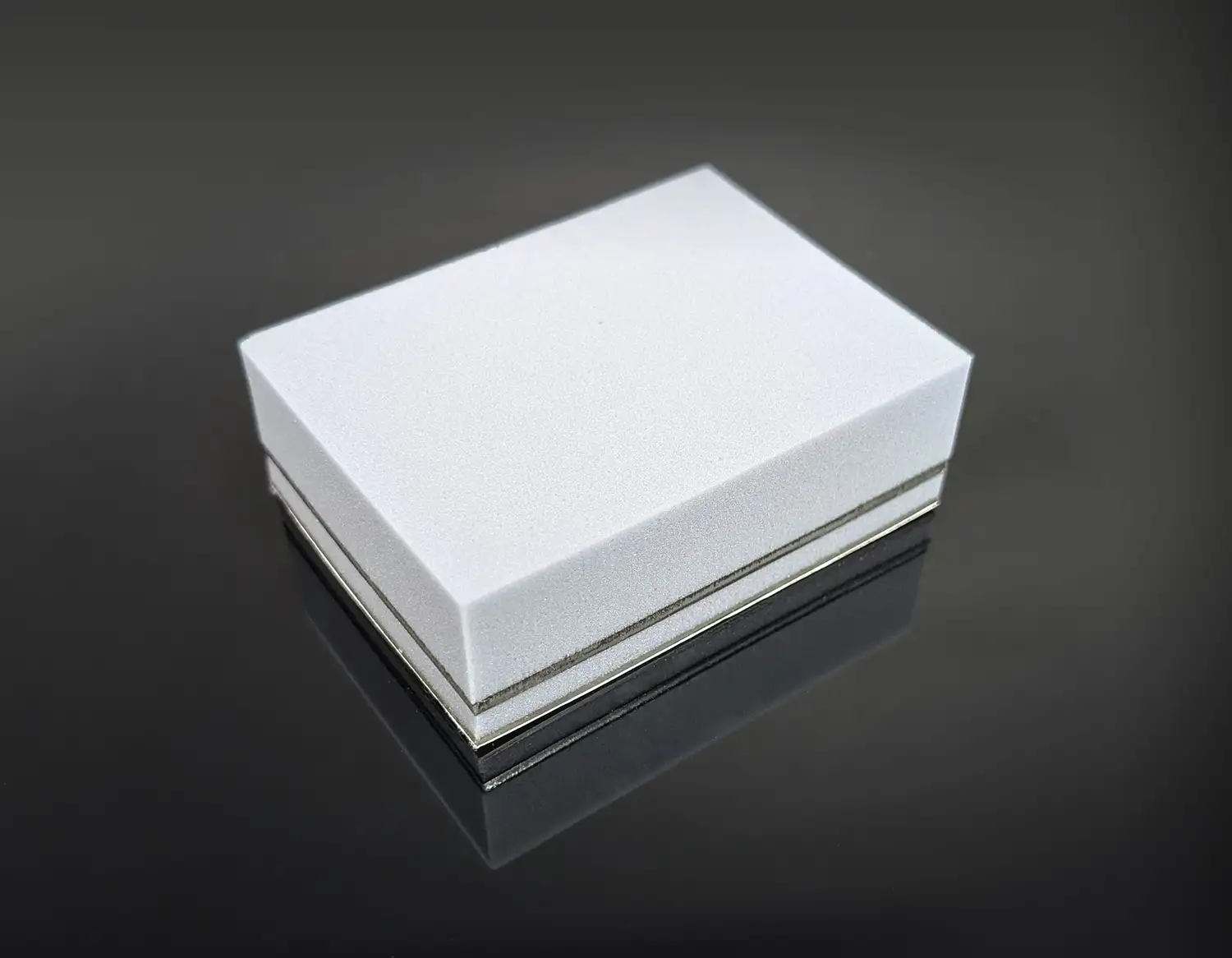

LAYERS

PSA Adhesive
1.5mm Damping
6mm Water Repellent Foam
3mm Damping
25mm Water Repellent Foam
BENEFITS

The new foam material naturally repels water, so it does not need to be sealed.
This leaves the foam’s micro cells open to significantly extend the high frequency response and absorption with NRC = 0.95.  (Noise reduction coefficient)
Flame retardance is now the highest-level UL 94 V-0.
The base damping layer is 30% thicker and heavier to lower the resonance and sound transmission of the vehicle’s metal.
The bottom face is automotive grade pressure sensitive adhesive.
SIZE

Piece: 1.4” H x 4” W x 3” D (35.5mm H x 101.5mm W x 76mm D) 6ft2 per box

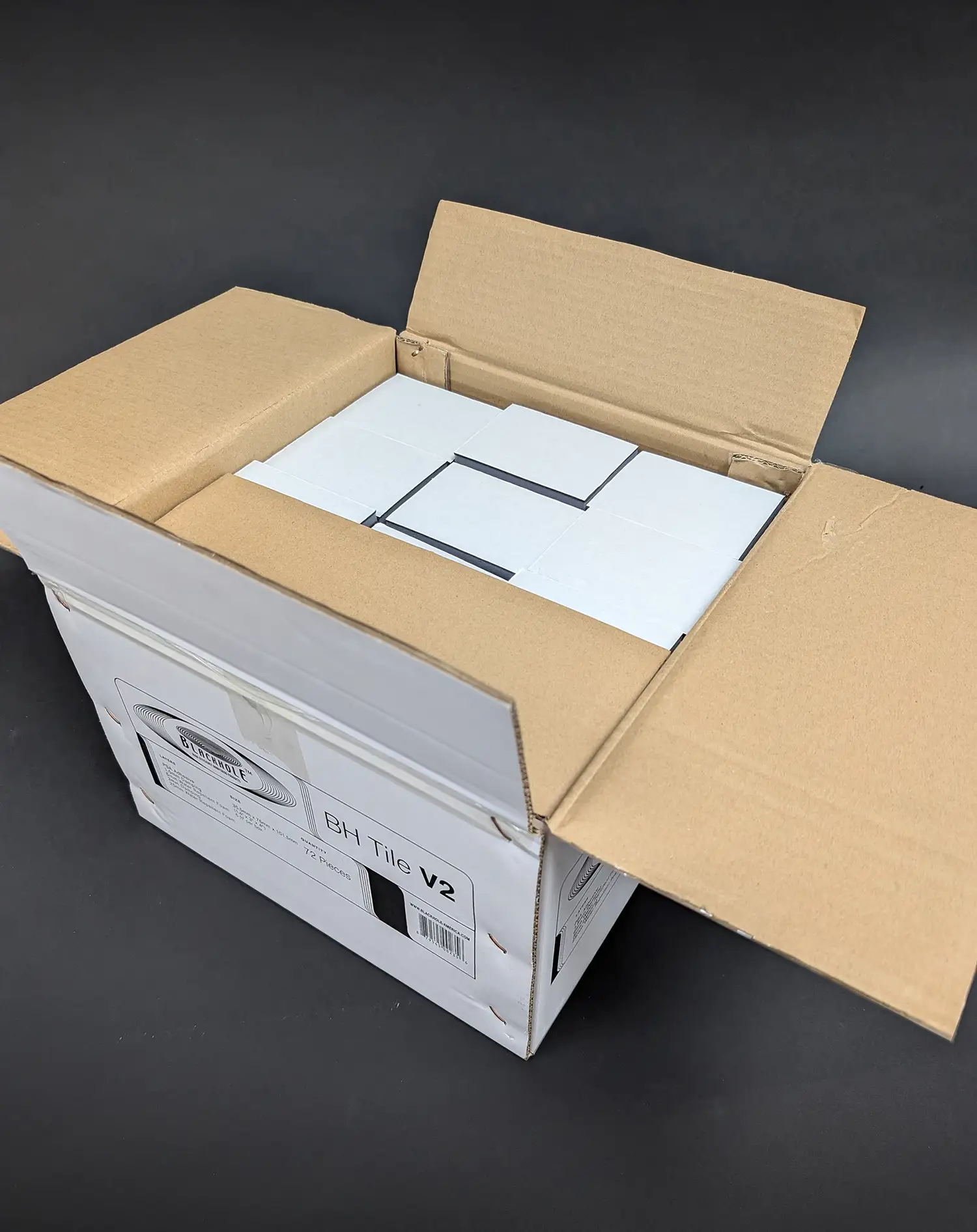

QUANTITY

72 pieces per box
