Wyrestorm  |  SKU: MXV0808H2AV3

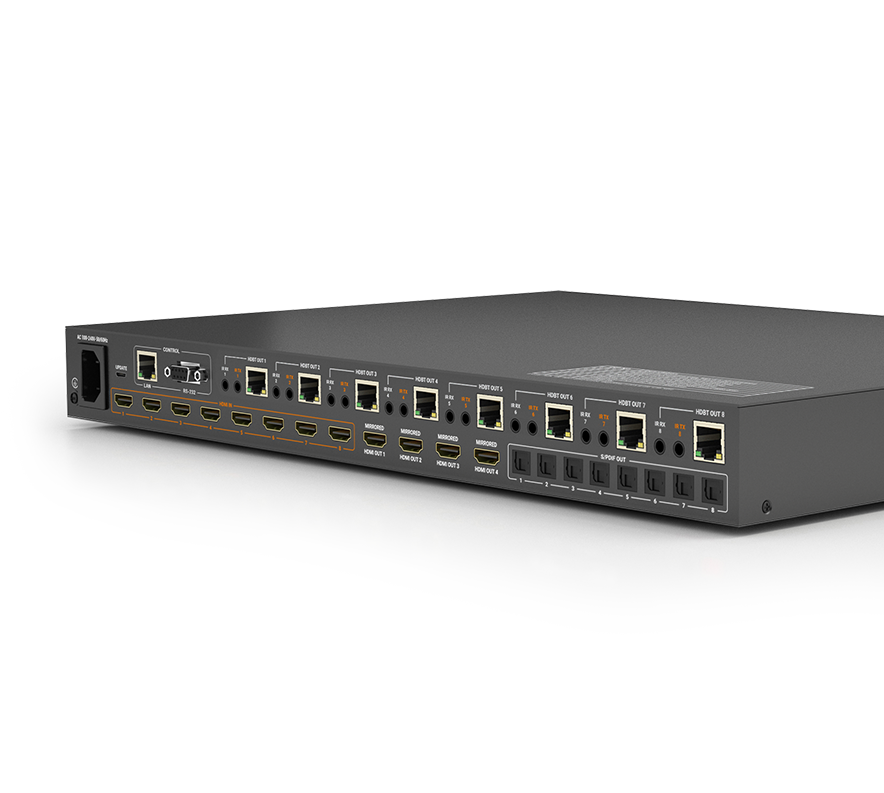

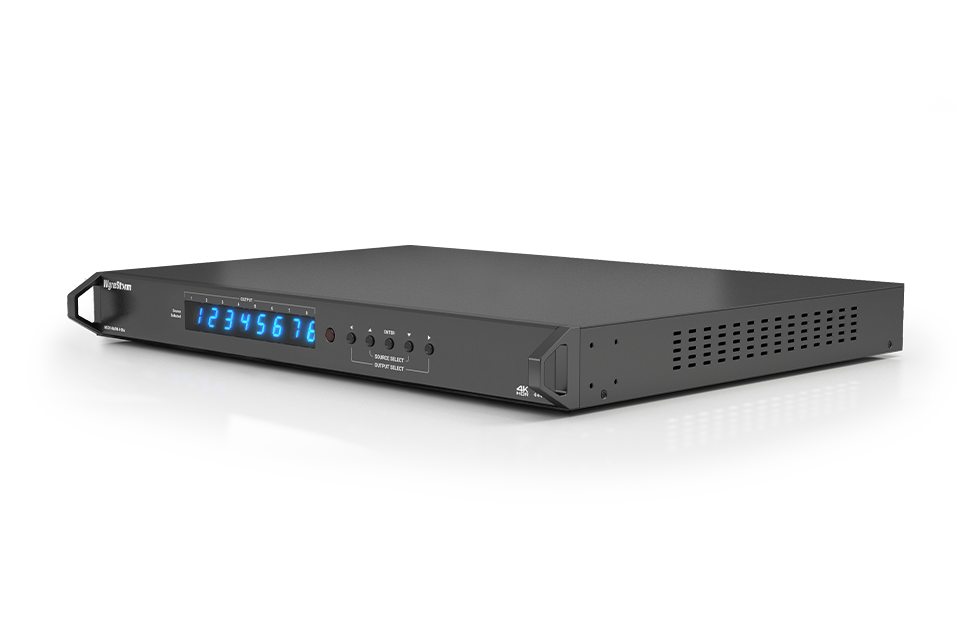

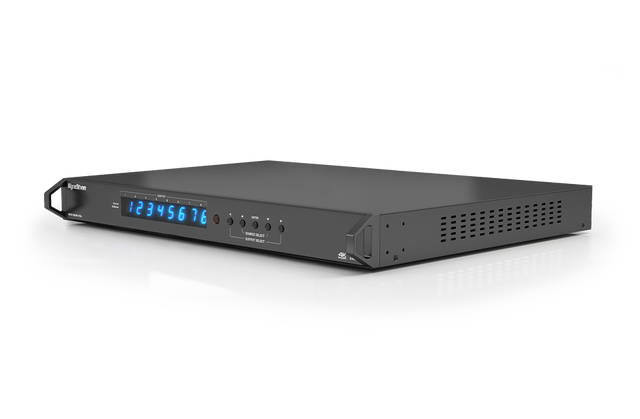

4K60Hz 4:4:4 8x8 HDBaseTª Matrix | Dolby Vision & HDR | PoH |Audio De-embed | Routable CEC & RS232 (4K: 35m/115ft, 1080p: 70m/230ft) (MXV0808H2AV3)

Sold As: EACH

  Availalable to order: Typical lead time for Wyrestorm is 5-7 business days from order date. Express delivery is 2-3 days (aditional fees apply for express delivery).

Description

Offering transmission of 18Gbps HDMI content up to 35m/115ft by pairing HDBaseT with WyreStorm’s powerful lossless compression algorithm, the MXV-0808-H2A brings the familiar power of the WyreStorm H2-series to a compact 1U chassis. Unlike competing compression methods such as CSC, which permanently remove color data, WyreStorm’s VLC uses lossless compression technology to ensure signal integrity.

With 8 HDBaseT zone outputs and 4 mirrored HDMI outputs–which can be paired with WyreStorm’s hybrid HDMI cables or any extender–and CEC triggering for all 12 connected screens, the MXV-0808-H2A enhances the offering for the modern home or commercial installation.



AUDIO & VIDEO

Inputs

8x HDMI In: 19-pin type A

Outputs

8x HDBT Out: 8-pin RJ-45 Female
8x S/PDIF Out: TOSLINK (Digital Optical)
4x HDMI Out: 19-pin type A

Video Encoding

HDBaseT™ Class B

Encoding Data Rate

9.2Gbps

Audio Formats

Analog: 2ch Analog
S/PDIF: 2ch LPCM | Dolby Digital/DTS up to 5.1ch
HDMI: 2ch LPCM | Multichannel up to Dolby Atmos and DTS-X

Video Resolution (Max)

1920x1080p @120Hz 12bit
3840x2160p @60Hz 10bit 4:2:0 HDR
4096x2160p @60Hz 8bit 4:4:4

Supported Standards

DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100

Maximum Pixel Clock

HDMI: 600MHz | HDBaseT: 297MHz

COMMUNICATION & CONTROL

HDMI

HDMI 2.0 | HDCP 2.2 | EDID | CEC | DVI/D supported with adapter (not included)

HDBaseT

HDMI 2.0 | HDCP 2.2 | EDID | 1-way PoH | Bidirectional IR

CEC

Custom and standard CEC power triggering via API | Requires CEC compatibility | HDMI outputs only

IR

8x IR RX: 3.5mm (1/8in) TRS Stereo | 8x IR TX: 3.5mm (1/8in) TS Mono | Bidirectional over HDBaseT

RS-232

1x RS-232: 9-pin DB9 Female | Routable RS-232 Device Control

Ethernet

1x LAN: 8-pin RJ-45 Female

POWER

Power Supply

100~240V AC 50/60Hz

Max Power Consumption

168W

Specifications
  • Unit of Measure
    EACH
  • Class
    Matrixes
