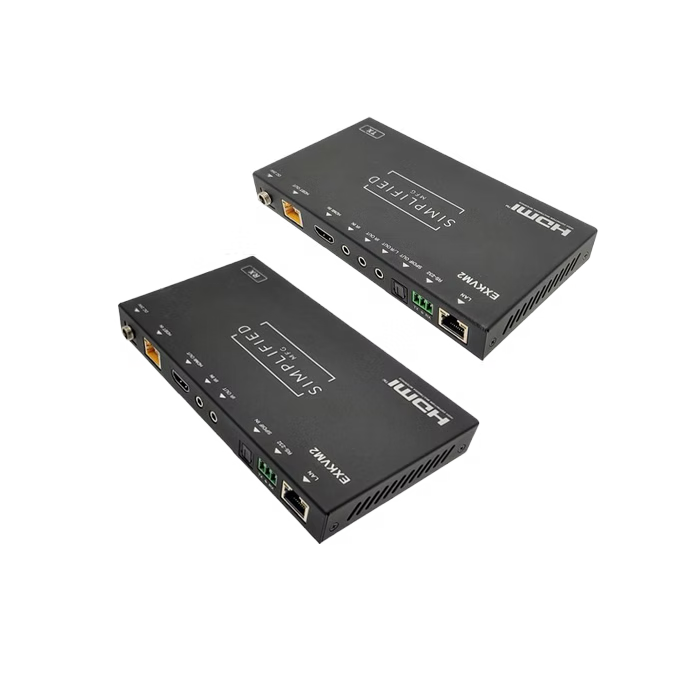

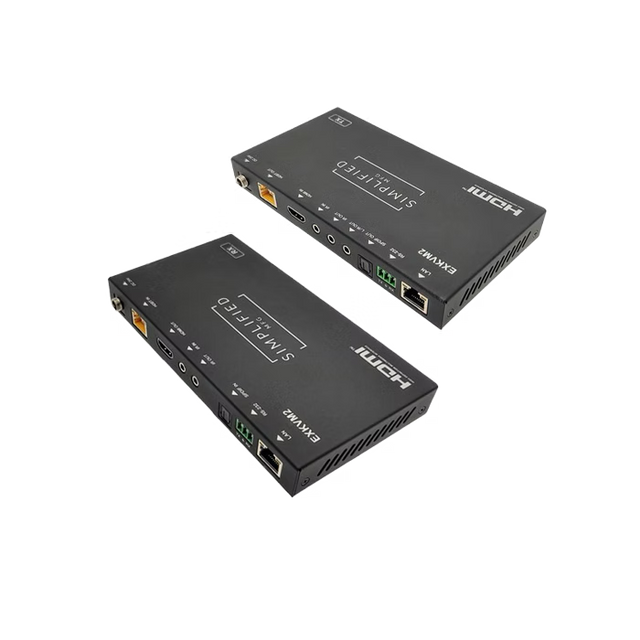

4K HDMI 2.0b 90m extender kit with ARC, USB, IR, RS232, Ethernet (EXKVM2)
Sold As: EACH
4K HDMI 2.0b 90m extender kit with ARC, USB, IR, RS232, Ethernet (E...
Description
Description
Full featured 4K HDMI 2.0 (18Gbps) Extender over Cat6A/6 cable*
The EXKVM2 Extender is a device which can extend your HDMI signal over 90m/295ft. to a compatible 4K display, 100m/330ft. to a 1080p compatible display. Simultaneously, can return audio and USB camera signals while sending the AV to the display along with control and Ethernet. It is designed to convert HDMI signal to standard HDBaseT signal which can be transmitted by category cable. The features include ARC return to TX via S/PDIF in or HDMI to display, Ethernet pass-thru, USB 2.0, RS232, 2-Way 12V IR, and the ability to power on one end (RX or TX)
Primary Use: Extending HDMI AV and a myriad of control (including USB) and audio functions up to 330ft. *Cat5e may be used, but some loss of distance may occur.
Features
|
• HDMI 2.0b (18Gbps) |
|
• HDCP 2.2, HDCP 1.4 and DVI compliant |
|
• Video resolutions up to 4K2K@50/60Hz (YUV444) |
|
• Sophisticated audio circuit with 4 functions. 1. HDMI ARC at RX to HDMI ARC at TX. 2. HDMI ARC at RX to optical S/PDIF at TX. 3. S/PDIF at RX to S/PDIF at TX. 4. Audio extraction from source to S/PDIF at TX. |
|
• 100 BaseT Ethernt pass-thru |
|
• USB 2.0 pass-thru |
|
• Two way POE, either the TX or the RX can be powered to power the other end device (only one supply is needed) |
|
• Bidirectional 12V Infrared control signal together with the HDMI signal |
|
• Transfer Bidirectional RS232 control signal together with the HDMI signal |
|
• Supports all high-definition audio formats including Dolby+/Atmos |
|
• 90m at 4k/UHD / 100m at 1080p |
|
• 3-Year warranty |
Specifications
|
Technical |
|
|
HDMI Compliance |
HDMI 2.0b (18Gbps) |
|
HDCP Compliance |
HDCP 2.2, HDCP 1.4 |
|
Video Bandwidth |
18Gbps |
|
Video Resolutions |
up to 4K2K@50/60Hz (YUV4:4:4),4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz |
|
Color Space |
RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
|
Color Depth |
8-bit, 10-bit, 12-bit |
|
HDMI Audio Formats |
PCM2.1/5.1/7.1CH, Dolby5.1,DTS5.1, Dolby-TrueHD, DTS-HD, Dolby+, Atmos, DTS-X |
|
ESD Protection: Human Body Model |
±8kV (air-gap discharge) |
|
|
±4 kV (contact discharge) |
|
Connections |
|
|

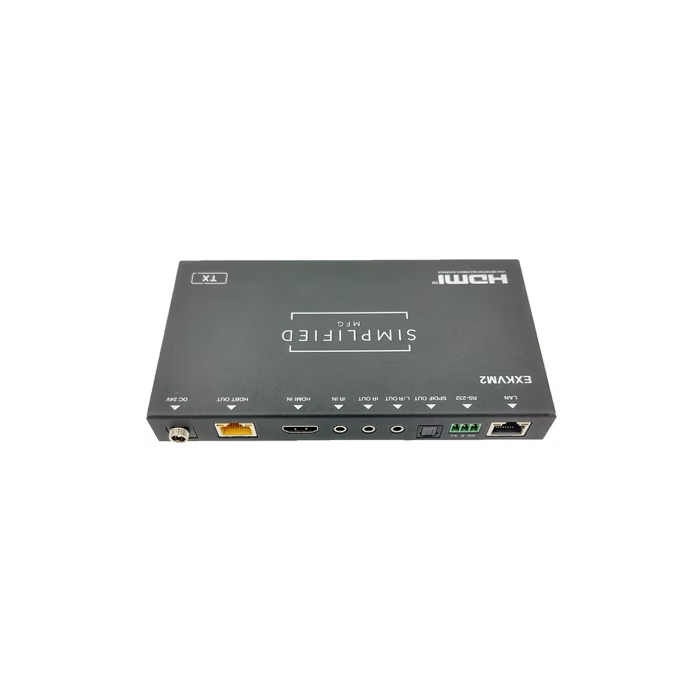

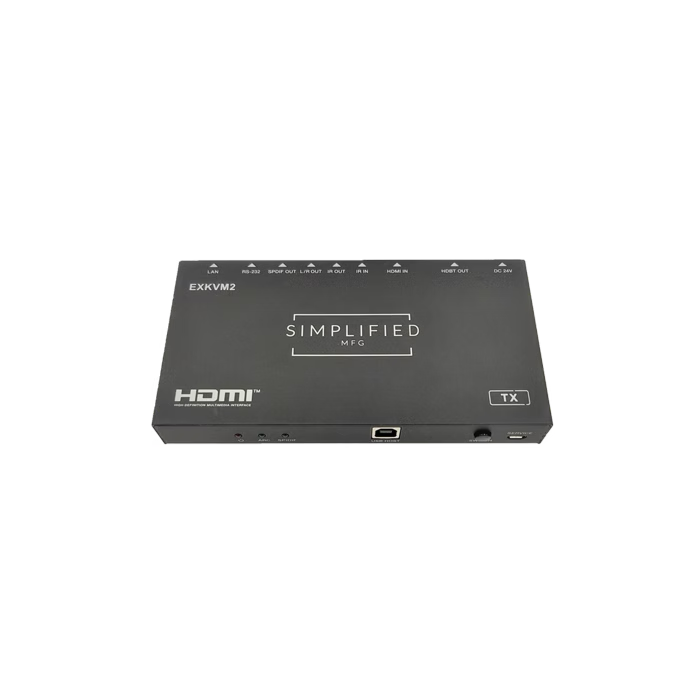

Inputs [TX] |
1 Type-A [19-pin] HDMI, 1 USB Mini [Service port], 1 optical S/PDIF, 1 3.5mm minijack [IR], 1 3-Pin Phoenix [RS-232], 1 USB Host, 2 USB Type -A client, 1 LAN [RJ-45] |
|

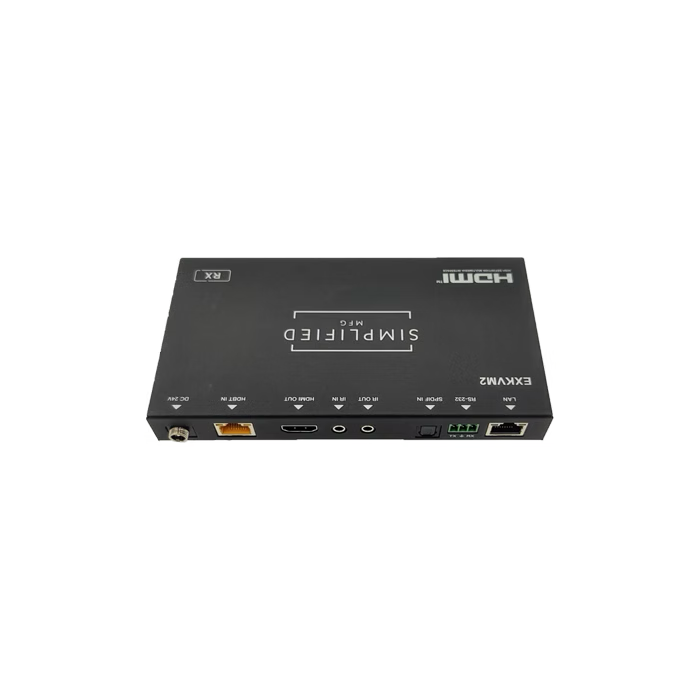

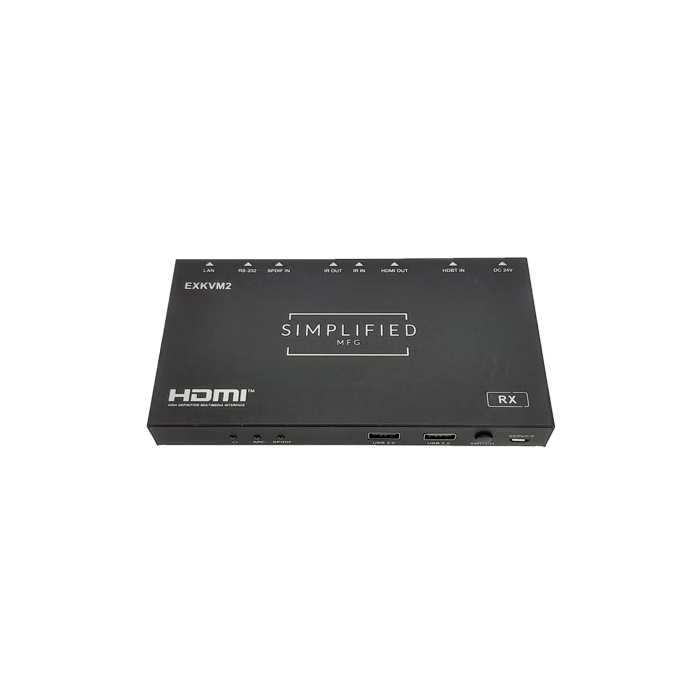

Inputs [RX] |
1 HDBaseT [RJ-45], 1 USB Mini [Service port],1 3.5mm minijack [IR], 1 3-Pin Phoenix [RS-232], 1 USB Host, 2 USB Type -A client, 1 LAN [RJ-45] |
|
Outputs [TX] |
1 HDBaseT [RJ-45], 1 optical S/PDIF, 1 3.5mm minijack [IR] |
|
Outputs [RX] |
1 Type-A [19-pin] HDMI, 1 3.5mm minijack [IR] |
|
Mechanical |
|
|
|
|
|
Housing |
Metal Enclosure |
|
Color |
Matte Black |
|
Dimensions |
165mm (6.5”) [W] x 88mm (3.5”) [D] x 18mm (.7”) [H] |
|
Weight |
470g/16.57oz. Each |
|
Power Supply |
24V DC, 1Amp (US/EU standards, CE/FCC/UL Certified) |
|
Power Consumption |
24W Max |
|
Operating Temperature |
-10°C ~ 45°C / 14°F ~ 113°F |
|
Storage Temperature |
-20°C ~ 60°C / -4°F ~ 140°F |
|
Relative Humidity |
20~90% (non-condensing) |
