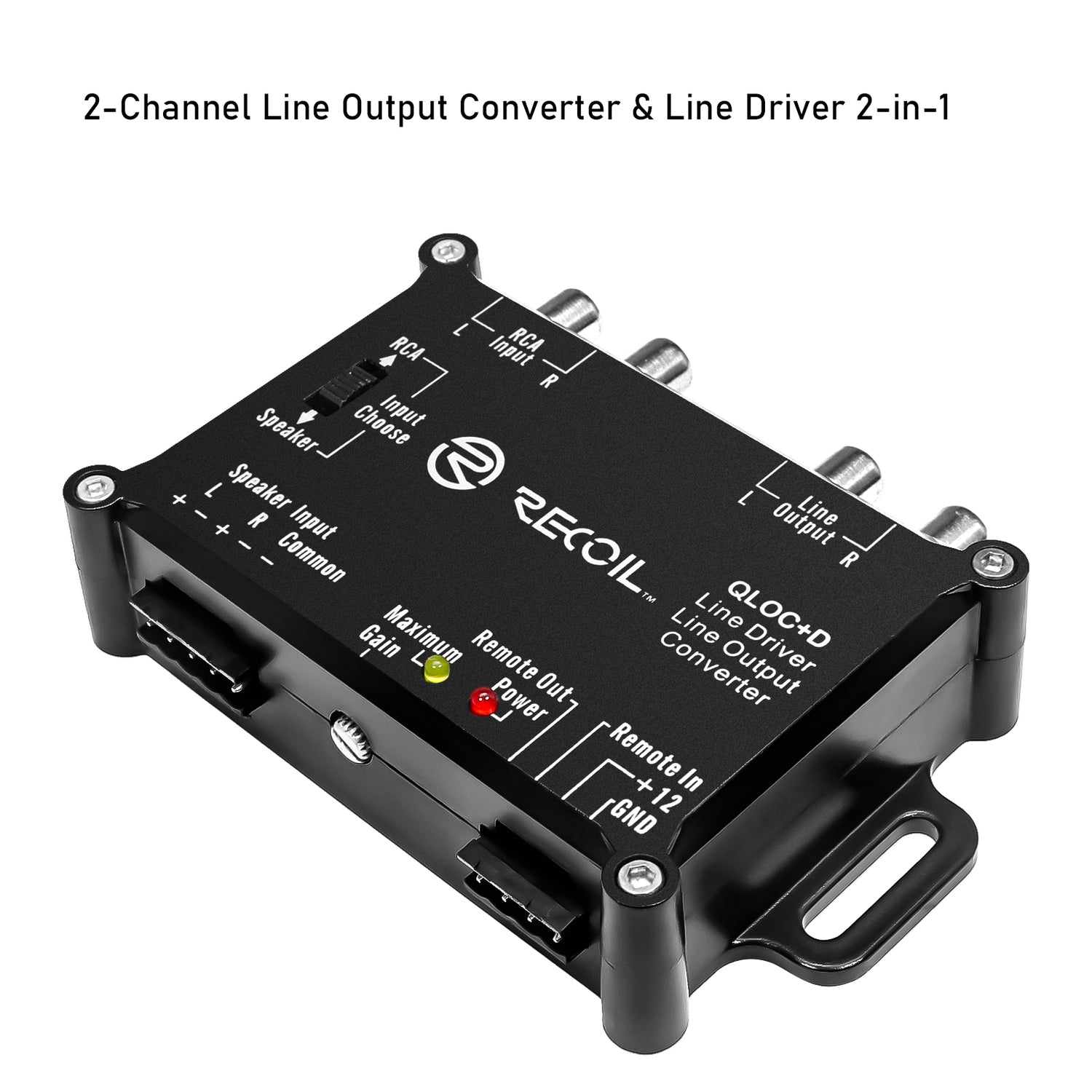

Recoil 2 Channel LOC with Bass Boost (up to 10V Input handling) (QLOCD)

Recoil QLOC+D is a line-level converter and line driver all-in-one package. This unit allows you to add an aftermarket amplifier to your factory system easily and flawlessly. High-level inputs mean you can tap right into your factory speaker wire for signal and the built-in signal sensing turns the unit on without the need to find a factory accessory lead. It also provides you with a remote turn-on output to your amplifier.

Features:

Premium 2-Channel line output converter and line driver 2-in-1 solution

Intelligent signal sensing turn-on circuit. Allows easy addition of aftermarket amplifiers to OEM radios.

Input gain adjustments and pre-amp 10V high RCA Output. Enough power to cleanly drive any amplifier.

Ultra-low 50m Ohm output / 20k Ohm input impedance. Virtually impervious to noise interference.

SMT (Surface Mount Technology) & precision components for noise-free operation

Output clipping LED’s. Visual adjustment indicator for maximum output on each channel

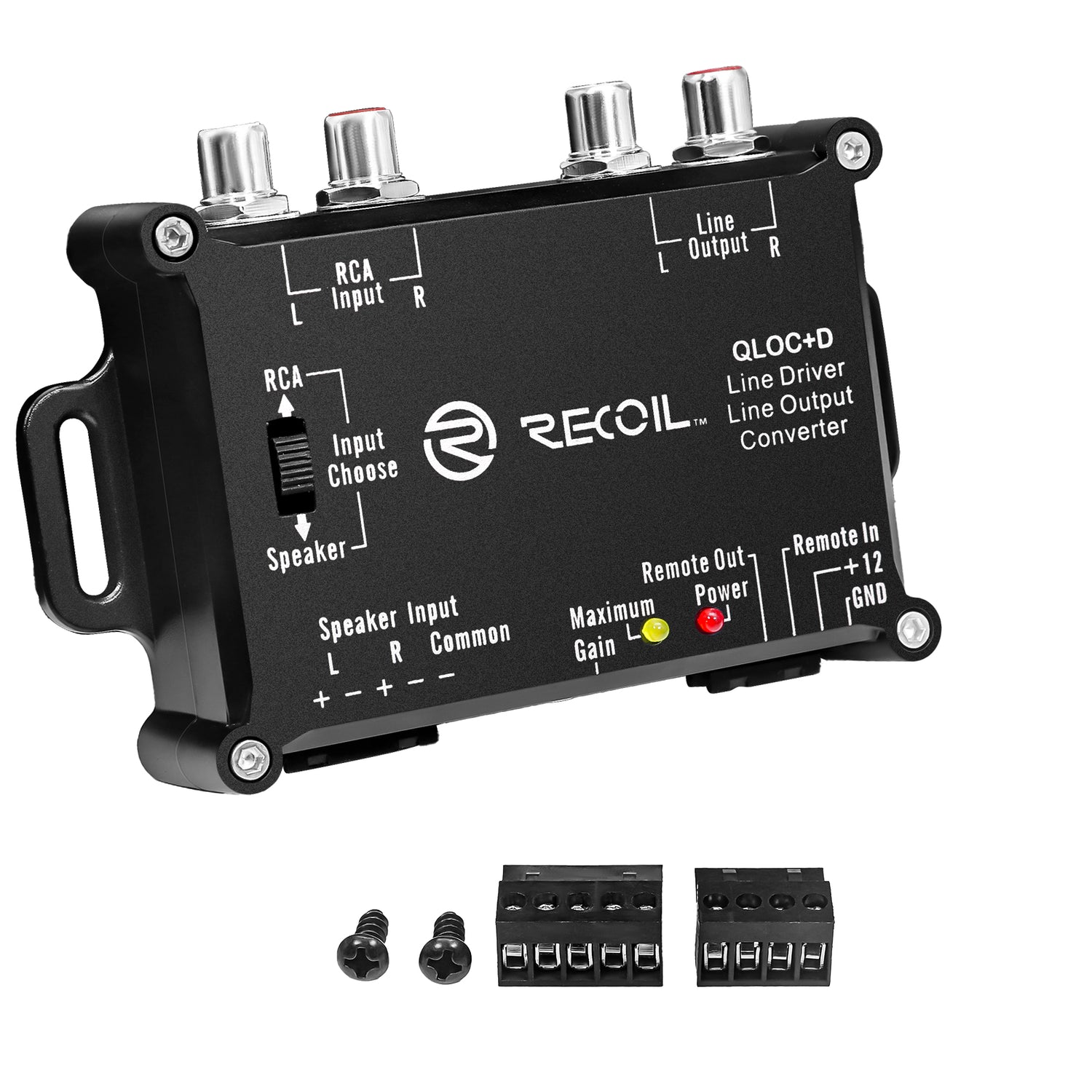

Removable terminal blocks for all input connections

Specifications:

Maximum Input Voltage:  20 V
Maximum Output Voltage:  10 V
Total Harmonic Distortion:  0.01%
Input Impedance:  > 20K Ohms
Output Impedance:  < 50 Ohms
Signal to Noise:   > 87dB

Frequency Response:  20 Hz to 25k Hz
Signal Sense Level:   DC & AC Sense
