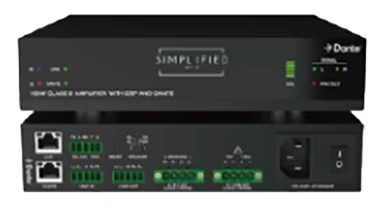

150W Dante enabled Amplifier with DSP (DTEAMP150)
Description
Description
DTE AMP150
75W/Ch. Stereo Amplified with Dante™ and DSP
The DTE AMP150 is a feature rich 75W per channel 2 channel amplifier that can be bridged (4Ω or 8Ω). Sources can be, line in, or Dante™. In addition, the amplifier has DSP functions that include, equalization, level control, ducking, and crossover features. 100V or 70V output can be selected and used as well.
|
Technical |
|
|
Network Bandwidth |
100m |
|
Audio Latency |
Dante – 2,3,4,5, or 10ms Amplifier – 0~50ms |
|
Rated Power |
2 x 75W 4 or 8Ω stereo, 1 x 150W 4 or 8Ω mono |
|
Amplifier Technology |
Class D |
|
Audio Format |
Dante™ [Dante/AES67 digital audio in/out, PCM 2CH 44.1K-96kHz, 16/24Bit] LINE IN [Analog audio, Balanced/unbalanced, Max input level 2Vrms LINE OUT [Analog audio, Balanced/unbalanced, Max output level 2V RMS] AMP OUT [Analog audio, Balanced 2CH, Max output power 2x75W @ 4/8Ω Stereo, 1x150W@4/8ohm Mono] 70V/100V AMP OUT [Analog audio, unbalanced 1 CH, Max output 70V/100Vrms] |
|
Line Input |
|
|
Input Impedance |
600Ω balanced 300Ω unbalanced |
|
Output Level |
2V RMS Max @ balanced audio 2V RMS Max @ unbalanced audio |
|
Line Output Audio |
|
|
Input Impedance |
600Ω balanced 300Ω unbalanced |
|
Output Level |
2V RMS Max @ balanced audio 2V RMS Max @ unbalanced audio |
|
Frequency Response |
20Hz to 20kHz (±3db) |
|
Dynamic Range |
>100dB@0dBu, 1kHzA-weighted |
|
S/N Ratio |
>87dB 20Hz. – 10kHz |
|
THD+N |
0.04% THD=N (1kHz@1W) |
|
Audio Out Latency |
<1ms |
|
Transmission Distance |
328ft./100m (CAT6/6A/7) |
|
ESD Protection |
IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
|
Connection |
|
|
Input |
1x Dante® Network audio input 1x LINE balanced stereo 2Vrms input |
|
Outputs |
1x LINE OUT [6pin-3.5mm phoenix connector] 1x 4/8Ω AMP OUT [4pin-5.08mm locking phoenix connector] 1x 70V/100V AMP OUT [4pin-5.08mm locking phoenix connector] |
|
Mechanical |
|
|
Housing |
Metal Housing |
|
Color |
Black |
|
Dimensions |
240mm/9.49” (W) 210mm/8.27” (D) 44mm/1.73” (H) |
|
Weight |
1.8Kg/ 3lb, 15.5oz. |
|
Power Supply |
AC 100-240V 50/60Hz. |
|
Power Consumption |
70W (Test with 1k sinewave, audio amplifier output is connected to 4Ω load) |
|
Operating Temperature |
0°C ~ 40°C / 32°F ~ 104°F |
|
Storage Temperature |
-20°C ~ 60°C / -4°F ~ 140°F |
|
Relative Humidity |
20~90% RH (non-condensing) |
