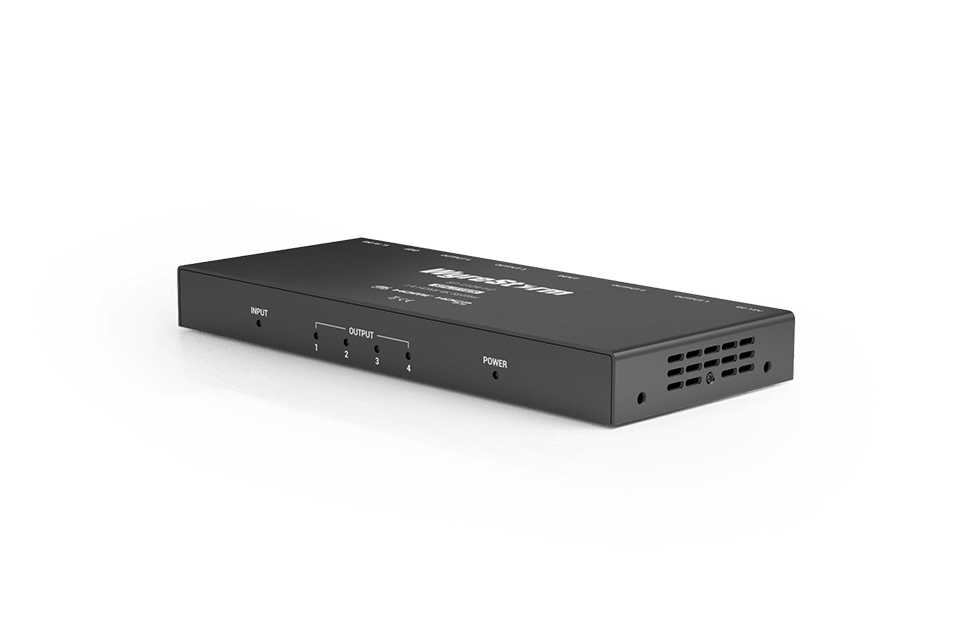

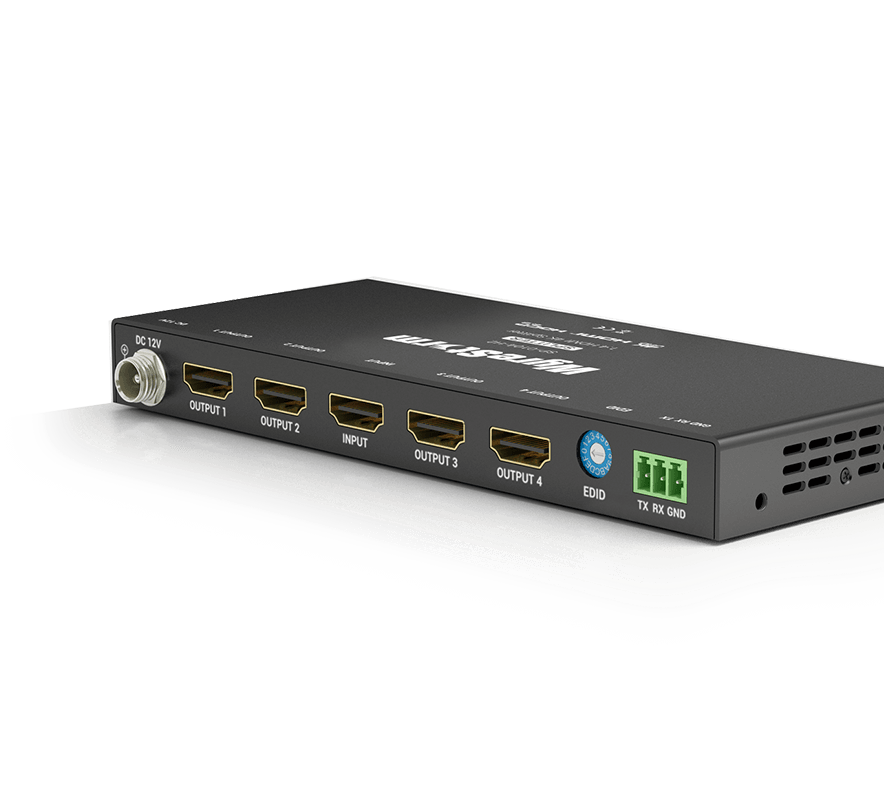

4K60Hz 4:4:4 1x4 HDMI Splitter | Dolby Vision & HDR | EDID Management (SP0104H2)

With support for 4K/HDR resolutions, HDCP 2.2, and HD multi-channel audio formats, this four-output splitter allows for simple, reliable distribution of a single HDMI source to multiple duplicate displays. Additionally, the compact chassis makes it perfect for environments where unobtrusive installation is important.

• Splits a single HDMI 4K/HDR or 1080p HD device to four 4K/HDR or HD display devices
• Supports resolutions up to 4K@60Hz, including 3840×2160 (HDR) and 4096×2160 (DCI) and 1920x1080p@60Hz
• HDCP 2.2 supported
• Color depth 24bit (4K) and 36bit (1080p) full 4K chroma subsampling color palette 4:4:4
• 3D compatible (up to 1080p)
• DVI support up to 1920×1200
• Multichannel Dolby and DTS HD audio supported up to 7.1 (mirrors source)
• Extensive EDID management for improved compatibility and communication between connected source and display devices
• Front panel LED indication for visual confirmation of I/O and power connectivity
• Locking DC 12v power port
• 3-pin Phoenix connector for firmware updates
• Transmission distance up to 10m/33ft (4K/1080p input, 4K output), 15m/49ft (1080p output) using standard high speed HDMI cables
• Ultra-slim 18mm chassis design for space-saving local installation, surface mountable
• Units cascadable to create larger systems
• 12v DC 1A power supply and mounting brackets included
