Wyrestorm | SKU:
NHD400RX

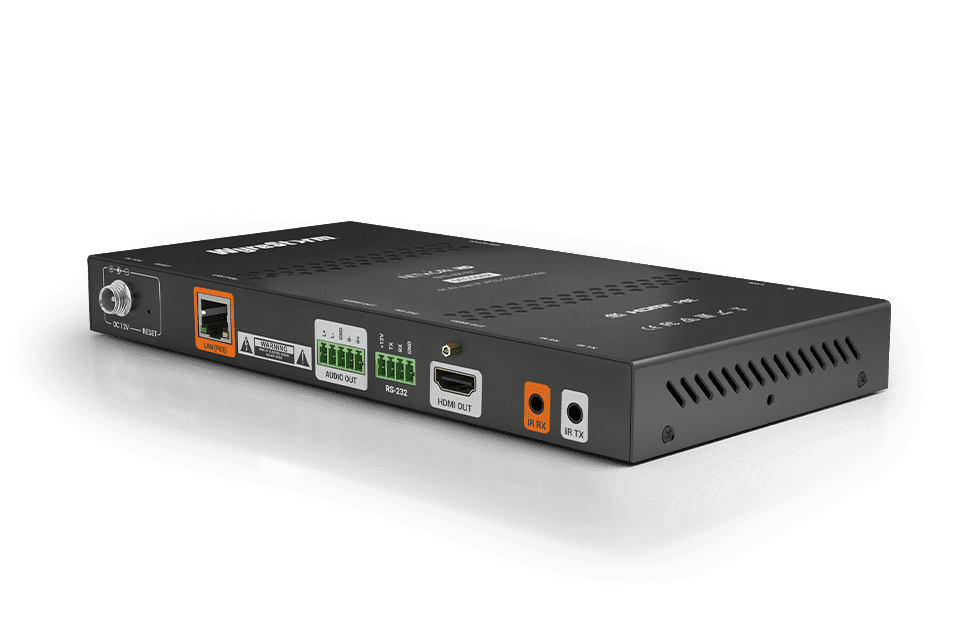

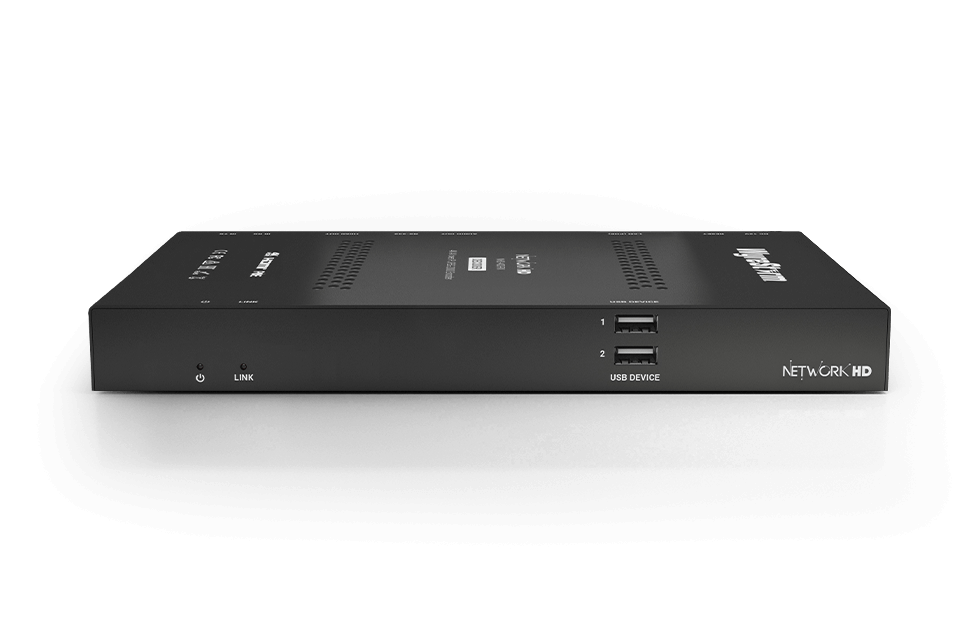

4K60Hz 4:2:0 Decoder | 1GbE | HDR | PoE | USB 2.0 | Audio De-embed | Video Wall | Mosaic | CEC | RS232 Routing (NHD400RX)
Sold As: EACH
4K60Hz 4:2:0 Decoder | 1GbE | HDR | PoE | USB 2.0 | Audio De-embed ...
Description
Description
WyreStorm brings stunning 4K HDR video, 4K/2K auto-scaling, multi-channel audio and audio matrixing to IP with the NetworkHD 400 Series’ NHD-400-RX AVoIP decoder. Used in conjunction with a 400 Series encoder, the NHD-400-RX seamlessly handles mixed resolution sources, content and display devices for matrix and video wall functionality up to 16×16 with image rotation and bezel compensation.
Featuring incredibly low latency, the 400 Series is the ideal AV over IP solution for systems where high quality and low latency are key requirements, making it perfect for both residential and commercial applications.
1x 8-pin RJ-45 female (Transmission from TX)
Outputs
1x HDMI Out 19-pin type A
1x Audio Out: 5-Pin Phoenix
Audio Formats
2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos
Output Video Encoding
JPEG 2000
Encoding Data Rate
Max: 850Mbps
End to End Latency (Max)
1 video frame latency (pass-through mode) 16ms @60fps 2 video frames latency (scaler/VW mode) 33ms @60fps
Video Resolutions (Max)
1920x1080p @60Hz 12bit 4:4:4/RGB
3840x2160p @30Hz 12bit 4:2:2 HDR10 HLG
3840x2160p @30Hz 8bit 4:4:4/RGB
3840x2160p @60Hz 8bit 4:2:0
Supported Standards
HDR10 | HLG | BT.2020 | BT.709 | 3D Video
Maximum Pixel Clock
300MHz
COMMUNICATION AND CONTROL
HDMI
HDCP 2.2 | CEC
Ethernet
1x LAN (PoE): 8-pin RJ-45 ANSI/TIA-568 8P8C, 1000Base-T, PoE PD (IEEE 802.3af)
USB
2x USB Device: USB Type A | Power: 5v 500ma per port | Data Rate: Max 9MB/s
IR
1x IR TX: 3.5mm (1/8in) TS Mono | 1x IR RX: 3.5mm (1/8in) TRS Stereo | Bidirectional Over Ethernet
RS-232
1x RS-232: 4-pin Phoenix | 2 Way (RX only)
POWER
Power Supply
12V DC 1A
PoE
IEEE 802.3af (15.4W at PSE)
Max Power Consumption
8W (with PSU)
