Wyrestorm | SKU:
RX700

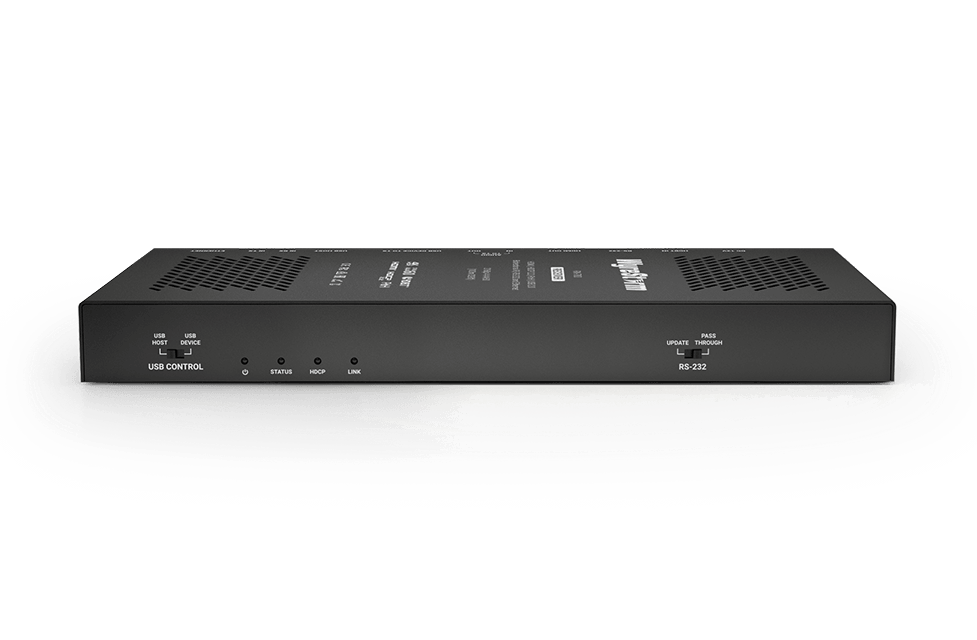

4K60Hz 4:2:0 HDBaseT Receiver | PoH | USB 2.0 | DSC | Audio De-embed | RS232 & IR Passthrough (4K: 100m/328ft) [For SW-130-TX] (RX700)
Sold As: EACH
4K60Hz 4:2:0 HDBaseT Receiver | PoH | USB 2.0 | DSC | Audio De-em...
Description
Description
Utilizing the best in HDBaseT technology, the RX-700 extends 5-Play functionality to your display device over 100m/328ft of Cat6 cable. Using DSC (display stream compression) the RX-700 can support HDMI video up to 2160p 4:4:4 at 60Hz without any visual loss in quality or latency. With HID’s and data transfer in mind, the RX-700 supports data transmission of USB 2.0 devices like HD webcams, smart whiteboards and flash drives alike.
1x HDBT In: 8-pin RJ45
Outputs
1x HDMI Out: 19-pin Type A Female
Output Video Encoding
HDBaseT Class C | PAM16 Encoding
Encoding Data Rate
10.2Gbps
End to End Latency
10μs (micro seconds)
Audio Formats
2ch PCM | Multichannel LPCM | DTS-X | Dolby Atmos
Video Resolution (Max)
1920x1080p @60Hz
2560x1440p @144Hz
3840x2160p @60Hz 8bit 4:4:4
3840x2160p @60Hz 10bit 4:2:0 HDR
3840x2160p @60Hz 12bit 4:2:2 HDR
Supported Standards
DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100
Maximum Pixel Clock
HDMI: 600MHz | HDBaseT: 340MHz
COMMUNICATION & CONTROL
HDMI
(v2.0b) TMDS | 600MHz Maximum with DSC (Display Stream Compression)
IR
1x IR RX: 3.5mm (1/8in) TRS Stereo | 1x IR TX: 3.5mm (1/8in) TS Mono
RS-232
1x RS-232: 3-pin Phoenix
HDCP
Pass-Through, 2.3 Supported
EDID
Pass-Through, RX > TX
USB
1x Type B (host) | 4x Type A (device)*
USB direction must be set using switch before operation
USB hub compatible | Maximum: 7 devices, 23 endpoints
Maximum uplink speed: 190Mbps
*USB direction must be set using switch before operation
Ethernet
1x Ethernet: 8-pin RJ-45 Female | Bidirectional over HDBaseT | 100Mbps Supported
Consumer Electronics Control (CEC)
One-way display trigger from TX
Auto Low Latency Mode (ALLM)
Supported
Variable Refresh Rate (VRR)
Supported
POWER
Power Supply
18V DC 3A
Max Power Consumption
10W
