Wyrestorm | SKU:
SW510TX

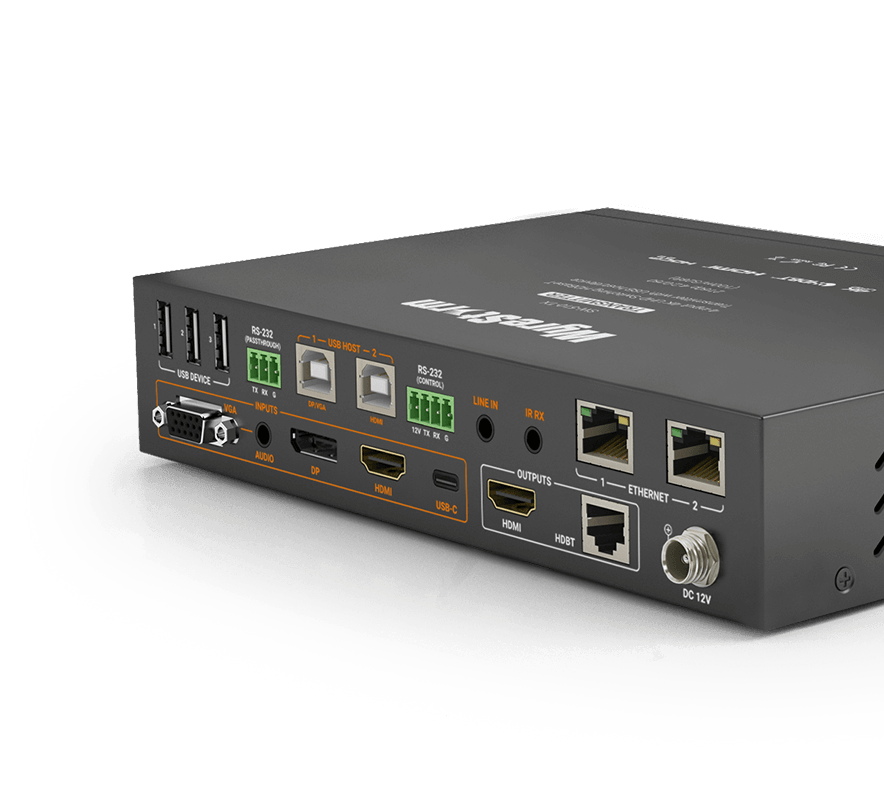

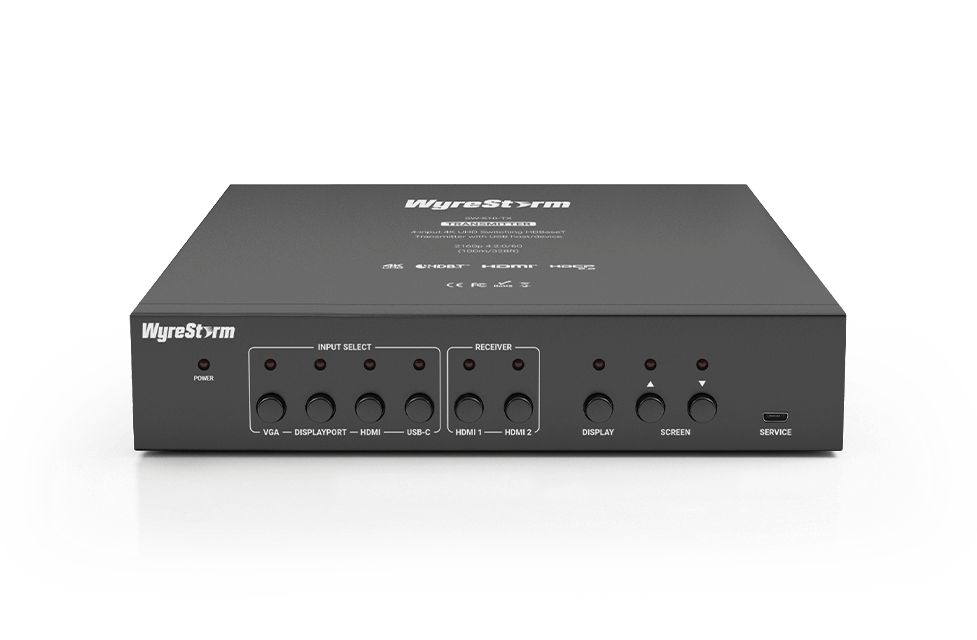

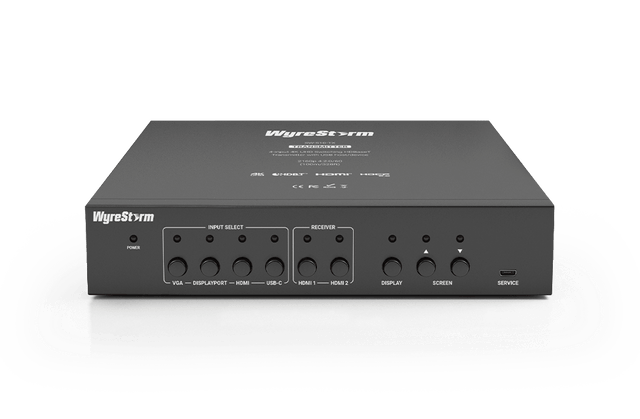

Synergyª 4-input 4K60Hz 4:2:0 HDBaseTª Switcher | USB 2.0 | Ethernet Passthrough | IR, CEC & RS232 Passthrough (4K: 100m/328ft) (SW510TX)
Sold As: EACH
Synergyª 4-input 4K60Hz 4:2:0 HDBaseTª Switcher | USB 2.0 | Ethern...
Description
Description
When the next generation of HDBaseT transmission meets WyreStorm’s presentation switcher platform, the result is this powerful switching transmitter, perfect for corporate meeting and classroom environments. Automatic switching inputs with USB host extension and CEC triggering mean an autonomous experience with no user input required.
Inputs
1x VGA In: 15-pin VGA
1x Display Port In: DisplayPort 1.3
1x HDMI In: 19-pin type A
1x Audio In: 3.5mm (1/8in) TRS Stereo
1x Line In: 3.5mm (1/8in) TRS Stereo
Outputs
1x HDMI Out: 19-pin type A
1x HDBT Out: 8-pin RJ-45 Female
Video Encoding
HDBaseT™ Class C
Audio Formats
2ch Analog/PCM | Multichannel: LPCM
Video Resolution (Max)
1920x1080p @60Hz 8bit
1920x1200p @60Hz 8bit
3840x2160p @60Hz 8bit 4:4:4
4096x2160p @60Hz 8bit 4:2:0
Supported Standards
DCI | RGB
Maximum Pixel Clock
297MHz
COMMUNICATION & CONTROL
HDMI
HDMI | HDCP 2.2 | EDID | DVI/D supported with adapter (not included)
HDBaseT
HDMI | HDCP 2.2 | EDID | CEC | 2ch audio | USB
RS-232
1x RS-232 (Control): 3-pin Phoenix | 1x RS-232 (Passthrough): 3-pin Phoenix
Ethernet
2x 8-pin RJ-45 female | Bidirectional over HDBaseT™
IR
1x IR RX: 3.5mm (1/8in) TS Mono
USB
1x USB-C: USB 3.1 Audio/Video
2x USB Host: USB-B
3x USB Device: USB-A
POWER
Power Supply
12V DC 2A
Max Power Consumption
14.02W
