Wyrestorm | SKU:
SW130TXUS

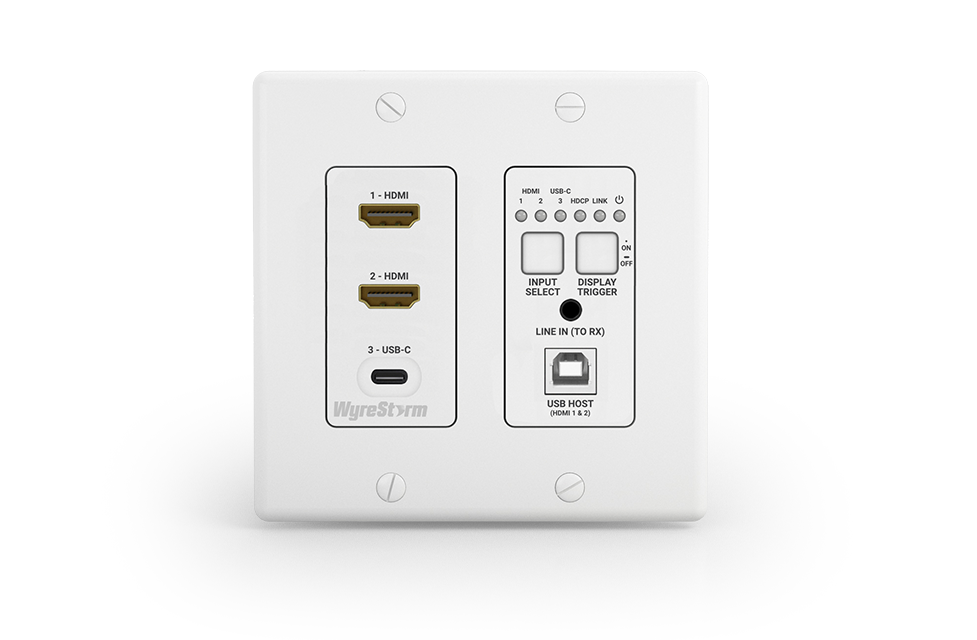

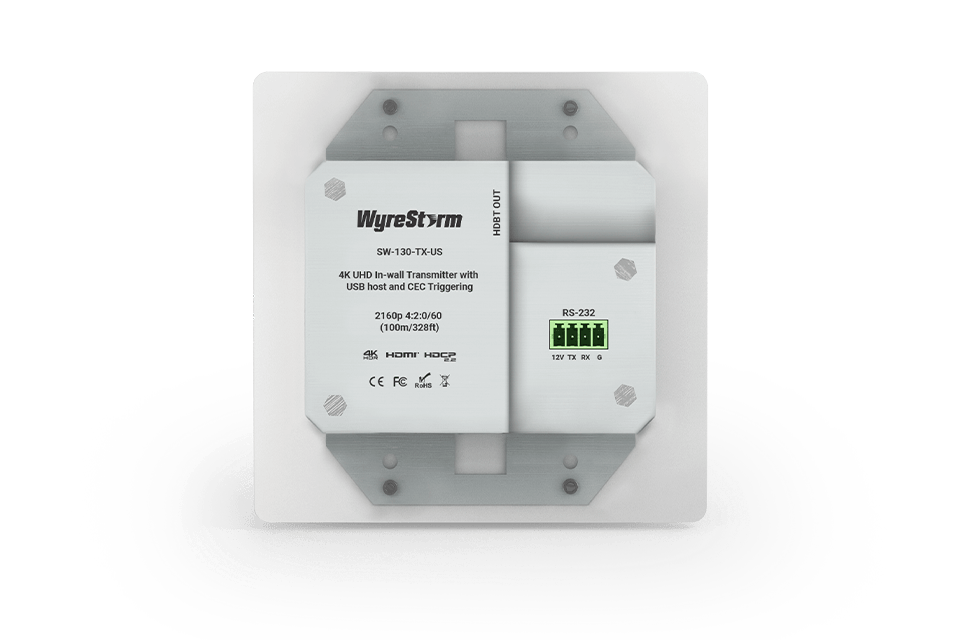

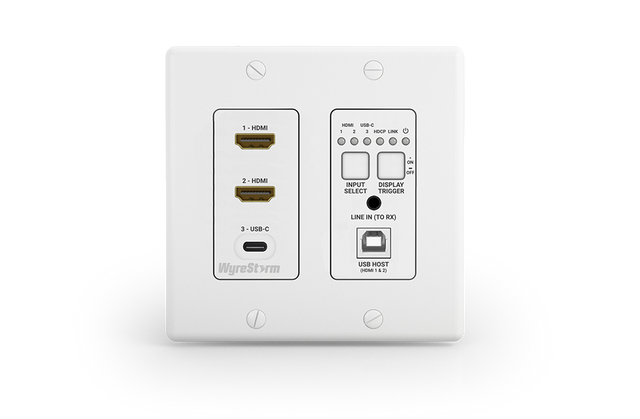

3-Input 4K60Hz 4:2:0 In-wall HDBaseTª Switcher | 2 HDMI + USB-C | CEC | 2-Gang (4K: 100m/328ft) (SW130TXUS)
Sold As: EACH
3-Input 4K60Hz 4:2:0 In-wall HDBaseTª Switcher | 2 HDMI + USB-C | C...
Description
Description
3 inputs and powerful HDBaseT transmission result is this powerful switching transmitter, perfect for corporate meeting and classroom environments. Automatic or manual switching of 2 HDMI’s or USB-C and CEC power triggering via HDBaseT mean a simple user experience when it matters most. Further functionality allows USB devices to be routed back to the source via USB host (or natively via USB-C) and charging for the connected USB-C device.
Transmission Encoding
HDBaseT Class C | PAM16 Encoding
End to End Latency
10µs
Max. Transmission Bit Rate
10.2Gbps
VIDEO
HDMI
(v2.0b) TMDS | 340MHz Maximum
Inputs
2x HDMI In: 19-pin type A1x USB-C In: USB 3.1c Audio/Video (4.5Gbps)
Outputs
1x HDBT out: 8-pin RJ45
Max Pixel Clock
HDMI & HDBaseT: 340MHz
Video Resolution (Max)
1920x1080p @60Hz
2560x1440p @60Hz
3840x2160p @30Hz 8bit 4:4:4
3840x2160p @30Hz 10bit 4:2:0 HDR
3840x2160p @30Hz 12bit 4:2:2 HDR
Note: WyreStorm recommends the use of shielded category cable to minimize signal noise and interference.
Supported Standards
DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100
AUDIO
Inputs
1x Audio In: 3.5mm (1/8in) TRS Stereo
2ch audio over HDBaseT | 1-way to RX
Audio Formats
2ch PCM | Multichannel up to DTS-X and Dolby Atmos
Maximum Sampling Rate
192KHz
Maximum Audio Channels
32
Audio Return Channel (ARC)
Not Supported
