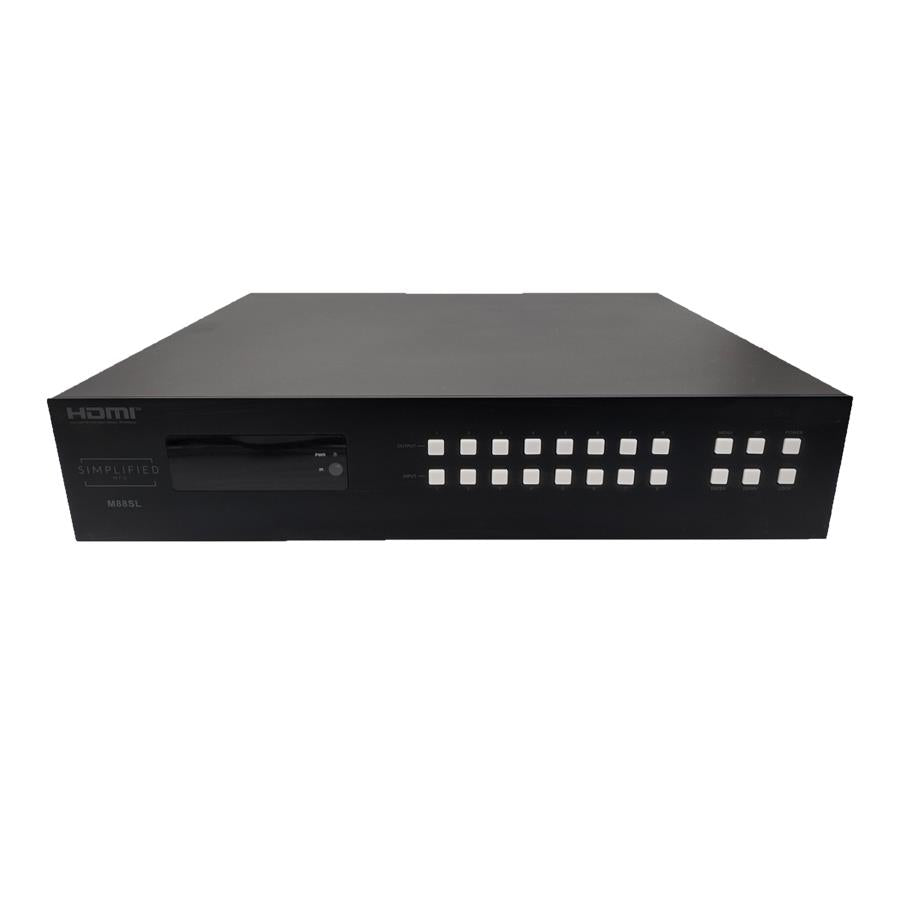

8x8 HDMI scaling matrix w/ parallel 120m UTP outputs (M88SL)

The M88SL HDMI Matrix is the latest design based on the EX1L technology and has long distance capabilities (120m @ 4K/UHD & 150m @ 1080p). This matrix is able to be used "as is" as an HDMI to HDMI matrix, but also features the long distance UTP output for use with the optional SLRX receiver that has 2-way 12V IR, audio breakout (Optical S/PDIF and a 3.5mm mini), and RS-232 pass-through. This matrix scales making unlike displays easy to integrate so that each display gets the appropriate signal. The optional SLRX is available in packs of four or single units.

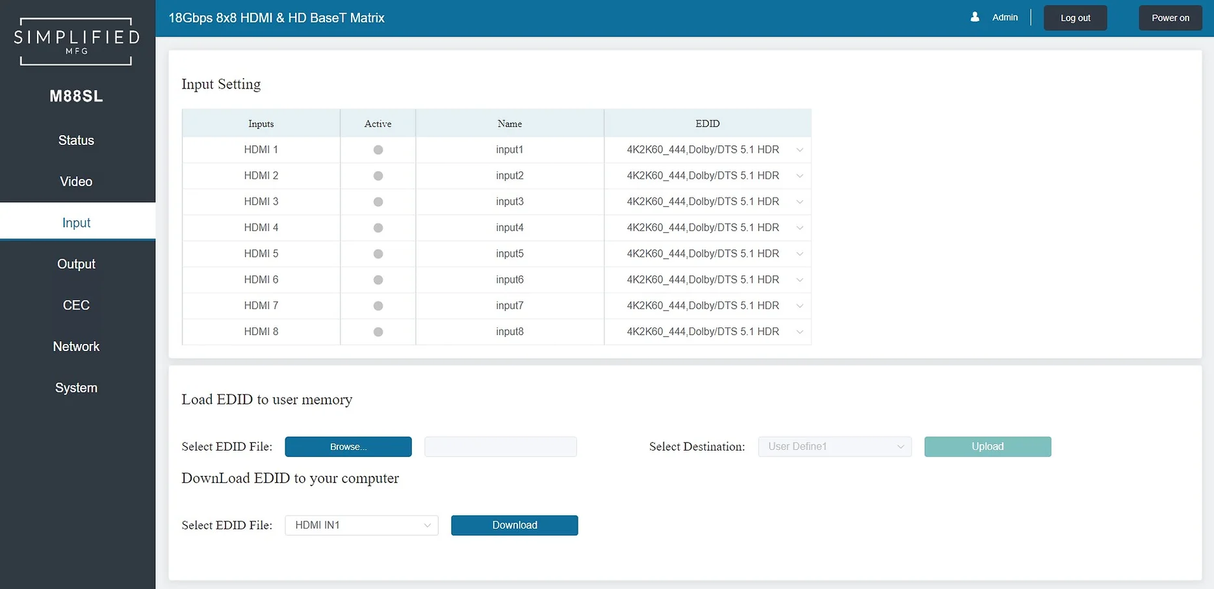

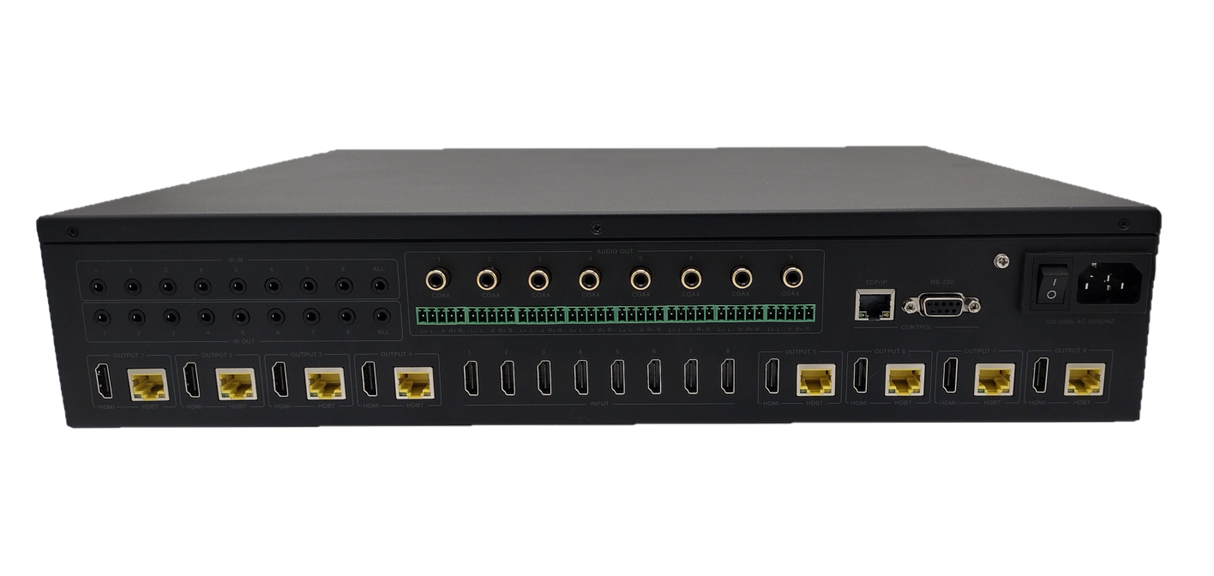

The M88SL features eight HDMI inputs, 8 x 18gbps Scaling HDBaseT outputs (120m @ 4K), and 8 Scaling HDMI outputs. There are audio breakouts (Coaxial and Phoenix) on each output, an IR transmit and receive bank, a sophisticated web GUI and the ability to be controlled via IP, RS-232, IR, or via manual buttons on the front panel. The M88SL provides true matrix routing for HDMI signals. It supports transmission of video (resolutions up to 2160p@60Hz Ultra HD 4:4:4) and supports high resolution audio formats such as LPCM7.1, Dolby TrueHD, Dolby Digital Plus, Atmos and DTS-HD Master Audio. The M88SL will also pass HDR8/10/10+ High Dynamic Range information as well as Dolby Vision. Each output can be set to scale independently of the other.
