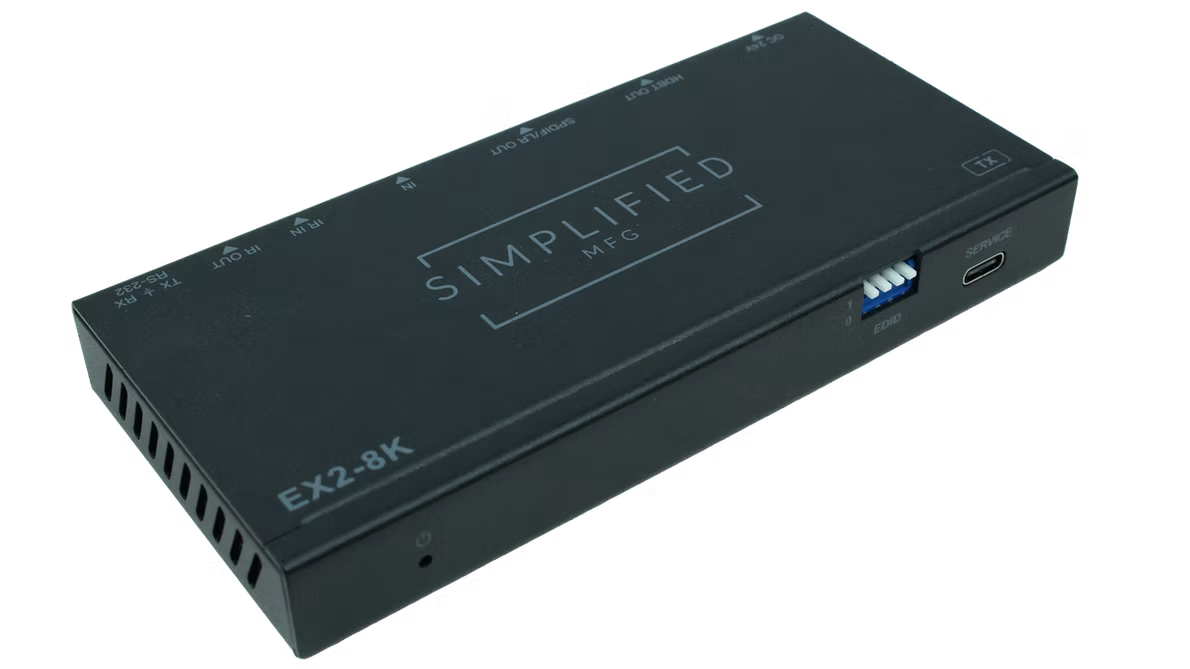

Long distance high bandwidth extender 8K/4K@120Hz (EX28K)
Description
Description
4K HDMI 2.1 (40Gbps) Long distance Category Cable HDMI Extender Kit
The EX2-8K is a state of the art long distance HDMI 2.1 extender kit. The challenge of legacy wiring and complex signals has forced many to use a highly compressed 1 Gbps format instead of a higher bandwidth/higher quality device like the EX2-8K. Because of the distance capabilities of this unit, now you can get complex signals over existing infrastructure. The EX2-8K will support 1080p up to 150m, 4K (18Gbps) up to 120m, 4K (24 Gbps) up to 100m, and 4K/8K (40Gbps) up to 90m. In addition this device supports all the advanced features of HDMI 2.1b while featuring EDID management, RS-232 pass-thru, 2-way 12V IR, and optical/analog audio breakout at both the RX and TX. If you want a device that supports anything 4K and will work where other devices will not, the EX2-8K should be your “go to” HDMI extender kit.
Primary Use: Extending High-bandwidth 8K or 4K@120Hz. HDMI AV over long distances. Legacy cable applications in particular.
Features
|
• HDMI 2.1 (40Gbps) |
|
• HDCP 2.3/2.2/1.4 and DVI Compliant |
|
• 4K @120Hz./4K 24Gbps/8K@ 30Hz. Deep color |
|
• Audio breakout at RX and TX |
|
• Uses compact 3.5mm minijack for both optical and analog audio |
|

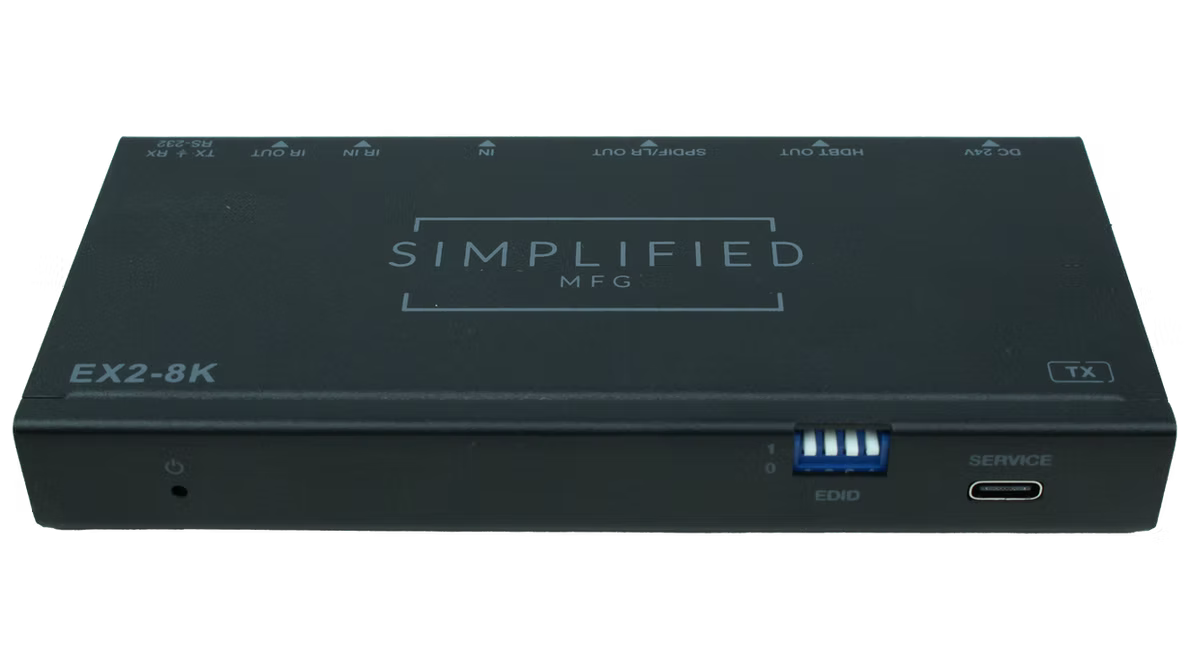

• EDID management |
|
• 2-way 12V control system compatible IR (1 RX & 1TX included) |
|
• Advanced diagnostics |
|
• 3-Year warranty |
Specifications
|
Technical |
|
|
HDMI Compliance |
HDMI 2.1b |
|
HDCP Compliance |
HDCP 2.3 |
|
Video Bandwidth |
40Gbps |
|
Video Resolutions |
All formats up to and including 8K @30Hz. 10-bit color, 4K@120Hz. 10-bit color |
|
HDR Formats |
HDR10+, HLG, and DolbyVision |
|
Color Space |
RGB /YCbCr 4:4:4, YCbCr 4:2:2, ad YCbCr 4:2:0 |
|
Color Depth |
8,10, 12-bit |
|
HDMI Audio Formats |
PCM2.1/5.1/7.1CH, Dolby5.1,DTS5.1, Dolby-TrueHD, DTS-HD, Dolby+, Atmos, DTS-X |
|
ESD Protection: Human Body Model |
Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
|
Connections |
|
|

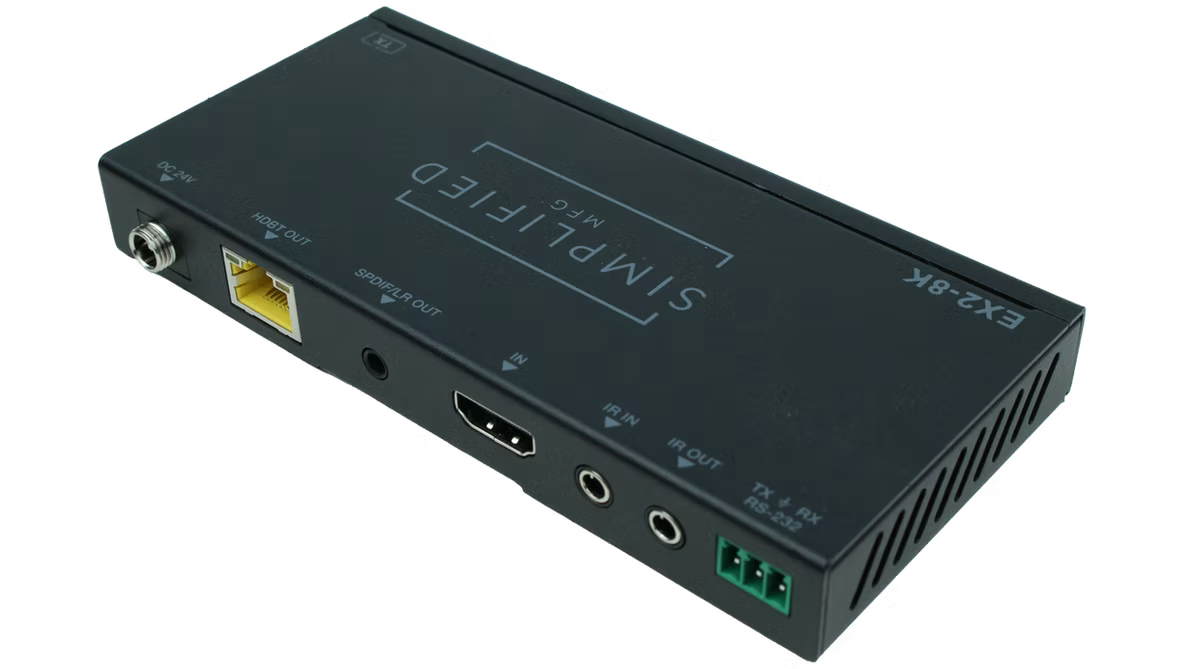

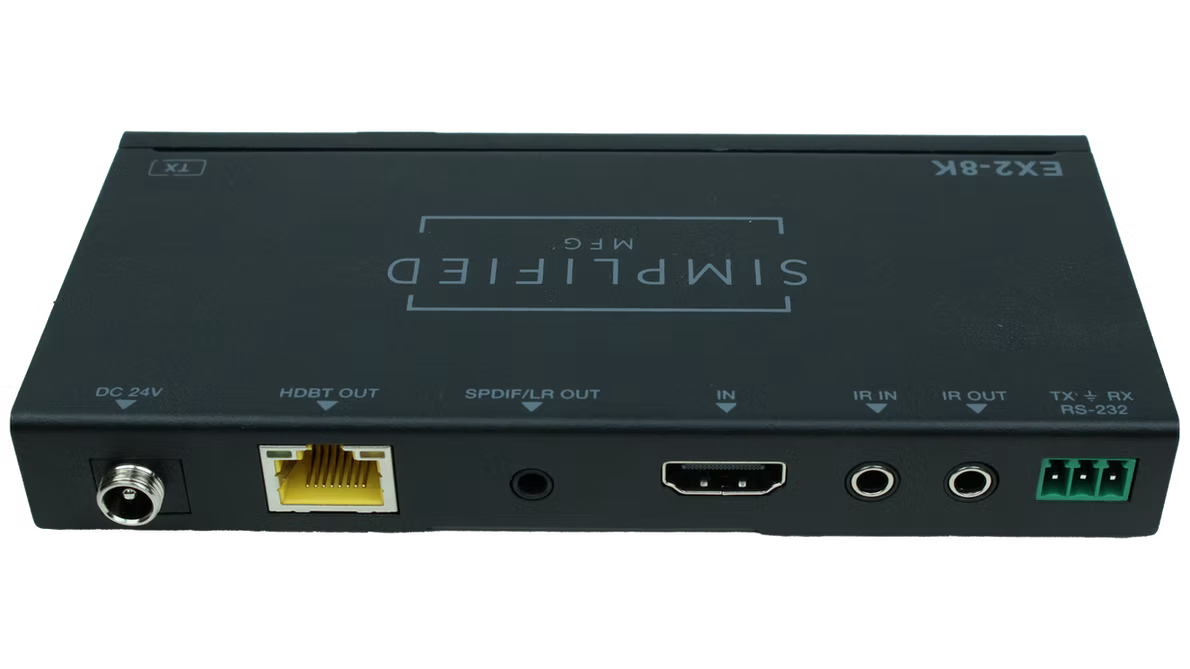

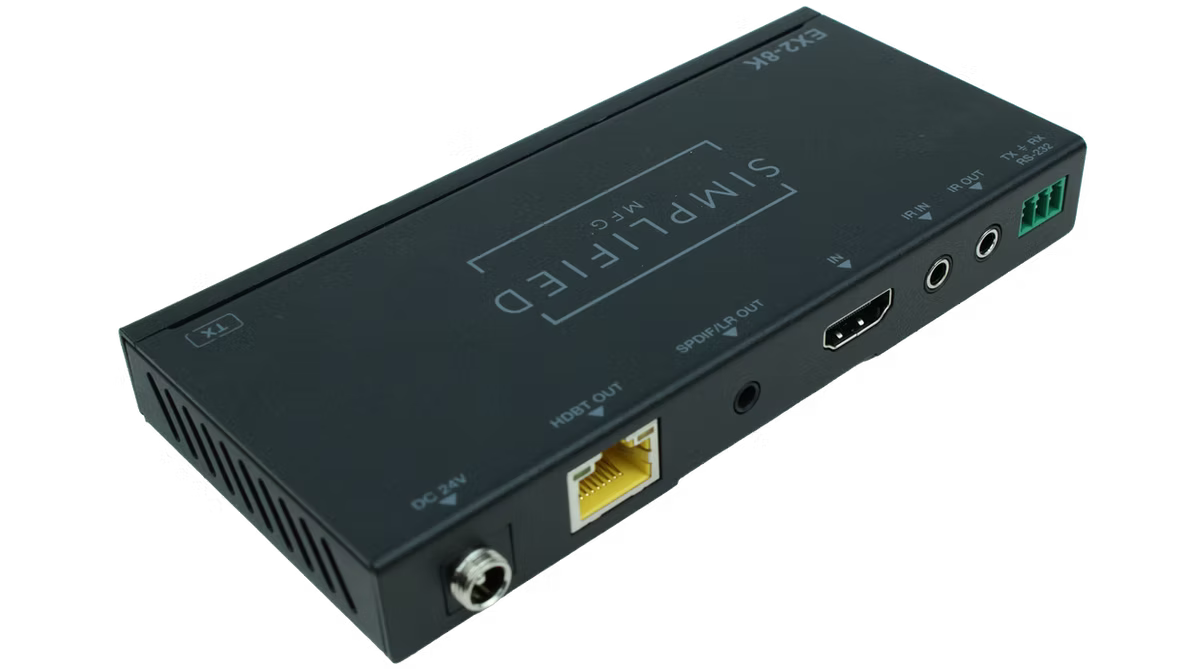

Transmitter |
Inputs: 1x HDMI Type A [19-pin female] Outputs: 1x HDBaseT OUT [RJ45] 1x AUDIO OUT [3.5mm Stereo Mini-jack with S/PDIF adapter] Control: 1x IR IN [3.5mm Mini-jack] 1x IR OUT [3.5mm Mini-jack] 1x RS-232 [3-Pin Phoenix] 1x Service [Mini-USB jack] |
|

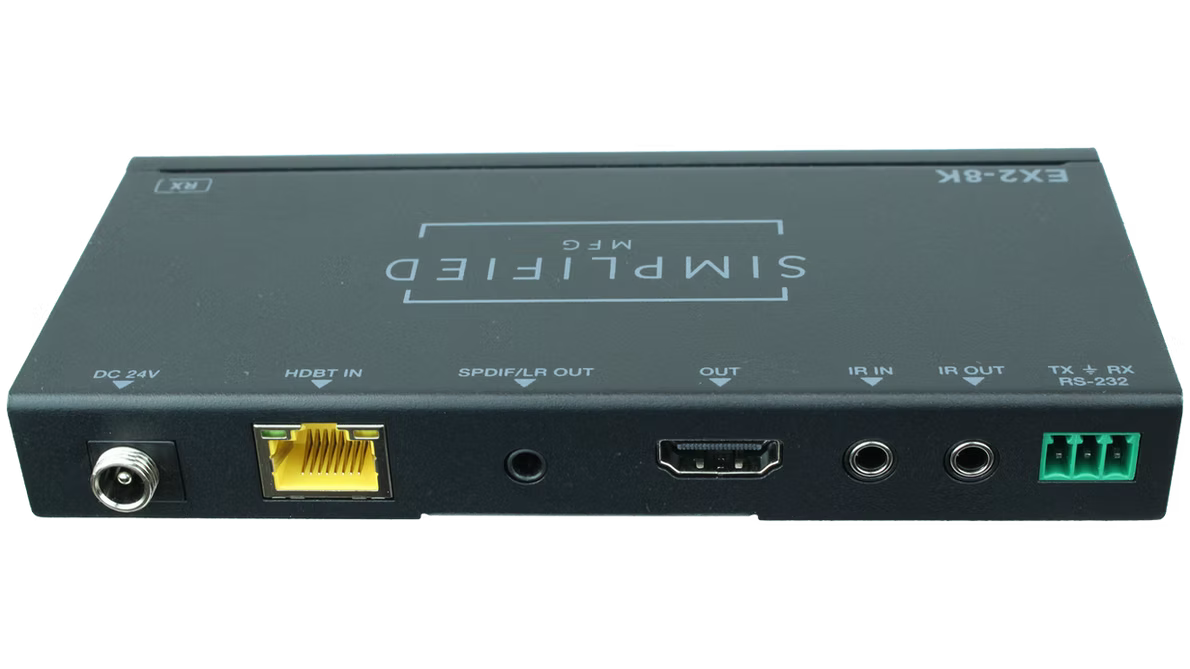

Receiver |
Inputs: 1 x HDBaseT [RJ-45] Outputs: 1x HDMI Type A [19-pin female] 1x AUDIO OUT [3.5mm Stereo Mini-jack with S/PDIF adapter] Control: 1x IR IN [3.5mm Mini-jack] 1x IR OUT [3.5mm Mini-jack] 1x RS-232 [3-Pin Phoenix] 1x Service [Mini-USB jack] |
|
Mechanical |
|
|
Housing |
Metal Enclosure |
|
Color |
Black |
|
Dimensions |
140mm/5.5” [W] x 65mm/2.56” [D] x 18mm/.71” [H] |
|
Weight |
TX 160g/ 5.64oz. RX 155g/ 5.46oz. |
|
Power Supply |
Input: AC100 - 240V 50/60Hz Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified) |
|
Power Consumption |
20.4W Max— TX 2.46W in standby, 11.28W w/load / RX 3.36W in standby, 10.8W w/load |
|
Operating Temperature |
32 - 104°F / 0 - 40°C |
|
Storage Temperature |
-4 - 140°F / -20 - 60°C |
|
Relative Humidity |
20~90% (no-condensing) |
