ARC based auto switch with eARC (SW41e8K)
Description
Description
4×1 8K@60 HDMI 2.1 (48gbps) Switch with eARC

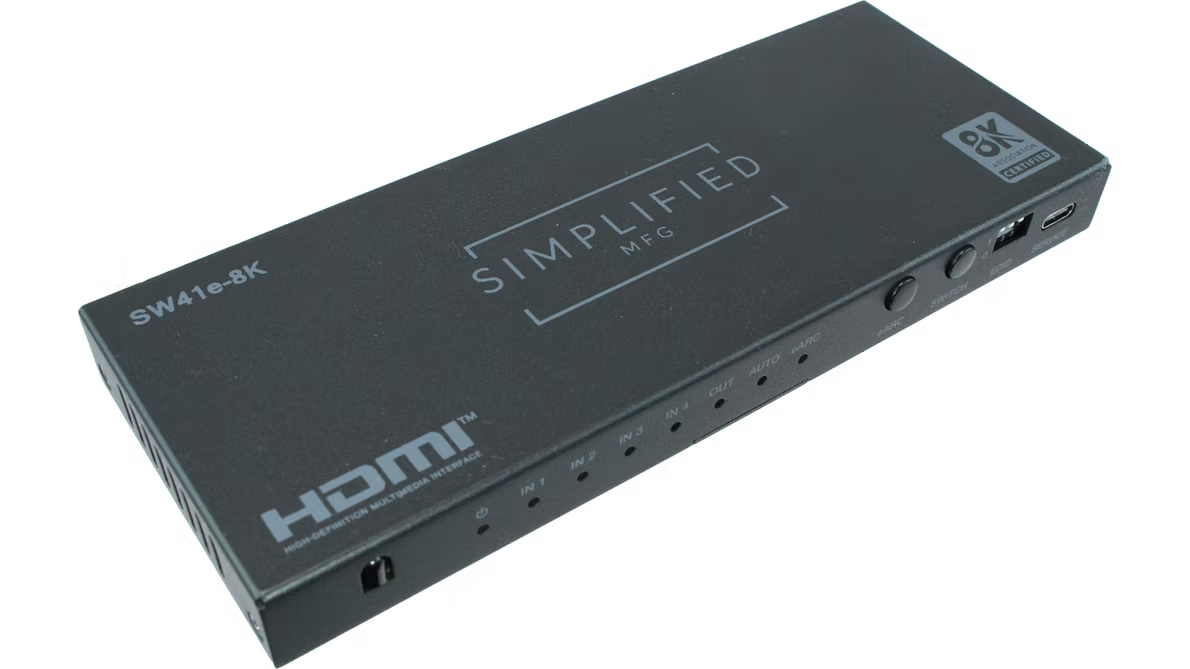

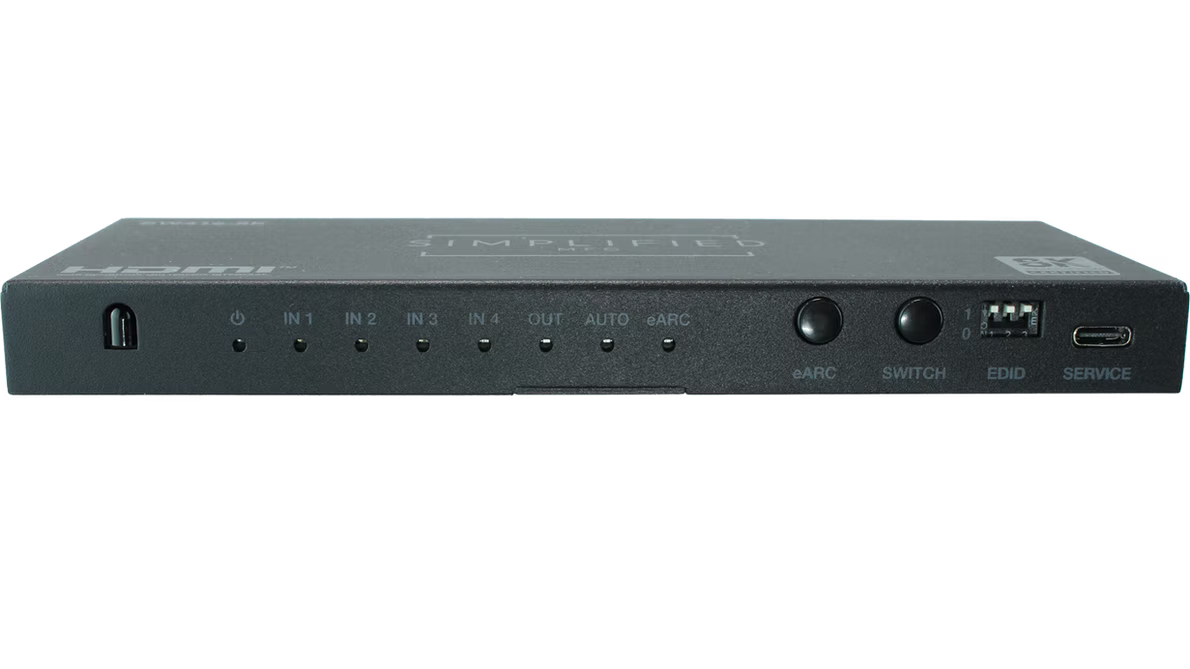

The SW41e-8K is a high-performance HDMI 4x1 switch that supports HDTV formats up to 8Kx4K@60Hz. In addition, it can route eARC/ARC from display to Input1 for connection to soundbars, AVR's and other devices that support eARC/ARC. This eliminates one input, making it a 3:1 switch in this configuration. The SW41e-8K supports all the new features of HDMI 2.1, including QMS, FRL, VRR, ALLM, QFT, & SBTM. Select any of the inputs by front panel button, Auto-Switch, or with supplied IR Remote. Auto-switch mode switches the input to the last source that is powered on. The corresponding LED on the front panel will indicate the selection and status.
Features
|
• Compliant with HDMI 2.1 (48Gbps) |
|
• HDCP 2.3 Compliant |
|
• Supports 48Gbps FRL (Fixed Rate Link) & 18Gbps TDMS (Transition-Minimized Differential Signaling)bandwidths |
|
• Video resolutions up to 8K@60Hz. (4:2:0) 12-bit, 8K@30Hz. (4:4:4) 12-bit, & 4K@120Hz. (4:4:4) 12-bit |
|
• Unique audio routing feature can be used as a traditional HDMI switch with four inputs to one output, as an |
|
• ARC/eARC extractor (HDMI and/ or optical), or as a three-input switch with audio extraction to a local sound bar that supports eARC/ARC |
|
• EDID management FRL/TMDS: EDID can be set to use the display's EDID for video and the soundbar's EDID for audio |
|
• HDMI 2.1 support, including VRR (Variable Refresh Rate), ALLM (Auto Low Latency), QMS (Quick Media Switching), |
|
• QFT (Quick Frame Transfer) & SBTM (Source-Based Tone Mapping) |
|
• Supports HDR, HDR10+, HLG and DolbyVision™ |
|
• Supports all high-definition audio formats, including Dolby+/Atmos |
|
• Supports eARC/ARC |
|
• Supports CEC pass-thru |
|
• Supports Audio De-embed to S/PDIF (optical/analog) |
|
• Manual and auto-switching feature |
|
• 3-Year warranty |
Specifications
|
Technical |
|
|
Video Bandwidth |
48Gbps |
|
Video Resolutions |
8K @60Hz., 4K @60/120Hz. |
|
Transmission Distance |
HDMI output only |
|
HDMI Audio Formats |
PCM2.1/5.1/7.1CH, Dolby5.1,DTS5.1, Dolby-TrueHD, DTS-HD, Dolby+, Atmos, DTS-X |
|
ESD Protection: Human Body Model |
±8kV (air-gap discharge) |
|
|
±4 kV (contact discharge) |
|

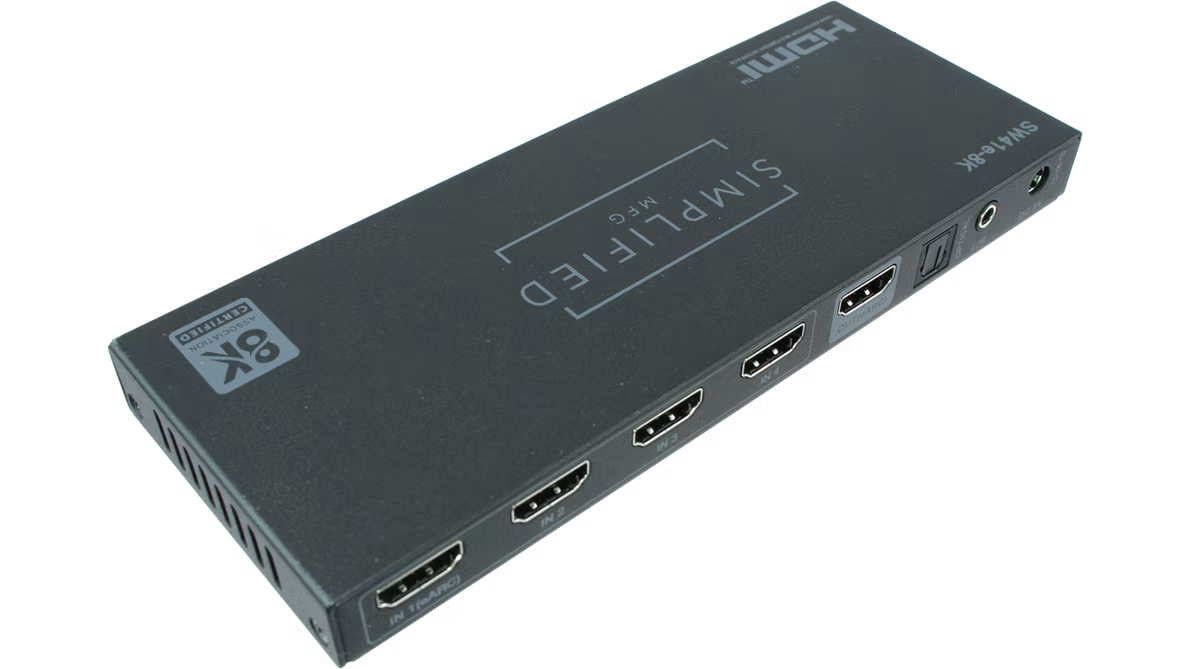

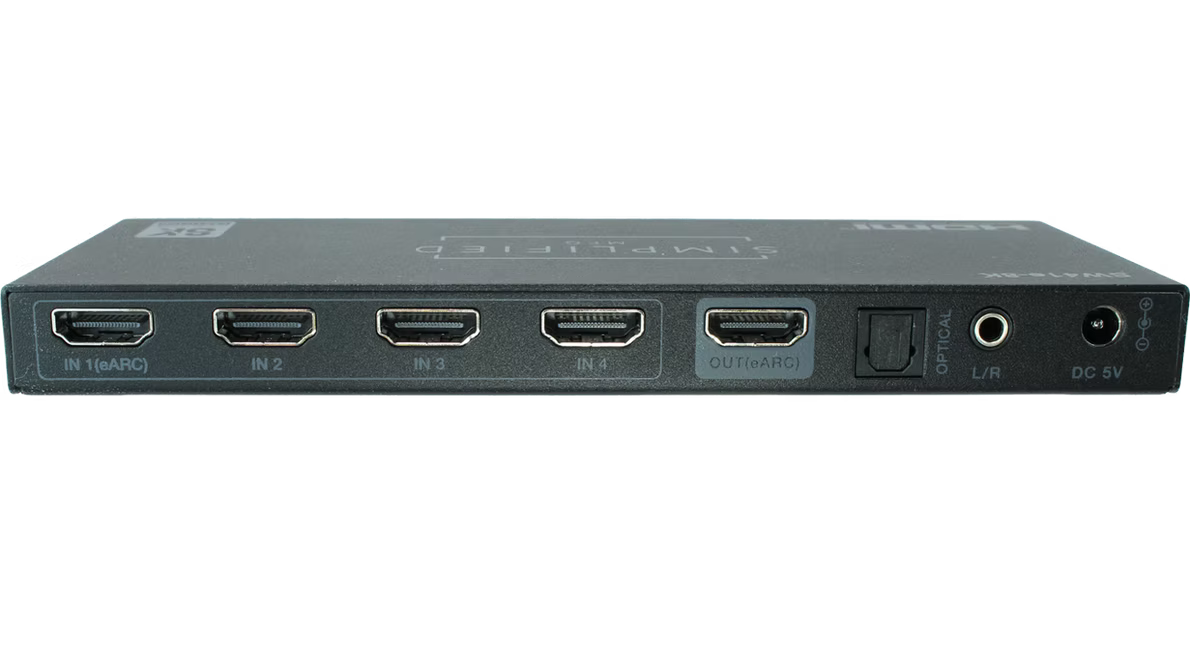

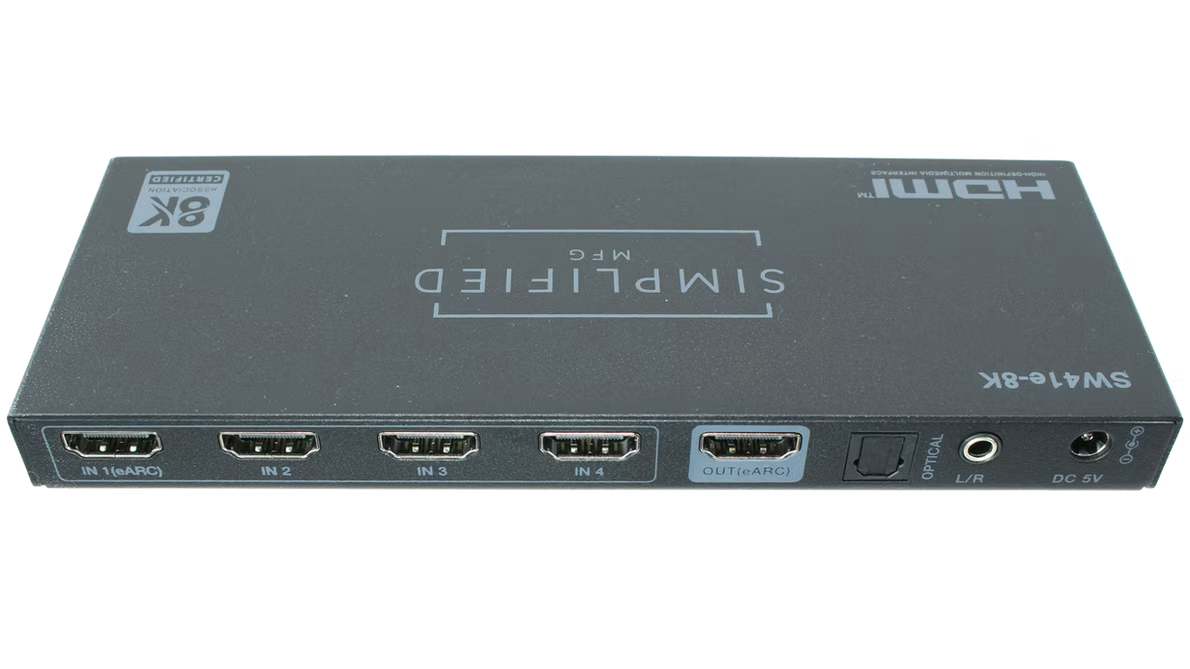

Connections |
|
|
Inputs |
4 Type-A [19-pin] HDMI |
|
Outputs |
1 Type-A [19-pin] HDMI, 1 Optical, and 1 3.5mm mini-jack |
|
Control |
IR, auto-switch, or manual |
|
Mechanical |
|
|
Housing |
Metal Enclosure |
|
Color |
Matte Black |
|
Dimensions |
176mm/6.93" x 68mm/2.7" x 18mm/0.71" |
|
Weight |
315g/11.11oz. |
|
Power Supply |
5V DC, 1 Amp (US/EU standards, CE/FCC/UL Certified) |
|
Power Consumption |
2W |
|
Operating Temperature |
-10°C ~ 45°C / 14°F ~ 113°F |
|
Storage Temperature |
-20°C ~ 60°C / -4°F ~ 140°F |
|
Relative Humidity |
20~90% (non-condensing) |
