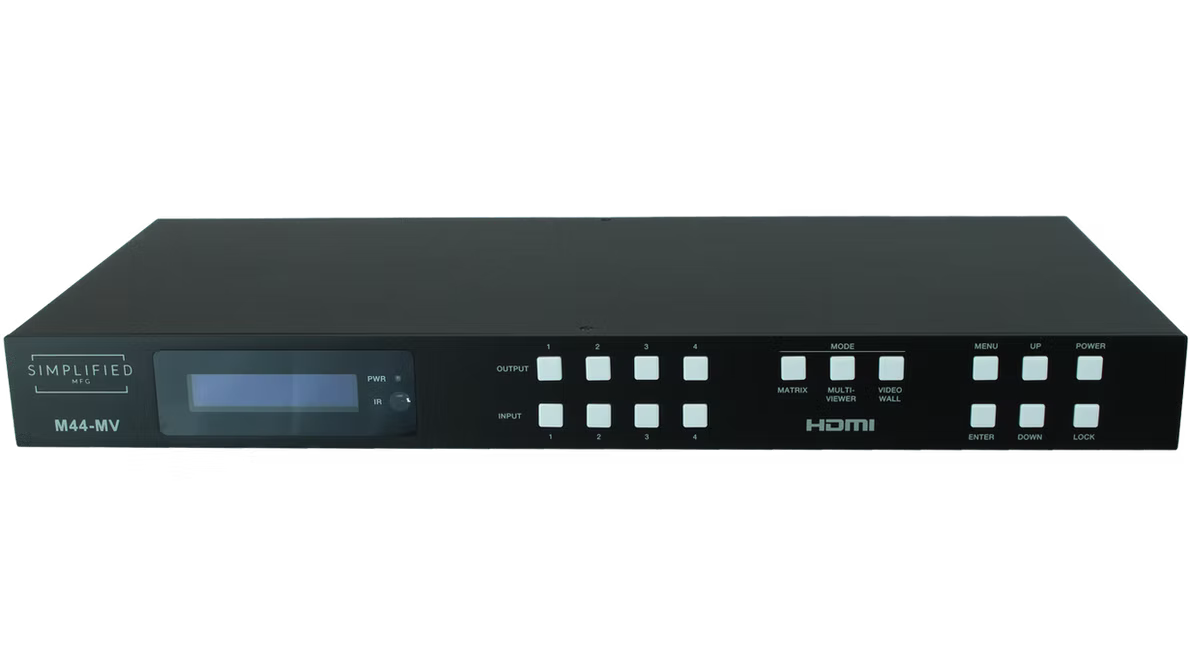

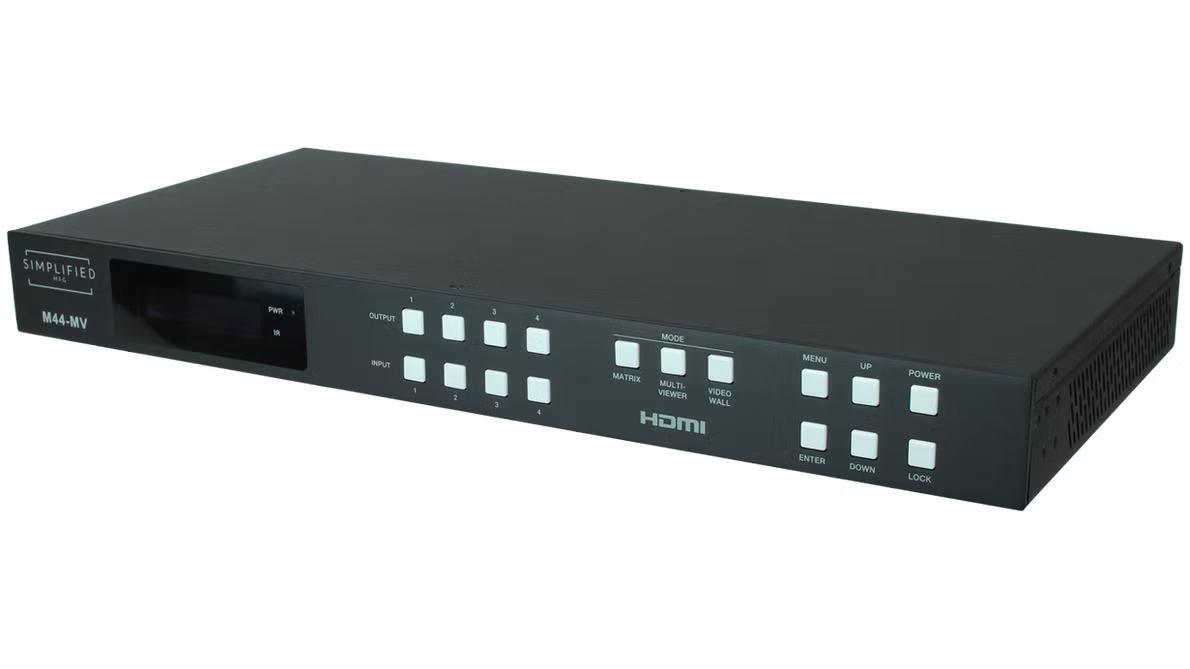

4x4 Matrix with Deep color Video wall and Multiview (M44MV)
Sold As: EACH
4x4 Matrix with Deep color Video wall and Multiview (M44MV)
Description
Description
HDMI 2.0b (18Gbps) Scaling Fast Switch with Video Wall and Multiview Functions
The M44-MV is a Scaling HDMI 2.0b (18Gbps) 4 x 4 HDMI matrix that supports video wall and Multiview functions. The M44-MV is a fast switch (switching functions are instantaneous). Resolutions, color space, HDCP, and EDID are fully editable. There are four HDMI inputs and 4 HDMI outputs. The M44-MV can be used as a matrix with Multiview functions, a video wall processor, or any combination of the above. In addition, the audio functions are incredibly diverse. Audio can be bound to input, output, ARC, or in a matrix function.
Primary Use: Varies as it is a fast switch, video wall processor and Multiview unit in a single device
Features
|
• HDMI 2.0b (18Gbps) and HDCP 2.2 compliant |
|
• Each output can scale independently from each other, including the HDMI |
|
• DolbyVision™ and all HDR formats are supported |
|
• 4 HDMI output ports support 18Gbps lossless uncompressed video |
|
• Supports 12 different viewing options in multiview mode and 9 options in video wall mode |
|
• Audio functions include, bind to input, bind to output, ARC, and matrix function |
|
• ARC Audio can be returned from the display to the matrix via HDMI cable or ARC over category cable extender |
|
• IR can be routed through the matrix independently as well |
|
• Supports video resolution up to 4K@60Hz 4:4:4 (can be fully adjusted) |
|
• The M44-MV supports HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio |
|
• Intelligent EDID management combined with scaling, color space options, and HDCP selection, makes the M44-MV easy to use with multiple displays with different resolutions and/or capabilities |
|
• Control options include via the front panel, IR remote, web GUI, or control with a third-party control device via IR, RS232, or LAN |
|
• Advanced EDID management |
|
• 3-Year Warranty |
Specifications
|
Technical |
|
|
HDMI Compliance |
2.0b |
|
HDCP |
2.2 |
|
Video Bandwidth |
(18Gbps) |
|
Video Resolutions |
Up to 4K2K@50/60Hz (4:4:4) |
|
Transmission Distance |
HDMI output only |
|
HDMI Audio Format |
LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
|
Optical Audio Formats |
PCM 2.0, Dolby Digital / Plus, DTS |
|
L/R Audio Formats |
PCM2.0 |
|
HDR Formats |
HDR, HDR10, HDR10+, DolbyVision™, HLG |
|
Transmission Distance |
70M (CAT6/6a/7) |
|
IR Level |
12Vp-p |
|
IR Frequency |
Wideband 20KHz ~ 60KHz |
|
Color Depth |
8/10/12bit |
|
Color Space |
RGB, YCbCr 4:4:4/4:2:2/4:2:0 |
|
ESD Protection: Human Body Model |
±8kV (air-gap discharge) ±4 kV (contact discharge) |
|
3-Year Warranty |
|
|

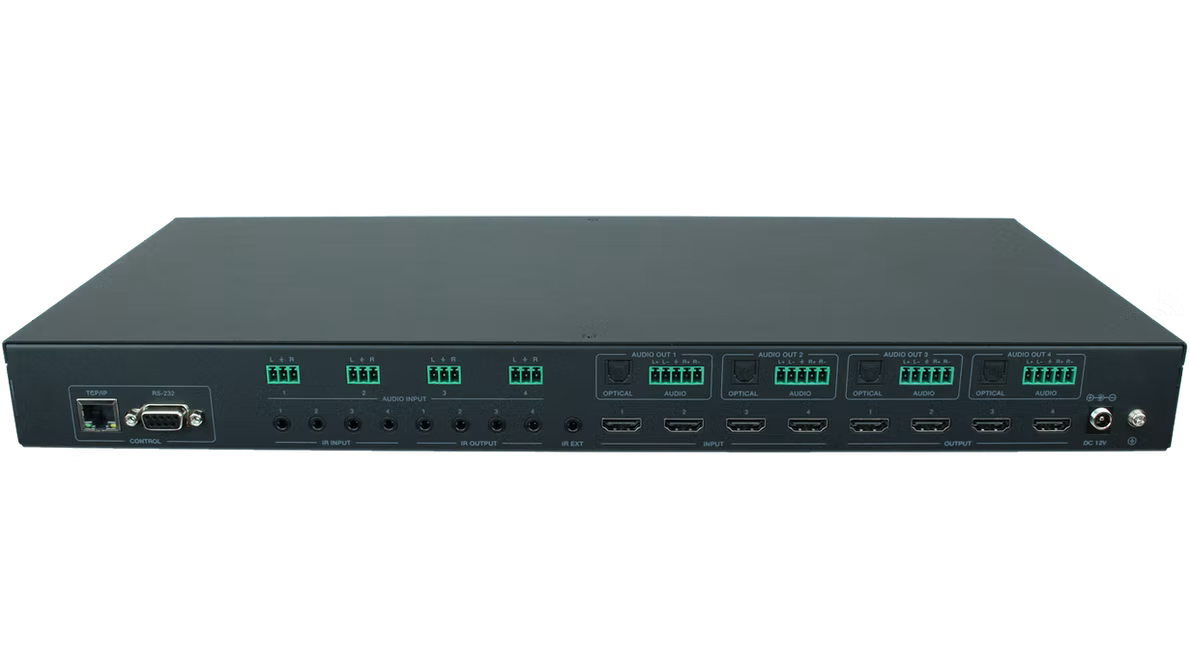

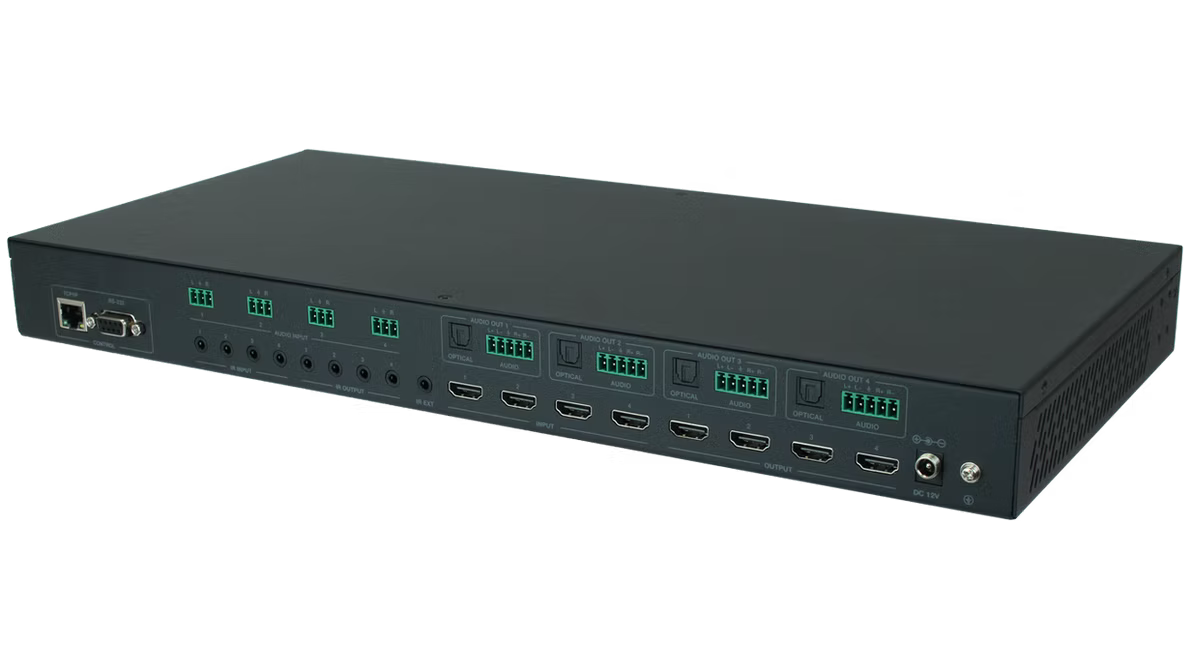

Connections |
|
|
Inputs |
4×INPUT [HDMI Type A, 19-pin female] 4x L/R Audio Input [3-Pin Phoenix] |
|
Outputs |
4×HDMI OUTPUT [HDMI Type A, 19-pin female] 4×S/PDIF(Optical) 4×Stereo Audio [3-Pin Phoenix Connector] |
|
Control Ports |
1 × TCP/IP [RJ45] 1 × RS-232 [D-Sub 9] 1 × IR EXT [3.5mm, Stereo Mini-jack] 4 × IR INPUT [3.5mm, Stereo Mini-jack] 4 × IR OUTPUT [3.5mm, Stereo Mini-jack] |
|
Mechanical |
|
|
Housing |
Metal Enclosure |
|
Color |
Matte Black |
|
Dimensions |
TX: 440mm [17.32”] (W)×203mm [8”] (D)x 44.5mm [1.75”] (H) |
|
Weight |
TX: 2550g/5 Pounds, 10 Oz. |
|
Power Supply |
Input: AC 100-240V 50/60Hz, Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified) |
|
Power Consumption |
25W (Max) |
|
Operating Temperature |
0°C ~ 40°C / 32°F ~ 104°F |
|
Storage Temperature |
-20°C ~ 60°C / -4°F ~ 140°F |
|
Relative Humidity |
20~90% (non-condensing) |
|
Resolution/ Distance |
1080p - Feet/Meters |
4K60 - Feet/Meters |
|
CAT5e/6/7 |
230ft/70m |
131ft/40m |
|
Resolution/ Cable length |
4K60 -Feet/Meters |
4K30 - Feet/Meters |
1080p60 - Feet/Meters |
|
HDMI IN/OUT |
16ft/5m |
32ft/10m |
50ft/15m |
