Wyrestorm  |  SKU: RX700

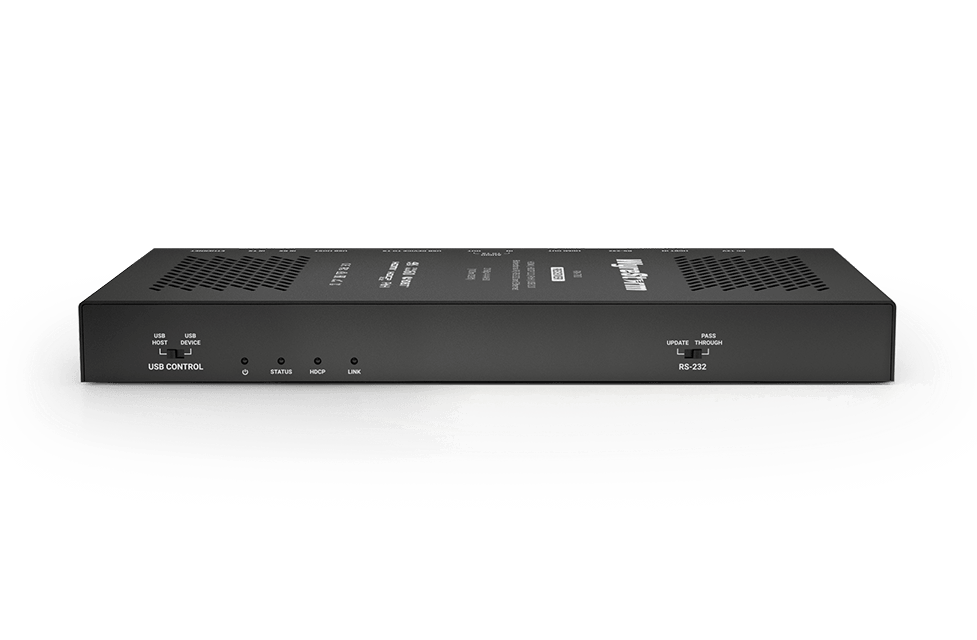

Wyrestorm 4K60Hz HDBaseT Receiver | 4K60Hz 4:2:0 | 1-way PoH (Rx->Tx) | USB 2.0 (RX700)

Sold As: EACH

  Availalable to order: Typical lead time for Wyrestorm is 5-7 business days from order date. Express delivery is 2-3 days (aditional fees apply for express delivery).

Description

Utilizing the best in HDBaseT technology, the RX-700 extends 5-Play functionality to your display device over 100m/328ft of Cat6 cable. Using DSC (display stream compression) the RX-700 can support HDMI video up to 2160p 4:4:4 at 60Hz without any visual loss in quality or latency. With HID’s and data transfer in mind, the RX-700 supports data transmission of USB 2.0 devices like HD webcams, smart whiteboards and flash drives alike.



Inputs

1x HDBT In: 8-pin RJ45

Outputs

1x HDMI Out: 19-pin Type A Female

Output Video Encoding

HDBaseT Class C | PAM16 Encoding

Encoding Data Rate

10.2Gbps

End to End Latency

10μs (micro seconds)

Audio Formats

2ch PCM | Multichannel LPCM | DTS-X | Dolby Atmos

Video Resolution (Max)

1920x1080p @60Hz
2560x1440p @144Hz
3840x2160p @60Hz 8bit 4:4:4
3840x2160p @60Hz 10bit 4:2:0 HDR
3840x2160p @60Hz 12bit 4:2:2 HDR

Supported Standards

DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100

Maximum Pixel Clock

HDMI: 600MHz | HDBaseT: 340MHz

COMMUNICATION & CONTROL

HDMI

(v2.0b) TMDS | 600MHz Maximum with DSC (Display Stream Compression)

IR

1x IR RX: 3.5mm (1/8in) TRS Stereo | 1x IR TX: 3.5mm (1/8in) TS Mono

RS-232

1x RS-232: 3-pin Phoenix

HDCP

Pass-Through, 2.3 Supported

EDID

Pass-Through, RX > TX

USB

1x Type B (host) | 4x Type A (device)*
USB direction must be set using switch before operation
USB hub compatible | Maximum: 7 devices, 23 endpoints
Maximum uplink speed: 190Mbps
*USB direction must be set using switch before operation

Ethernet

1x Ethernet: 8-pin RJ-45 Female | Bidirectional over HDBaseT | 100Mbps Supported

Consumer Electronics Control (CEC)

One-way display trigger from TX

Auto Low Latency Mode (ALLM)

Supported

Variable Refresh Rate (VRR)

Supported

POWER

Power Supply

18V DC 3A

Max Power Consumption

10W

Specifications
  • Unit of Measure
    EACH
  • Class
    Receivers
