Wyrestorm  |  SKU: EXPMX0402H2

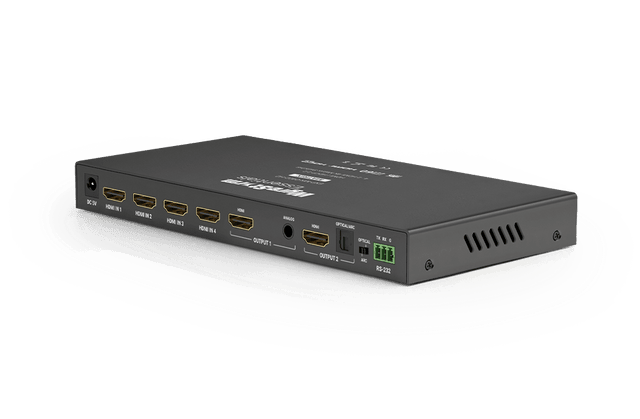

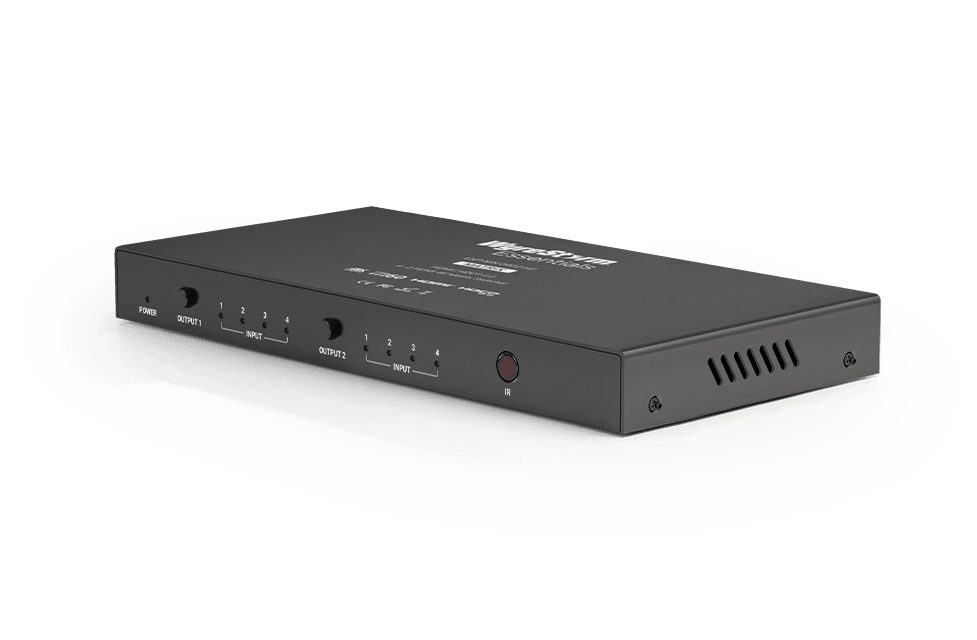

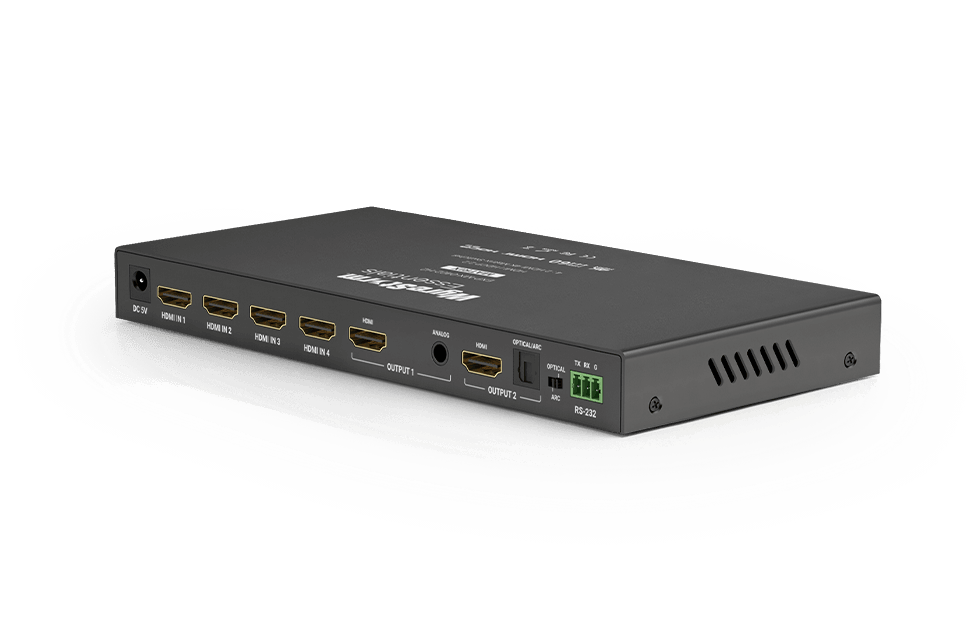

Wyrestorm 4K60Hz 4x2 HDMI Matrix Switch | 4K60Hz 4:4:4 | Dolby Vision & HDR | ARC (EXPMX0402H2)

Sold As: EACH

Description
A vast upgrade from its predecessor, the EXP-MX-0402-H2 takes the EXP-MX0402-010 features to new heights, whilst maintaining its cost effect platform. Keeping up with the latest standards, the EXP-MX-0402-H2 has been upgraded to an 18Gbps backbone with HDCP 2.2 compliance and now featuring a powerful built-in auto scaler on both of its outputs allowing users to simultaneously connect a mix of 4K and 1080p displays.

If that wasn’t enough, the EXP-MX-0402-H2 also includes analog and digital audio de-embed and ARC, as well as CEC triggering and RS-232 control, hosting a boat load of control features. Coupled with the WyreStorm TS-280 touchscreen and HAOC line of HDMI cables makes for the perfect power pack solution for mid to large scale residential and light commercial applications!



AUDIO & VIDEO

Inputs

4x HDMI In 19-pin HDMI type A

Outputs

2x HDMI Out 19-pin HDMI type A
1x 3.5mm Analog Stereo
1x S/PDIF Toslink

Audio Formats

HDMI: 2ch PCM |
Multichannel: LPCM and up to DTS-X and Dolby Atmos
Analog: 2ch LPCM
Toslink: 5.1ch surround sound

Video Resolution (Max)

1920x1080p @60Hz 16bit
3840x2160p @60Hz 10bit 4:2:0 HDR
4096x2160p @60Hz 8bit 4:4:4

Supported Sandards

DCI | RGB | HDR | HDR10 | Dolby Vision up 30Hz | HLG | BT.2020 | BT.2100

Maximum Pixel Clock

600Mhz

COMMUNICATION & CONTROL

HDMI

HDCP 2.2 | DVI-D supported with adapter (not included)

RS-232

1x 3-Pin Terminal Block

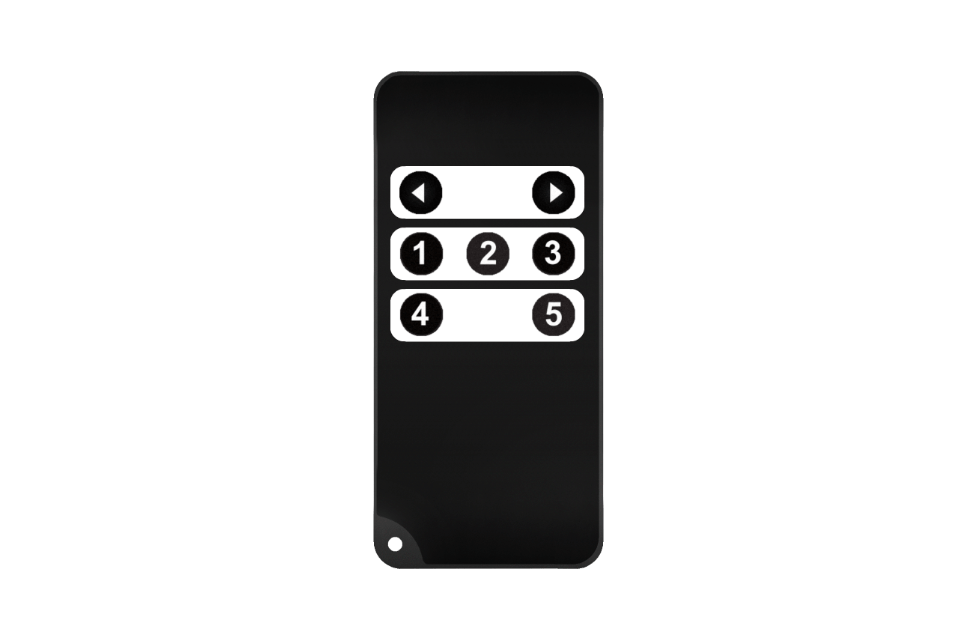

IR

1x Front Panel Sensor

POWER

Power Supply

5V DC 1A

Max Power Consumption

Specifications
  • Unit of Measure
    EACH
  • Class
    Matrixes
