Wyrestorm  |  SKU: EXPSP0104H2

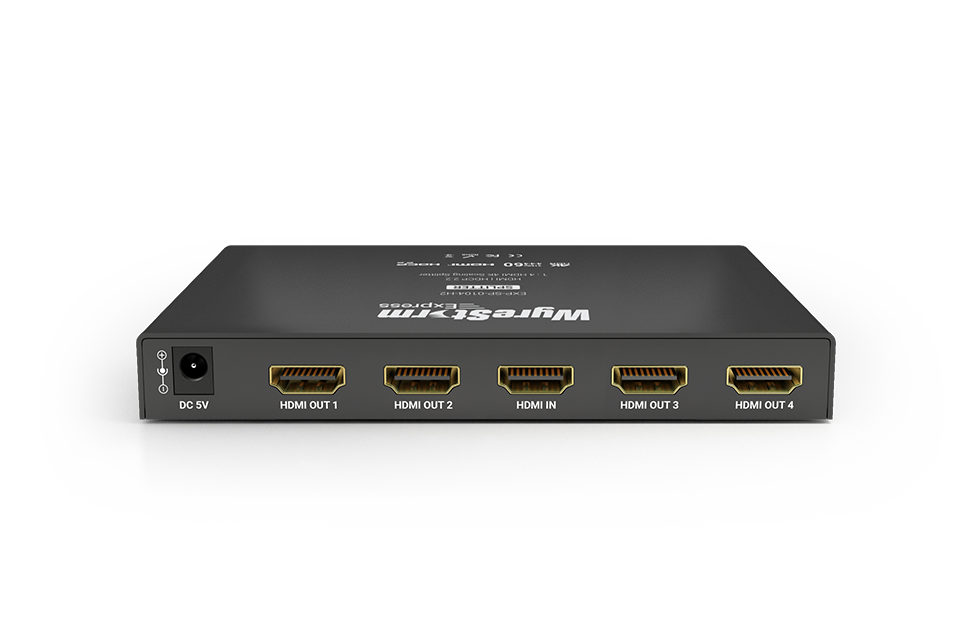

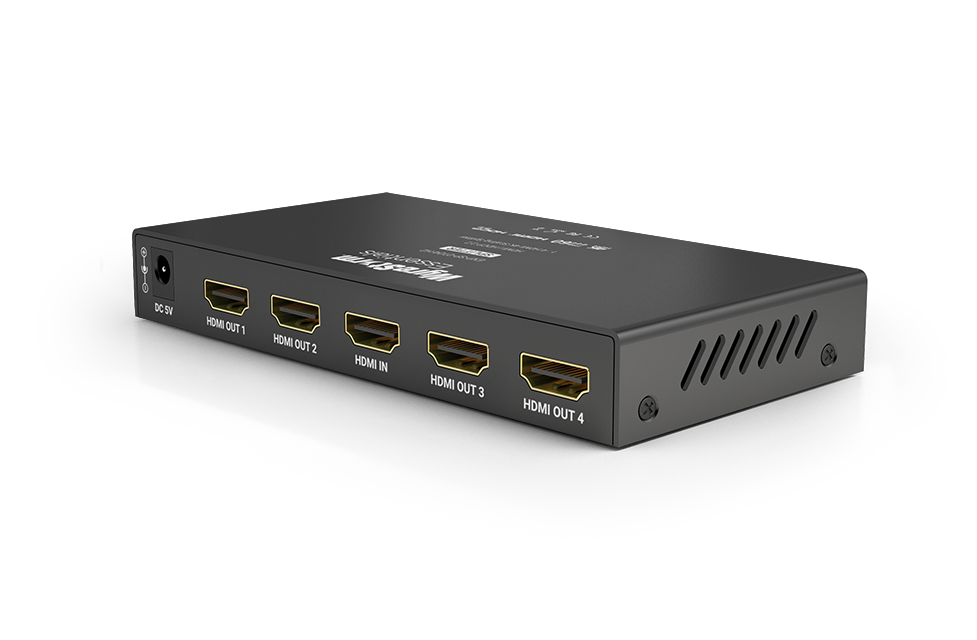

Wyrestorm 4K60Hz 1x4 HDMI Splitter | 4K60Hz 4:4:4 | Dolby Vision & HDR | 4k > 1080p Down-Scaler (EXPSP0104H2)

Sold As: EACH

Description

The latest addition to the WyreStorm Essentials splitter range, the EXP-SP-0104-H2 now offers H2 features and the same value and reliability found in its predecessor, not to mention a few new tricks up its sleeve! Upgrades to support of the full 18Gbps bandwidth HDMI 2.0 offers; 2160p@60Hz 4:4:4 and support for Dolby Vision™ included. As if that wasn’t enough, the EXP-SP-0104-H2 is now featuring a powerful built-in scaler, allowing users to simultaneously connect a mix of 4K and 1080p displays, which gives the source range to play to its fullest potential!



AUDIO & VIDEO

Inputs

1x HDMI In 19-pin HDMI type A

Outputs

4x HDMI Out 19-pin HDMI type A

Audio Formats

2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos

Video Resolution (Max)

1920x1080p @60Hz 12bit
1920x1080p @60Hz 16bit
3840x2160p @24Hz 10bit 4:2:0 HDR
3840x2160p @30Hz 8bit 4:4:4
3840x2160p @60Hz 10bit 4:2:0 HDR
4096x2160p @60Hz 8bit 4:2:0
4096x2160p @60Hz 8bit 4:4:4

Supported Standards

DCI | RGB |HDR | HDR10 | Dolby Vision up 30Hz | HLG | BT.2020

Maximum Pixel Clock

600Mhz

COMMUNICATION & CONTROL

HDMI

HDCP 2.2 | EDID | DVI-D supported with adapter (not included)

POWER

Power Supply

5V DC 1A

Max Power Consumption

1.8W

Specifications
  • Unit of Measure
    EACH
  • Class
    A/V Splitters
