Wyrestorm  |  SKU: EX100KVM8K

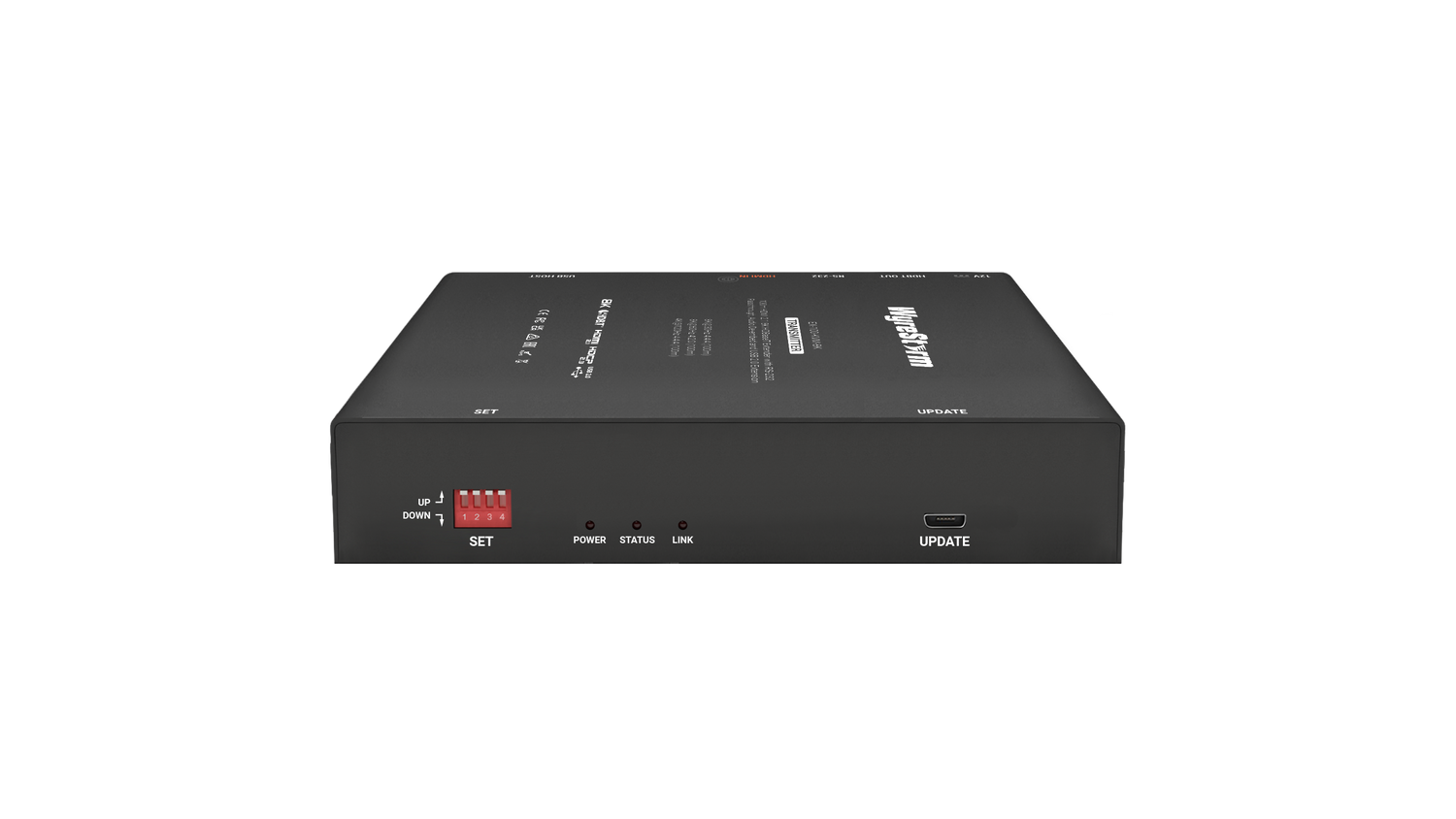

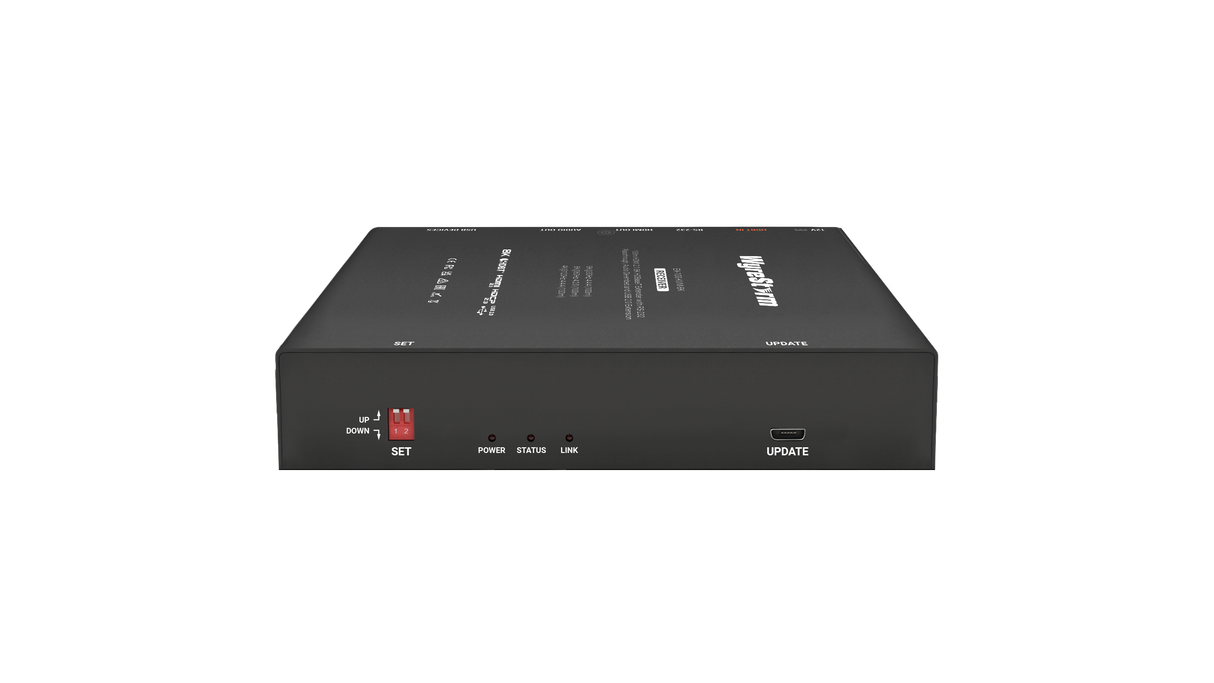

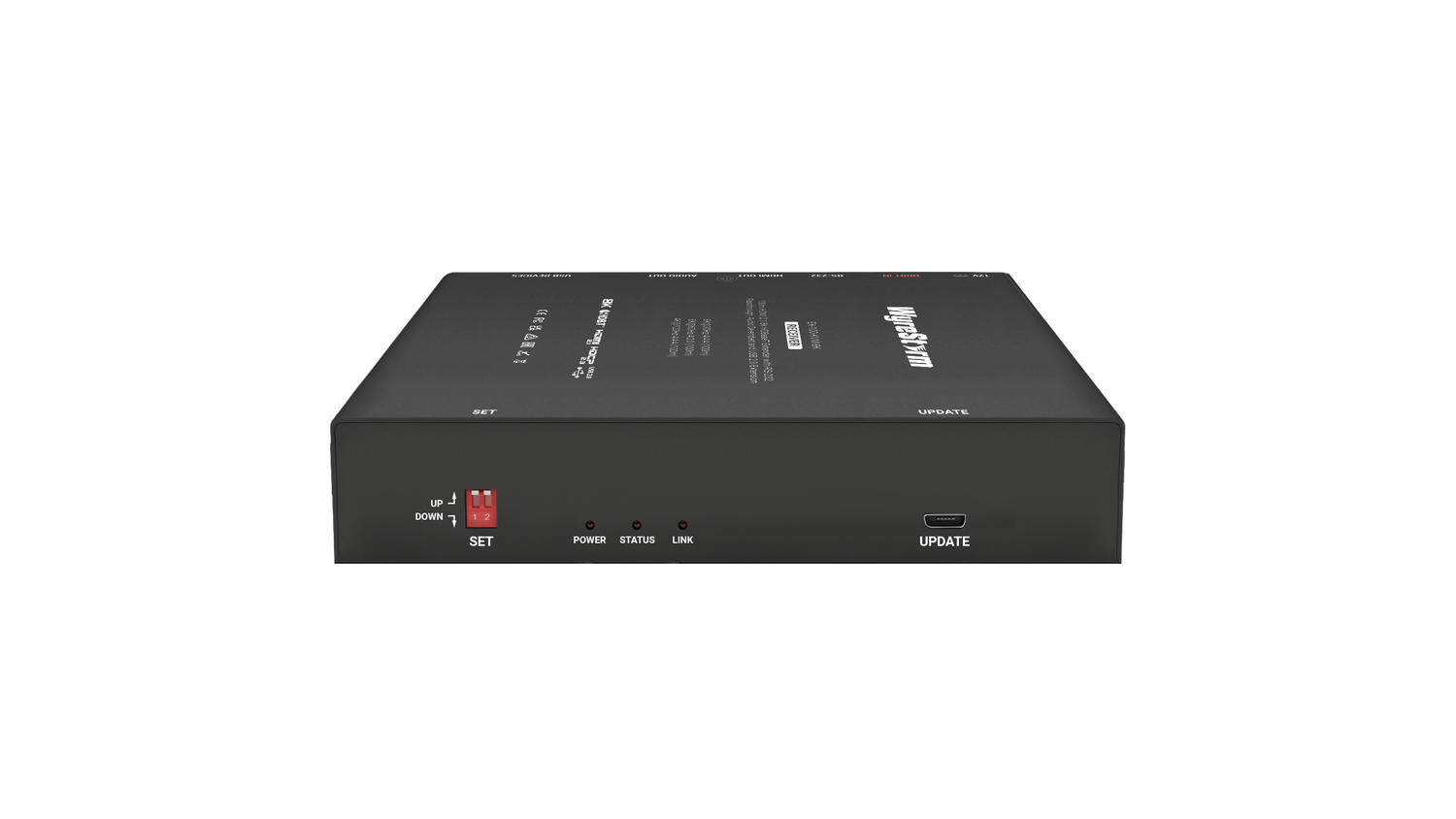

Wyrestorm HDMI 2.1 8K60Hz HDBaseT Extender | DSC | 8K60Hz 4:2:0 | 8K30Hz 4:4:4 (EX100KVM8K)

Sold As: EACH

  Availalable to order: Typical lead time for Wyrestorm is 5-7 business days from order date. Express delivery is 2-3 days (aditional fees apply for express delivery).

Description

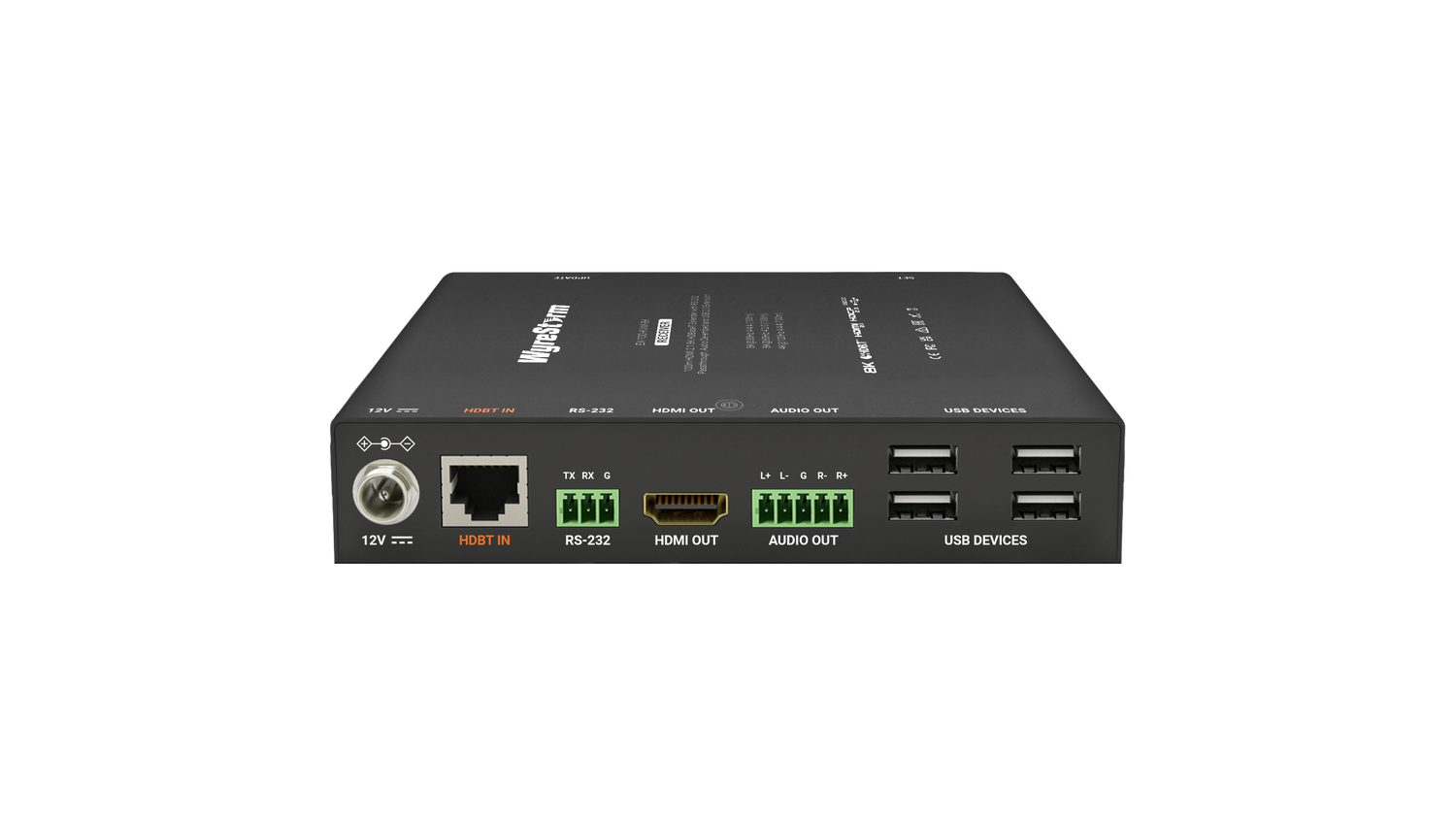

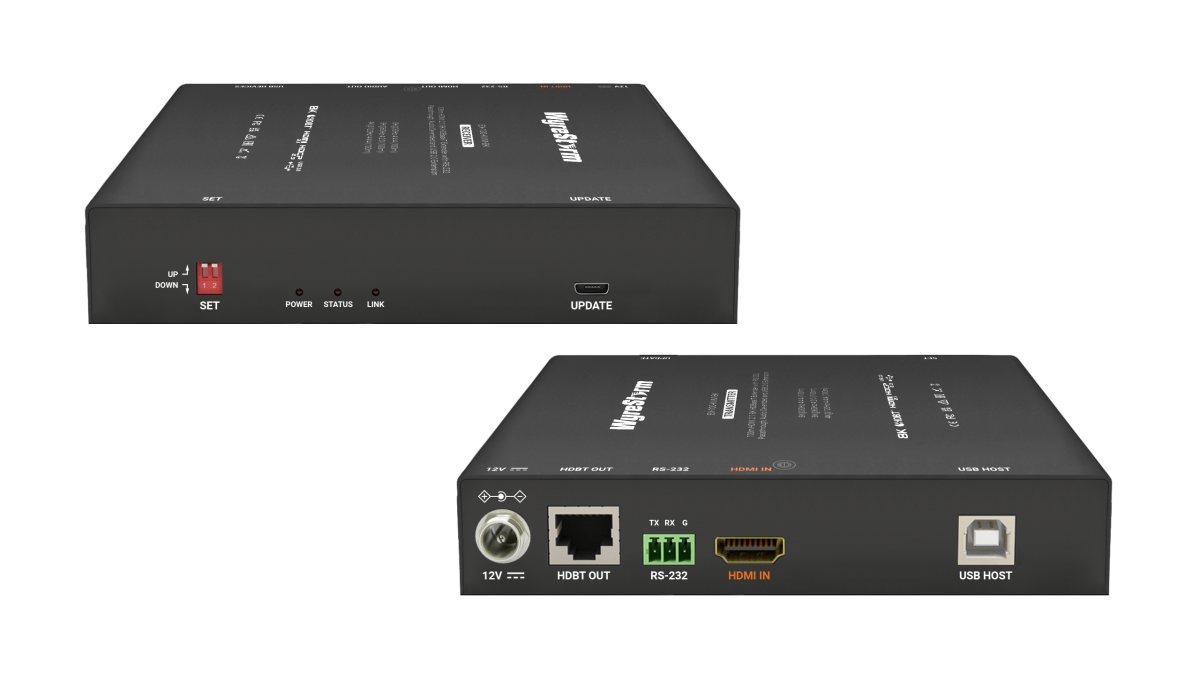

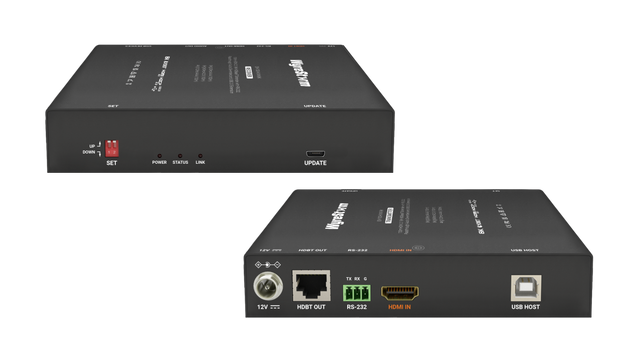

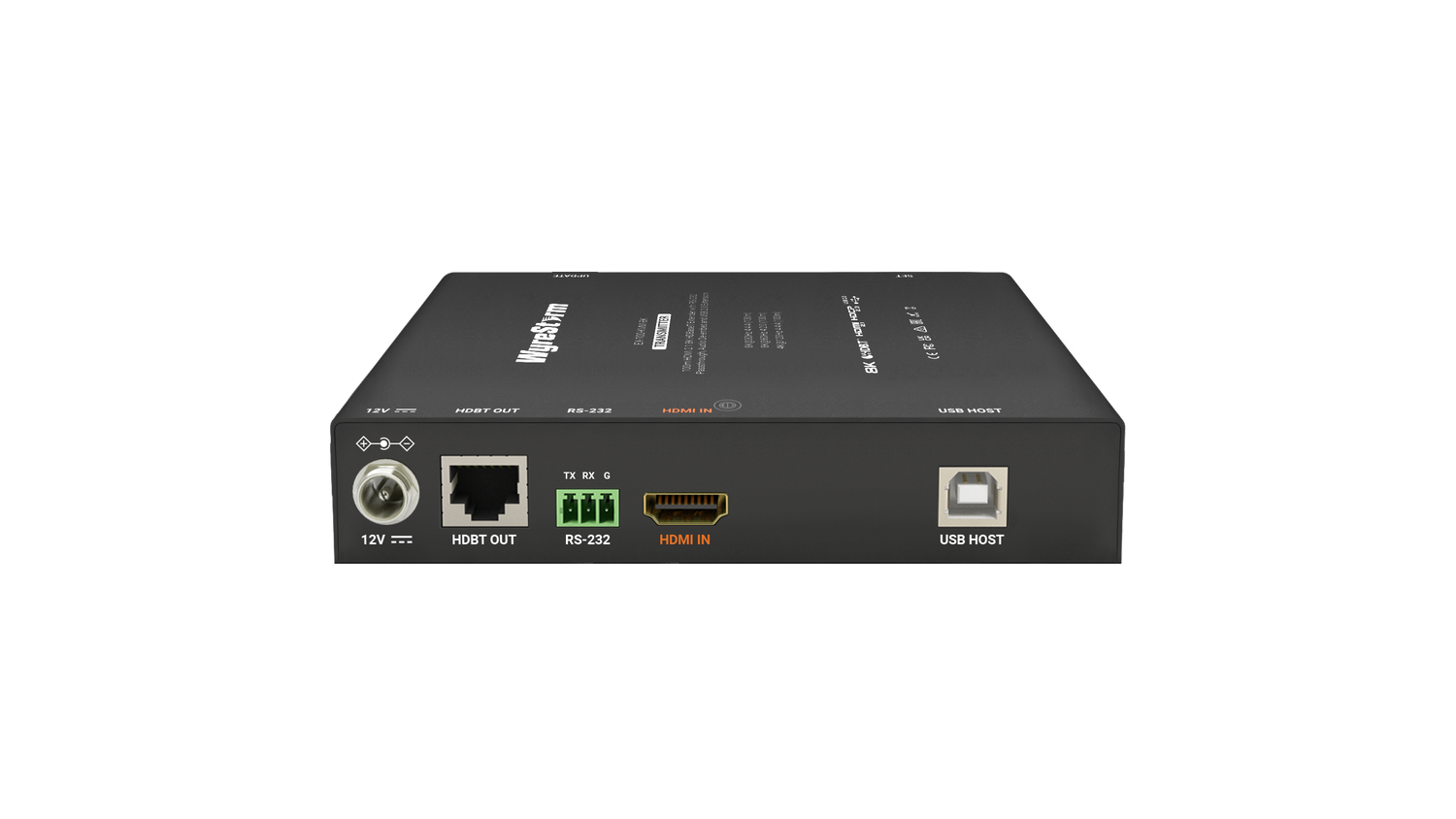

The EX-100-KVM-8K KVM Extender is a high-performance connectivity solution designed for multi-media conference halls and professional A/V environments, capable of extending HDMI 2.1 and USB 2.0 signals up to 100 meters (330 feet) over a single Cat6/6a/7 cable using HDBaseT. It supports ultra-high-definition video up to 8K@30Hz (or 8K@60Hz 4:2:0) and 4K@120Hz (4:4:4), with visually lossless VESA Display Stream Compression (DSC) ensuring signal quality. The system includes both a Transmitter (TX) and a Receiver (RX) unit, featuring RS232 pass-through for device control, integrated USB 2.0 extension for KVM functionality, balanced de-embedded audio output via a 5-pin phoenix connector, and convenient one-way Power over Cable (POC) from the RX to the TX unit.



Technical Specifications

AUDIO/VIDEO

Input/Output Signal Type

HDMI 2.1, HDCP 2.3

Input/Output Resolutions

VESA:
800 x 600[6], 1024 x 768[6], 1280 x 768[6], 1280x 800[6], 1280 x 960[6], 1280 x 1024[6], 1360 x 768[6], 1366 x 768[6], 1440 x 900[6], 1600 x 900[6], 1600 x 1200[6], 1680 x 1050[6], 1920 x 1200[6], 2048 x 1152[6], 2560 x 1440[6], 5120 x 1440[6], 5120 x 2160[6]

HDTV:
1280 x 720P[5,6,7,8], 1920 x 1080P[5,6,7,8,9,10,11], 3840 x 2160P[1,2,3,4,5,6,7,8], 4096 x 2160P[1,2,3,4,5,6,7,8], 7680 x 4320P[1,2,3,4,5,6]

1 = at 24 (23.98) Hz, 2 = at 25 Hz, 3 = at 30 (29.97) Hz, 4 = at 48 Hz, 5 = at 50 Hz, 6 = 60 (59.94) Hz, 7 = at 100Hz, 8 = at 120Hz, 9 = at 144Hz, 10 = at 165Hz, 11 = at 240Hz

Note: 7680 x 4320P @48Hz/50Hz/60Hz supports only YCbCr 4:2:0

Maximum Data Rate

HDMI: 40Gbps | USB 2.0: 255Mbps

Maximum Pixel Clock

600MHz

Audio Formats

HDMI IN/OUT: Supports multichannel audio up to PCM 7.1, including PCM 2.0/5.1/7.1ch, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS-HD Master Audio and DTS:X
AUDIO OUT: PCM 2.0

Transmission Distance

Cat 6/6A/7:
100m/328ft 8K@60Hz 4:2:0
100m/328ft 8K@30Hz 4:4:4
Cat 5e:
90m/295ft 8K@60Hz 4:2:0
90m/295ft 8K@30Hz 4:4:4
HDMI:
Input/Output: 10m/33ft 4K@30Hz – 1080P@60Hz
Input: 5m/16ft – 4K@60Hz
Output:10m/33ft – 4K@60Hz
Input/Output: 3m/10ft – 8K@60Hz 4:2:0

Specifications
  • Unit of Measure
    EACH
  • Class
    Extenders
