Wyrestorm  |  SKU: EX70H2C

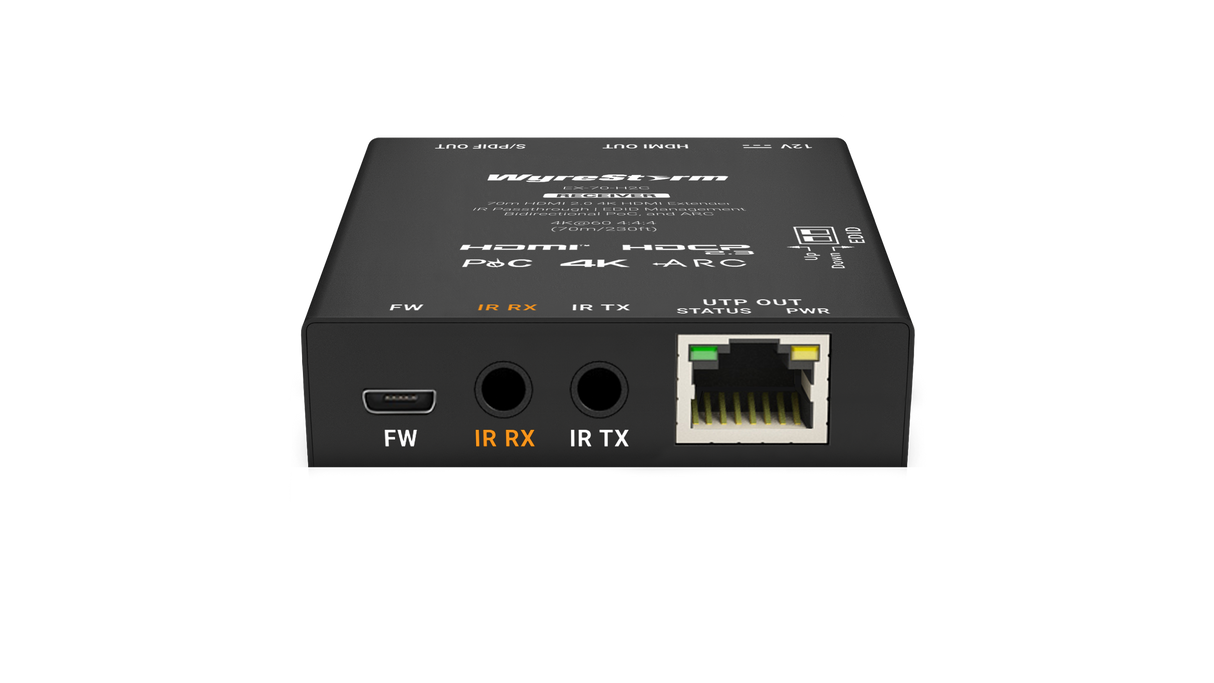

Wyrestorm HDMI 2.0 4K60Hz HDMI Extender | DSC | 4K60Hz 4:4:4 | HDMI Loop out (EX70H2C)

Sold As: EACH

  Availalable to order: Typical lead time for Wyrestorm is 5-7 business days from order date. Express delivery is 2-3 days (aditional fees apply for express delivery).

Description

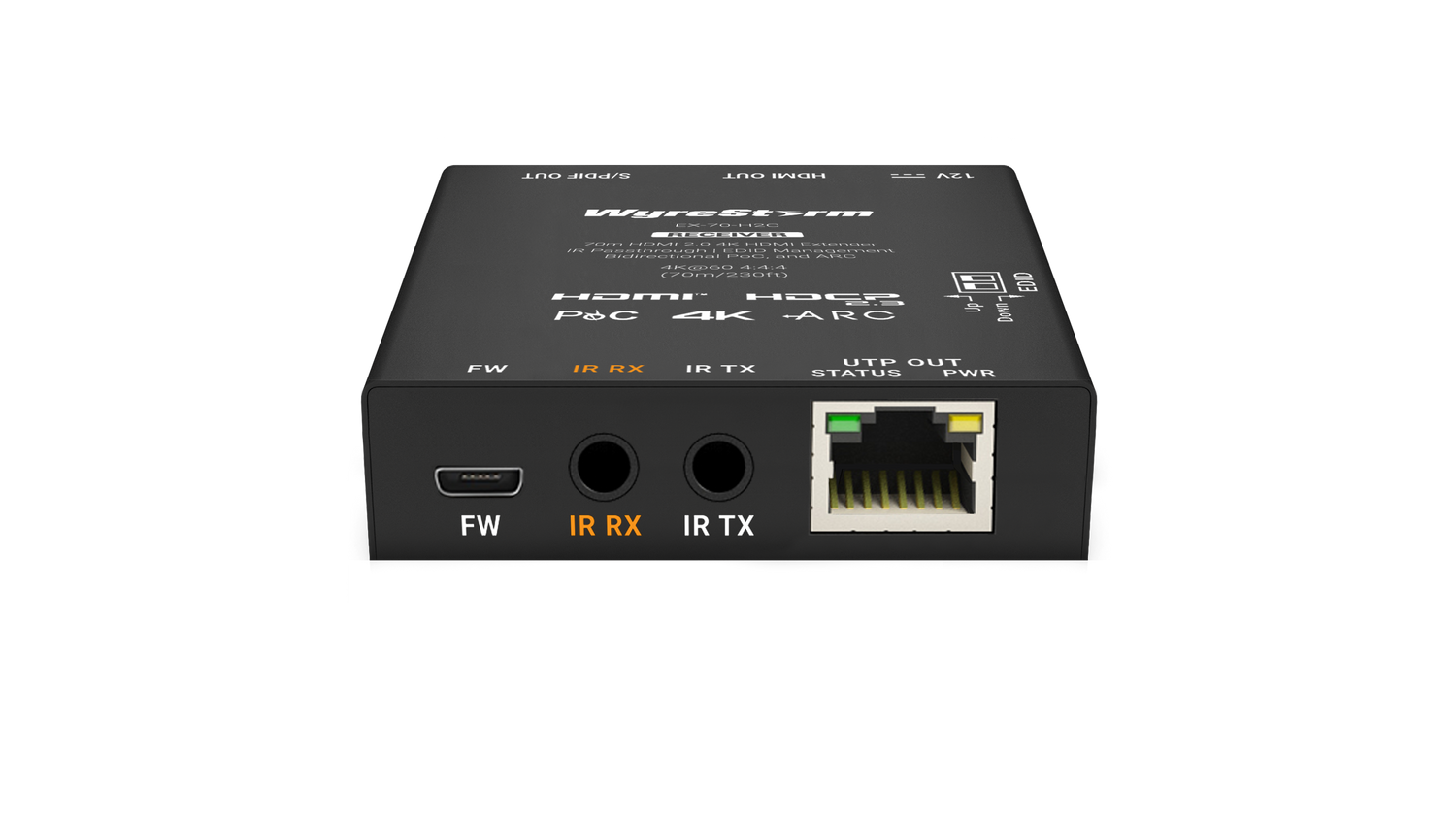

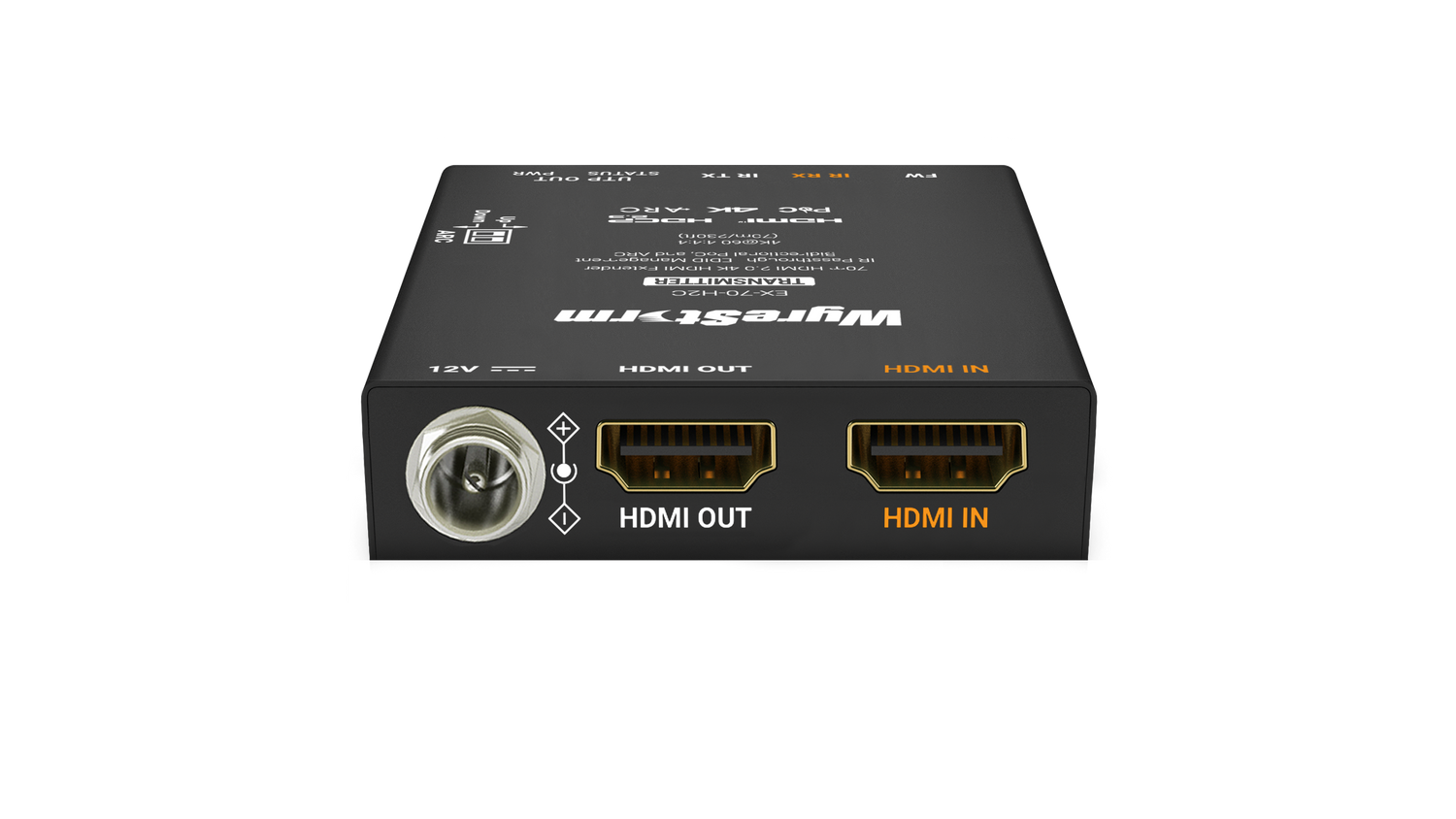

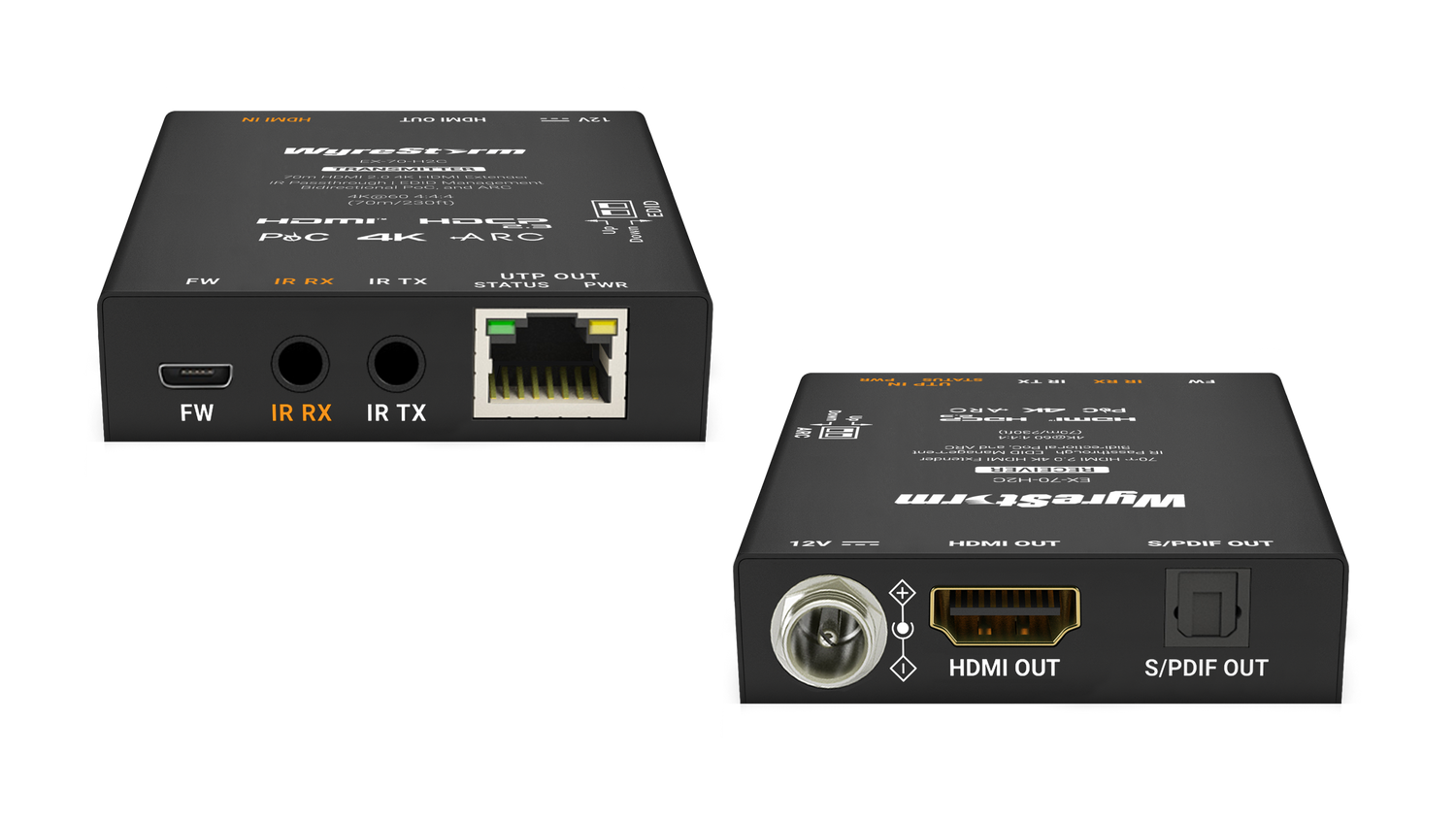

The EX-70-H2C is a high-performance video distribution solution designed for both residential home theaters and multi-media conference halls, capable of extending full 4K@60Hz (4:4:4) and 18Gbps signals up to 70m (230ft) over a single Cat6/6a cable. It includes an HDMI OUT loop-out on the TX unit for a local monitor, and features essential functionalities like bi-direction IR pass-through for remote device control, bi-direction POC (Power over Cable) for flexible power delivery, and ARC (Audio Return Channel) support with an S/PDIF audio de-embedding port, all packaged in a compact, durable steel chassis.



AUDIO AND VIDEO

Input/Output Signal Type

HDMI 2.0, HDCP 2.3

 Input/Output Resolutions

Supports VESA and SMPTE resolutions up to 4K@60Hz (4:4:4), including 3840×2160@60Hz, 4096×2160@50Hz, 4K@30Hz, 3840×1080@60Hz, 3440×1440@60Hz, 2560×1600@60Hz, 2560×1440@60Hz, 2560×1440@50Hz, 1080P@120Hz, 1080P@100Hz, 1080P@75Hz, 1080P@60Hz, 720P@60Hz

Maximum Data Rate

18Gbps

Maximum Pixel Clock

600MHz

Supported Standards

DCI | RGB

Audio Formats

HDMI: Supports multichannel audio up to PCM 7.1, including PCM 2.0/5.1/7.1ch, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS-HD Master Audio and DTS:X
S/PDIF: PCM 2.0ch, Dolby Digital, DTS 5.1

Transmission Distance

Cat 6/6A/7:
70m/230ft – 1080P@60Hz, 4K@60Hz
HDMI:
Input/Output: 15m/49ft – 1080p@60Hz
Input/Output: 10m/33ft – 4K@60Hz
Input: 10m/33ft – 4K@30Hz
Output: 15m/49ft –4K@30Hz

POWER

Power Supply

DC 12V/1A, PoC

Power Consumption (Max)

4.2W (per pair, via PoC)

ENVIRONMENTAL

Operating Temperature

0°C to 45°C (32°F to 113°F)

Storage Temperature

-20°C to 70°C (-4°F to 158°F)

Humidity

10% to 90%, non-condensing

ESD Protection

Human-body Model: ±8kV (Air-gap discharge) / ±4kV (Contact discharge)

DIMENSIONS

Height x Width x Depth

15mm / 0.59in x 63mm / 2.48in x 80mm / 3.15in

Weight

0.29lb (0.13kg) per unit

Safety and Emission

CE | FCC | RoHS | RCM | EAC | UKCA

Specifications
  • Unit of Measure
    EACH
  • Class
    Extenders
