Wyrestorm | SKU:
EX70G2

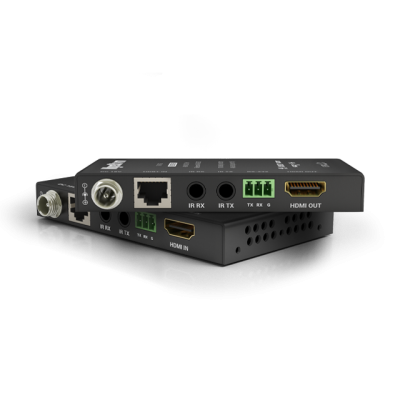

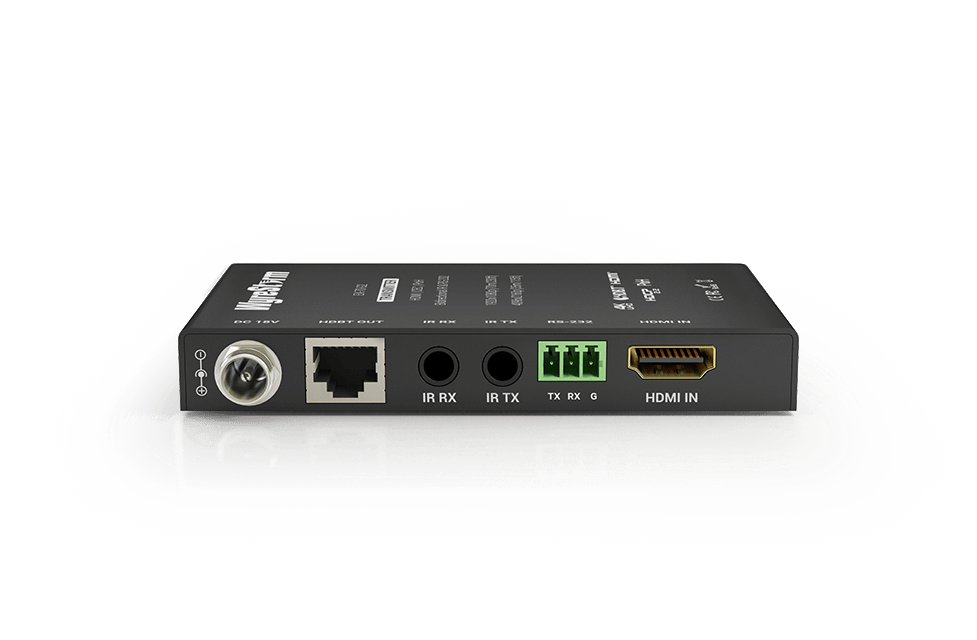

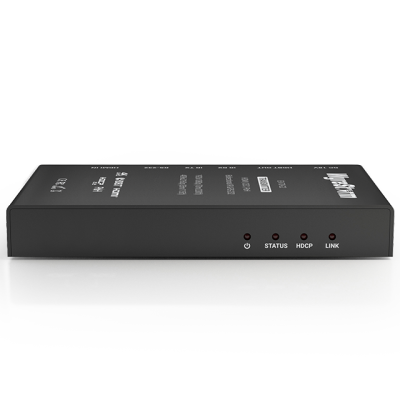

Wyrestorm HDMI 1.4 4K60Hz HDBaseT Extender Set | 4K60Hz 4:2:0 | Bi-directional PoC | RS232 & 2-Way IR Passthrough (4K: 35m/115ft, 1080p: 70m/230ft) (EX70G2)
Sold As: EACH
Wyrestorm HDMI 1.4 4K60Hz HDBaseT Extender Set | 4K60Hz 4:2:0 | Bi-...
Description
Description
Super-compact HDBaseT extender set capable of transmitting 4K UHD video and HD audio formats up to 35m/115ft of Cat5e cable. Also compatible with HDCP2.2 protected content, the EX-70-G2 has powerful bi-directional pass-through of CEC, IR and RS-232. 2-way PoH means device can be powered from either end for flexible installation options.
Inputs
TRANSMITTER
1x HDMI 19-pin type A
RECEIVER
1x HDBaseT 8-pin RJ-45 Female
Outputs
TRANSMITTER
1x HDBaseT 8-pin RJ-45 Female
RECEIVER
1x HDMI 19-pin type A
Output Video Encoding
HDBaseT Class B
Encoding Data Rate
9.2Gbps
End to End Latency
10μs (microseconds)
Audio Formats
2ch PCM | Multi Channel up to Dolby Atmos® and DTS-X™
Video Resolutions (max)
1920x1080p @60Hz 16bit
3840x2160p @30Hz 8bit 4:4:4
3840x2160p @60Hz 8bit 4:2:0
4096x2160p @60Hz 8bit 4:2:0
5120√ó1440 @30Hz
5120√ó1440 @60Hz 4:2:0
Supported Standards
DCI | RGB
Maximum Pixel Clock
HDMI: 300MHz | HDBaseT: 297MHz
COMMUNICATION & CONTROL
HDMI
HDMI | HDCP (v1 chassis 1.4 | v2 chassis 2.2) | EDID Pass-through | CEC Pass-through
DVI/D supported with adapter (not included)
HDBaseT
HDMI | HDCP (v1 chassis 1.4 | v2 chassis 2.2) | EDID Pass-through | 2-way PoH | Bidirectional IR
IR
1x IR TX: 3.5mm (1/8in) TS Mono
1x IR RX: 3.5mm (1/8in) TRS Stereo
RS-232
1x RS-232: 3-pin Phoenix (v2 chassis only)
POWER
Power Supply
18V DC 1A
PoH
IEEE 802.3af 15.4W Max | 2-way
Max Power Consumption
Transmitter: 7W | Receiver: 17W
